Whirlpool CB18M/1c/FAN PRODUCT SHEET

CB18M/1c/FAN PRODUCT SHEET

GB

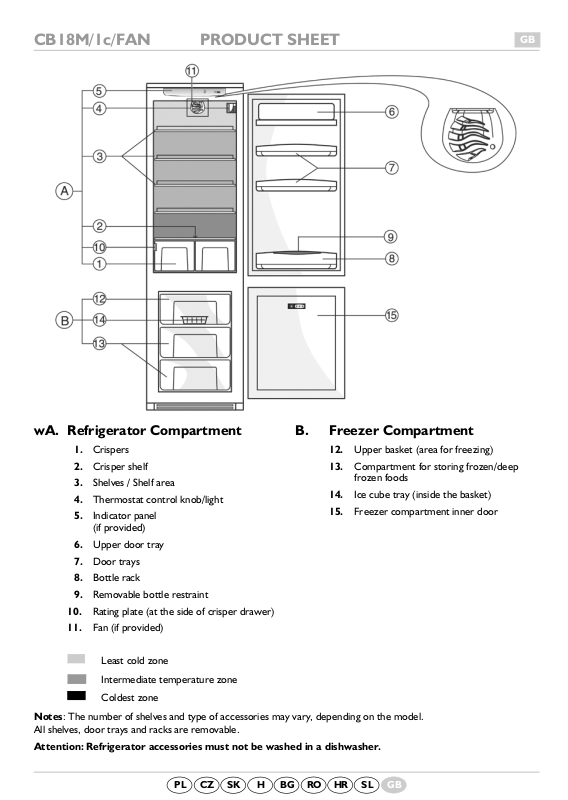

wA. Refrigerator Compartment

Crispers

1.

Crisper shelf

2.

Shelves / Shelf area

3.

Thermostat control knob/light

4.

Indicator panel

5.

(if provided)
Upper door tray

6.

Door trays

7.

Bottle rack

8.

Removable bottle restraint

9.

Rating plate (at the side of crisper drawer)

10.

Fan (if provided)

11.

Least cold zone
Intermediate temperature zone
Coldest zone

: The number of shelves and type of accessories may vary, depending on the model.

Notes

All shelves, door trays and racks are removable.

Attention: Refrigerator accessories must not be washed in a dishwasher.

B. Freezer Compartment

Upper basket (area for freezing)

12.

Compartment for storing frozen/deep

13.

frozen foods
Ice cube tray (inside the basket)

14.

Freezer compartment inner door

15.

HCZ SK BG

RO HR SLPL

GB

CB18M/1c/FAN

The Fridge/Freezer is switched on by means of the thermostat located inside the refrigerator compartment.
The thermostat also serves to adjust the temperature in both the refrigerator and freezer compartments.

Refrigerator compartment controls

Thermostat knob

A.

Light switch

B.

Thermostat control reference

D.

Light bulb (max. 15 W)

E.

Thermostat set to
Thermostat set to
Thermostat set to
Thermostat set to

Recommended thermostat setting: 3-5/MED position.

: The ambient air temperature, the frequency of door opening and the position of the appliance can affect the

Note

internal temperatures of the refrigerator. These factors must be taken into account when setting the thermostat.

1/MIN:minimum refrigeration
3-5/MED:medium refrigeration
7/MAX:maximum refrigeration

z

:

no refrigeration, no light

Indicator panel (if provided)

Green LED

(refrigerator and freezer ON)

Removing the light bulb

Unscrew the bulb anticlockwise as
shown in the figure.

Fan (if provided)

The fan operates automatically.
The fan gives more even temperature distribution inside the refrigerator compartment
thus allowing better conservation of stored food and reduction of excess moisture.

Do not obstruct the fan intake area (11) with food.
