Whirlpool CB 16M /1c, CB 18 M PRODUCT DESCRIPTION

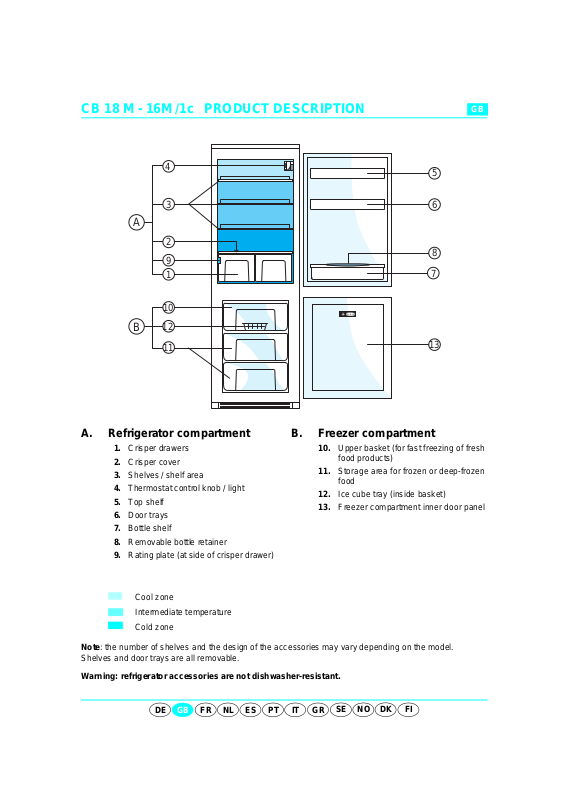

CB 18 M - 16M /1c PRODUCT DESCRIPTION

GB

4

3

A

2

9

1

10

B

12
11

A. Refrigerator compartment

Crisper drawers

1.

Crisper cover

2.

Shelves / shelf area

3.

Thermostat control knob / light

4.

Top shelf

5.

Door trays

6.

Bottle shelf

7.

Removable bottle retainer

8.

Rating plate (at side of crisper drawer)

9.

B. Freezer compartment

Upper basket (for fast freezing of fresh

10.

food products)
Storage area for frozen or deep-frozen

11.

food
Ice cube tray (inside basket)

12.

Freezer compartment inner door panel

13.

5

6

8

7

13

Cool zone
Intermediate temperature
Cold zone

: the number of shelves and the design of the accessories may vary depending on the model.

Note

Shelves and door trays are all removable.

Warning: refrigerator accessories are not dishwasher-resistant.

DE FR NL ES PT GRGB IT

SE NO FI

DK

CB 18 M - 16M /1c

The fridge-freezer is switched on by means of the thermostat knob in the refrigerator compartment. The
thermostat knob also provides temperature adjustment for both the refrigerator and freezer compartments.

Refrigerator / Freezer compartment controls

Thermostat knob

A.

Light switch

B.

Light diffuser

C.

Freeze button

D.

Thermostat control reference

E.

Thermostat setting z: no refrigeration, no light
Thermostat setting 1:
Thermostat setting 7:

The average recommended thermostat setting is 3.

Pressing the freeze button (D) increases freezing power.
Fresh food will be completely frozen after 24 hours and the freeze function should be switched off.
When room temperature is lower than 16°C, activating the freeze function (D) will improve food
storage properties.

minimum
maximum

cooling

cooling

: The room air temperature, the number of times the door is opened and the position of the appliance

Note

will affect the temperature of the fridge and freezer compartments. Take these factors into consideration
when you set the thermostat.

Removing the diffuser

1 - Hold the diffuser as shown and squeeze it slightly
2 - Slide it towards the rear of the appliance

4619 997 78992
