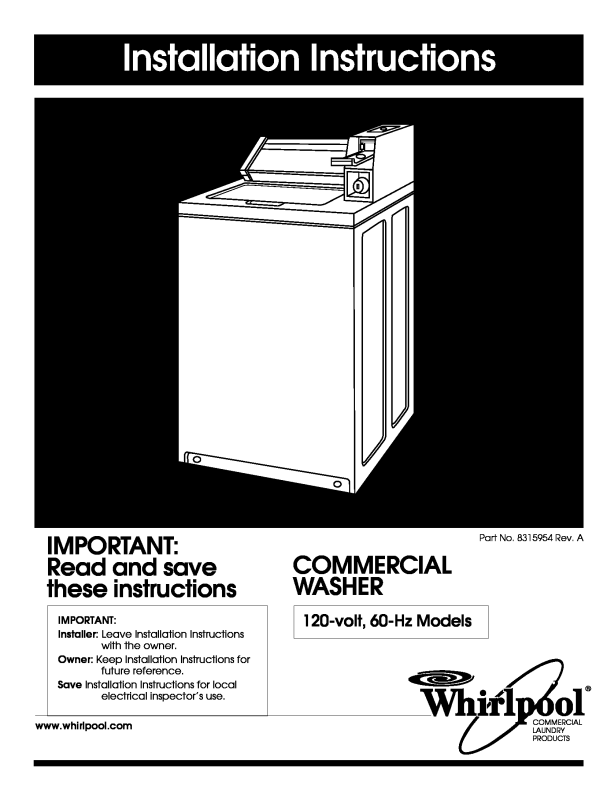

Whirlpool CAM2742TQ3, CAM2762KQ0, CAM2752TQ3, CAM2752RQ0 Installation Guide

IMPORTANT:

Paff No, 8315954 Rev, A

Read and save

these instructions

IM PORTANT: Installer: Leave Installation Instructions

with the owner.

Owner: Keep Installation Instructions for

future reference.

Save Installation Instructions for local

electrical inspector's use.

www.whirlpool.com

COMMERCIAL

WASHER

120-volt, 60-Hz Models

COMMERCIAL LAUNDRY

PRODUCTS

Before you start...

Your safety and the safety of others are very important.

We have provided many important

safety message in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alertsyou to

potentialhazards that can killor

hurtyou and others.

All safety messages will be preceded

by the safety alert symbol and the

word =DANGER" or WVARNING".

These words mean:

Check location where washer will be

installed, Proper installation isyour responsibilily, Make sure you have

everything necessary for correct

installation,

Do Not store or operate washer below 320F (0oC) (some water may remain in washer).

You can be killed or seriously

injured if you don't immediately

follow instructions.

You can be killed or seriously

injured if you don't follow instructions.

All safety messages willtell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the

instructions are not followed.

Single washer

installations require 12-inch (30 cm)

minimum risers to provide an air

cushion and

prevent noise and

damage to valves,

Grounded electrical outlet

is required, See Electrical

requirements,

Hot and cold water faucets: Must be

within 4 feet (1,2 meters) of the back of the washer and provide water

pressure 10 - 100 PSI(69-690 kPa), A pressure reduction valve should be used in the supply line where inlet

pressure entering the building exceeds 100 PSI(690 kPa) to prevent damage to the washer mixing valve,

Untape and

open washer

lid, Remove

packages and hoses from

washer,

screws

Front access to the pump area is available by removing 2 No, T20 Torx screws and then removing the front panel,

Important: Observe all governing codes and ordinances.

PAGE 2

Level floor: Maximum slope under washer- 1 inch (2,5 cm),

A floor drain should be

provided under the bulkhead, Prefabricated bulkheads with

electrical outlets, water supply lines and drain facilities should

be used only where local codes permit,

Water heater: Set to deliver 120°F (49°C)

water to the washer,

Standpipe drain system: Needs a two-

inch (5 cm) minimum carry-away

capacily of 17 gallons (64,4 liters) per

minute, Top of standpipe must be at least 39 inches (99 cm) high and no

higher than 72 inches (183 cm) from

bottom of washer,

Support: Floor must be sturdy enough to support loaded washer weight of 315 pounds (143 Kg),

® Registered trademark of TEXTRON

Recessed area instructions

l_is washer may be installed in a recessed area or closet.

The installation dimensions shown are the minimum spaces allowable,

Additional spacing should be considered for ease of installation

and servicing, If closet door is

installed, the minimum air openings in top and bottom of door are required,

Louvered doors with air openings in top and bottom are acceptable, Companion appliance spacing

should be considered,

l_inim_ml installation spacing

clo_l door

/ V

(/.6 cm)

48 sq. in.

(310 SCl.cm)

24_:1.in. V

(155 scI. cm)

VNN N

Do¢¢o¢¢o¢o_,,,_._4

(7.6 cm)

Tools needed for installation:

level

i i flat-blade

utility knife scissors

Parts supplied for installation:

screwdrivel

Electrical requirements

Electrical Shock Hazard

Plug into a grounded 3-prong outlet. Do not remove ground prong. Do not use an adapter.

DO not use an extension cord. Failure to follow these instructions

can result in death, fire, or electrical shock.

Ifcodes pemnitand a separategroundwire isused,itisrecommended that a quailied eleclnciandeterminethat thegroundpath isadequate.

DoNatgreund toa gas pipe. Check witha qualifiedelecldcianifyouare

notsurethe washerispropedygrounded. DoNot havea fuseinthe neuhalorground

circuit.

A 120-volt, 60-Hz, AC-only, 15-or

20-ampere fused electrical supply is required, (Time-delay fuse or circuit breaker isrecommended,) Itis recommended that a separate circuit serving only this appliance be provided,

Recommended

48 sq. in.

(310 sq.cm)

(I 55 sq. cm)

17"

(43cm)

4 e

(I 0 cm)

min.

Remove parts from packages, Check

that all parts were included,

I hose clamp

2 inlet hoses 4 flat water hose washers

2 front-leveling legs with nuts

I drain hose

ground method

Foryour personal setely, this appliance

must be grounded, Thisappliance is equipped with a power supply cord having 3-preng ground plug, To minimize possible shock hazard, the card must be plugged into a mating 3-prong greund- Iype outlet, grounded in accordance with

local codes and ordinances, See Figure 1,

Ifa mating outlet isnot available, it isthe personal responsibilily and obligation of the customer to have a properly grounded 3-preng outlet installed by a qualified

electrician,

WARNING - Improper connection at the equipment-greunding conductor con

resuifina riskof eleclnc shock. Check with a quoifieq electdcion or serviceman if you

ore in doubt as to whether the appliance is properly grounded, Do not modify the plug provided with the appiance - if it will not fit the ouifet, have a proper outlet installed by a quaifieq electrician.

3-pron groun_:P

PAGE 3

6cm,

plug _

power supply cord Figure 1

ground

Now start...

Excessive Weight Hazard

Use two or more people to move

and install washer.

Failure to do so can result in back

or other injury.

shipping

lm Remove tape that covers

shipping strap, Pull to completely remove the shipping strap with 2 colfferpins from the inside

of the washer,

Usa now hoses and washers that came

with your Whirlpool washer.

Replace inlet hoses after 5 years of use

to reduce the risk of hose failure,

Inspect and replace inlet hoses if bulges, kinks, cuts, wear, or leaks are

found, When replacing your inlet hoses,

mark the date of replacement on the label with a permanent marker,

mPlace ho_e clamp over washer drain connector, Push drain hose onto washer connector, Use pliers to open

coupling washer

mInsert a flat washer into each end

of the inlet hoses, Check that washers are firmly seated in couplings,

Inlets are plastic.

Do Not stdp or

crossthroad.

cold Chock that hoso is not water twisted or kinked and is

inlet socuroly in placo. vaive

hotwater inletvalve

clamp and slide clamp over drain hose, Check for good fit,

dmL

_[_D• Measure and mark a point

approximately 16 inches (40,6 cm) from the plug end of the shipping strap, Cut this shipping strap at this point,

Put "hook" end of drain

hose into standpipe, Tightly wrap the shipping strap around the standpipe, Push plug into

the nearest hole in the shipping strap,

Pull firmly to remove the end of shipping strap from the back of the washer, The shipping strap plug must

be completely removed from the washer for the self-leveling legs to

be released,

Save tho shipping strap for uso in Step 6.

PAGE 4

| aAltach hose to boltom inlet alffaching water

valve opening first, Then second hose inlet hoses, run

3 7•g ore

to top inlet, Tighten couplings by water through =

additional two-thirds turn, a bucket, This will

hand; then use pliers to make an both faucets into _'iit

B Move washer close to final make final two-thirds turn,

position, Put "hook" end of drain hose into standpipe, Estimate length of

drain hose needed when washer is in final position, Hose must be cut exactly to length so "hook" end is

held tightly over edge of standpipe, If

drain hose istoo long, cut straight end of hose, (Do Not cut "hook" shaped

and of drain hose.)

DO NOTFORCEEXCESSLENGTHOF DRAINHOSEDOWN THESTANDPIPE.

THISCOULDCAUSESIPHONING.See

Step 6.

get rid of particles

in water lines that

Mark which isthe hot water faucet,

_;mAltach bolffom hose (inlet

might clog hoses,

Altach top hose (inlet marked "C') to

marked "H') to hot water faucet,

cold water faucet, Tighten coupling to faucet by hand; then use pliers to

dllk

_ mStack two corner posts on top of

each other, Tiltwasher backwards and

insert corner posts 3 inches (7,6 cm) in

from one side of washer as shown,

Repeat with other corner posts on other

side of washer,

112"

(1.3 cm)

bose

L nut

1 U • Use legs and nuts from parts

package, Screw nut down to within

1/2 inch (1,3 cm) of

base,

11.

Insert legs into correct holes at each front corner

of washer until nuts touch washer, Da Not tighten nuts until Step 14,

2 mTiltwasher backward and

remove corner posts, Gently lower washer to floor,

Move washer to its permanent location. Remove cardboard or

hardboard from under washer.

1_ raising

back legs 1 inch (2,5 cm) off of floor, To adjust rear self-leveling legs, gently

lower washer to floor, Check levelness of the washer by placing a

carpenter's level on top of the washer, first side to side; then front to

back,

5 • Remove the service door of

the meter case, Lift the service door

up at the back and remove, Install money accepting device (refer to manufacturers instructions for proper installation), For machines using coin

slides, use adapter kit (provided with

unit), Replace meter case service

door,

l_)a CHECKELECTRICAL

REQUIREMENTS.BESUREYOU HAVE

CORRECTELECTRICALSUPPLYAND

RECOMMENDEDGROUNDING METHOD.

17.

Check that all parts are now installed,

See parts list, Page 3, If there isan extra part, go back through steps to see which step was skipped,

1 _% mTurn on water faucets and

check for leaks, Tighten couplings if there is leaking, Do Not overtighten; this could cause damage to faucets,

1•For electrolmechnical

models only. Check the wash cycle

time, The washer has a 9-minute wash

in the Normal Cycle, Remove the

timer from the meter case of the washer to manually start the timer,

Start the washer and allow it to complete the Normal cycle,

Rotate counterclockwise

Timer-frontview

Timers can be started by turning the clutch assembly counterclockwise

until the washer starts to fill with water,

2 • If the washer fails to start or

does not give the proper washer cycle time, the clutch assembly of the timer can be adjusted, Remove the timer from the meter case, Adjust the clutch assembly screw clockwise if

the washer does not start after the coin slide mechanism has been fully

actuated in or out, Adjust the clutch assembly counterclockwise if the washer segment of the Normal cycle

was less than 9 minutes,

timer "off" position

4mlf washer isnot level, adjust

the front legs up or down, Make final check with level,

When washer is level, use wrench to turn nuts on front legs up tightly against washer base. If nuts are not

fight against washer base, the washer may vibrate.

PAGE 5

tqk

m _j! •Check that you have all of your tools, Check that the shipping strap was removed from the back of

the washer and used to secure the drain hose,

If entire strop is not removed, washer may vibrate and be noisy.

0 • Plug power supply cord into

grounded outlet,

timer clutch adjuslment screw
