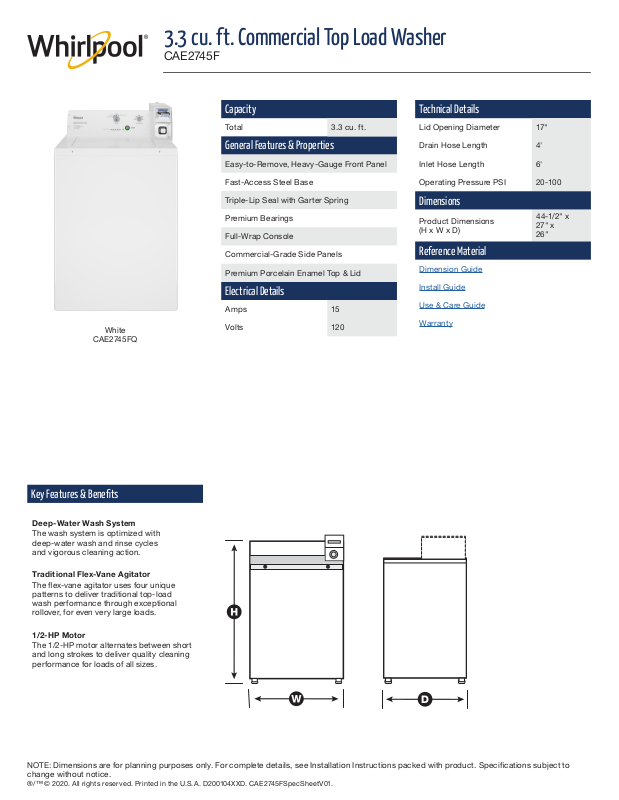

Whirlpool CAE2745FQ Specsheet

3.3 cu. ft. Commercial Top Load Washer

CA E2745 F

White

CAE2745FQ

Capacity

Total 3.3 cu. ft.

General Features & Properties

Easy-to-Remove, Heavy-Gauge Front Panel

Fast-Access Steel Base

Triple-Lip Seal with Garter Spring

Premium Bearings

Full-Wrap Console

Commercial-Grade Side Panels

Premium Porcelain Enamel Top & Lid

Electrical Details

Amps 15

Volts 120

Technical Details

Lid Opening Diameter 17"

Drain Hose Length 4'

Inlet Hose Length 6'

Operating Pressure PSI 20 -100

Dimensions

Product Dimensions (H x W x D)

44-1/2" x 27" x 26"

Reference Material

Dimension Guide

Install Guide

Use & Care Guide

Warranty

Key Features & Benets

Deep-Water Wash System

The wash system is optimized with deep-water wash and rinse cycles and vigorous cleaning action.

Traditional Flex-Vane Agitator

The ex-vane agitator uses four unique patterns to deliver traditional top-load wash performance through exceptional rollover, for even very large loads.

1/2-HP M otor

The 1/2-HP motor alternates between short and long strokes to deliver quality cleaning performance for loads of all sizes.

NOTE: Dimensions are for planning purposes only. For complete details, see Installation Instructions packed with product. Specications subject to change without notice.
