Page 1

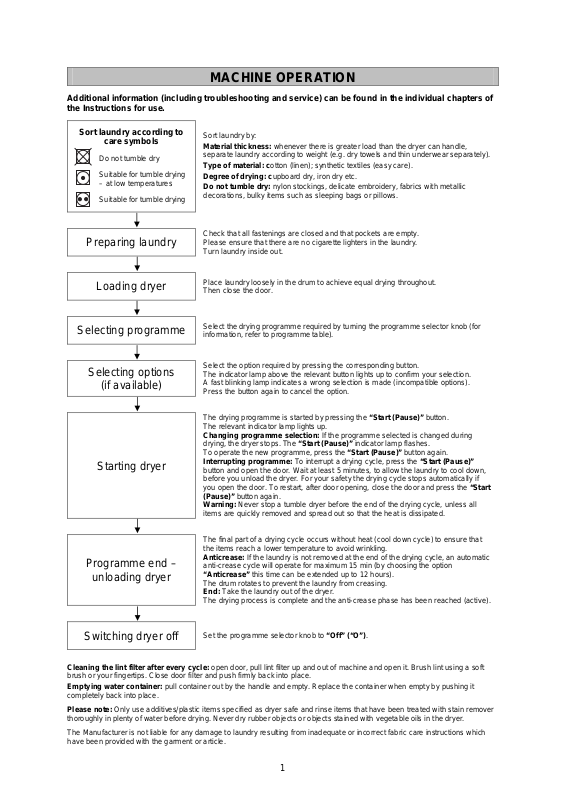

MACHINE OPERATION
Additional information (including troubleshooting and service) can be found in the individual chapters of
the Instructions for use.
Sort laundry according to
care symbols
Do not tumble dry
Suitable for tumble drying
– at low temperatures
Suitable for tumble drying
Preparing laundry
Loading dryer
Selecting programme
Selecting options
(if available)
Starting dryer
Programme end –
unloading dryer
Sort laundry by:
Material thickness: whenever there is greater load than the dryer can handle,
separate laundry according to weight (e.g. dry towels and thin underwear separately).
Type of material: cotton (linen); synthetic textiles (easy care).
Degree of drying: cupboard dry, iron dry etc.
Do not tumble dry: nylon stockings, delicate embroidery, fabrics with metallic
decorations, bulky items such as sleeping bags or pillows.
Check that all fastenings are closed and that pockets are empty.
Please ensure that there are no cigarette lighters in the laundry.
Turn laundry inside out.
Place laundry loosely in the drum to achieve equal drying throughout.
Then close the door.
Select the drying programme required by turning the programme selector knob (for
information, refer to programme table).
Select the option required by pressing the corresponding button.
The indicator lamp above the relevant button lights up to confirm your selection.
A fast blinking lamp indicates a wrong selection is made (incompatible options).
Press the button again to cancel the option.
The drying programme is started by pressing the “Start (Pause)” button.
The relevant indicator lamp lights up.
Changing programme selection: If the programme selected is changed during
drying, the dryer stops. The “Start (Pause)” indicator lamp flashes.
To operate the new programme, press the “Start (Pause)” button again.
Interrupting programme: To interrupt a drying cycle, press the “Start (Pause)”
button and open the door. Wait at least 5 minutes, to allow the laundry to cool down,
before you unload the dryer. For your safety the drying cycle stops automatically if
you open the door. To restart, after door opening, close the door and press the “Start
(Pause)” button again.
Warning: Never stop a tumble dryer before the end of the drying cycle, unless all
items are quickly removed and spread out so that the heat is dissipated.
The final part of a drying cycle occurs without heat (cool down cycle) to ensure that
the items reach a lower temperature to avoid wrinkling.
Anticrease: If the laundry is not removed at the end of the drying cycle, an automatic
anti-crease cycle will operate for maximum 15 min (by choosing the option
“Anticrease” this time can be extended up to 12 hours).
The drum rotates to prevent the laundry from creasing.
End: Take the laundry out of the dryer.
The drying process is complete and the anti-crease phase has been reached (active).
Switching dryer off
Set the programme selector knob to “Off” (“O”).
Cleaning the lint filter after every cycle: open door, pull lint filter up and out of machine and open it. Brush lint using a soft
brush or your fingertips. Close door filter and push firmly back into place.
Emptying water container: pull container out by the handle and empty. Replace the container when empty by pushing it
completely back into place.
Please note: Only use additives/plastic items specified as dryer safe and rinse items that have been treated with stain remover
thoroughly in plenty of water before drying. Never dry rubber objects or objects stained with vegetable oils in the dr yer.
The Manufacturer is not liable for any damage to laundry resulting from inadequate or incorrect fabric care instructions which
have been provided with the garment or article.
1
Page 2
Programmes / Drying levels
Extra dry
Cupboard dry
Cotton
W
plus
Cupboard
dry
Iron dry
Extra dry
VW
Cupboard
dry
Synthetic
Iron dry
Delicate
Plus
V
Mixed load
Jeans
Silk
Special programmes
Sport
Overview of programmes Options
Type of textile
Extra dry
Cupboard dry +
Cupboard dry*
Iron dry*
Extra dry
Cupboard dry*
Iron dry
Delicate plus
Mixed load
Jeans Jeans, working trousers and jackets.
Silk Blouses, shirts and T-shirts.
Sport
Multi-layered, thick laundry such as: terry
towels, terry towelling bath robes.
Terry towels, dry towels, bed linen,
underwear
Similar types of laundry which do not
require ironing such as: dry towels, bed
linen, underwear, baby clothes, T-shirts,
cotton socks.
Laundry which requires ironing such as:
bed and table linen, dry towels, T-shirts,
polo shirts, work clothes.
Laundry with thick, multi-layered areas
such as: bed and table linen, track suits,
anoraks, blankets.
Laundry which does not require ironing
such as: shirts, blouses, T-shirts,
sportsware.
Laundry which requires ironing such as:
trousers, dresses, skirts, shirts, blouses.
Low drying intensity for delicates and
items such as: trousers, dresses, shirts,
blouses.
T-shirts, blouses, towels, underwear,
sportswear.
Sport clothes, functional underwear,
running tights.
Fabrics
Cotton or linen hot wash /
coloured laundry
Cotton
Max. 9.0 kg
Synthetic, mixed fibre or cotton easy care
(ironing not required) laundry
Synthetics
Max. 4.5 kg
Laundry made from synthetic fibres such as
polyamide, nylon, polyacrylic, etc.
2.5 kg
Cotton – synthetic blend
3.0 kg
Cotton
3.0 kg
Textiles made of silk
2.5 kg
Synthetic
2.5 kg
Approximate drying
times (in minutes)
Anticrease
Gentle
X X X X X X X X 210 180
X X X X X X X X 185 160
X X X X X X X X 160 135
X X X X X X X X 130 110
X X – X X X X X 95 70
X X – X X X X X 70 50
X X – X X X X X 60 45
X X – X X X X X 85 70
X X – X X X X X 80 60
X X – X X X X X 80 60
X X – X X X X X 85 70
X X – X X X X X 85 70
Rapid
adjustment
Dryness
Pause
Start
(Pause)
Key lock
Finish in
Reset
Reset
Very
wet load Wet load
Laundry is aired, refreshed and loosen
up for 30 minutes without heating.
Airing
Completes drying (suitable for all
fabrics)
items
Drying
*Test programmes according to EN61121, tested with maximum rated load capacity.
All textiles.
Airing
Drying time
10’ 20’ 30’ 40’ 50’ 60’ 70’ 80’ 90’ 100’ 110’ 120’
– – – – X X X X 30’ –
X X – X X X X X
10’ 20’ 30’ 40’ 50’
60’ 70’ 80’ 90’
100’ 110’ 120’
2
Page 3
HOW TO PROCEED IF…
...you want to check the dryer yourself first: (If your machine is not functioning correctly, please check the
following points before calling the customer service – also refer to relevant chapter in the Instructions for use)
Has the correct drying programme been selected?
Has the cycle been interrupted (door opening, full water container)?
Was the inserted laundry too wet (washing machine spin speed less
than 1000 rpm)?
Is the lint filter dirty (filter indicator light on)?
Is the heat exchanger dirty (for more information, refer to the
Drying takes too long /
Laundry is not dry
enough
The dryer does not
operate (after a power
failure, always press
the “Start (Pause)”
button)
Filter, water container
indicator lamp on
Water droplets
underneath the dryer
Instructions for use)?
Is the room temperature too high?
Is the “End” and “Anticrease” indicator lamp lighting up?
The drying cycle is complete and the laundry can be taken out.
If the drying result does not meet your expectation, select a more dry
programme or use the dryness adjustment option (if available) to
optimize the drying result.
Is thin and thick load mixed? Are different types of materials mixed?
Sort the laundry after thickness and material and dry again.
Is the plug properly inserted into the mains electricity socket?
Is there a power failure?
Has the fuse blown?
Is the door properly closed?
Has a drying programme been selected?
Has the “Start (Pause)” button been pressed?
Has the start delay option been selected?
Is the dryer overloaded? Please remove a part of the load.
Is the lint filter clean?
Is the water container empty?
Has the water container been inserted correctly?
Is the heat exchanger clean and inserted correctly?
Has the heat exchanger been inserted correctly?
Have all lint on the heat exchanger seal and the door seal been
wiped away?
Has the water container been inserted correctly?
If the direct drain connection is used, is it tight?
Is the dryer leveled?
...you want to care of and clean your dryer:
Clean the filter at the
end of every cycle
Empty the water
container at the end of
every drying cycle
Clean the heat
exchanger at least
once a month
Brush lint using a soft brush or your fingertips.
Close the filter.
Push the filter back into place.
Pull the handle to remove the water container.
Empty the water container.
Replace the water container when empty by pushing it completely
back into place.
Clean the heat exchanger under running water.
Remove all fluffs from the seals.
Clean the heat exchanger housing (for further information see
chapter “Cleaning the heat exchanger” in the Instructions for use).
3
Page 4

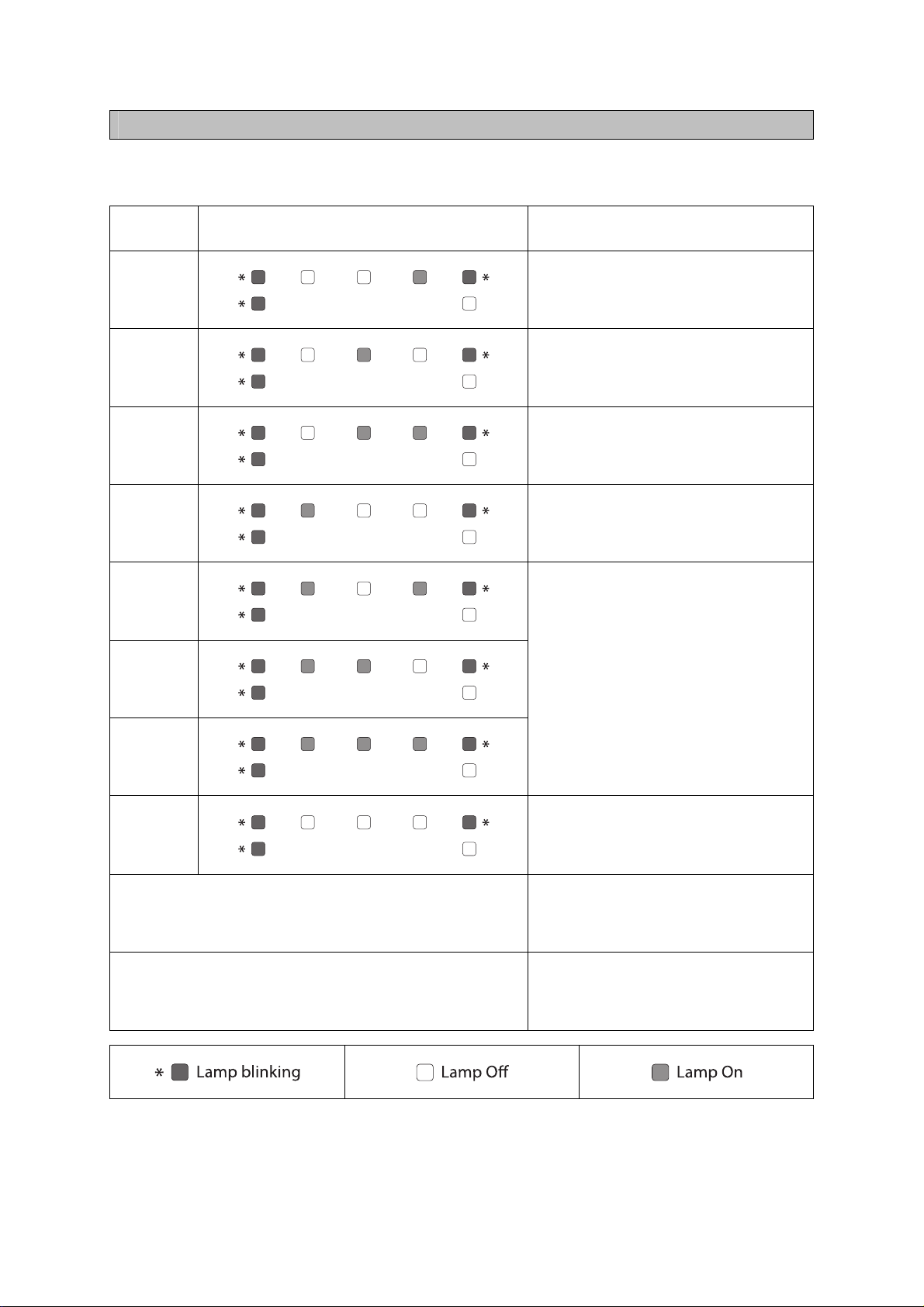

FAILURE CODES
In case of a malfunction of the dryer, one the following failure codes could be displayed.
Depending on the model of your dryer, the failure can be displa yed in letters or by different blinking lamps.
Failure
code
F01
F02
F03
F04
F05
F06
Lamps failure code
Check needed by customer before
Service call
Please call the After-Sales-Service.
Please call the After-Sales-Service.
Please call the After-Sales-Service.
Please call the After-Sales-Service.
Turn OFF the dryer.Unplug the dryer.
Assure that the ambient temperature is
between 5°C and 35°C. Wait for 1 hour.
Plug the dryer again and restart the dryer.
If the failure occurs again, please call the
After-Sales-Service.
F07
Turn OFF the dryer. Unplug the dryer. Wait
F10 – F22
Start lamp is blinking 2 times per second when it is pressed
Bottom filter lamp is blinking or Door filter lamp is blinking
2 times per second when the Start button is pressed
for 30 minutes. Plug the dryer again and
restart the dryer. If the failure occurs again,
please call the After-Sales-Service.
Assure that the door is correctly closed and
heat exchanger correctly positioned.
Assure that the heat exchanger is correctly
positioned.
4
Page 5
Before using the machine, please also read the instructions for use carefully!
A
r
A

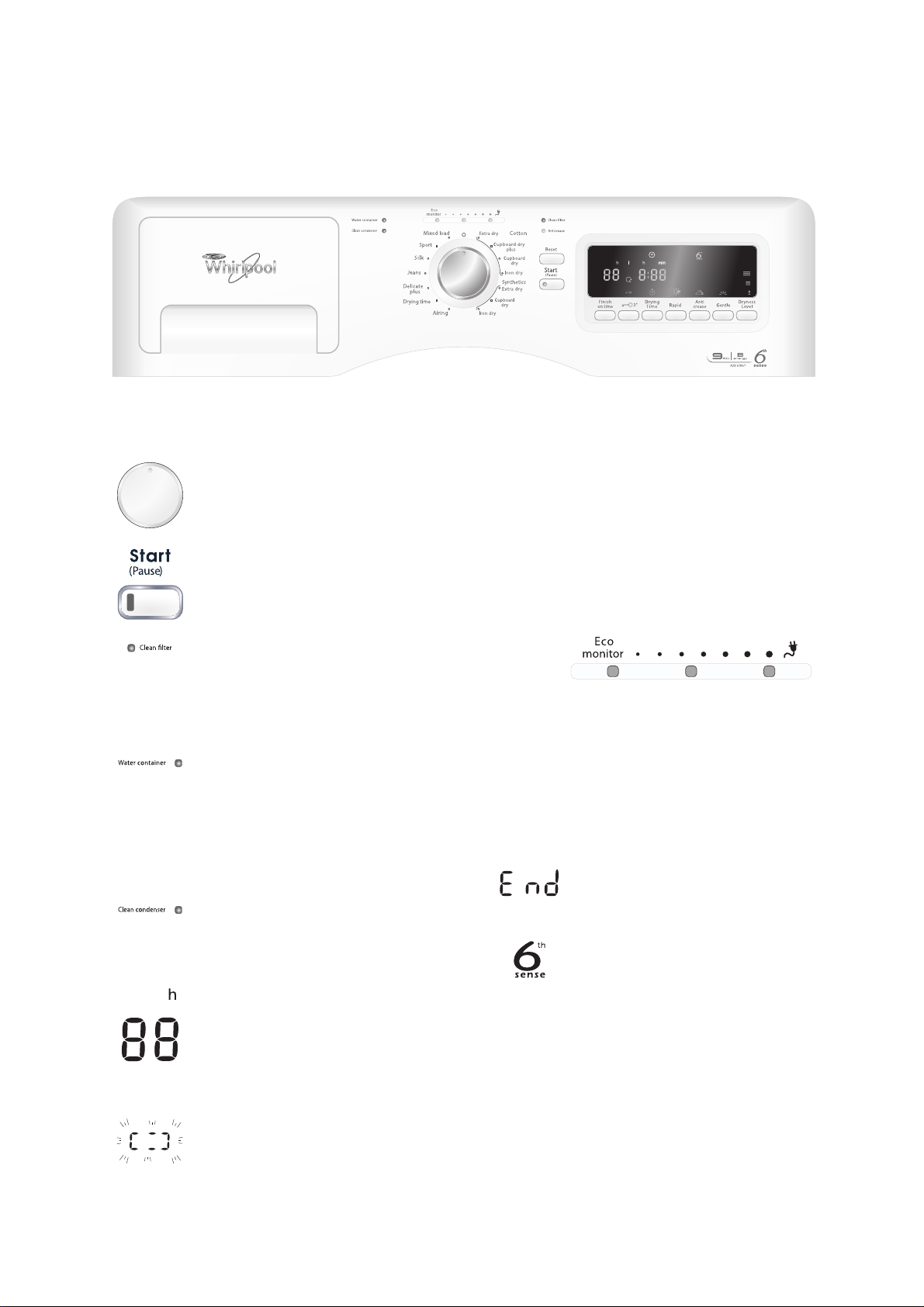

AZB 9780/1 – Quick Reference Guide

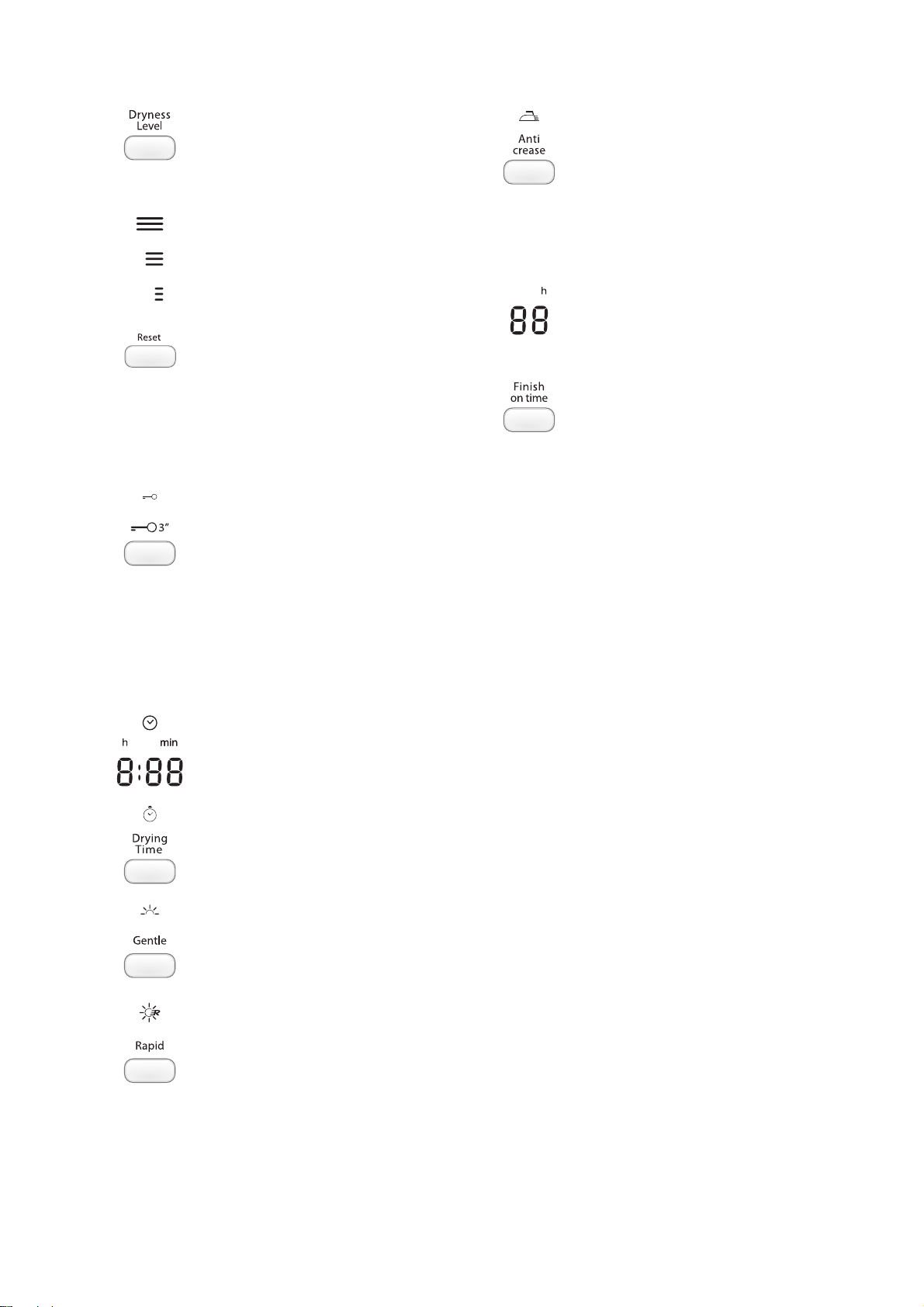

Indicator lamps and Options
Programme selector knob
The drying programme is selected by turning
this knob.
The “Start (Pause)” indicator lamp flashes.
“Start (Pause)” button
The drying programme is started by pressing
this button.
The indicator lamp lights up.
Filter
The indicator lamp lights up when the filter
and/or heat exchanger including housing
needs to be cleaned.
Clean the filter at the end of every
drying cycle.
Water container
The indicator lamp lights up when the water
container needs to be emptied.
The drying cycle is automatically interrupted.
Empty the container and restart the drying
programme.
Empty the water container after every
drying cycle
Clean heat exchanger
The Led lights up after 30 cycles when the
heat exchanger needs to be cleaned.
Clean the heat exchanger.
“Remaining time” display
Depending on the programme selected a
default drying time is displayed.
fter start of cycle the time displayed is
corrected depending on the volume, type and
moisture of the laundry.
The drying time specified is a calculated
value which will be updated during the
drying cycle.
The flashing lines indicate that the calculation
is running.
The remaining time will be updated.
Eco Monito
The “Eco monitor” gives you a rough
feedback about the energy consumption of
the selected programmes.
This function will not work for a time based
programme.
s soon as you turn the programme selector
to any humidity steared programme, the
“Eco monitor” lamps will indicate the
expected energy consumption.
The three indicators show the degree of
consumption: the less energy your
programme setting is forecasted to consume,
the less indicators will light up.
This depends on the programme, initial
moisture and options selected, and also on
the size of the load.
For that reason, the forecasted degree of
energy consumption may adapt when the
tumble dryer detects the load size.
End
The drying programme is finished.
Please unload the dryer
.
Overdry protection / 6th Sense
The indicator lights up when a humidity
controlled programme is selected, to indicate
the activated protection function.
5
Page 6
Dryness level
A
A
By selecting this option you can adjust the
dryness level of the laundry.
fter the selection of the desired programme
you can choose the dryness level by pressing
the button.
Pressing 1 time you select a more dry level
or
Pressing 2 times you select a less dry level
or
Pressing 3 times you select again normal dry
.
level
Reset
During the selection phase of the
programme, pressing this button will switch
off all settings of selected options.
During running drying cycle the pressing of
the button will stop the cycle and set the
dryer back in selection mode.
The button needs to be pressed for
3 seconds.
Key lock
For child protection reasons, this option can
be used to lock all functions of the user
interface.
To activate this option, the button needs to
be pressed for 3 seconds, until the “key”
symbol at the display appears.
To deactivate this option, press the button
until the “key” symbol disappears.
The key lock function is still active even when
the selector knob is turned to “off” position
or the door is opened.
The function has to be deactivated.
Dry time adjustment
Turn the programme selector knob to
“Drying Time” position.
Press the button “Drying time” to select the
duration of cycle in ten minutes steps up to
120 minutes.
nticrease
This option can be chosen to reduce
wrinkling, when the laundry is not unloaded
directly after end of the cycle.
The drum turns from time to time for
maximum 12 hours.
It can be interrupted at any time by switching
off the dryer.
This option deactivates the “Buzzer”
function, if it is activated.
Finish in
With this function you can postpone your
programme to complete at a later time: press
the button to select in how many hours the
programme shall be finished.
Thus, it allows you to have your laundry
ready at a particular time and to profit
from more favorable energy rates during
the night, for example.
The “Finish in” function can be selected
in full hour time segments (1 to 24 h).
When you press the button, the shortest
possible time will be displayed; keep on
pressing the button to loop through all the
available times.
To remove it again, set the index of the
programme selector knob to the “Off”
position.
When you have selected the desired
“Finish in” time, press “Start” – the
countdown will begin.
During the countdown, you can still
modify the option setting (select or
deselect options).
Sometimes the programme may finish
before the selected “Finish in” time has
expired (e.g. for small loads).
In this case, the dryer will tumble the
laundry regularly to keep it fresh, until the
selected “Finish in” time has expired.
During tumbling, the display will show an
animation.
The tumbling phase can be stopped at
any time either by pressing any button, by
rotating the programme selector or by
opening the door.
Gentle
Selecting this option will reduce the drying
temperature.
This option cannot be selected when the
option “Rapid” is selected.
Rapid
Selecting this option reduces the drying time.
This option should only be selected for cotton
programmes, with a maximum load of 3.5 kg.
The garments shall have similar size and
thickness.
5019 307 01584
6
(Subject to technical modifications)
Loading...
