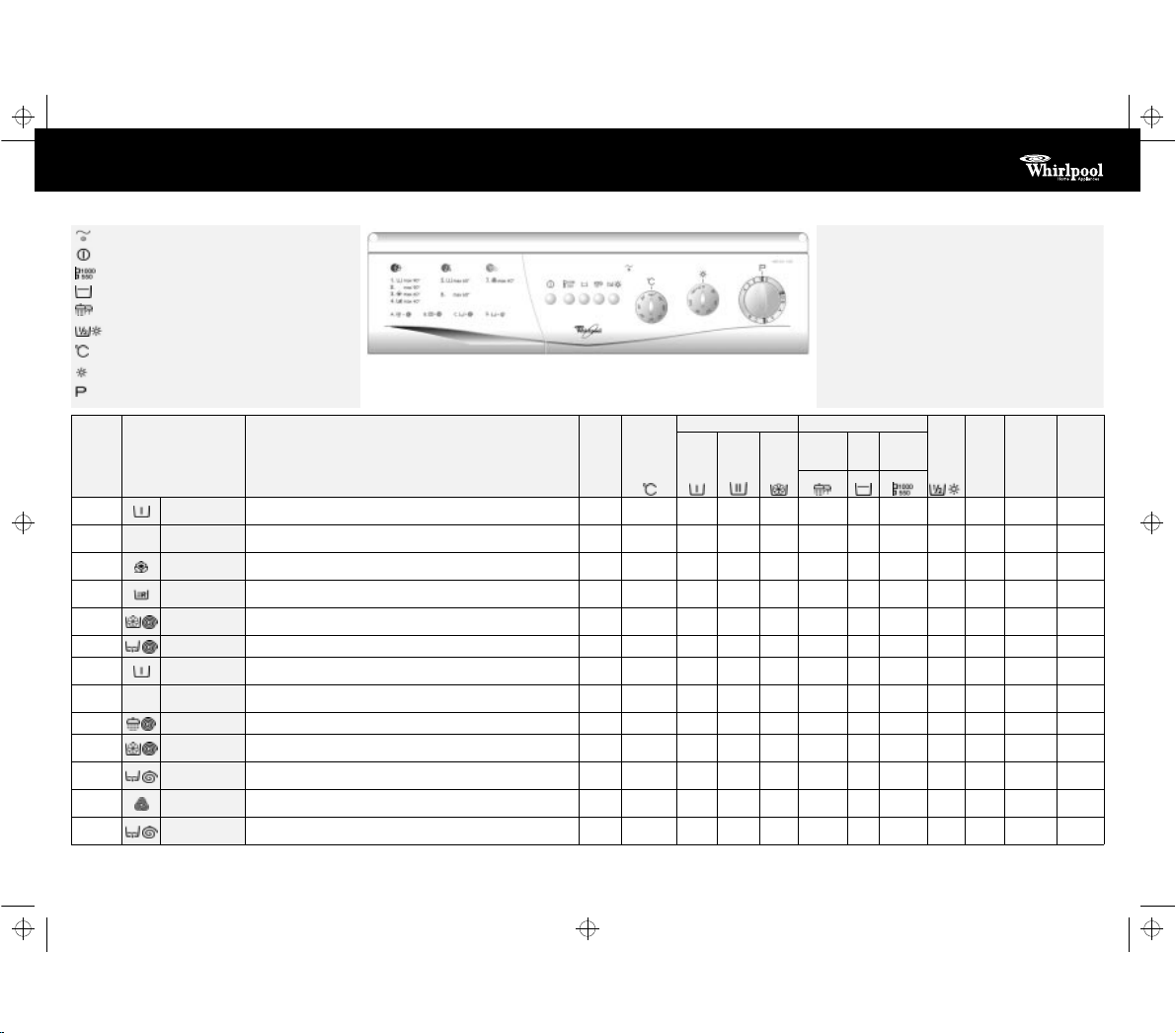

Page 1
5019 301 20159
Whirlpool is a registered trademark of Whirlpool USA.
* drying times for guidance only.
These times will be perfected with experience and use.
Programme
selector
knob
Programme Type of load/Notes
Max.
Load
washing
Kg
Washing
temperature
selector
Washing
Detergent and Additives Options 1/2
load
for
drying
Max.
Drying
Load
Approx
Time
Iron
Drying
Load
*
Approx
Time
Cupboard
Drying
Load
*
Pre-
wash
Main
wash
Fabric
Softener
Intensive
Rinse
Rinse
and
Hold
Spin speed
Reduction
1
Cotton with prewash
Heavily soiled, hard-wearing cotton and linen fabrics (bedlinen, table linen,
underwear, shirts etc.).
5.0 Max. 90° yes yes LL—
1000
550
L 2.5 kg 80/120 140
2
Cotton
Normally soiled bed linen, table linen and underwear, towels, shirts etc. made of
cotton or linen.
5.0 Max. 90° — yes LL—
1000
550
L 2.5 kg 80/120 140
3
Coloured Cotton Average to heavily soiled, hard-wearing cotton or linen fabrics. 5.0 Max. 60° — y es LL—
1000
550
L 2.5 kg 80/120 140
4
Quick wash
Normally soiled bed linen, table linen and underwear, towels, shirts etc. made of
cotton or linen.
5.0 Max. 40° — yes LL—
1000
550
L 2.5 kg 80/120 140
B
Special rinse for
cottons
Programme for treating laundry with starch and/or softener. The programme ends with
an intensive spin cycle.
5.0 — — — LL—
1000
550
— 2.5 kg 80/120 140
C
Drain + Spin
Drain, with final spin. Alternative method for unloading laundry earlier.
5.0 — — — — — — — — — — —
5
Synthetic with
prewash
Heavily soiled shirts, blouses, aprons, etc. made of polyester (diolen, trevira),
polyamide (perlon, nylon) or cotton blends.
2.5 Max. 60° yes yes L — L 550 L 1.5 kg 30/40 50
6
Synthetic
Lightly to normally soiled blouses, t-shirts, aprons, etc. made of polyester (diolen,
trevira), polyamide (perlon, nylon) or cotton blends.
2.5 Max. 60° — yes L — L 550 L 1.5 kg 30/40 50
A
Rinse
Rinse program, ending with a spin cycle.
2.5 — — — L — L 550 — 1.5 kg 30/40 50
B
Special rinse for
synthetic fabrics
Programme for treating laundry with starch and/or softener. The programme ends with
an intensive spin cycle.
2.5 — — — L — L 550 — 1.5 kg 30/40 50
D
Drain + Spin
Drain, with final spin. Alternative method for ending the “Synthetic”, “Delicate” and
“Wool” programmes and for unloading the laundry earlier.
2.5 — — — — — — 550 — 1.5 kg 30/40 50
7
Wool
Only machine washable woollens with Pure New Wool label.
If you select “Rinse and Hold” do not leave items to soak for too long.
1.0 Max. 40° — yes
L
—
L
550 — — — —
D
Drain + Spin
for woollens
Drain, with final spin. Alternative method for ending the “Synthetic”, “Delicate”
and “Wool” programmes and for unloading the laundry earlier.
1.;0 — ——— ——— —— — —
“On/Off” indicator light
“On/Off” Button
“Spin Speed Reduction” Button
“Rinse and Hold” Button
“Intensive Rinse” Button
“Dryer Half Load” Button
Washing “Temperature” Selector Knob
“Drying Time” Selector Knob
“Washing Program” Selector Knob
Avoid touching the glass door during and immediately after
running the drying cycle since it will be hot.
Do not dry fabrics that have been treated with solvents or
petroleum based products, sleeping bags, duvets or bulky clothing.
Avoid drying clothing excessively in order to prevent creasing and
difficult ironing.
For hand-washed items, remove excess water using the highest
spin speed before starting the drying cycle.
L: option / Yes: add the detergent.

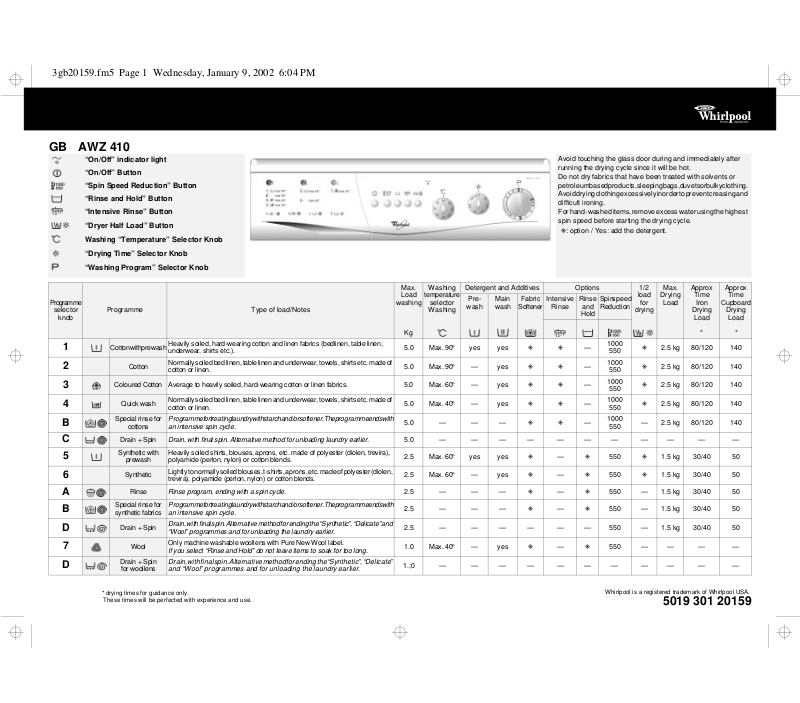

AWZ 410
GB
3gb20159.fm5 Page 1 Wednesday, January 9, 2002 6:04 PM
Page 2
5019 301 20159
Whirlpool is a registered trademark of Whirlpool USA.
The use of the prewash cycle increases programme duration by approximately 15 min. Consumption data was calculated
based on normalized conditions in compliance with Standard IEC 60 456. The data on the “Energy Label” refers to
programme “Coloured Cotton 60°C”. Consumption data in the home may vary with respect to the values in the table in
relation to the water supply pressure and temperature, the load and the type of wash. The drying times shown may vary
based on the spin speed and type of fabric.
Add the detergent as described in the programme
table or in the chapter “Detergent and Additives” in
the booklet.
1. Make sure that the Programme selector is set to
“Stop”.
2. Open the water tap.
3. Set the Programme Selector to the desired
programme.
4. Set the thermostat knob to the desired
temperature.
5. Set the spin selector knob to the desired speed.
6. Special options can be selected, if required.
7. Check that the door is well closed and turn on the
washer-dryer by pressing the “ON/OFF”
button. The indicator light comes on, indicating
that the washer-dryer is on.
“Dryer half load” button
(depending on model)
“Intensive Rinse” button
(depending on
model)
• The quantity of water duration of the rinse cycle
are increased.
• This option is especially recommended in areas
with extremely soft water, for baby linen and
linen belonging to skin allergy sufferers.
“Rinse and Hold” button (depending on
model)
only for synthetic andwool programmes
• The laundry remains in the final rinse water
without progressing to the final spin cycle to
avoid creasing and prevent colours from running.
• This option is particularly recommended for the
programmes “Synthetics” or “Delicate”.
• This function is particularly useful if you want to
postpone spinning to a later time or when you do not
wish to spin the clothes.
To terminate the “Rinse and Hold” option
(depending on the model)
synthetic and woolprogrammes only
• Press the Rinse and Hold button again; the load
will be spun according to the selected
programme.
If you do not wish to spin the clothes, turn the
programme selector knob to the Drain cycle, after
pressing the “No Spin“ button.
“Spin Speed Reduction” Button
Reduces or increases the spin speed from 1000 to
550.
CONSUMPTION DATA
Programme
Temperature
Selector
()
Load
(kg)
Water
(l)
Energy
(kWh)
Approx.
Programme Duration
(hours:minutes)
1 - Cotton 90° 5.0 57 1.85 2:28
2 - Cotton 90° 5.0 50 1.07 2:08
3 - Cotton 60° 5.0 53 0.97 2:00
4 - Cotton 40° 5.0 53 0.60 1:55
5 - Synthetics 60° 2.5 60 0.83 1:15
6 - Synthetics 60° 2.5 60 0.42 1:00
7 - Wool 40° 1.0 61 0.32 0:48
ADD THE DETERGENT, CLOSE THE DOOR
AND SELECT THE PROGRAMME
SELECT THE DESIRED OPTIONS
The door locks automatically after the programme
start until the end of the programme. If the
programme selector is moved to the “Stop” position
or if the electricity supply is interrupted, then after
approximately two minutes the door is released. In
this case do not open the door: because hot water
could come out of the door.
To change a programme when a cycle has already
begun:
1. Switch off the appliance by pressing the
“ON/OFF” button.
2. Select the new programme.
3. Start the programme by pressing the
“ON/OFF” button.
To interrupt the selected programme and continue
it at a later time:
1. Press the “ON/OFF” button.
2. After the desired interval has passed, press the
“ON/OFF” button again.
1. At the end of the programme the programme
selector moves to the “Stop” position.
2. To unload the machine wait for the door to
release (approx. 2 minutes).
3. Switch off the appliance, open the door and
unload the washing.
4. Close the water tap and leave the door ajar to
allow the drum to dry out.
1. Load the machine according to the maximum
drying load table.
The drying function can only be used for cotton
and synthetic programmes (not wool) and
starts when the knob reaches the programme
stop mark.
It is important that the laundry has been spun
and was washed with water.
2. When the spin cycle is finished the programme
selector moves to “Stop”.
3. Select a drying time based on the type of fabric
(cotton/synthetic), amount of laundry and
desired final results (iron/cupboard dry), using
the “Drying Time” knob.
4. Press the“Dryer Half Load” button.
5. Turn on the water tap, check the drain hose,
use the
“ON/OFF” button to turn on (the indicator
light goes on).
1. The sequential washing and drying function
can only be used for energy-saving and
synthetic programmes (not wool) and starts
when the knob reaches the programme stop
mark.
2. Load the washer-dryer (according to the max.
drying load table) and close the door
3. Select a drying time based on the type of fabric
(cotton/synthetic), amount of laundry and
desired final results (iron/cupboard dry), using
the “Drying Time” knob.
4. Press the“Dryer Half Load”
button.
5. Set the
“Washing Programme”
knob to the
desired programme
6. Press the“ON/OFF” button to start the
drying cycle.
• CLEANING THE FILTER
To ensure smooth operation of the pump,
check the filter regularly and clean it when
necessary.
DOOR LOCK
CHANGING THE SELECTED
PROGRAMME
INTERRUPTING THE CURRENT
PROGRAMME
AT THE END OF THE WASH PROGRAMME
SETTING THE DRYING CYCLE
SETTING THE WASHING/DRYING CYCLE
IN SEQUENCE
NOTES AND INDICATIONS FOR USE
3gb20159.fm5 Page 2 Wednesday, January 9, 2002 6:04 PM
