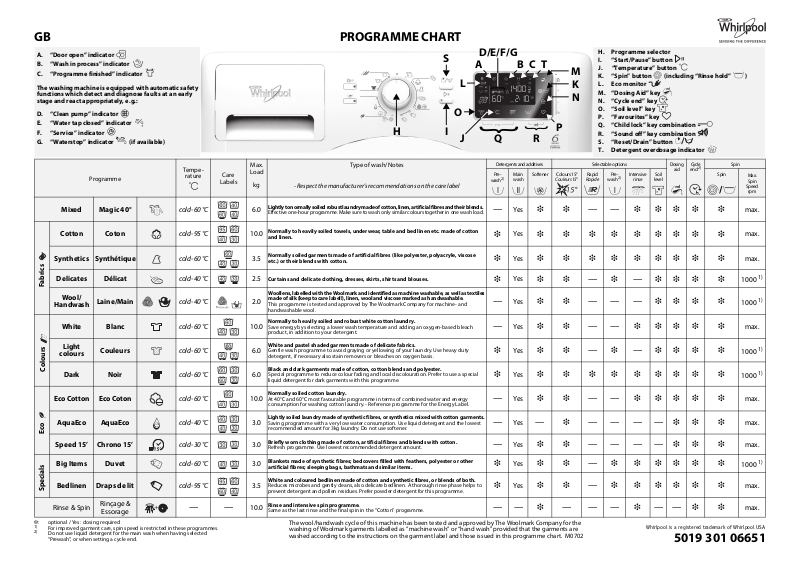

Whirlpool AWOE 10142 S PROGRAM CHART

GB PROGRAMME CHART

Whirlpool is a registered trademark of Whirlpool USA

A. “Door open” indicator
B. “Wash in process” indicator
C. “Programme finished” indicator

The washing machine is equipped with automatic safety
functions which detect and diagnose faults at an early
stage and react appropriately, e.g.:

D. “Clean pump” indicator
E. “Water tap closed” indicator
F. “Service” indicator
G. “Waterstop” indicator (if available)

H. Programme selector
I. “Start/Pause” button
J. “Temperature” button
K. “Spin” button (including “Rinse hold” )
L. Eco monitor
M. “Dosing Aid” key
N. “Cycle end” key
O. “Soil level” key
P. “Favourites” key
Q. “Child lock” key combination
R. “Sound off” key combination
S. “Reset/Drain” button
T. Detergent overdosage indicator

I

L

A

}

R

H

BC

}

D/E/F/G

S

}

N

Q

P

J

O

K

M

T

/

Fabr ics

Colours

Eco

Specials

Programme

Mixed Magic 40° cold - 60 °C 6.0

Cotton Coton cold - 95 °C 10.0

Synthetics Synthétique cold - 60 °C 3.5

Delicates Délicat cold - 40 °C 2.5

Woo l/

Handwash

White Blanc cold - 60 °C 10.0

Light

colours

Dark Noir cold - 60 °C 6.0

Eco Cotton Eco Coton cold - 60 ° C 10.0

AquaEco AquaEco cold - 40 °C 3.0

Speed 15’ Chrono 15’ cold - 30 °C 3.0

Big Items Duvet cold - 60 °C 3.0

Bedlinen Draps de lit cold - 95 °C 3.5

Rinse & Spin

❉: optional / Yes : dosing required

1)

For improved garment care, spin speed is restricted in these programmes.

2)

Do not use liquid detergent for the main wash when having selected
“Prewash”, or when setting a cycle end.

Laine/Main cold - 40 °C 2.0

Couleu rs cold - 60 °C 6.0

Rinçage &

Essorage

Tem pe -

rature

Care

Labels

——

Max.
Load

kg

10.0

- Respect the manufacturer’s recommendations on the care label

Lightly to normally soiled robust laundry made of cotton, linen, artificial fibres and their blends.

Effective one-hour programme. Make sure to wash only similar colours together in one wash load.

Normally to heavily soiled towels, underwear, table and bed linen etc. made of cotton
and linen.

Normally soiled garments made of artificial fibres (like polyester, polyacryle, viscose
etc.) or their blends with cotton.

Curtains and delicate clothing, dresses, skirts, shirts and blouses.

Woollens, labelled with the Woolmark and identified as machine washable, as well as textiles
made of silk (keep to care label!), linen, wool and viscose marked as handwashable.

This programme is tested and approved by The Woolmark Company for machine- and
handwashable wool.

Normally to heavily soiled and robust white cotton laundry.

Save energy by selecting a lower wash temperature and adding an oxygen-based bleach
product, in addition to your detergent.

White and pastel shaded garments made of delicate fabrics.

Gentle wash programme to avoid graying or yellowing of your laundry. Use heavy duty
detergent, if necessary also stain removers or bleaches on oxygen basis.

Black and dark garments made of cotton, cotton blends and polyester.

Special programme to reduce colour fading and local discolouration. Prefer to use a special
liquid detergent for dark garments with this programme.

Normally soiled cotton laundry.

At 40°C and 60°C most favourable programme in terms of combined water and energy
consumption for washing cotton laundry. - Reference programme for the Energy Label.

Lightly soiled laundry made of synthetic fibres, or synthetics mixed with cotton garments.

Saving programme with a very low water consumption. Use liquid detergent and the lowest
recommended amount for 3kg laundry. Do not use softener.

Briefly worn clothing made of cotton, artificial fibres and blends with cotton.

Refresh programme. Use lowest recommended detergent amount.

Blankets made of synthetic fibres; bedcovers filled with feathers, polyester or other
artificial fibres; sleeping bags, bathmats and similar items.

White and coloured bedlinen made of cotton and synthetic fibres, or blends of both.

Reduces microbes and gently cleans, also delicate bedlinen. A thorough rinse phase helps to
prevent detergent and pollen residues. Prefer powder detergent for this programme.

Rinse and intensive spin programme.

Same as the last rinse and the final spin in the “Cotton” programme.

The wool/handwash cycle of this machine has been tested and approved by The Woolmark Company for the
washing of Woolmark garments labelled as “machine wash” or “hand wash” provided that the garments are
washed according to the instructions on the garment label and those issued in this programme chart. M0702

Type of wash/Notes

Detergents and additives Selectable options Dosing

Pre-

Main

wash

—

❉

❉

❉

—

—

❉

❉

—

—

—

❉

❉

2)

Softener Colours 15°

wash

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Couleurs 15°

❉❉—— ❉❉❉❉ ❉

❉❉❉❉❉❉❉❉❉

❉❉❉❉❉❉❉❉❉

❉❉— ❉ — ❉❉ ❉ ❉

❉❉—— —❉❉ ❉ ❉

❉❉—— ❉❉❉❉ ❉

❉❉— ❉ — ❉❉ ❉ ❉

❉❉❉❉❉❉❉❉❉

❉❉—— ❉❉❉❉ ❉

— ❉ —— ——❉❉ ❉

❉❉—— ——❉❉ ❉

❉❉— ❉❉❉❉❉ ❉

❉❉— ❉❉❉❉❉ ❉

—— ❉ ———❉ —— ❉❉

Rapid

Pre-

Intensive

rinse

Soil

level

wash

2)

Rapide

Cycle

2)

aid

end

5019 301 06651

Spin

Spin

Max.
Spin

Speed

rpm

max.

max.

max.

1000

1000

max.

1000

1000

max.

max.

max.

1000

max.

max.

1)

1)

1)

1)

1)

Whirlpool is a registered trademark of Whirlpool USA

* Reference programmes for Energy Label.

- the sensor technology adapts water, energy and programme duration to the size of your wash load

CONSUMPTION DATA

Programme

Mixed 40 6.0 65 0.65 1:00 —
Cotton 95 10.0 90** 2.80 2:30 —
Cotton 60 10.0 57 1.70 2:20 1:50
Cotton 40 10.0 57 0.80 2:05 1:35

Synthetics 60 3.5 48** 0.95 1:35 1:10
Synthetics 40 3.5 45 0.55 1:20 0:55

Delicates 40 2.5 60 0.65 0:50 —

Wool/Handwash 40 2.0 45 0.60 0:40 —

White 40 10.0 85 1.00 2:20 —

Light colours 40 6.0 70 0.50 1:20 —

Dark 40 6.0 49 0.60 1:40 1:15
Eco Cotton* 60 10.0 60 1.00 4:00 —
Eco Cotton* 60 5.0 43 0.65 3:00*** —
Eco Cotton* 40 5.0 43 0.55 3:00*** —

AquaEco 40 3.0 19 0.45 1:00 —

Speed 15’ 30 3.0 30 0.20 0:15 —

Big Items 40 3.0 70 0.75 1:30 —

Consumption values were measured in normalized conditions, in compliance with IEC/EN 60456. In the home, they may vary depending on the individual water supply
pressure and temperature, the load and the type of wash. The consumption data indicated are based on an inlet water temperature of approx. 15°C through the cold fill
valve as well as the hot fill valve (if available). If your washing machine has a hot fill valve, connection of this valve to hot water supply will lower the energy consumption
by reduced heating times, depending on the individual hot fill inlet water temperature.
Water and energy consumptions refer to the default setting of the programmes, with temperature and load as indicated in the table; selecting any options or changing
the spin speed will also change the consumption data.

** To reduce the water temperature, some cold water is added at the end of the main wash cycle before the water is drained.
*** Automatic adaptation of programme duration after detection of wash load.

Bedlinen 60 3.5 60 1.30 2:00 —

The programme duration may differ from the values indicated above as it depends on the operation conditions applicable at that time (see also “Troubleshooting
Guide” in your Instructions for Use).

Temperature

(°C)

LOAD LAUNDRY AND SELECT PROGRAMME

Load the laundry, close the door and turn the programme selector to
the desired programme; the “Start/Pause” indicator blinks.
The temperature and spin speed shown on the display can be
altered by pressing the “Temperature” key or the “Spin” key . If
you do not use the “Dosing Aid” , add detergent now.

SELECT ANY DESIRED OPTION

If the combination programme/option or option/option is not
possible, the indicator switches off automatically and a signal sounds.
To activate options around the display, just press the key until the
relevant symbol on the display lights up.

“Colours 15°” button

Saves energy used for water heating while maintaining a good wash
result.
Supports colour maintenance when washing coloured laundry.
Recommendable for lightly soiled laundry without stains.
Make sure that your deterge nt is suitable fo r cold wash temper atures
(15 or 20 °C).
Not selectable for Cotton 70 - 95°C.

“Rapid” button

Enables quicker washing by shortening the programme duration.
Recommendable for only lightly soiled laundry.
Not selectable for Cotton 70 - 95°C.

“Prewash” key

Adds a prewash cycle to the wash programme selected; prolongs the
programme by about a quarter of an hour.
Recommended for heavily soiled laundry (e.g. containing sand or
granular dirt).

“Intensive rinse” key

More water is added and rinse cycle is prolonged.
Particularly suitable for areas with very soft water or for washing baby
linen, and helps people with allergies.

“Soil level” key

Adapts the programme duration to the soil level of your laundry
(small = lightly, medium = normally, big = heavily soiled). Also
influences the detergent quantity recommendation when using the
“Dosing Aid” button.
Not all soil levels are selectable for each programme.

Load

(kg)

Water

(l)

Energy

(kWh)

“Spin” key (incl. “Rinse Hold” )

Press the key to change the predefined spin speed. If you select spin
speed “0”, the final spinning is cancelled and the water is drained out
only. However, intermediate spin phases remain during the rinse.
If you select “Rinse hold” , the laundry remains in the last rinse
water without progressing to the final spin cycle, to avoid creasing
and prevent colours from changing. To activate the “Rinse hold”, press
the “Spin” key repeatedly until the “Rinse hold” symbol on the
display lights up.

- The programme stops to “Rinse hold” when on the display

- To terminate the “Rinse hold” by spinning the laundry, press

- To terminate the “Rinse hold” by draining the water without

- Do not leave the laundry to soak for too long in the “Rinse hold”

Approx. Programme Duration (hours : minutes)

without “Rapid” with “Rapid”

blinks; the “Start/Pause” indicator blinks as well.

“Start/Pause” - the laundry will be spun with the default spin
speed. You can also select another spin speed with the “Spin”
button before you start the spin cycle with “Start/Pause”.

spinning, press the “Spin” button until spin speed “0” appears on
the display; then press “Start/Pause” to start the draining.

(especially silk!).

SET CYCLE END

You can postpone your programme to complete at a later time: press
the key to select in how many hours the programme shall be finished.
Thus, it allows you to have your laundry ready at a particular time and to
profi t from mor e favoura ble energ y rates during the night, for example.

• The time until the “Cycle end” can be selected in full hour time
segments (1 to 24 h). When you press the key, the shortest possible
time will be displayed; keep o n pressing the key to loop through all
the available times. To remove it again, keep on pressing the key
until you see the value “0:00”.

• When you have selected the desired time until the “Cycle end”,
press “Start/Pause” - the countdown will begin.

• During the countdown, you can still modify the programme setting
(select or deselect options, change spin speed etc.). If the modifications
prolong the programme duration so that it overruns the originally set
time until the “Cycle end”, the programme will start immediately.

• Sometimes the programme may finish before the selected time
until the “Cycle end” has expired (e.g. for small loads). In this case,
the washing machine will tumble the laundry regularly to keep it
fresh, until the selected “Cycle end” time has expired. During
tumbling, the display will show an animation. The tumbling phase
can be stopped at any time either by pressing any button or by
rotating the programme selector; the animation will stop and the
door will unlock in about 1 minute as indicated on the display.

DETERGENT DOSING RECOMMENDATION

With the “Dosing Aid”, you can make your washing machine indicate
you the recommended detergent quantity for your wash load,
depending on the soil level selected and the size of the load.

• Helps to save detergent and protect the environment and also
sensitive skin by avoiding detergent overdosing.

• Before you use this function, you must adapt the washing machine
to the dosing amounts which are recommended for the detergents
you use. Also check if your region’s water hardness corresponds
with the water hardness level “soft” of your washing machine - if
not adapt it.

• Select programme and options and set cycle end before activating
the “Dosing Aid”.

For any details, refer to the separate “Dosing Aid” Instructions for Use.

SAVE YOUR FAVOURITE PROGRAMMES

If there is a programme setting which you use frequently, the appliance
offers the possibility to save one setting for each programme so that it
can be used again by just pressing the “Favourites” key .

• Select the desired programme, temperature, spin speed and
option(s), press and hold the “Favourites” key for at least 3
seconds. The heart symbol on the display shortly blinks and
then lights up - the programme setting is saved.

Next time you want to use your individual programme setting, select
the programme, shortly press the “Favourites” key and start by
pressing “Start (Pause)” .
If you want to replace the saved programme setting by another one:

• Proceed as already described above - the previously saved
programme setting will be replaced by the new one.

“DOOR OPEN” INDICATOR

Before starting a programme, the indicator lights to show that the
door can be opened. As long as a wash programme is running, the
door remains locked and must on no account be forced open. In case
you have an urgent need to open it during a running programme,
refer to “Reset a running programme before the end”.

ECO MONITOR

The “Eco monitor” gives you a rough feedback about the power
consumption of the programme setting you selected.
As soon as you turn the programme selector to any programme, the
“Eco monitor” is on.
The indicator on the left is to show that the “Eco monitor” is active. The
four indicators next to it show the degree of consumption: the less
power your programme setting is forecasted to consume, the less
indicators will light up. This depends on the programme, temperature
and options selected, and also on the size of the wash load. For that
reason, the forecasted degree of power consumption may adapt
when the washing machine detects the wash load.

DRUM LIGHT

When you select a programme, the drum light will slowly go on to
assure a good visibility during laundry loading.
After starting your programme with “Start/Pause”, the drum light will
fade on and off while the washing machine detects the laundry load.
Subsequently, it will go off.
When the programme is finished, the light goes on again for a short
time; afterwards it will go off automatically to save energy. If you want
to switch it on again for unloading your laundry, just press any option
button or turn the programme selector (but not to “Off/O”).
The drum light will blink fast when a failure is detected.

PROGRAMME START

Open the tap and press the “Start/Pause” button . The “Start/
Pause” indicator lights up. The display shows the remaining

programme time. During detection of the laundry load and new
calculation of the programme time, an animation appears on the display.

CHILD LOCK

Prevents children from starting a wash cycle or changing the settings of
a running programme. Cannot be activated or deactivated when the
programme selector is in the “Off/O” position. To activate the child lock:

• Turn the programme selector to a programme position, or run a
programme as usual.

• Press and hold the 2 buttons marked with the key symbol
simultaneously for a few seconds. A key symbol will appear on the
display to indicate that the child lock is active.

Any time you try to change a programme setting with active child
lock, a signal will sound; it cannot be changed anymore. The only
change possible is to switch the washer off by turning the programme
selector to the “Off/O” position. To deactivate the child lock, proceed
in the same way as for activating it (signal will sound twice).

SOUND OFF

Press and hold the marked buttons simultaneously for a few seconds
to switch off the peep sound of the buttons and at the end of the
programme; a long signal sounds. To switch it on again, proceed in
the same way; a short signal sounds twice.

FAILURE INDICATORS

If one of the failure indicators lights up, or in case of any malfunction,
consult the “Troubleshooting Guide” in your Instructions for Use.

Spin speed on display blinks: Unbalance during spinning.

PROGRAMME END

• The “Programme finished” indicator lights up. The display
shows “End”.

1. Turn the programme selector to the “Off/O” position.

2. Close the water tap.

3. Open the door and unload the machine.

4. Leave the door ajar to allow the drum to dry.

DETERGENT OVERDOSAGE INDICATOR

The symbol will light up at the end of the programme if you used too
much detergent. Use less detergent next time.

CHANGE PROGRAMME AND/OR OPTIONS
AFTER PROGRAMME START

1. Press the “Start/Pause” button to pause the programme. The
indicator blinks.

2. Select the new programme, temperature, any options and another
spin speed if you want.

3. Press the “Start/Pause” button again. The new programme
continues at the same position where the previous programme was
interrupted. Do not add detergent for this programme.

RESET A RUNNING PROGRAMME BEFORE THE
END

The “Reset/Drain” button cancels a programme before the end.

• Press and hold the “Reset/Drain” button for a fe w seconds;
an animation appears on the display. The water is drained out; it
may last some time until you can open the door.

5019 301 06651
