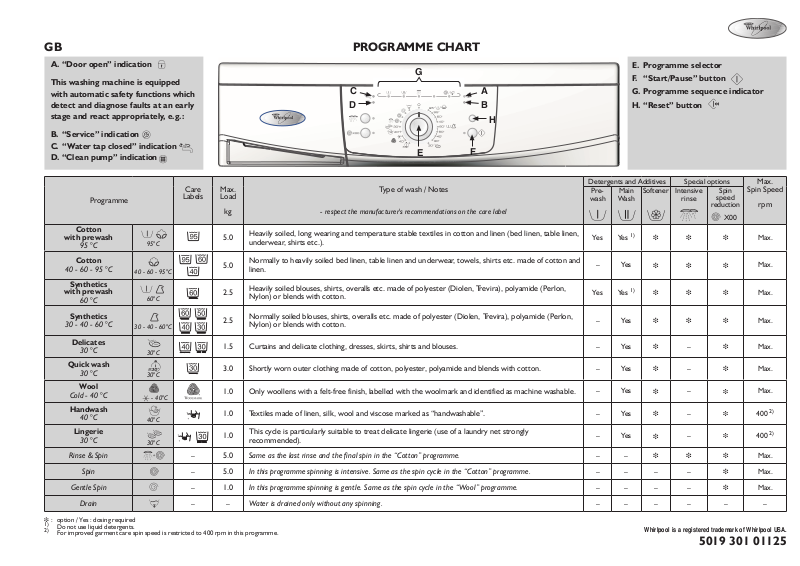

Whirlpool AWO/D 5161 PROGRAM CHART
GB
A. “Door open” indication
This washing machine is equipped
with automatic safety functions which
detect and diagnose faults at an early
stage and react appropriately, e.g.:
B. “Service” indication
C. “Water tap closed” indication
D. “Clean pump” indication
PROGRAMME CHART
G
C
D
E
E. Programme selector
F. “Start/Pause” button
A
B
G. Programme sequence indicator
H. “Reset” button
H
F
Programme
Care
Labels
Max.
Load
kg
Cotton
with prewash
95 °C
95°C
Cotton
40 - 60 - 95 °C
40 - 60 - 95°C
Synthetics
with prewash
60 °C
60°C
Synthetics
30 - 40 - 60 °C
30 - 40 - 60°C
Delicates
30 °C
30°C
Quick wash
30 °C
30°C
Wool
Cold - 40 °C
- 40°C
Handwash
40 °C
40°C
Lingerie
30 °C
Rinse & Spin
Spin
Gentle Spin
Drain
: option / Yes : dosing required
1)
Do not use liquid detergents.
2)
For improved garment care spin speed is restricted to 400 rpm in this programme.
30°C
–
–
–
– –
Heavily soiled, long wearing and temperature stable textiles in cotton and linen (bed linen, table linen,
5.0
underwear, shirts etc.).
Normally to heavily soiled bed linen, table linen and underwear, towels, shirts etc. made of cotton and
5.0
linen.
Heavily soiled blouses, shirts, overalls etc. made of polyester (Diolen, Trevira), polyamide (Perlon,
2.5
Nylon) or blends with cotton.
Normally soiled blouses, shirts, overalls etc. made of polyester (Diolen, Trevira), polyamide (Perlon,
2.5
Nylon) or blends with cotton.
1.5 Curtains and delicate clothing, dresses, skirts, shirts and blouses.
3.0 Shortly worn outer clothing made of cotton, polyester, polyamide and blends with cotton.
1.0 Only woollens with a felt-free finish, labelled with the woolmark and identified as machine washable.
1.0 Textiles made of linen, silk, wool and viscose marked as “handwashable”.
This cycle is particularly suitable to treat delicate lingerie (use of a laundry net strongly
1.0
recommended).
5.0 Same as the last rinse and the final spin in the “Cotton” programme.
5.0 In this programme spinning is intensive. Same as the spin cycle in the “Cotton” programme.
1.0 In this programme spinning is gentle. Same as the spin cycle in the “Wool” programme.
Water is drained only without any spinning.
Type of wash / Notes
- respect the manufacturer's recommendations on the care label
Detergents and Additives Special options
Pre-
Main
wash
Yes Yes
– Yes
Yes Yes
– Yes
– Yes
– Yes
– Yes
– Yes
– Yes
– –
– – – –
– – – –
– – – – – –
Softener Intensive
Wash
1)
1)
Whirlpool is a registered trademark of Whirlpool USA.
rinse
–
–
–
–
–
Spin
speed
reduction
X00
5019 301 01125
Max.
Spin Speed
rpm
Max.
Max.
Max.
Max.
Max.
Max.
Max.
2)
400
2)
400
Max.
Max.
Max.
CONSUMPTION DATA
Temperature
Programme
Cotton 95 5.0 49* 1.90 2:00
Cotton** 60 5.0 44 0.85 2:20
Cotton 40 5.0 44 0.60 2:00
Synthetics 60 2.5 50* 0.70 1:30
Synthetics 40 2.5 45 0.55 1:15
Delicates 30 1.5 50 0.50 0:45
Quick wash 30 3.0 40 0.40 0:30
Wool
Handwash 40 1.0 45 0.60 0:40
Lingerie 30 1.0 45 0.50 0:36
Consumption values were measured in normalized conditions in compliance with standard IEC/EN 60 456. Consumption data in the
home may vary with respect to the values in the table in relation to the water supply pressure and temperature, the load and the type
of wash.
*
To reduce the water temperature, some cold water is added at the end of the main wash cycle, before the pump drains the water out.
** Reference Programme for Energy Label.
ADD DETERGENTS, CLOSE THE DOOR AND
SELECT THE PROGRAMME
Selector
(°C)
40 1.0 55 0.60 0:45
Add detergents as indicated on the front page and
as described in your Instructions for Use.
Close the door and turn the programme
selector to the desired programme and
temperature. The indication lamp next to the
“Start/Pause”
button flashes.
Load
(kg)
Water
(l)
SELECT ANY DESIRED OPTION
Energy
(kWh)
Approx. Programme
(hours : minutes)
Push the button(s) of any option(s) desired - the
respective indication lamp lights up.
When the combination of programme and
additional option(s) is not possible, the indication
lights switch off automatically. Unsuitable
combinations of options are deselected
automatically.
Duration
“Intensive rinse” button
• More water is added and rinse cycle is
prolonged.
• This option is particularly suitable for areas
with very soft water, washing baby linen and
helps people with allergies.
PROGRAMME START
Open the tap and press the “Start/Pause”
button. The indication lamp next to the “Start/
Pause”
button lights up. The programme
sequence indicator shows the current programme
phase, running from left to right through Wash,
Rinse, Spin/Drain.
When the programme phrase is finised, the
corresponding indication goes out.
“DOOR OPEN” INDICATION
Before starting and after end of a programme, the
lamp lights to show the the door can be opened.
As long as a wash programme is running, the door
remains locked and must on no account be forced
open. In case you have an urgent need to open
it during a running programme, refer to “Cancel
(Reset) a running programme before the end”.
RED INDICATIONS
“Service”
Lighting up of the “Service” indication can be
caused by a fault in an electrical component.
Refer to the “Troubleshooting Guide” in your
“Instructions for Use”; if the fault persists, contact
our After Sales Service.
“Water tap closed”
The appliance has no or insufficient water supply.
Open the water tap: if the indications still lights
up, refer to the “Troubleshooting Guide” in the
Instructions for Use.
“Clean pump”
Waste
water is not pumped out. Check whether
the drain hose is kinked or the filter must be
cleaned: in the latter case refer to the Instructions
for Use (“Removing the Filter”).
PROGRAMME END
• All the lights of the programme sequence
indicator are off, and the “Door open”
indication lights up.
1. Turn the programme selector to the “Off/O”
position.
2. Close the water tap.
3. Open the door and unload the machine.
4. Leave the door ajar to allow the drum to dry.
CHANGE PROGRAMME AND/OR OPTIONS
AFTER PROGRAMME START
1. Press the “Start/Pause” button to pause the
programme. The light flashes.
2. Select the new programme (with temperature),
any options and another spin speed if you want.
3. Press the “Start/Pause” button again.
The new programme continues at the same
position where the previous programme was
interrupted. Do not add detergent for this
programme.
CANCEL (RESET) A RUNNING PROGRAMME
BEFORE THE END
The “Reset” button cancels a programme before
the end.
•
Press the “Reset” button for at least 3 seconds
Any existing water is drained out before the
door can be opened.
.
“Spin speed reduction” button
• Reduces the predetermined automatic
maximum spin speed to treat your laundry
more gently.
Whirlpool is a registered trademark of Whirlpool USA.
5019 301 01125
