Whirlpool AWO D41100 User Manual
GB AWO/D 41100
A. “Door open” indication
This washing machine is equipped with
automatic safety functions which detect and
diagnose faults at an early stage and react
appropriately, e.g.:
B. “Service” indication
C. “Water tap closed” indication
D. “Clean pump” indication
Programme
Cotton with prewash
95 °C
Cotton / Antibacterial
40 - 60 - 95 °C
Synthetics with prewash
60 °C
Care
Labels

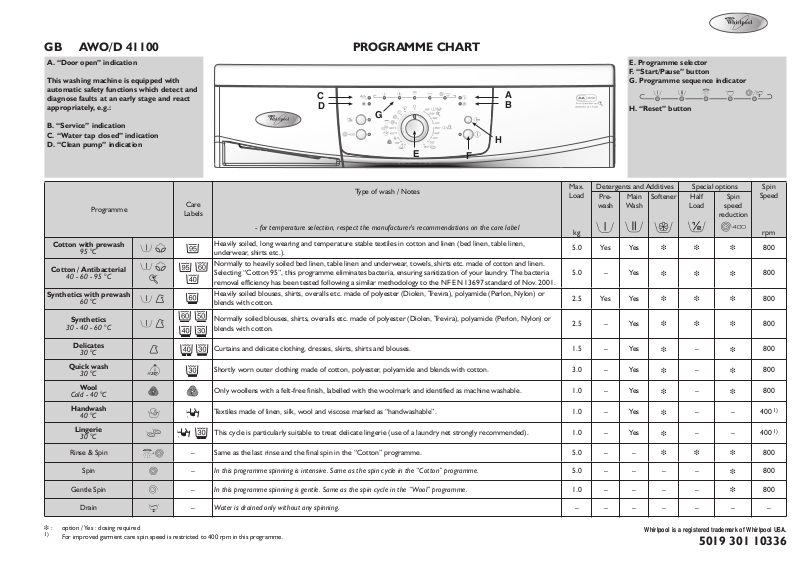

PROGRAMME CHART
C
D
G
E
Type of wash / Notes
- for temperature selection, respect the manufacturer's recommendations on the care label
Heavily soiled, long wearing and temperature stable textiles in cotton and linen (bed linen, table linen,
underwear, shirts etc.).
Normally to heavily soiled bed linen, table linen and underwear, towels, shirts etc. made of cotton and linen.
Selecting “Cotton 95”, this programme eliminates bacteria, ensuring sanitization of your laundry. The bacteria
removal efficiency has been tested following a similar methodology to the NF EN 13697 standard of Nov. 2001.
Heavily soiled blouses, shirts, overalls etc. made of polyester (Diolen, Trevira), polyamide (Perlon, Nylon) or
blends with cotton.
F
A
B
H
E. Programme selector
F. “Start/Pause” button
G. Programme sequence indicator
H. “Reset” button
Max.
Detergents and Additives Special options Spin
Load
Pre-
wash
kg
5.0 Yes Yes
5.0 – Yes
2.5 Yes Yes
Main
Wash
Softener Half
Load
i i i
i i i
i i i
Spin
speed
reduction
Speed
rpm
800
800
800
Synthetics
30 - 40 - 60 °C
Delicates
30 °C
Quick wash
30 °C
Wool
Cold - 40 °C
Handwash
40 °C
Lingerie
30 °C
Rinse & Spin – Same as the last rinse and the final spin in the “Cotton” programme. 5.0 – –
Spin – In this programme spinning is intensive. Same as the spin cycle in the “Cotton” programme. 5.0 – – – –
Gentle Spin – In this programme spinning is gentle. Same as the spin cycle in the “Wool” programme. 1.0 – – – –
Drain – Water is drained only without any spinning. – – – – – – –
i : option / Yes : dosing required
1)
For improved garment care spin speed is restricted to 400 rpm in this programme.
Normally soiled blouses, shirts, overalls etc. made of polyester (Diolen, Trevira), polyamide (Perlon, Nylon) or
blends with cotton.
Curtains and delicate clothing, dresses, skirts, shirts and blouses. 1.5 – Yes
Shortly worn outer clothing made of cotton, polyester, polyamide and blends with cotton. 3.0 – Yes
Only woollens with a felt-free finish, labelled with the woolmark and identified as machine washable. 1.0 – Yes
Textiles made of linen, silk, wool and viscose marked as “handwashable”. 1.0 – Yes
This cycle is particularly suitable to treat delicate lingerie (use of a laundry net strongly recommended). 1.0 – Yes
2.5 – Yes
i i i
i
i
i
i
i
i i i
Whirlpool is a registered trademark of Whirlpool USA.
–
–
–
– – 400
– – 400
i
i
i
i
i
800
800
800
800
1)
1)
800
800
800
5019 301 10336
CONSUMPTION DATA
Programme
Temperature
Selector
(°C)
Load
(kg)
Water
(l)
Energy
(kWh)
Approx. Programme
Duration
(hours : minutes)*
Cotton / Antibacterial 95 5.0 49** 1.90 2:00
Cotton*** 60 5.0 44 0.95 2:20
Cotton 40 5.0 44 0.60 2:00
Synthetics 60 2.5 50** 0.70 1:30
Synthetics 40 2.5 45 0.55 1:15
Delicates 30 1.5 50 0.50 0:45
Quick wash 30 3.0 40 0.40 0:30
Wool 40 1.0 55 0.60 0:45
Handwash 40 1.0 45 0.60 0:40
Lingerie 30 1.0 45 0.50 0:40
Consumption values were measured in normalized conditions in compliance with standard IEC/EN 60 456. Consumption data in the
home may vary with respect to the values in the table in relation to the water supply pressure and temperature, the load and the type
of wash.
* The remaining time indicator can deviate from the values in the table, because it takes into account the household conditions
applicable at that time.
** To reduce the water temperature, some cold water is added at the end of the main wash cycle, before the pump drains the water
out.
*** Reference Programme for Energy Label.
ADD DETERGENTS, CLOSE THE DOOR AND
SELECT THE PROGRAMME
Add detergents as indicated on the front page and as
described in your Instructions for Use. Close the door
and turn the programme selector to the desired
programme and temperature. The indication lamp next
to the “Start/Pause” button flashes.
SELECT ANY DESIRED OPTION
Push the button(s) of any option(s) desired - the
respective indication lamp lights up.
When the combination of programme and additional
option(s) is not possible, the indication lights switch off
automatically. Unsuitable combinations of options are
deselected automatically.
“Half Load” button
• Reduce water consumption, above all during rinsing.
• Suitable for lightly soiled laundry and small loads
(max. 3 kg).
“Spin speed reduction” button
• Reduces the predetermined automatic maximum
spin speed to treat your laundry more gently.
PROGRAMME START
Open the tap and press the “Start/Pause” button.
The indication lamp next to the “Start/Pause” button
lights up. The programme sequence indicator shows the
currenht programme phase, running from left to right
through Wash, Rinse, Spin/Drain.
When the programme phrase is finised, the
corresponding indication goes out.
“DOOR OPEN” INDICATION
Before starting and after end of a programme, the lamp
lights to show the the door can be opened. As long as a
wash programme is running, the door remains lockd and
must on no account be forced open. In case you have
an urgent need to open it during a running programme,
refer to “Cancel (Reset) a running programme before
the end”.
RED INDICATIONS
“Service”
Lighting up of the “Service” indication can be caused
by a fault in an electrical component. Refer to the
“Troubleshooting Guide” in your “Instructions for Use”;
if the fault persists, contact our After Sales Service.
“Water tap closed”
The appliance has no or insufficient water supply. Open
the water tap: if the indications still lights up, refer to the
“Troubleshooting Guide” in the Instructions for Use.
“Clean pump”
Waste water is not pumped out. Check whether the
drain hose is kinked or the filter must be cleaned: in the
latter case refer to the Instructions for Use (“Removing
the Filter”).
PROGRAMME END
• All the lights of the programme sequence indicator
are off, and the “Door open” indication lights up.
1. Turn the programme selector to the “Off/O”
position.
2. Close the water tap.
3. Open the door and unload the machine.
4. Leave the door ajar to allow the drum to dry.
CHANGE PROGRAMME AND/OR OPTIONS
AFTER PROGRAMME START
1. Press the „Start/Pause“ button to pause the
programme. The light flashes.
2. Select the new programme (with temperature), any
options and another spin speed if you want.
3. Press the „Start/Pause“ button again. The new
programme continues at the same position where
the previous programme was interrupted. Do not
add detergent for this programme.
CANCEL (RESET) A RUNNING PROGRAMME
BEFORE THE END
The “Reset” button cancels a programme before the
end.
• Press the “Reset” button for at least 3 seconds.
Any existing water is drained out before the door
can be opened.
Whirlpool is a registered trademark of Whirlpool USA.
5019 301 10336
