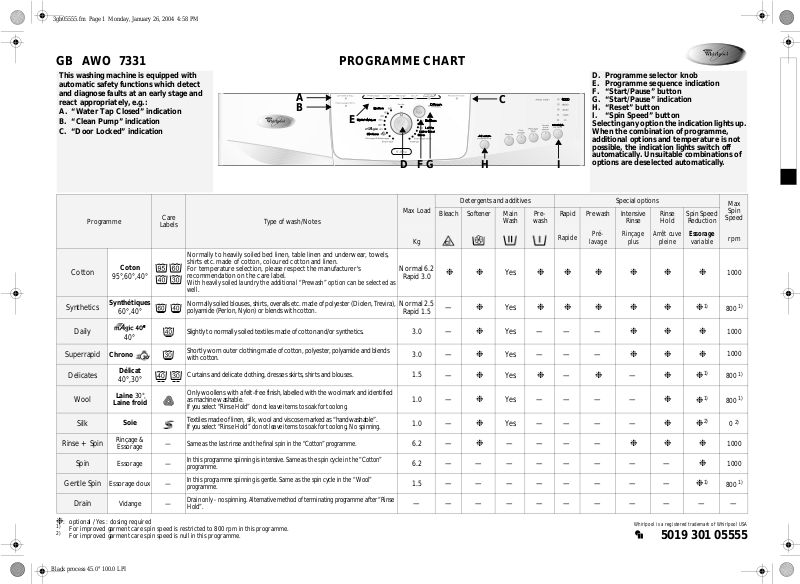

GB AWO 7331 PROGRAMME CHART

This washing machine is equipped with automatic safety functions which detect and diagnose faults at an early stage and react appropriately, e.g.:

A. “Water Tap Closed” indication B. “Clean Pump” indication C. “Door Locked” indication

GEF

D. Programme selector knob E. Programme sequence indication F. “Start/Pause” button

G. “Start/Pause” indication H. “Reset” button I. “Spin Speed” button Selecting any option the indication lights up. When the combination of programme, additional options and temperature is not possible, the indication lights switch off automatically. Unsuitable combinations of

HID

options are deselected automatically.

Programme

Cotton

Synthetics

Daily

Superrapid

Delicates

Wool

Silk

Rinse + Spin

Spin

Gentle Spin

Drain

Care

Labels

Coton

95°,60°,40°

Synthétiques

60°,40°

40°

Chrono

Délicat

40°,30°

30°,

Laine

Laine froid

Soie

Rinçage &

Essorage Essorage —

Essorage doux —

Vidange —

—

Type of wash/Notes

Normally to heavily soiled bed linen, table linen and underwear, towels, shirts etc. made of cotton, coloured cotton and linen. For temperature selection, please respect the manufacturer's recommendation on the care label.

With heavily soiled laundry the additional “Prewash” option can be selected as well.

Normally soiled blouses, shirts, overalls etc. made of polyester (Diolen, T revira), polyamide (Perl on, Nylon ) or blends wi th cotton.

Slightly to normally soiled textiles made of cotton and/or synthetics.

Shortly worn outer clothing made of cotton, polyester, polyamide and blends with cotton.

Curtains and delicate clothing, dresses skirts, shirts and blouses.

Only woollens with a felt-free finish, labelled with the woolmark and identified as machine washable.

If you select “Rinse Hold” do not leave items to soak for too long.

Textiles made of linen, silk, wool and viscose marked as “handwashable”.

If you select “Rinse Hold” do not leave items to soak for too long. No spinning. Same as the last rinse and the final spin in the “Cotton” programme. In this programme spinning is intensive. Same as the spin cycle in the “Cotton”

programme. In this programme spinning is gentle. Same as the spin cycle in the “Wool”

programme. Drain only - no spinning. Alternative method of terminating programme after “Rinse

Hold”.

Max Load

Normal 6.2

Rapid 3.0

Normal 2.5

Rapid 1.5

3.0

1.5

1.0

6.2

1.5

Detergents and additives Special options

Bleach Softener Main

❉❉

—

❉

❉ ❉

❉

❉ ❉

Wash

Yes

Yes — — —

Yes

Yes — — — —

————

Pre-

wash

Rapid Prewash Intensive

Rapide

Pré-

lavage

Rinse

Rinçage

plus

Rinse Hold

Arrêt cuve

pleine

❉❉ ❉ ❉ ❉ ❉

❉❉ ❉ ❉ ❉

❉❉❉

❉

—

❉

—

❉

❉❉❉

—————— — —

Spin Speed

Reduction

Essorage

variable

❉

Max Spin

Speed

rpm

1000

800

1000

800

1000

800

——————— — — ——

❉

: optional / Yes : dosing required

For improved garment care spin speed is restricted to 800 rpm in this programme.

For improved garment care spin speed is null in this programme.

Black process 45.0° 100.0 LPI

Whirlpool is a registered trademark of Whirlpool USA

5019 301 05555

3gb05555.fm Page 2 Monday, January 26, 2004 4:58 PM

CONSUMPTION DATA

Temperature

Programme

(°C)

Load

(kg)

Water

(l)

Energy

(kWh)

Approx.

Programme

Duration

(hours : minutes)* Cotton 95 5.5 54** 1.90 2:00 Cotton 60 5.5 49 1.04 2:20 Cotton 40 5.0 44 0.60 2:05

Synthetics 60 2.5 55 0.80 1:30 Synthetics 40 2.5 55 0.60 1:20

Daily 40 3.0 45 0.50 1:00

Superrapid 30 3.0 37 0.40 0:30

Delicates 40 1.5 60 0.60 0:45

Wool 40 1.0 60 0.45 0:40

Silk 30 1.0 45 0.30 0:40

Prewash cycle might increase p rogramme durat ion. Consumption values were measure d in normalized conditions in compliance with Standard IEC 60 456. Consumption data in the home may vary with respect to the values in the table in relation to the water supply pressure and temperature, the load and the type of wash. * The remaining time indicator can similarly deviate from the values in the table, because it takes into account the household

conditions applicable at that time.

** To reduce the water temperature, some cold water is added at the end of the main wash cycle, before the pump drains the

water out.

ADD DETERGENTS, CLOSE THE DOOR AND SELECT THE PROGRAMME

Add the detergent as described in the programme table or in the chapter “Detergents and Additives” in the booklet.

1. Turn the

programme selector knob

to the

desired programme and temperature.

2. After taking some seconds for calculating, the indication of the

“Start/Pause”

button is

flashing.

3. The programme sequence and th e predefined spin speed indication corresponding to the selected programme lights up.

SELECT ANY DESIRED OPTION

Selecting any option the indication lights up. When the combination of programme, additional options and temperature is not possible, the

indication lights switch off automatically. Unsuitable combinations of options are deselected automatically.

“Rapid” button

• For quick, ergonimical washes. Ideal for minimum loads of lightly-soiled articles.

reduce the detergent quantity.

Note:

“Prewash” button

• Only for heavily soiled loads (for example sand, granular dirt) sensible. The cycle time increases approximately 15 min.

“Intensive Rinse” button

• More water and a longer time in rinse cycle is added.

• This option is particularly suitable for areas with very soft water, washing baby linen and helps people with allergies.

“Rinse Hold” button

• The laundry remains in the last r inse water without progressing to the final spin cycle to avoid creasing and prevent colours from changing.

• This option is particularly recommended for the programme “Synthetics”, “Daily” and “Delicates”.

• This function is particularly useful if you want to postpone spinning to a later time, or if you want to drain only.

The programme stops to “Rinse Hold” at

Note:

the time the “Rinse Hold” light in the programme sequence indication is on.

Terminate the “Rinse Hold” option:

• Press the “Rinse Hold” button again; the programme will terminate automatically with the final spin cycle for the present wash programme.

• If you do not wish to spin the clothes, turn the programme selector knob counterclockwise to the “Drain” programme and press the

“Start/Pause”

button again when the indication

next to it is flashing.

“Spin Speed” button

• Every programme has an automatic predefined maximum spin speed.

• Press the button to set another spin speed.

• If the spin speed “0” is selected, the final spinning is cancelled but intermediate spin peaks remain during rinse. The water is drained out only.

PROGRAMME START

Open the tap and press the The indication next to the

“Start/Pause”

button.

button lights up. The indications show the sequence reached in the programme. After starting the programme, the sequence indication runs from left to right through Wash, Rinse, Spin.

When the sequence of the programme is finished the corresponding indication goes out.

RED INDICATIONS

“Water Tap Closed”

The appliance has no or insufficient water supply. Open the water tap; if the indication still lights up, refer to the “Troubleshooting Guide” in the Instructions for Use.

“Clean Pump”

Waste water is not pumped out. Check whether the drain hose is kinked or the filter must be cleaned; in the latter case refer to the Instructions for Use (“Removing the Filter”).

“Door Locked”

As long as a washing programme is running, the lamp lights up to show that the door cannot be opened. When the indication goes off, the door can be opened again.

“Water Stop”

Lighting up of the water stop indication can be caused by a leak in the appliance or hose. Please refer to the “Troubleshooting Guide” in the Instructions for Use.

PROGRAMME END

• All the lights of the programme sequence indication are off.

1. Turn the programme selector to the

Off

“

/0”

position.

2. Close the water tap.

3. Open the door and unload the machine.

4. Leave the door ajar to allow the drum to dry out.

CHANGE THE PROGRAMME, OPTIONS AFTER PROGRAMME START

1. Press the

“Start/Pause”

button to pause the

programme. The light flashes.

2. Select the new programme (with temperature), any options and another spin speed if you want.

3. Press the

“Start/Pause”

button again. The new programme continues at the same position where the previous programme was interrupted. Do not add detergent for this programme.

CANCEL (RESET) A RUNNING PROGRAMME BEFORE THE END

The

“Reset”

button cancels a programme before

the end.

•Press the

“Reset”

button for at least 3 seconds. Any existing water is drained out before the door can be opened.
