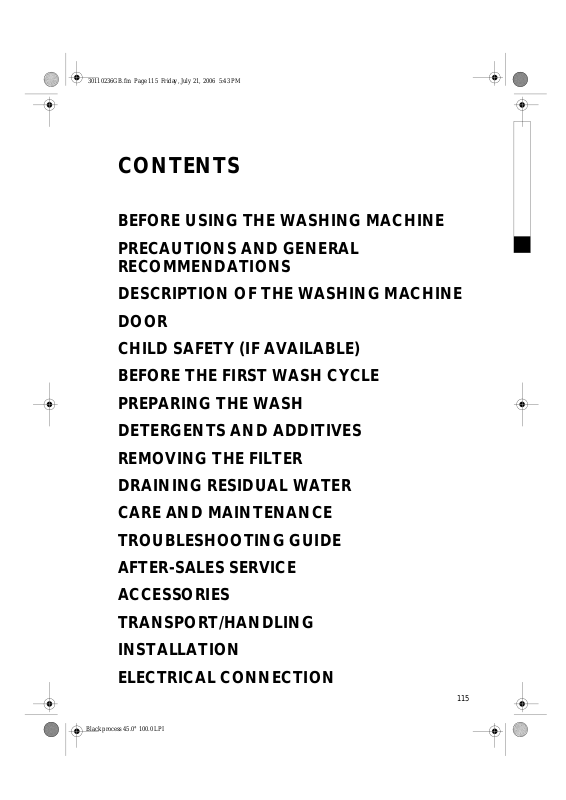

CONTENTS
BEFORE USING THE WASHING MACHINE
PRECAUTIONS AND GENERAL
RECOMMENDATIONS
DESCRIPTION OF THE WASHING MACHINE
DOOR
CHILD SAFETY (IF AVAILABLE)
BEFORE THE FIRST WASH CYCLE
PREPARING THE WASH
DETERGENTS AND ADDITIVES
REMOVING THE FILTER
DRAINING RESIDUAL WATER
CARE AND MAINTENANCE
TROUBLESHOOTING GUIDE
AFTER-SALES SERVICE
ACCESSORIES
TRANSPORT/HANDLING
INSTALLATION
ELECTRICAL CONNECTION
Black process 45.0° 100.0 LPI
115
Page 2
30110236GB.fm Page 116 Friday, July 21, 2006 5:43 PM
BEFORE USING THE WASHING MACHINE
1.Remove the packaging and check
•
After unpacking, make sure that the washing
machine is undamaged. If in doubt, do not use the
washing machine. Contact After-Sales Service or
your local retailer
•
Check that the accessories and supplied parts are
all present
•
Keep the packing material (plastic bags,
polystyrene parts, etc.) out of reach of children,
as they are potentially dangerous
2.Remove the transport bolts
•
The washing machine is fitted with a transport
bolts to avoid any possible damage to the interior
during transport. Before using the washing
machine, it is imperative that the transport bolts
are removed
3.Install the washing machine
•
Remove the protective foil from the control
panel
•
Move the appliance without lifting it by the
worktop
•
Install the appliance on a solid and level floor
surface, preferably in a corner of the room
•
Make sure that all four feet are resting firmly on
the floor and check that the appliance is perfectly
level (use a spirit level)
4.Water inlet
•
Connect the water supply inlet hose in
accordance with regulations of your local water
company
•
Water inlet: Cold water only
•
Tap: 3/4” threaded hose connection
•
Water Pressure
(flow pressure): 100-1000 kPa (1-10 bar).
5.Drain hose
•
Connect the drain hose to the siphon or hook it
over the edge of a sink by means of the “U” bend
supplied
•
If the washing machine is connected to a built-in
pumping out system, ensure that the latter is
equipped with a vent to avoid simultaneous loading
and draining of water (siphoning effect)
6.Electrical connections
•
Electrical connections must be carried out by a
qualified technician in compliance with the
manufacturer’s instructions and local safety
regulations
•
Data concerning voltage, consumption and fuses
are located on the inside of the appliance door
•
The appliance must be connected to the mains
exclusively by means of a socket with an earth
connection in accordance with established
regulations. The washing machine must be
earthed by law. The manufacturer declines all
liability for damage to property or injury to
persons or animals due to non-compliance with
the directions given above
•
Do not use extension leads or multi sockets
•
Before any maintenance on the washing machine
disconnect it from the mains supply
•
Access to the mains plug or to disconnection
from mains supply via a double-pole switch must
be ensured at all times following the installation
•
Do not operate the washing machine if it has
been damaged during transport. Inform the
After-Sales Service
•
Mains cable replacement is only to be carried out
by After-Sales Service
•
The washing machine must only be used in the
household for the prescribed uses
Minimum housing dimensions:
Width: 600 mm
Height: 825 mm
Depth: 600 mm
116
Black process 45.0° 100.0 LPI
Page 3
30110236GB.fm Page 117 Friday, July 21, 2006 5:43 PM
PRECAUTIONS AND GENERAL
RECOMMENDATIONS
1.Packaging
•
The packaging is 100% recyclable and is marked
with the recycling symbol. Adhere to
current local regulations when disposing of
packaging material
2.Disposing of packaging and old washing
machines
•
The washing machine is built from reusable
materials. It must be disposed of in compliance
with current local waste disposal regulations
•
Before scrapping, remove all detergent residues
and cut off the power cable so that the washing
machine is made unusable
3.Disposing of packaging and old washing
machines
•
This appliance is marked according to the
European directive 2002/96/EC on Waste
Electrical and Electronic Equipment (WEEE).
By ensuring this product is disposed of correctly,
you will help prevent potential negative
consequences for the environment and human
health, which could otherwise be caused by
inappropriate waste handling of this product.
The symbol on the product, or on the
documents accompanying the product, indicates
that this appliance may not be treated as
household waste. Instead it shall be handed over
to the applicable collection point for the recycling
of electrical and electronic equipment.
Disposal must be carried out in accordance with
local environmental regulations for waste disposal.
For more detailed information about treatment,
recovery and recycling of this product, please
contact your local city office, your household
waste disposal service or the shop where you
purchased the product.
4.General recommendations
•
Do not leave the washing machine connected
when not in use
•
Turn off the tap
•
Before any cleaning and maintenance switch off
the machine or disconnect it from the mains
•
Clean the outside of the washing machine with a
damp cloth. Do not use abrasive detergents
•
Never open the door forcibly or use it as a step
•
Children must not be allowed to play with the
washing machine or to climb into the drum (see
also the following page chapter “Child Safety”)
•
If necessary, the power cable may be replaced
with an identical one obtained from our AfterSales Service. The power cable must only be
replaced by a qualified technician
5.EC Declaration of Conformity
•
This appliance complies with the EC Directives:
73/23/EEC Low Voltage Directive
89/336/EEC EMC Directive
93/68/EEC CE Marking Directive
Black process 45.0° 100.0 LPI
117
Page 4
30110236GB.fm Page 118 Friday, July 21, 2006 5:43 PM

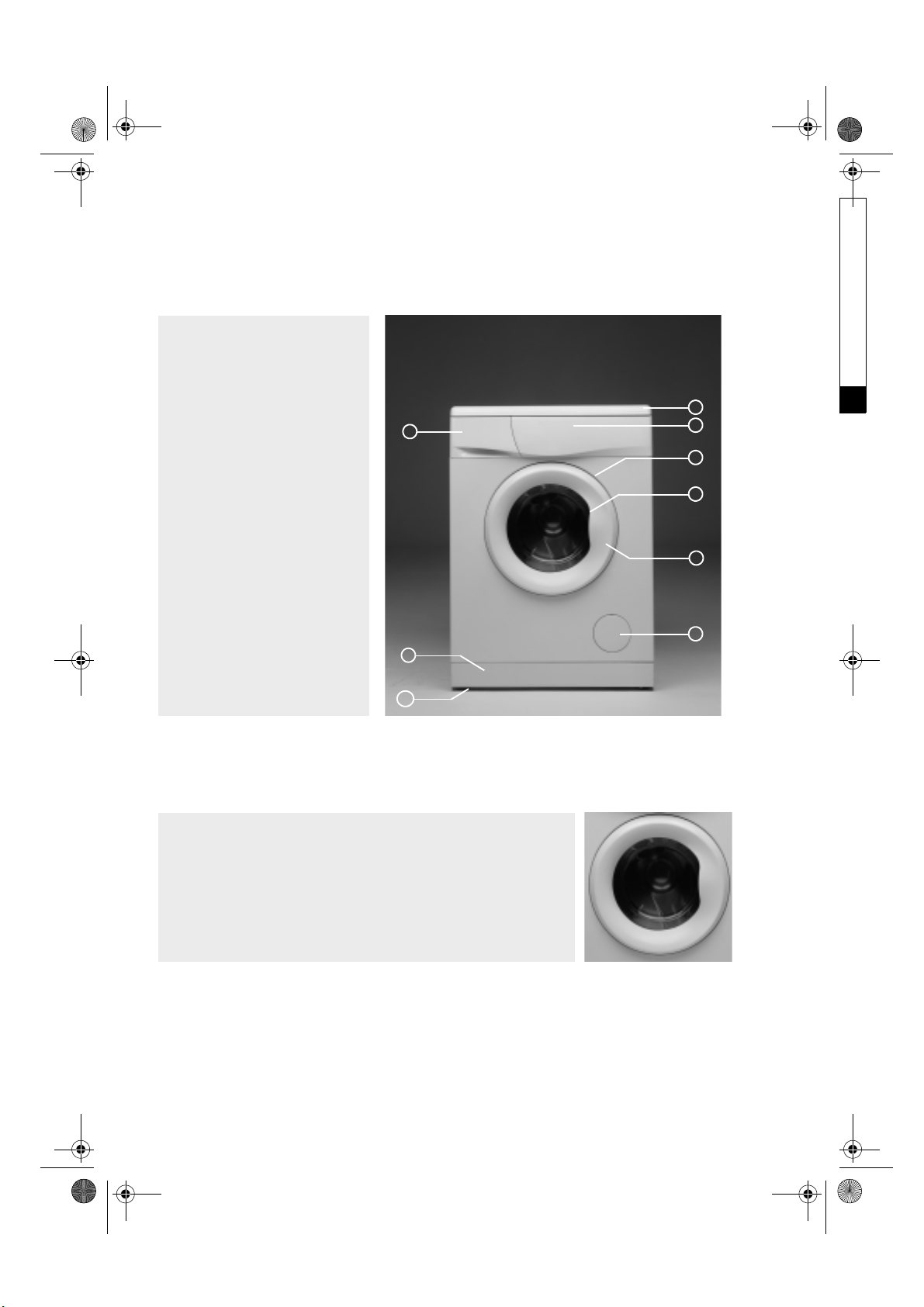

DESCRIPTION OF THE WASHING MACHINE
1.
Worktop
2.
Control panel
3.
Detergent dispenser
4.
After-Service sticker
(inside door)
5.
Door
6.
Child safety (inside door, if
available)
7.
Filter (inside compartment door)
8.
Plinth
9.
Adjustable feet
3
1
2
4
5
6
8
9
DOOR
To open the single glass door hold the door handle, press the inside handle
and pull the door up. Close the door with light force, it will lock home
audibly.
7
118
Black process 45.0° 100.0 LPI
Page 5
30110236GB.fm Page 119 Friday, July 21, 2006 5:43 PM

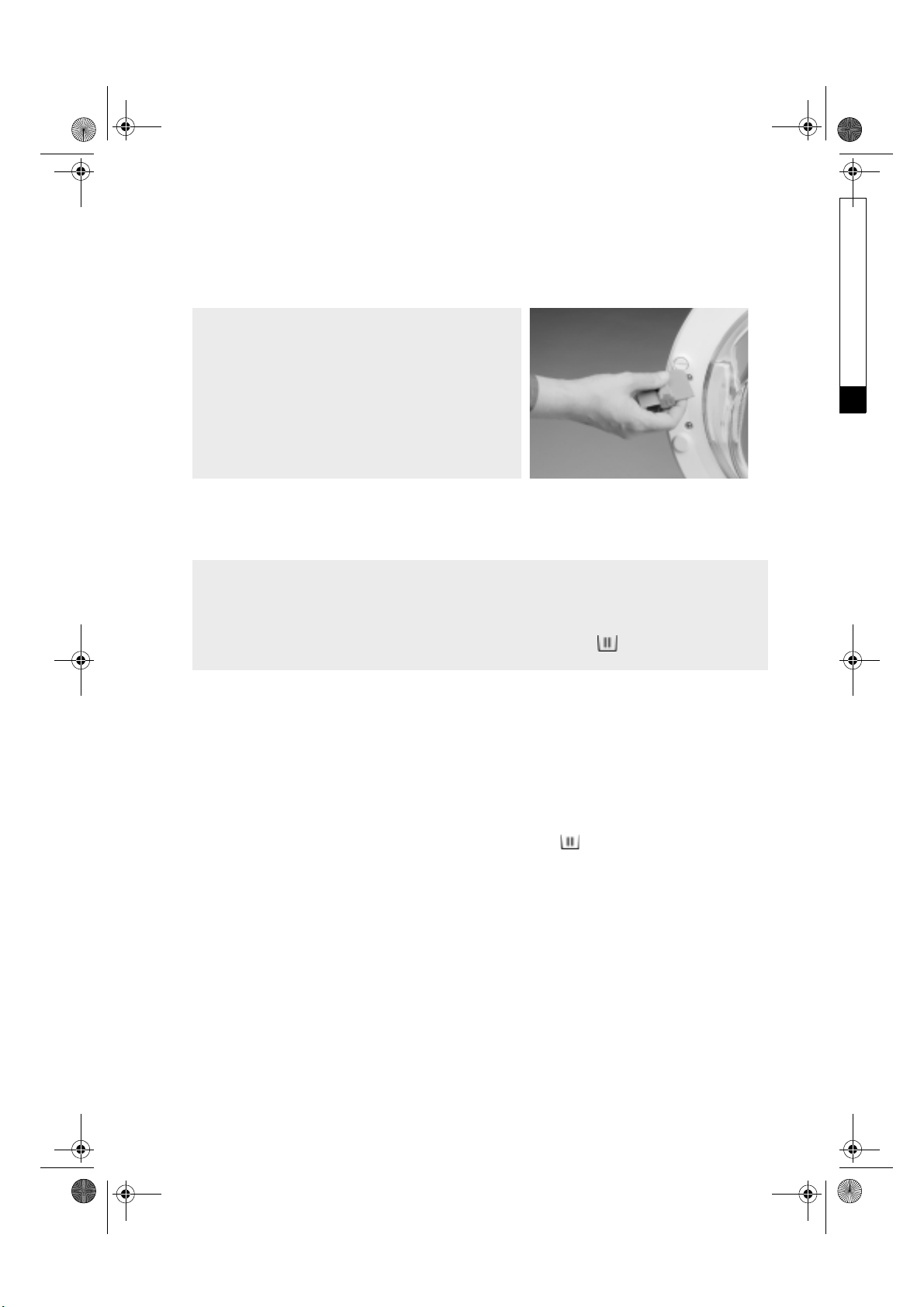

CHILD SAFETY (IF AVAILABLE)
To secure the appliance against improper use turn the
plastic screw on the interior of the door. To do this, use
the thick rounded corner of the coloured insert from the
detergent dispenser or a coin:
•
Slot vertical: the door will not lock
•
Slot horizontal: the door can be locked again
BEFORE THE FIRST WASH CYCLE
To remove any residual water used in testing by the manufacturer, we recommend that you carry out a
short wash cycle without laundry.
1.
Turn on the tap.
2.
Close the door.
3.
Pour a little detergent (about 30 ml) into the detergent compartment .
4.
Select and start a short programme (see quick reference guide).
PREPARING THE WASH
1.Sort the laundry according to...
• Type of fabric / care label symbol
Cottons, mixed fibres, easy care/synthetics,
wool, handwashed items
• Colour
Separate coloured and white items. Wash new
coloured articles separately
•Size
Laundry items of different sizes distribute
themselves better in the drum and optimise the
washing and spinning action
• Delicates
Wash small items (e.g. nylon stockings, belts etc.)
and items with hooks (e.g. bras) in a washbag or
pillow case with a zip fastener. Always remove
curtain glides or wash curtains with the glides
inside a cotton bag
2.Empty all pockets
Coins, safety pins etc. can damage the laundry,
drum and tub.
3.Closures
Close zips and hooks and eyes; Tie loose belts or
straps together.
Stain removal
•
Blood, milk, eggs etc. are generally removed by
the automatic enzyme phase of the programme
•
To remove red wine, coffee, tea, grass and fruit
stains etc. add a stain remover to the detergent
dispenser chamber
•
Pre-treat heavily-soiled areas with stain remover
if necessary
Dyeing
•
Only use dyes that are suitable for washing machines
•
Follow the manufacturer’s instructions.
•
Plastic and rubber parts of the washing machine
can be stained by dyes
Loading the laundry
1.
Open the door.
2.
Unfold the laundry and place it loosely in the
drum. Observe the load sizes given in the Quick
Reference Guide.
Note:
overloading the machine will result in
unsatisfactory washing results and creased laundry.
3.
Close the door.
119
Black process 45.0° 100.0 LPI
Page 6
30110236GB.fm Page 120 Friday, July 21, 2006 5:43 PM
DETERGENTS AND ADDITIVES
The choice of detergent depends on:
•
type of fabric (cottons, easy care/synthetics,
delicate items, wool).
Note:
Use only specific detergents for washing
wool
•
colour
•
the wash temperature
•
degree and type of soiling
Remarks:
Whitish residues on dark fabrics are caused by
insoluble compounds used in modern phosphatefree powder detergents. If this occurs, shake or
brush out the fabric or use liquid detergents.
Use only detergents and additives specifically
produced for domestic washing machines.
When using descaling agents, dyes or bleaches for
the pre-wash, make sure that they are suitable for
use in domestic washing machines. Descaler could
contain components which can attack parts of your
washing machine
Do not use any solvents (e.g. turpentine, benzine).
Do not wash fabrics in the machine which have
been treated with solvents or flammable liquids.
Dosage
Follow the dosage recommendations on the
detergent pack. They depend on:
•
degree and type of soiling
•
size of wash
full load follow the detergent manufacturer’s
instructions;
half load: 3/4 the amount used for a full load;
Minimum load (about 1 kg):
1/2 the amount used for a full load
•
water hardness in your area (request information
from the water company). Soft water requires
less detergent than hard water (refer to water
hardness table)
Notes:
Too much detergent can result in excess foam
formation.
The cleaning effect deteriorates.
If the washing machine detects too much foam, it
may prevent spinning.
Insufficient detergent may result in grey laundry in
time and also calcifies the heating system, drum and
hoses.
Water hardness chart
Water hardness Characteristics
1
2
3
4
120
Black process 45.0° 100.0 LPI
soft
medium
hard
very hard
German
°dH
0-7
7-14
14-21
over 21
French
°fH
0-12
12-25
25-37
over 37
English
°eH
0-9
9-17
17-26
over 26
Page 7
30110236GB.fm Page 121 Friday, July 21, 2006 5:43 PM

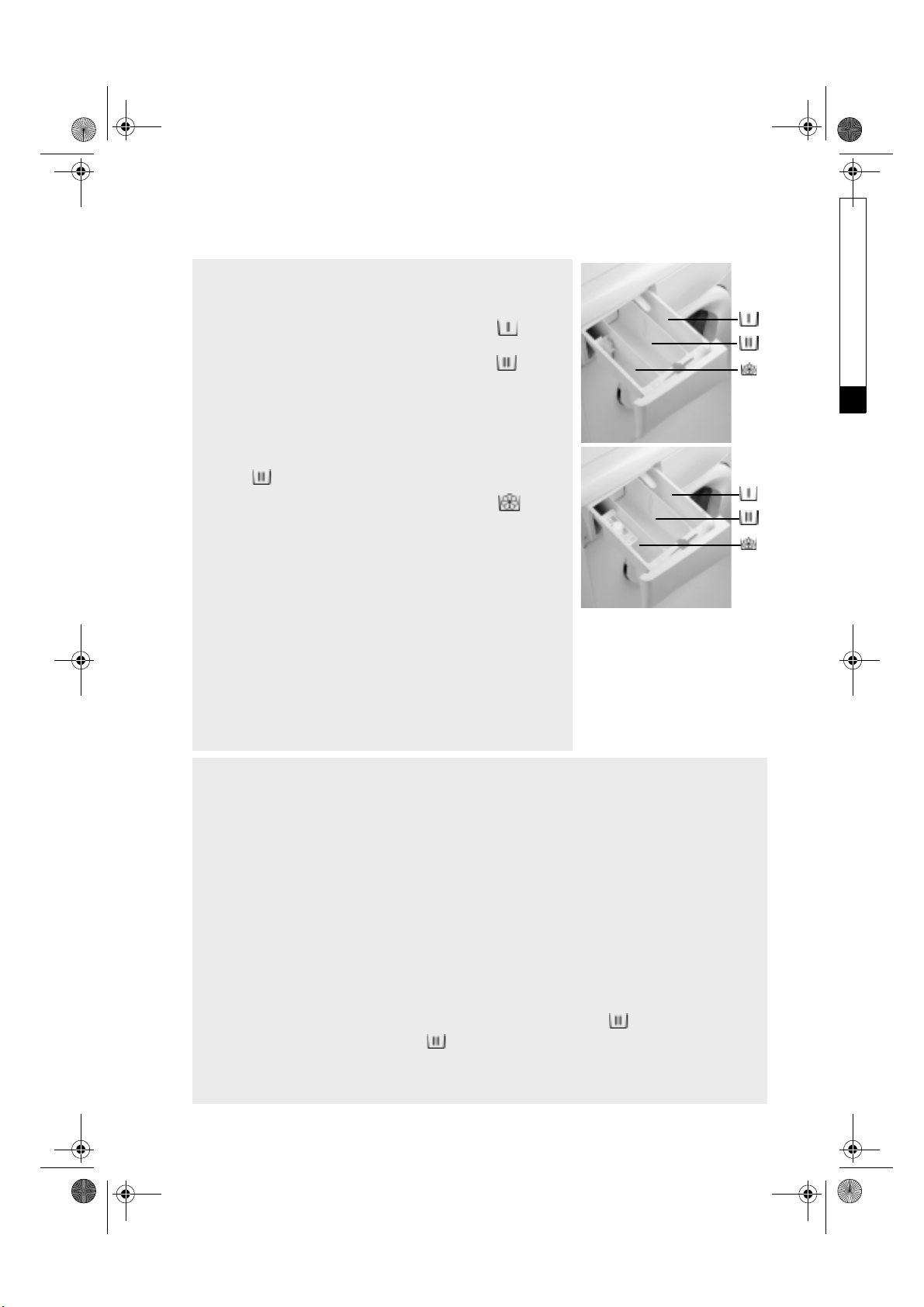

Pouring in the detergents and additives
The dispenser has three (models
depending on model.
Chamber
•
Detergent for the prewash
Chamber
•
Detergent for the main wash
•
Stain remover
•
Water softener (water hardness 4)
When using liquid detergent, remove the coloured insert from the
detergent container and insert it in the first gap in
chamber . The scale on the insert makes dosing easier.
Chamber
•
Fabric Softener
•
Liquid starch
Only pour additives in up to the “Max” mark.
“A1”
or
“A2”
) chambers
A1
A2
B2
Notes:
•
Keep detergents and additives in a safe, dry place out of the reach of children.
•
Liquid detergents can be used for programmes with prewash. In this case only measure in a powder
detergent for the main wash.
•
To prevent dispensing problems when using highly concentrated powder and liquid detergents, use the
special detergent ball or bag supplied with the detergent and place it directly inside the drum.
•
When using descaling agents, bleaches or dyes, make sure that they are suitable for washing machines.
Descalers could contain components that can attack parts of your washing machine.
•
Do not use any solvents in the washing machine (e. g. turpentine, benzine).
•
If you use starch powder, proceed as follows:
1.
Wash your laundry using the desired wash programme.
2.
Then stir the starch in with water in a beaker.
3.
Select the “Rinse and Spin” programme, reduce the speed to 800 rpm and start the programme.
4.
Pull out the detergent drawer until you can see about 3 cm. of chamber .
5.
Pour the starch solution into chamber while the water is running into the detergent drawer.
6.
If there are starch residues in the detergent drawer when the programme has finished, clean it if
necessary (see “Cleaning and Maintenance”).
Take note also of the starch manufacturer’s information.
Black process 45.0° 100.0 LPI
121
Page 8
30110236GB.fm Page 122 Friday, July 21, 2006 5:43 PM

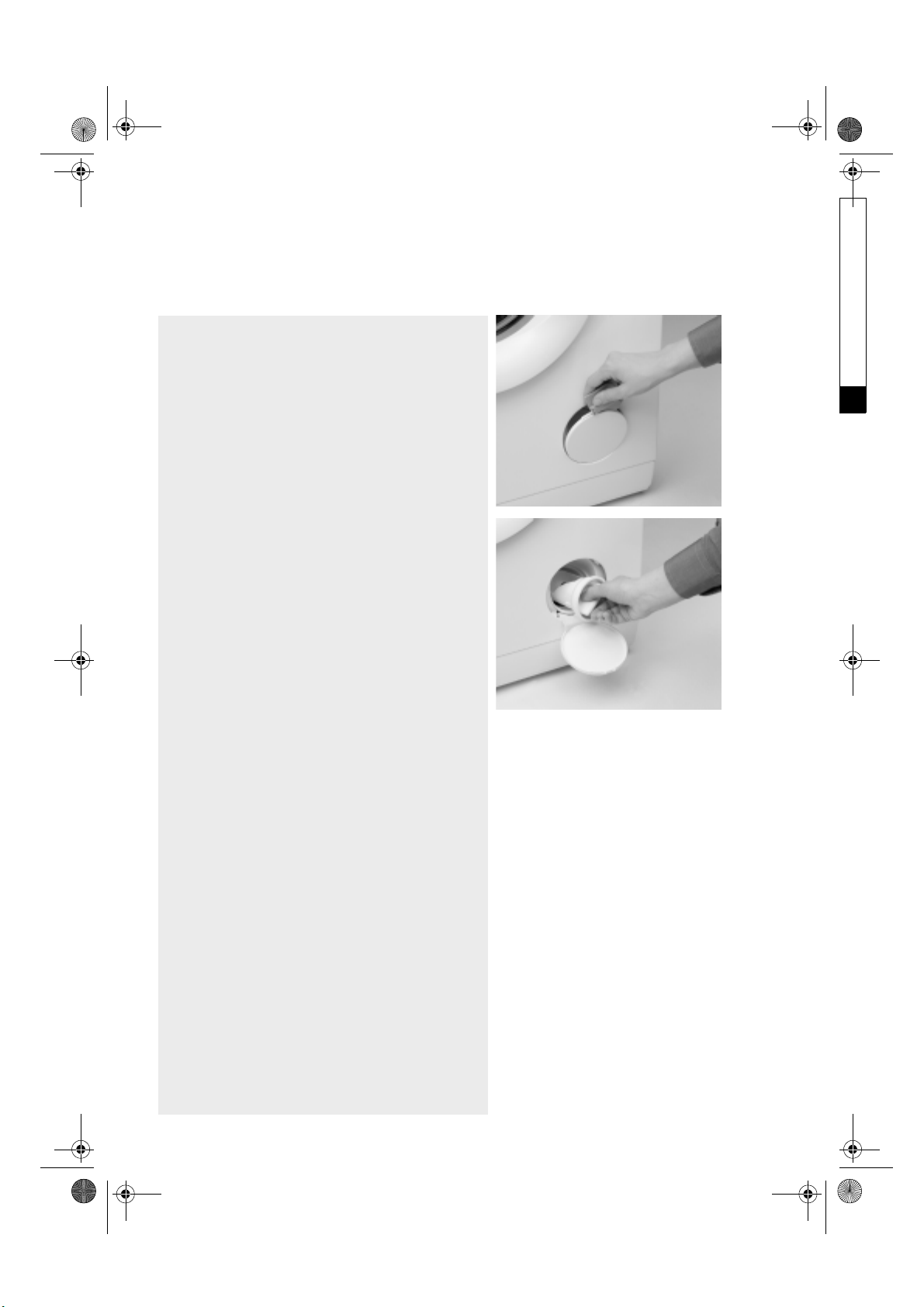

REMOVING THE FILTER
We recommend that you check and clean the filter
regularly, at least two or three times a year.
Especially:
•
When the appliance does not drain or spin properly
•
If the pump is blocked by a foreign body (e.g. buttons,
coins or safety pins)
IMPORTANT: make sure the water has had time
to cool before draining the appliance.
1.
Switch off the appliance and unplug it.
2.
Open the filter cover. Open the filter cover with the
help of the coloured insert from the detergent
container.
3.
Place a container beneath it.
4.
Open the filter but do not withdraw it completely.
Slowly turn the handle anticlockwise until the water
drains out.
5.
Wait until all the water has drained off.
6.
Now unscrew the filter completely and remove it.
7.
Clean the filter and the filter chamber.
8.
Check that the pump rotor moves freely.
9.
Insert the filter with the guide pin upwards and screw
it in clockwise to the stop (handle horizontal).
10.
Pour about 1 litre of water into the detergent drawer
to reactivate the Eco system. Check that the foreign
body trap is seated properly and tightly in place.
11.
Fold the cover up and lock it.
12.
Reinsert the plug in the socket.
13.
Select a programme and start it.
122
Black process 45.0° 100.0 LPI
Page 9
30110236GB.fm Page 123 Friday, July 21, 2006 5:43 PM
DRAINING RESIDUAL WATER
Before emptying the residual water, switch the appliance off and unplug it from the
mains socket.
Open the cover to the foreign body trap. Open the filter cover with the help of the
coloured insert from the detergent container. Place a container beneath it.
1.
Open the filter but do not withdraw it completely. Slowly turn the handle anticlockwise until the
water drains out.
2.
Wait until all the water has drained off.
3.
Now unscrew the filter completely and remove it.
4.
Tilt the appliance forwards carefully to allow the water to flow out.
5.
Insert the filter with the guide pin upwards and screw it in clockwise to the stop (handle horizontal).
6.
Fold the cover up and lock it.
Before using the washing machine again:
1.
Pour approx. 1 litre of water into the detergent drawer to reactivate the Eco system.
2.
Reinsert the plug in the socket.
CARE AND MAINTENANCE
Appliance exterior and control panel
•
Can be washed down with a soft, damp cloth
•
A little neutral cleaner (not abrasive) can be used
•
Dry with a soft cloth
Door seal
•
Clean with a damp cloth when necessary
•
Check the seal folds for foreign bodies
periodically
Filter
•
We recommend that you check and clean the
filter regularly, at least two or three times a year
(see “Removing The Filter”)
Black process 45.0° 100.0 LPI
123
Page 10
A
A2
30110236GB.fm Page 124 Friday, July 21, 2006 5:43 PM
Detergent dispenser
1.

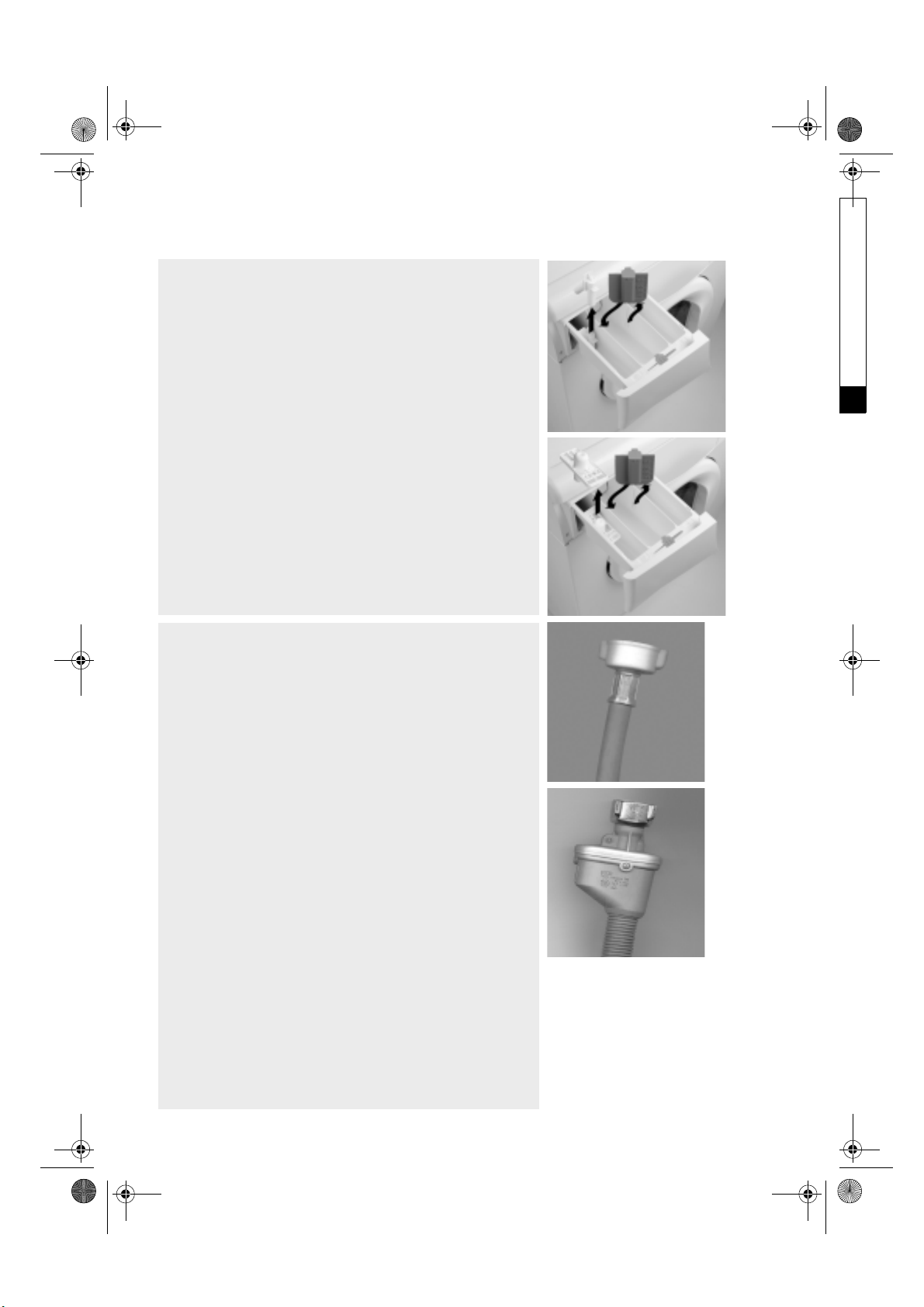

Press the release lever in the prewash compartment downward
and remove the drawer.
2.
Remove the inserts (the siphon from the softener compartment
and the coloured insert for liquit detergents).
3.
Wash all the parts under running water.
4.
Replace the parts and refit the detergent dispenser. Insert the
detergent dispenser in the washing machine.
A1
Water hose mesh filter.
Check and clean periodically.
For machines with a straight water supply hose
1.
Turn off the tap
2.
Unscrew the hose from the tap.
3.
Clean the internal filter.
4.
Screw the supply hose back onto the tap.
5.
Unscrew the hose from the machine
6.
Remove the filter from the washing machine with pliers and clean
it.
7.
Replace the filter and screw the hose connection back on the
machine.
8.
Turn on the tap and ensure that the connections are completely
water-tight.
For machines with Water Stop hose
1.
Turn off the tap
2.
Unscrew the Water Stop hose from the tap.
3.
Clean the internal filter.
4.
Screw the Water Stop hose back onto the tap.
5.
Turn on the tap and ensure that the connections are completely
water-tight.
“B”
“A”
(depending on the model)
A
B
124
Black process 45.0° 100.0 LPI
Page 11
30110236GB.fm Page 125 Friday, July 21, 2006 5:43 PM
TROUBLESHOOTING GUIDE
Depending on the model, your washing machine is
equipped with various automatic safety functions.
This enables faults to be detected in good time and
the safety system can react appropriately.
These faults are frequently so minor that they can
be solved within a few minutes.
The appliance will not start, no lamp
lights up.
Check whether:
•
the mains plug is inserted into the socket;
•
the wall socket is functioning correctly
(use a table lamp or similar);
•
a programme is selected correctly;
•
“On/Off”
the
(depending on model) has been pressed.
“Start/Pause”
or
button
The appliance will not start, but...(varies
depending on model)
...the “Start/Pause” lamp is flashing.
Check whether:
•
the appliance door is properly closed
(child safety);
•
the programme has been changed;
•
the water tap is still closed. For models with an
indication “Water tap closed”, the red indication
lights up. Open the tap and press
button.
“Start/Pause”
...the “On/Off” lamp is on.
Check whether:
•
the appliance door is properly closed
(child safety);
•
a programme has been selected and the
programme is started;
•
the water tap is open. If not, open the tap and
switch the appliance first off, then on.
The appliance stops during the
programme (varies depending on model).
Check whether:
•
“Rinse Hold”
the
option by pressing the button again or by
choosing the “Drain” programme;
•
another programme has been selected.
Reselect the desired programme and press the
“Start/Pause”
lamp is on, terminate this
button;
•“Start/Pause”
“Start/Pause”
•
“Rinse Hold”
the
this option by pressing the button again or by
choosing the “Drain” programme;
•“On/Off”
•
the washing machine safety system has been
activated (see fault description table).
Detergent and additive product residues
in dispenser at end of wash.
Check whether:
•
the siphon is correctly installed and clean
(see “Care and Maintenance”);
•
enough water is being supplied. The mesh filters
between the inlet hose and the tap could be
blocked (see “Care and Maintenance”).
Check and clean the filter two or three times a
year (see “Removing the filter”).
The appliance vibrates during the spin
cycle.
Check whether:
•
the appliance is levelled and solidly installed on all
four feet (see “Installation Guide”);
•
the transit bolts have been removed. The transit
bolts must be removed before the appliance can
be used (see “Installation Guide”).
Final spin results are poor:
The appliance has an imbalance detection and
correction system. If individual heavy articles are loaded
(bathmat, bathrobe, etc.) this system may reduce the
spin speed automatically to protect the appliance or
even interrupt the spin cycle altogether, if the imbalance
is too high even after several spin starts.
•
If the laundry is still too wet at the end of the
cycle, add smaller articles of laundry to balance
the load and repeat the spin cycle.
•
Excessive foam formation may prevent spinning.
Ensure correct amount of detergent is used
No water or insufficient water supply:
•
the appliance has a safety hose and the safety
valve has opened (red indicator in the safety valve
inspector window).
In this case replace it with a new safety hose.
What should I do when the automatic safety system detects a malfunction? (
depending on model)
The programme is interrupted and various indicators (if available) point to the source of the fault.
Fault description table
Small lamp lights up Digital display Fault description
“Water tap” “FH” “Water inlet fault”
- “FP” “Draining fault”
- from “F4” to “F15” “Electrical components fault”
“Water Stop” “FA” “Water Stop fault”
lamp is flashing. Press
button;
button is pushed, terminate
lamp is off. Press
“On/Off”
varies
button;
Black process 45.0° 100.0 LPI
125
Page 12
30110236GB.fm Page 126 Friday, July 21, 2006 5:43 PM
a.Water inlet fault (no or insufficient water
supply)
For models with a fault display, the “Water tap”
indicator is on or the display alternately shows “FH”.
Switch off the appliance by turning the programme
selector to the “ ” position and unplug it.
For models with no fault display, the washing
machine stops in the appropriate step. Switch off
the appliance and unplug it.
Check whether:
• the water tap is completely open, and the water
supply pressure is sufficient;
• the water inlet hose is kinked;
• the mesh filters are blocked (see “Care and
Maintenance” / “Water Hose Mesh Filters”);
• the water inlet hose is frozen.
Reconnect the appliance to the electrical supply.
For models with a fault display , reselect the desired
programme and press the “Start/Pause” button
again to continue with the programme (do not add
detergent for this programme).
For models without a fault display continue the
programme by pressing the “On/Off” button
again (do not add detergent for this programme).
If the fault re-occurs, contact After-Sales Service
(see “After-Sales Service”).
b.Draining out fault
For models with a fault display, depending on the
model, the display shows statically or alternately
“FP”. Switch off the appliance by turning the
programme selector to the “ ” position and
unplug it.
For models with no fault display, the washing
machine stops in the appropriate step. Switch off
the appliance and unplug it.
Check whether:
• the drain hose is kinked (see “Installation
Guide”);
• the pump / filter are blocked (see “Removing the
Filter / Draining Residual Water”);
IMPORTANT: before draining, allow the wash
water to cool down.
• the drain hose is frozen.
Connect the appliance to the electrical supply.
For models with a fault display reselect the desired
programme and press the “Start/Pause” button
again to continue with the programme (do not add
detergent for this programme).
For models without a fault display continue the
programme by pressing the “On/Off” button
again (do not add detergent for this programme).
If the fault re-occurs, contact After-Sales Service
(see “After-Sales Service”).
126
c. Electrical module fault
For models with a fault display “F4” to “F15” are
displayed and some or all Spin Speed Selection
LEDs are flashing. Switch off the appliance. Select a
programme and press the “Start/Pause” button
once again. The programme will continue.
For models without a fault display the washing
machine stops in the appropriate step. Switch the
appliance first off, then on. The programme will
continue.
If the fault re-occurs, contact After Sales Service
(See “After-Sales Service”).
d.Water Stop fault (if available)
The “Water Stop” may have been triggered by:
1.too much foam.
2.a leak in the inlet hose or in the appliance.
In this case the pump is switched on automatically
in order to pump the water out.
For models with a fault display the light of the
“Water Stop” indication is on. The display shows
“FA” or alternately “F” and “A” and the pump is
running. Switch off the appliance by turning the
programme selector to the “ ” position, unplug
the appliance and make sure that the water tap is
closed.
For models without a fault display the washing
machine stops in the appropriate step. Switch off
the appliance, unplug the appliance and make sure
that the water tap is closed.
Tilt the appliance forwards carefully to allow the
collected water to flow out.
Then:
1.plug in the appliance,
2.turn the water tap on (if water immediately flows
into the appliance again, without the appliance
being started, close water supply and call AfterSales Service).
For models with a fault display reselect the desired
programme and press the “Start/Pause” button
again to continue with the programme (do not add
detergent for this programme).
For models without a fault display continue the
programme by pressing the “On/Off” button
again (do not add detergent for this programme).
If the fault re-occurs, contact After-Sales Service
(see “After-Sales Service”).
Black process 45.0° 100.0 LPI
Page 13
30110236GB.fm Page 127 Friday, July 21, 2006 5:43 PM
AFTER-SALES SERVICE
Before contacting After-Sales Service:
1.
Try to remedy the problem yourself (see
“Troubleshooting Guide”).
2.
Restart the programme to check whether the
problem has solved itself.
3.
If the washing machine continues to function
incorrectly, call After-Sales Service.
ACCESSORIES
Via our After Sales Service or your specialist dealer,
you can obtain.
•a Pedestal Drawer
beneath your washing machine. It raises your
machine to allow for more comfortable loading
and unloading, as you now no longer need to
bend as far to access the unit. Furthermore, it
offers a great space-management tool and
storage solution.
•a Stacking Kit
your dryer on top of your washing machine and
thus effectively save space.
which can be installed
by means of which you can fix
Specify:
•
The nature of the problem.
•
The washing machine model
•
The service code (number after the word
SERVICE).
The After-Sales Service sticker is on the inside
of the door.
•
Your full address.
•
Your telephone number and area code.
After-Sales Service numbers and addresses can
be found in the guarantee booklet or contact the
dealer
Some models are able to be installed under your
kitchen worktop; in that case, please contact our
After Sales Service (see above). Be aware that:
•
the appliance MUST be installed under a
continuous worktop.
•
according to the legal safety regulations, the
installation of the appliance MUST be carried out
by an authorized technician or by our After Sales
Service.
•
the appliance MUST be installed using the
intermediate cover panel of the UBS Base Set
which can be obtained from specialist dealers or
our After Sales Service.
TRANSPORT/HANDLING
Never lift the appliance by the worktop when transporting.
1.
Pull out the power plug.
2.
Turn off the tap.
3.
Remove the water supply and drain hose.
4.
Drain residual water from the appliance and hoses (see “Removing The Filter”/”Draining Residual
Water”).
5.
Fit the transit bolts (obligatory)
Black process 45.0° 100.0 LPI
127
Page 14
30110236GB.fm Page 128 Friday, July 21, 2006 5:43 PM
INSTALLATION

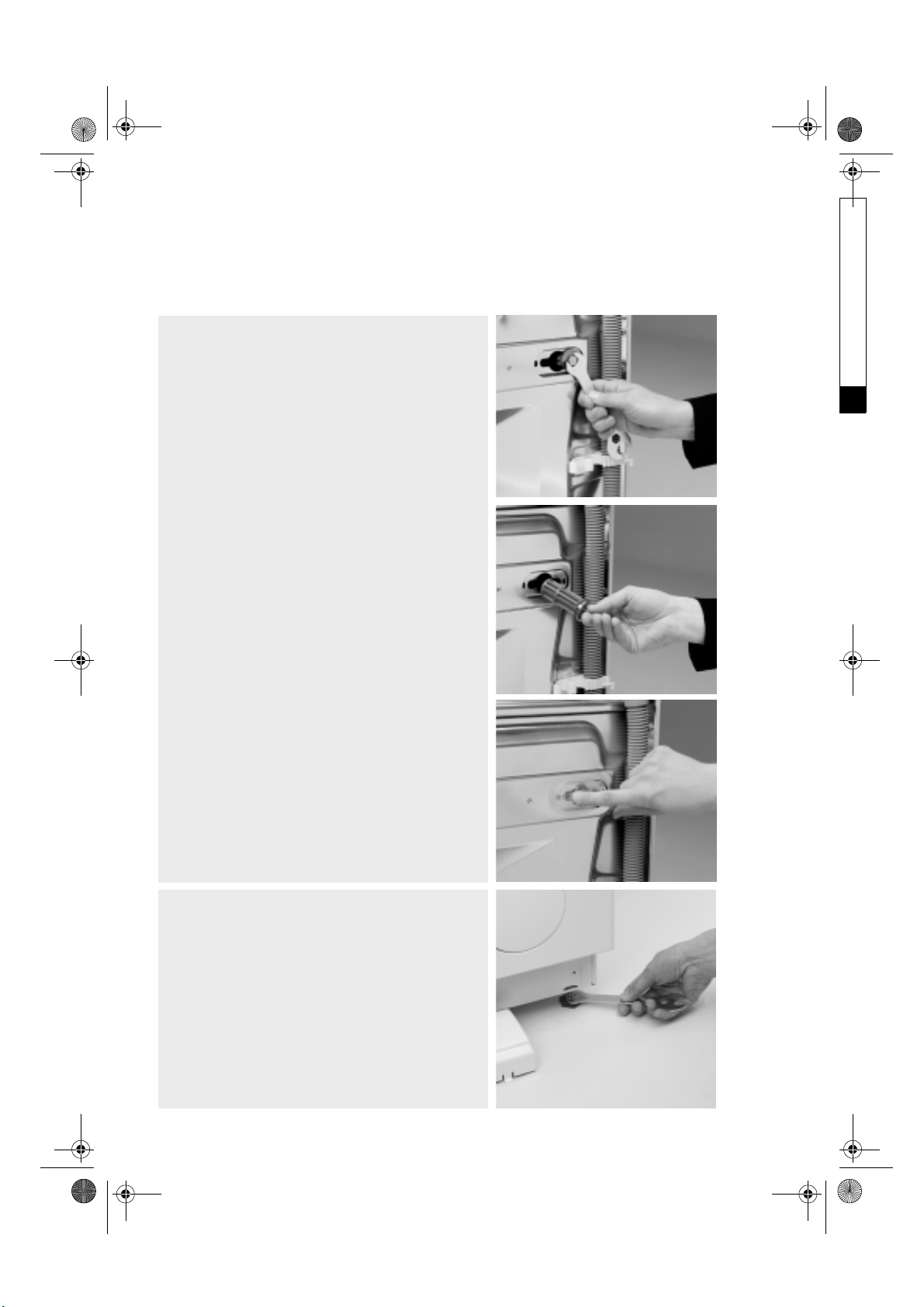

Remove the transit bolts
1.
Slacken the four bolts with the spanner supplied.
2.
Unscrew the bolts by hand.
3.
Holding the bolt head, pull each bolt through the wide
part of the holes.
4.
Close the holes with the plastic covers supplied; insert
the covers in the wide part of the hole and slide them
toward the narrow part until they click into place.
5.
Keep the transit bolts for future use.
•
Whenever the appliance is transported, the transit
bolts must be refitted:
6.
Pry off the plastic covers with a screwdriver, slide
them in the opposite direction of the arrow and
remove.
7.
Insert the transit bolts, performing the steps for
removal in reverse order.
Adjust the feet
If the floor is uneven, adjust the levelling feet as required
(do not insert pieces of wood etc. under the feet):
1.
Slacken the locknut using the spanner supplied.
2.
Adjust the height of the foot, turning it by hand.
3.
Tighten the locknut by turning it anti-clockwise
towards the appliance casing.
If the appliance is to be installed on a wooden floor,
distribute the weight by placing it on a 60 x 60 cm sheet of
plywood at least 3 cm in thickness.
Secure the plywood sheet to the floor.
128
Black process 45.0° 100.0 LPI
Page 15
30110236GB.fm Page 129 Friday, July 21, 2006 5:43 PM

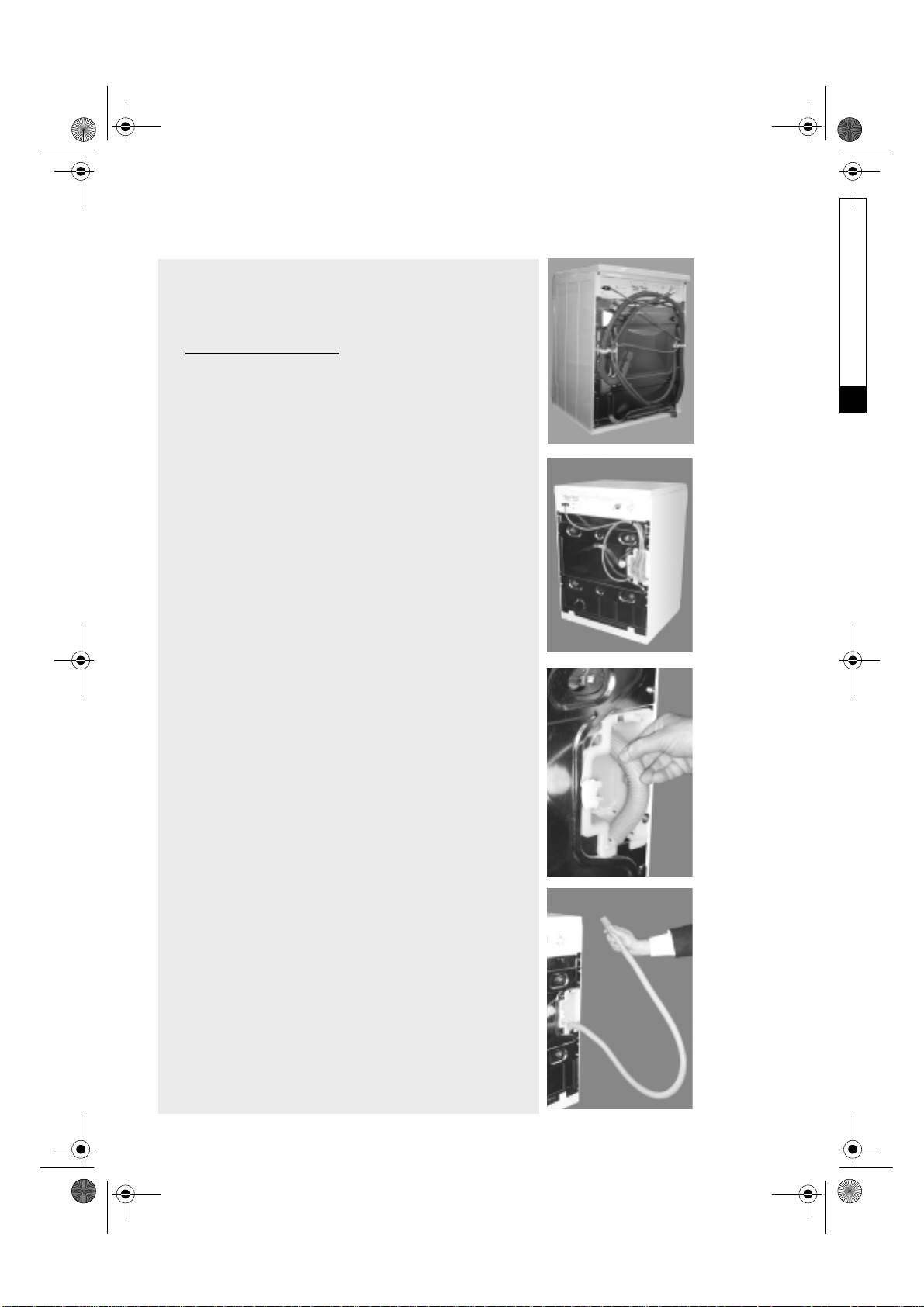

Worktop for built-under models
The appliance
If the appliance will be built under
from specialist shops or from After-Sales Service.
1.
Unplug the appliance.
2.
Unscrew the worktop fixing screws from the rear of the appliance.
3.
Slide the worktop fully backward and lift it upwards to remove. Install the cover panel following the
relative instructions.
4.
Refit the fixing screws and tighten them.
5.
Plug the appliance only into the mains power socket.
must
only be installed beneath a continuous fitted kitchen worktop.

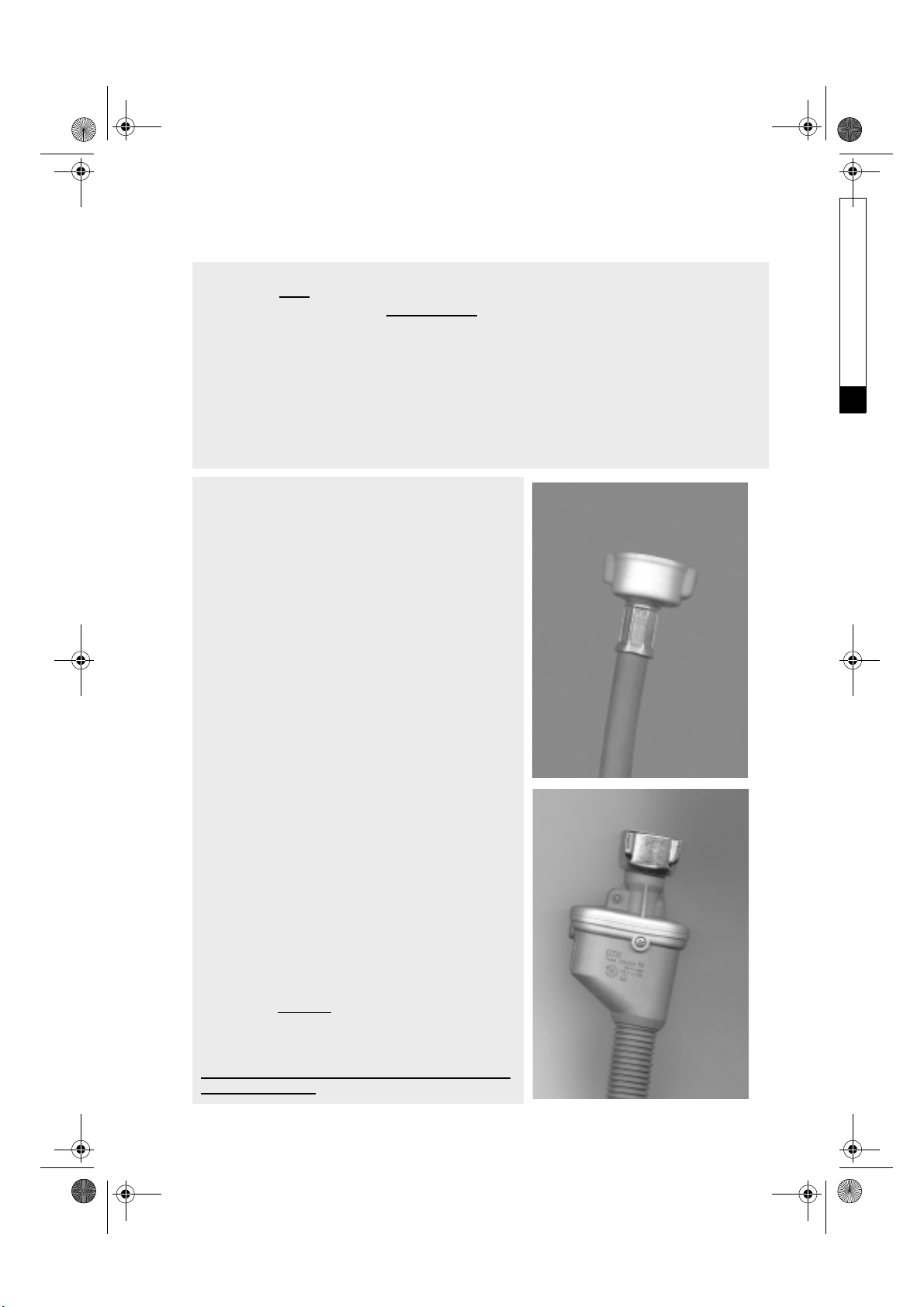

Connect the water inlet hose
For models with straight hose “A”
1.
Insert the dirt strainer (already premounted on the
hose end or included in the accessories) into the
threaded tap coupling.
2.
Carefully screw the hose connection onto the tap
preferably by hand.
3.
Make sure there are no kinks in the hose.
4.
Check water-tightness of tap and appliance
connections by turning the tap completely on.
If the hose is too short, replace it with a suitable length of
pressure resistant hose (1000 kPa min, EN 50084
approved type).
Periodically check the hose for brittleness and cracks and
replace if necessary.
The appliance can be connected without an antibackpressure valve.
it is mandatory
to use the cover panel UBS. This can be obtained
A
For models with Water Stop hose “B”
If the flexible hose is damaged, unplug the appliance from
the mains immediately.
1.
Screw the threaded connector with the filter inserted
onto the tap.
2.
Check water-tightness of tap and appliance
connections by turning the tap completely on.
If the hose is too short, replace it with a 3 m Water Stop
hose (available from After-Sales Service or from your
dealer). This operation must be carried out exclusively by
a licensed electrician.
The appliance
a non-pressurized water heater.
The inlet hose and the plastic enclosure at the tap
connection contain electrical components.
Do not cut the hose and do not immerse the plastic
enclosure in water.
Black process 45.0° 100.0 LPI
must not
be connected to the mixing tap of
B
129
Page 16
30110236GB.fm Page 130 Friday, July 21, 2006 5:43 PM
Connect the water drain hose
The draining varies according to model:
External drain hose
1a.
Unhook the drain hose from the left clip.
Attention: do not unhook
the right drain hose connection.
Internal drain hose
1b.
Pull the hose completely out of the holder. The holder can be on
the right or on the left on the rear side (depending on the
model).
Close off the hole with the attached cap.
2.
Connect the drain hose to the siphon or hook it over the edge of
a sink by means of the “U” bend supplied.
3.
Make sure there are no kinks in the hose.
4.
Secure the hose so that it cannot fall down while the appliance is
running.
The drain hose should not be hooked onto small washbasins.
If you need to add an extension, use a flexible hose of the same type
and secure the union with screw-on hose clips.
Max. drain hose length: 2.50 m
Max. drain height: 1.25 m
Min. drain height: 0.70 m
1a
1b
130
Black process 45.0° 100.0 LPI
Page 17
30110236GB.fm Page 131 Friday, July 21, 2006 5:43 PM
ELECTRICAL CONNECTION
For Great Britain only
Warning - this appliance must be earthed
Fuse replacement
If the mains lead of this appliance is fitted with a
BS 1363A 13amp fused plug, to change a fuse in this type
of plug use an A.S.T.A. approved fuse to BS 1362 type and
proceed as follows:

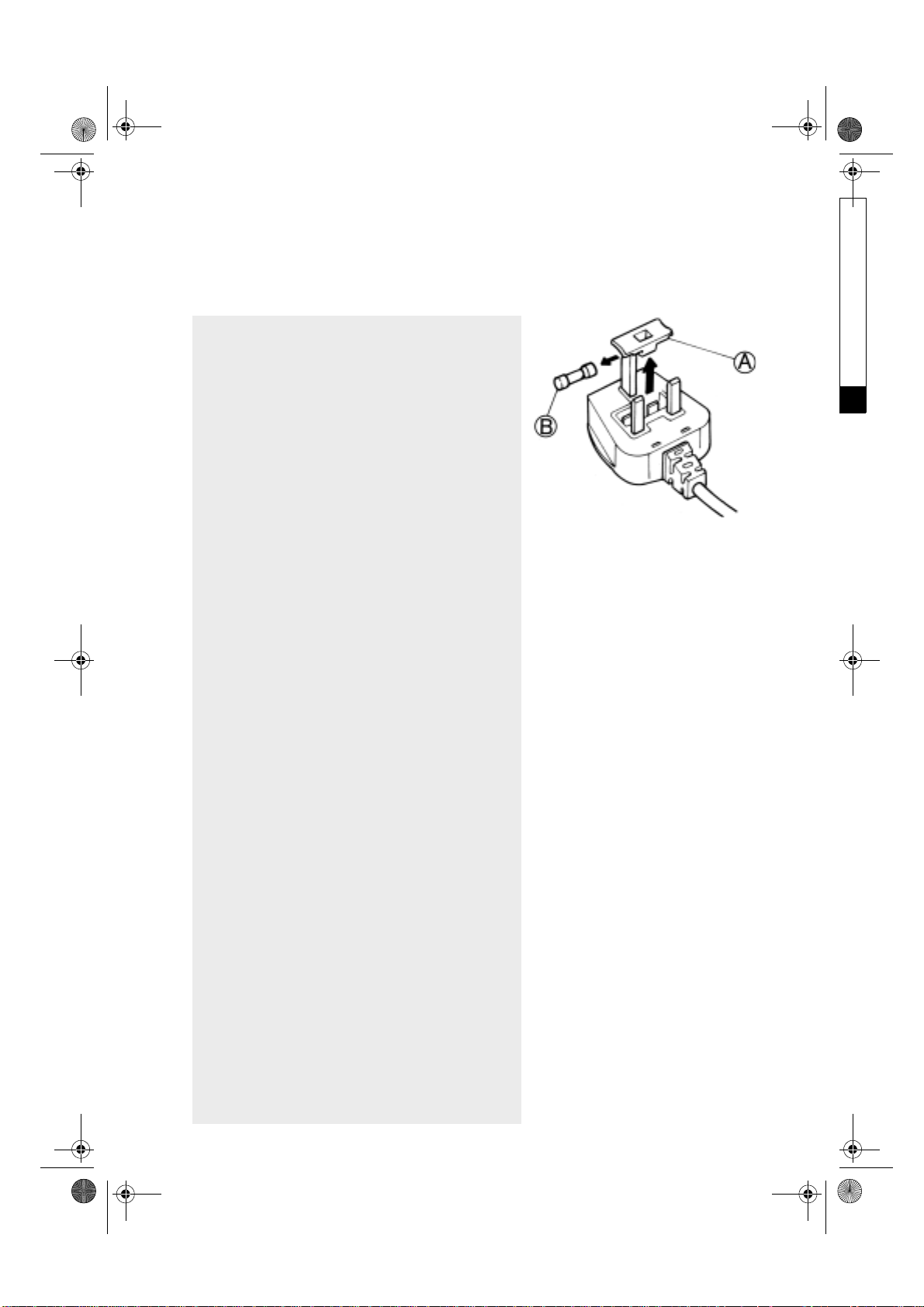

1.
Remove the fuse cover (A) and fuse (B).
2.
Fit replacement 13A fuse into fuse cover.
3.
Refit both into plug.
Important:
The fuse cover must be refitted when changing a fuse and
if the fuse cover is lost the plug must not be used until a
correct replacement is fitted.
Correct replacement are identified by the colour insert or
the colour embossed in words on the base of the plug.
Replacement fuse covers are available from your local
electrical store.
For the Republic of Ireland only
The information given in respect of Great Britain will
frequently apply, but a third type of plug and socket is also
used, the 2-pin, side earth type.
Socket outlet / plug (valid for both countries)
If the fitted plug is not suitable for your socket outlet,
Please contact Whirlpool Service for further instruction.
Please do not attempt to change plug yourself. This
procedure needs to be carried out by a qualified Whirlpool
technician in compliance with the manufactures
instructions and current standard safety regulations.
Black process 45.0° 100.0 LPI
131
Loading...
