Whirlpool AWM 5125/5, AWM 5104/5, AWM 5145/5 INSTALLATION

30110234GB.fm Page 3 Thursday, July 7, 2005 7:16 PM

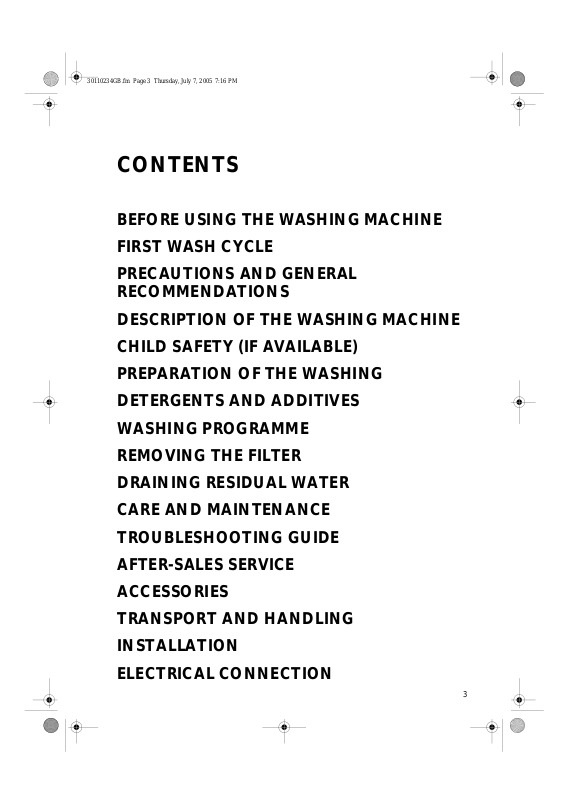

CONTENTS

BEFORE USING THE WASHING MACHINE FIRST WASH CYCLE PRECAUTIONS AND GENERAL

RECOMMENDATIONS DESCRIPTION OF THE WASHING MACHINE CHILD SAFETY (IF AVAILABLE) PREPARATION OF THE WASHING DETERGENTS AND ADDITIVES WASHING PROGRAMME REMOVING THE FILTER DRAINING RESIDUAL WATER CARE AND MAINTENANCE TROUBLESHOOTING GUIDE AFTER-SALES SERVICE ACCESSORIES TRANSPORT AND HANDLING INSTALLATION ELECTRICAL CONNECTION

30110234GB.fm Page 4 Thursday, July 7, 2005 7:16 PM

BEFORE USING THE WASHING MACHINE

1.Removing the packaging and check

After unpacking, make sure that the washing

•

machine is undamaged. If in doubt, do not use the washing machine. Contact After-Sales Service or your local retailer.

Keep the packaging materials (plastic bags,

•

polystyrene parts, etc.) out of reach of children, as they are potentially dangerous.

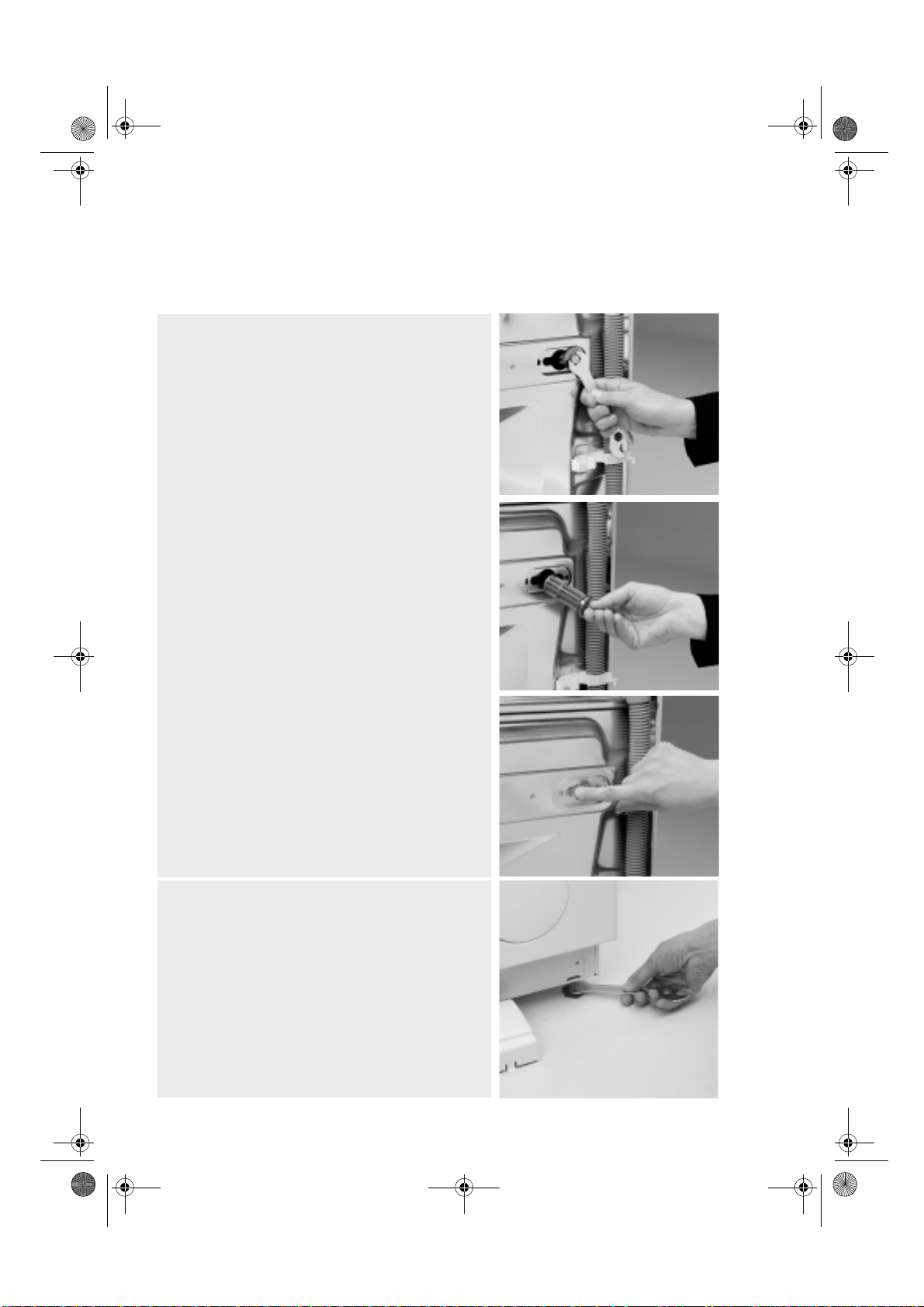

2.Remove the transit bolts

The appliance is fitted with transit bolts to

•

prevent internal damage during transport.

Before using the washing machine you must remove the transit bolts

Remove the transit bolts”).

(see “Installation/

3.Install the washing machine

Remove the protective foil from the control

•

panel (if available). Move the machine without carrying it at the top.

•

Install the appliance on a solid and level floor

•

surface, preferably in a corner of the room. Adjust the feet to ensure that the machine is

•

stable and level (see “Installation/Adjust the feet”).

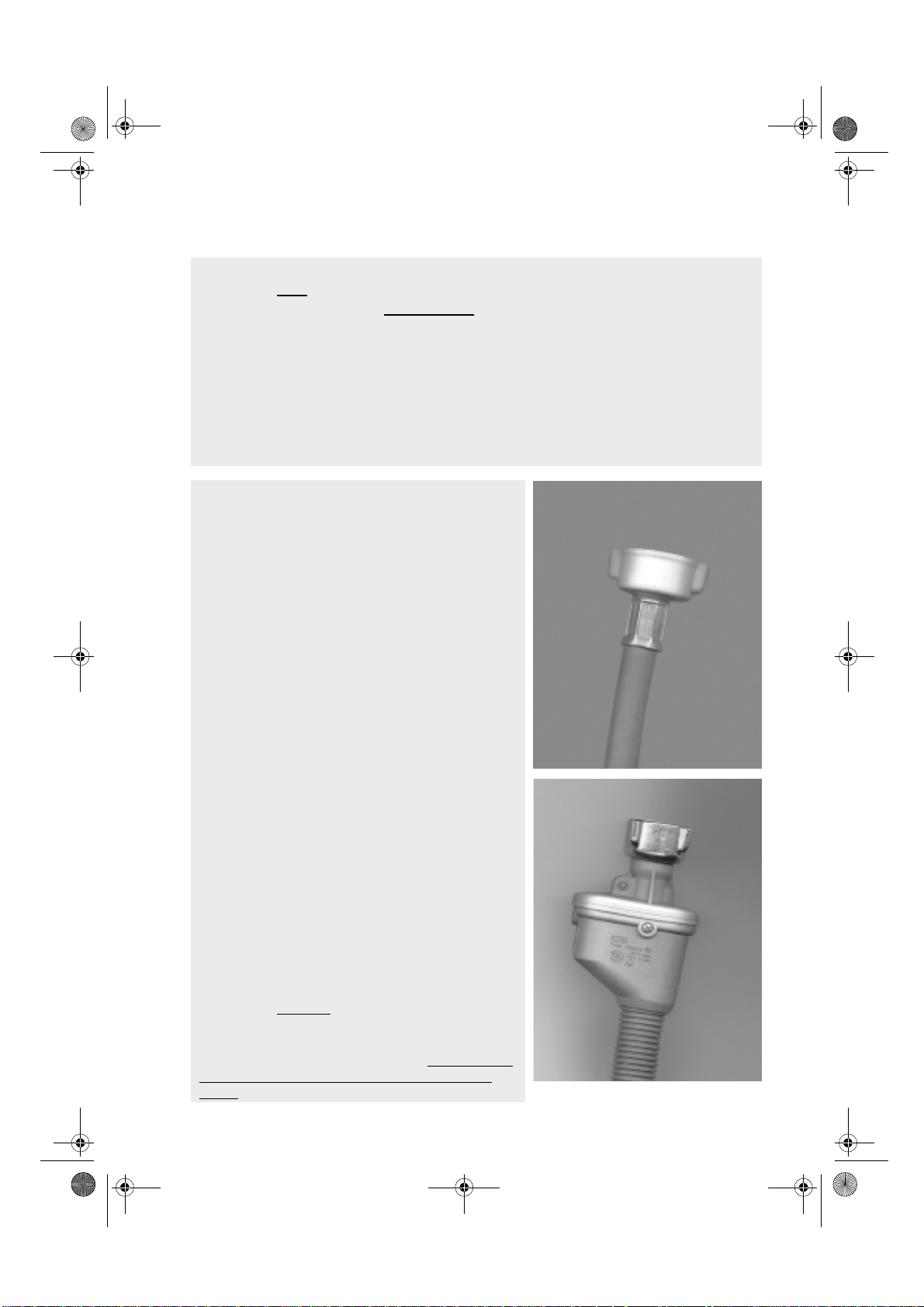

4.Water supply

Connect the water supply inlet hose in

•

accordance with regulations of your local water company (see “Installation/Connect the water inlet hose”).

Water supply: cold water only

•

Tap: 3/4” threaded hose connection

•

Pressure: 100-1000 kPa (1-10 bar).

•

5.Drain hose

Connect the drain hose to the siphon or hook it

•

over the edge of a sink by means of the “U” bend (see “Installation/Connect the water drain hose”).

If the washing machine is connected to a built-in

•

drainage system, ensure the latter is equipped with a vent to avoid simultaneous loading and draining of water (siphoning effect).

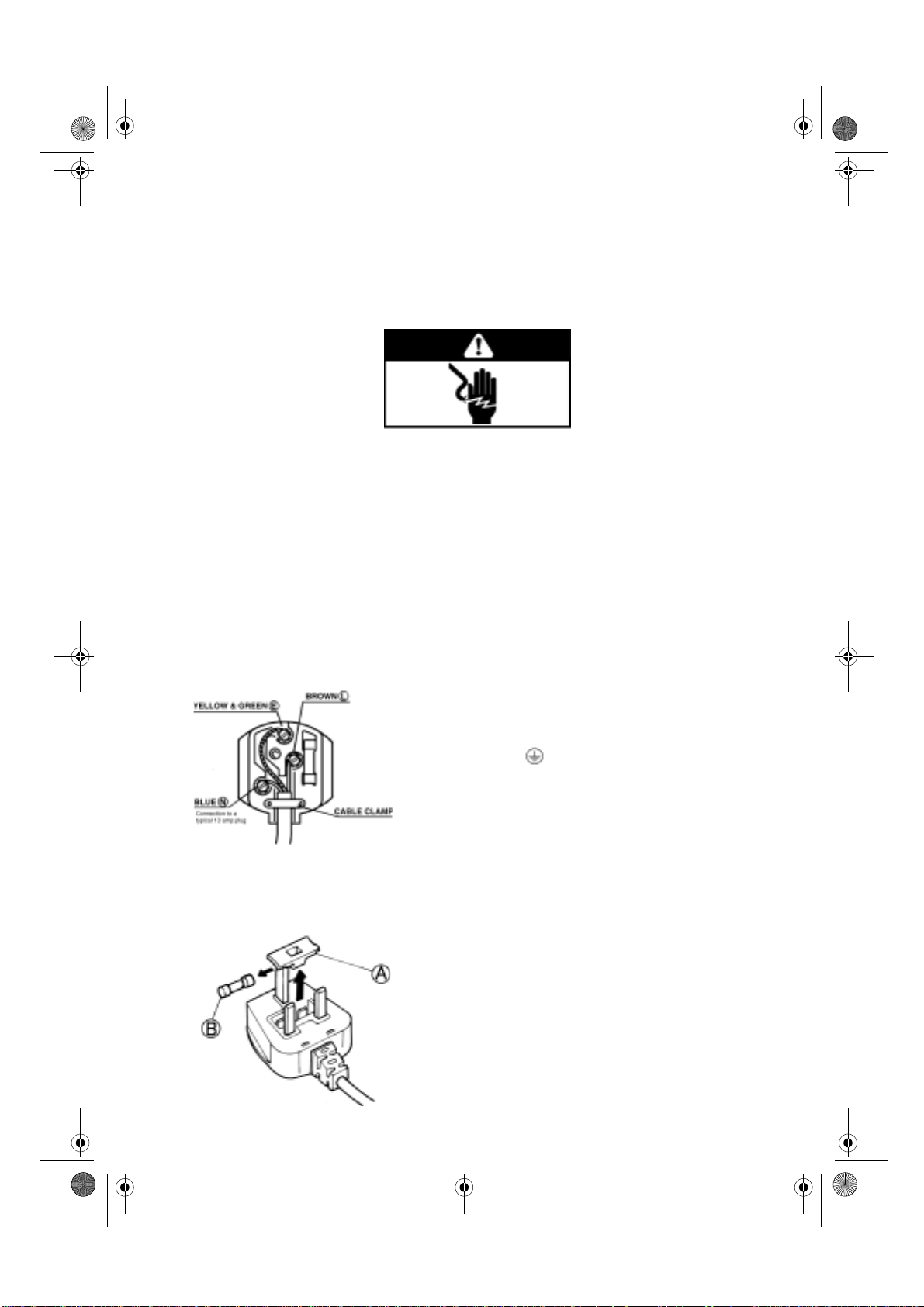

6.Electrical connections

Electrical connections must be carried out by a

•

qualified technician in compliance with the manufacturer’s instructions and current standard safety regulations.

Voltage information, power consumption and

•

electrical protection data are supplied on the inside of the appliance door.

The appliance must be connected to the mains

•

exclusively by means of a socket with an earth connection in accordance with established regulations. The appliance must be earthed by law. The manufacturer declines all liability for damage to property or injury to persons or animals deriving either directly or indirectly from failure to observe the directions.

Do not use extension leads or multi sockets.

•

Before any maintenance on the washing machine

•

disconnect it from the mains supply. Access to the mains plug or to disconnection

•

from mains supply via a double-pole switch must be ensured at all times following the installation.

Do not operate the washing machine if it has

•

been damaged during transport. Inform the After-Sales Service.

Mains cable replacement is only to be carried out

•

by After-Sales Service. The washing machine must only be used in the

•

household for the prescribed uses.

Minimum housing dimensions:

Width: 600 mm Height: 825 mm Depth: 600 mm

30110234GB.fm Page 5 Thursday, July 7, 2005 7:16 PM

FIRST WASH CYCLE

We recommend the first wash cycle be made without laundry. This will remove any residual water used in testing your washing machine.

Turn on the tap.

Close the appliance door.

Pour a small amount of detergent (about 30 ml) into the detergent dispenser .

Select a short program (see programme chart).

Press the

“On/Off”

button.

PRECAUTIONS AND GENERAL RECOMMENDATIONS

1.Packing

The packing box may be fully recycled as confirmed

•

by the recycling symbol. Adhere to local regulations when disposing of packaging material.

2.Energy saving tips

Achieve the best use of energy, wate r, detergent

•

and time by using the recommended maximum load size. Do not exceed the detergent dosages indicated

•

in the manufacturer’s instructions. The Eco Flap - a special system in the outlet - will

•

prevent detergent loss from the drum to avoid detergent loss into the environment. Use “Prewash” for heavily soiled laundry only!

•

Save detergent, time, water and energy consumption by not selecting “Prewash” for slight to normally soiled laundry. Pretreat stains with stain remover or soak dried

•

in stains in water before washing to reduce the necessity of a hot wash program. Save energy by using a 60° C instead of a 90° C

•

wash programme or a 40° C instead of a 60° C wash programme.

Save energy and time by selecting a high spin

•

speed to reduce the water content in laundry before using a tumble dryer (for machines with adjustable spin speed).

3.Disposing of packaging and old appliances

This appliance is marked according to the

•

European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The symbol on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling

of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The washing machine is built from reusable

•

materials. The washing machine must be disposed of in compliance with local waste disposal regulations. Before scrapping, cut off the power cable so that the

•

washing machine cannot be connected to the mains. Remove detergent from compartment if you

•

intend scrapping your appliance.

4.Child safety

Children must not be allowed to play with the

•

washing machine.

5.General recommendations

When the appliance is not in use unplug it and

•

turn off the tap. Before cleaning or carrying out maintenance,

•

switch off the washing machine and disconnect it from the mains supply.

To clean the outside of the washing machine, use

•

a neutral detergent and a damp cloth. Do not use abrasive detergents.

•

Do not attempt to force the door open.

•

If necessary, the power cable may be replaced

•

with an identical one obtained from our AfterSales Service. The power cable must only be replaced by a qualified technician.

6.EC Declaration of Conformity

This washing machine has been designed,

•

constructed and distributed in compliance with the safety requirements of EC Directives: 73/23/EEC Low Voltage Directive

89/336/EEC EMC Directive 93/68/EEC CE Marking Directive

30110234GB.fm Page 6 Thursday, July 7, 2005 7:16 PM

DESCRIPTION OF THE WASHING MACHINE

Worktop

Control panel

Detergent dispenser

After-Sales Service sticker

(on the back side of the door) Door

Door handle

To open the door press the

•

button on the inside of the handle and pull Close the door by pushing it

•

firmly (the lock will click into place)

Child safety (inside door if

available) Filter (behind cover)

Plinth

Adjustable feet

10.

CHILD SAFETY (IF AVAILABLE)

To protect the appliance from improper use, turn the plastic screw on the interior of the door using a coin or the thick rounded plastic projection on the coloured insert from the detergent dispenser:

Slot vertical: safety position, i.e. the door will not lock.

•

Slot horizontal: normal position, i.e. the door can be locked

•

again.

30110234GB.fm Page 7 Thursday, July 7, 2005 7:16 PM

PREPARATION OF THE WASHING

1.Sort the laundry according to...

• Type of fabric / care label symbol

Cottons, mixed fibres, easy care/synthetics, wool, handwashed items

• Colour

Separate coloured and white items. Wash new coloured articles separately

•Size

Laundry items of different sizes distribute themselves better in the drum and optimise the washing and spinning action

• Delicates

Wash small items (e.g. nylon stockings, belts etc.) and items with hooks (e.g. bras) in a washbag or pillow case with a zip fastener. Always remove curtain glides or wash curtains with the glides inside a cotton bag

2.Empty all pockets

Coins, safety pins etc. can damage the laundry, drum and tub.

3.Closures

Close zips and hooks and eyes; Tie loose belts or straps together.

Stain removal

Blood, milk, eggs etc. are generally removed by

•

the automatic enzyme phase of the programme To remove red wine, coffee, tea, grass and fruit

•

stains etc. add a stain remover to the detergent dispenser chamber Pre-treat heavily-soiled areas with stain remover

•

if necessary

Dyeing

Only use dyes that are suitable for washing

•

machines Follow the manufacturer’s instructions.

•

Plastic and rubber parts of the washing machine

•

can be stained by dyes

Loading the laundry

Open the door.

Unfold the laundry and place it loosely in the

drum. Observe the load sizes given in the Quick Reference Guide.

overloading the machine will result in

Note:

unsatisfactory washing results and creased laundry. Close the door.

DETERGENTS AND ADDITIVES

The choice of detergent depends on:

type of fabric (cottons, easy care/synthetics,

•

delicate items, wool).

Use only specific detergents for washing

Note:

wool colour

•

the wash temperature

•

degree and type of soiling

• Remarks:

Whitish residues on dark fabrics are caused by insoluble compounds used in modern phosphatefree powder detergents. If this occurs, shake or brush out the fabric or use liquid detergents.

Use only detergents and additives specifically produced for domestic washing machines.

When using descaling agents, dyes or bleaches for the pre-wash, make sure that they are suitable for use in domestic washing machines. Descaler could contain components which can attack parts of your washing machine

Do not use any solvents (e.g. turpentine, benzine). Do not wash fabrics in the machine which have been treated with solvents or flammable liquids.

Water hardness chart

Water hardness Characteristics

1 2 3 4

soft

medium

hard

very hard

Dosage

Follow the dosage recommendations on the detergent pack. They depend on:

degree and type of soiling

•

size of wash

•

full load follow the detergent manufacturer’s instructions; half load: 3/4 the amount used for a full load; Minimum load (about 1 kg): 1/2 the amount used for a full load

water hardness in your area (request information

•

from the water company). Soft water requires less detergent than hard water (refer to water hardness table)

Notes:

Too much detergent can result in excess foam formation. The cleaning effect deteriorates. If the washing machine detects too much foam, it may prevent spinning. Insufficient detergent may result in grey laundry in time and also calcifies the heating system, drum and hoses.

German

°dH

0-7

7-14

14-21

over 21

French

12-25 25-37

over 37

°fH

0-12

English

°eH

0-9

9-17

17-26

over 26

30110234GB.fm Page 8 Thursday, July 7, 2005 7:16 PM

Pouring in the detergents and additives

The dispenser has three (models depending on model.

Chamber

Detergent for the prewash

•

Chamber

Detergent for the main wash

•

Stain remover

•

Water softener (water hardness 4)

•

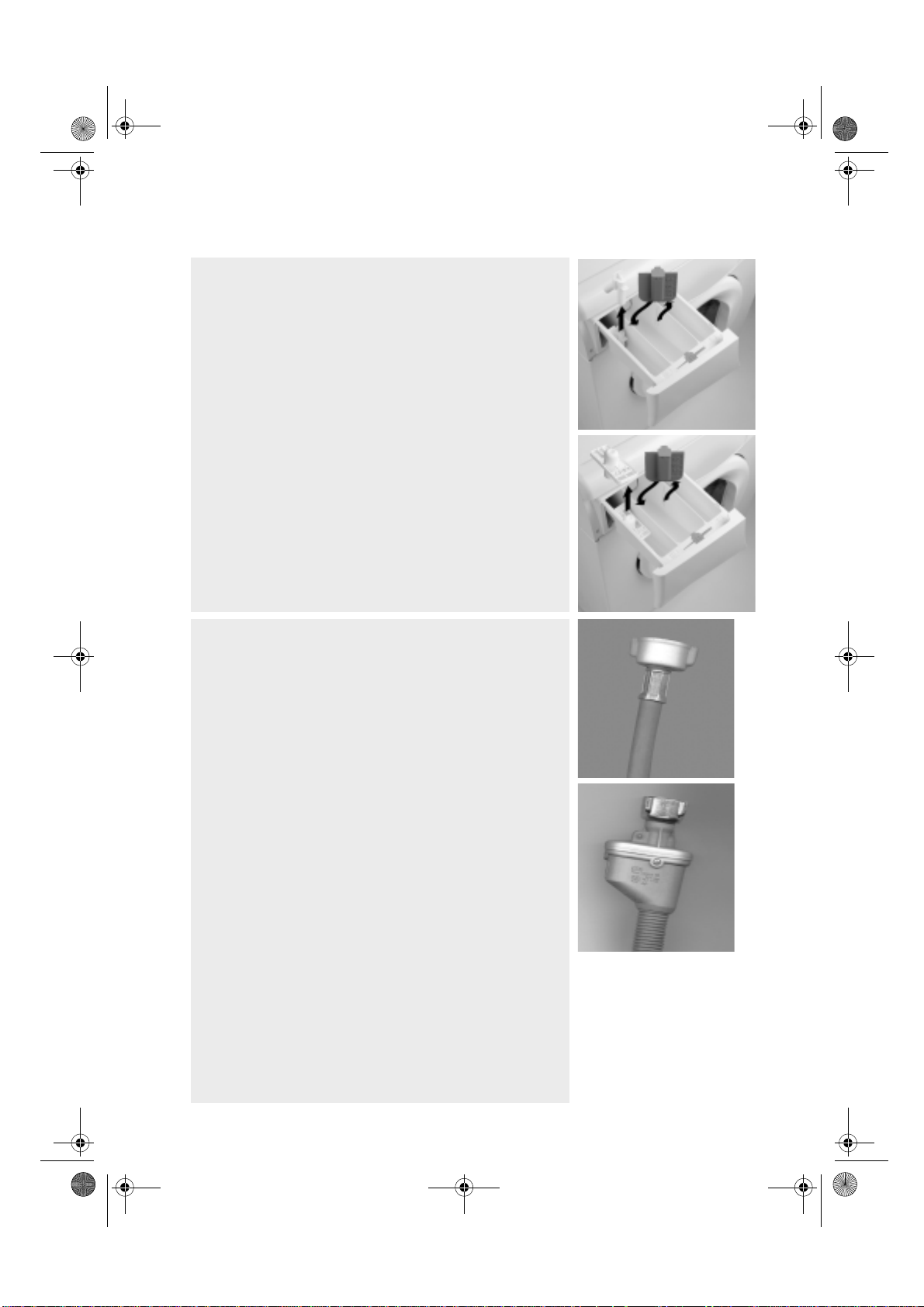

When using liquid detergent, remove the coloured insert from the detergent container and insert it in the first gap in chamber . The scale on the insert makes dosing easier.

Chamber

Fabric Softener

•

Liquid starch

•

Only pour additives in up to the “Max” mark.

“A1”

“A2”

) chambers

Notes:

Keep detergents and additives in a safe, dry place out of the reach of children.

•

Liquid detergents can be used for programmes with prewash. In this case only measure in a powder

•

detergent for the main wash. To prevent dispensing problems when using highly concentrated powder and liquid detergents, use the

•

special detergent ball or bag supplied with the detergent and place it directly inside the drum. When using descaling agents, bleaches or dyes, make sure that th ey are suitable for wash ing machines.

•

Descalers could contain components that can attack parts of your washing machine. Do not use any solvents in the washing machine (e. g. turpentine, benzine).

•

If you use starch powder, proceed as follows:

•

Wash your laundry using the desired wash programme.

Then stir the starch in with water in a beaker.

Select the “Rinse and Spin” programme, reduce the speed to 800 rpm and start the programme.

Pull out the detergent drawer until you can see about 3 cm. of chamber .

Pour the starch solution into chamber while the water is running into the detergent drawer.

If there are starch residues in the detergent drawer when the programme has finished, clean it if

necessary (see “Cleaning and Maintenance”). Take note also of the starch manufacturer’s information.
