Whirlpool AWM 5125/3 INSTRUCTION FOR USE

3gb05443a.fm Page 1 Monday, March 3, 2003 12:54 PM

AWM 5125/3GB

A. “On/Off” Button B. “On/Off” Indication

Programme

Cotton 95°

with prewash

Synthetics 60°

with prewash Delicates 40°

with prewash

Cotton 95°

Cotton 60°

Cotton 40°

Care

Labels

Heavily soiled, long wearin g an d temperatur e stable textiles in cotton and lin en (bedlinen, table linen, underwear, shirts etc.).

Heavily soiled blouses, shirts, overalls etc. m ade of polyester (Di olen, T revir a), polyamid e (Perlon, Nylon) or blends with cotton.

Heavily soiled curtains and d elicate clothing, d r esses skirts, shirts and blouses . Slightly to normally soiled bed lin en, table lin en and und erwear, towels, shirts etc . mad e o f

cotton and linen.

If you select “Quick Wash”, washing temperature is 60°.

Slightly soiled bed linen, table linen and un derwear, towels, shirts etc. made o f cotton and linen.

Slightly soiled bed lin en, table lin en an d und erwear, towels , shirts etc . ma de o f cotton and linen.

Type of wash/Notes

Max

Load

5.5

2.5

1.5

Normal 5.5

Rapid 3.0

5.5

During the selected washing progr amme the pr ogr amme selector knob moves by steps clockwise through the phases

prewash, main wash, rinse and spin

from some seconds to several minutes .

❉

: optional / Yes : dosing required

For improved garment care spin speed is restricted to 900 rpm in this programme.

For improved garment care spin speed is null in this programme.

Detergent and additives Special options Programme

Softener Main

❉ ❉ ❉

❉

❉ ❉

Wash

Yes Yes Yes Yes Yes Yes

Yes —

Yes — — Yes — —

Pre-

wash

Quick Wash

—

Rinse

Cold Wash Spin Speed

Hold

Reduction

1200

600

❉❉ ❉ ❉❉ ❉ ❉❉ ❉

❉❉❉ ❉

❉❉ ❉ ❉❉ ❉

. Each step takes

Selector

1 2 3

4 5

40° Slightly to normally soiled textiles made of cotton and/or synthetics.

Synthetics 40°

Delicate 40° Curtains and delicate clothin g, d resses skirts , shirts an d blouses .

Wool 40°

Silk 30°

Rinse and spin

Fast Spin Slow spin

Drain

Slightly soiled overalls and sports wear made o f cotton, polyester , polyamide an d blends with cotton.

Only woollens with a felt-free finish, labelled with the woolm ark an d id entifi ed as m achin e washable.

If you select “Rinse Hold” do not leave items to soak f or too lo ng.

Textiles m ade o f linen, silk, wool and viscose m arked as “hand washable”.

If you select “Rinse Hold” do not leave items to soak for too long. No spinning. With this programme you can add starch and/or f abric so ftene r.

—

The programme ends with an fast spin cycle .

—

In this programme spinning is fast. Same as the spin cycle in the “Cott on” programme .

—

In this programme spinning is slow. Same as the spin cycle in the “W ool” programm e . Drain only - no spinning. Alternative method of terminating programme the synthetic,

—

delicate and wool programme and for premature removal of the laundry.

3.0

2.5

1.5

1.0

5.5

1.5

—

❉ ❉

—— ———— —— ————

—— ————

Yes — —

Yes — Yes —

Yes —

———

— —

—

❉❉ ❉ ❉❉ ❉

❉❉ ❉

—

Whirlpool is a registered trademark of Whirlpool USA.

5019 301 05443/A

—

❉ ❉

❉

—

7 8

A B

C D

3gb05443a.fm Page 2 Monday, March 3, 2003 12:54 PM

CONSUMPTION DATA

Load

Programme

(kg)

Water

(l)

Energy

(kWh)

Approx.

Programme

Duration

(hours:minutes) Cotton 95° 5.5 54 1.90 2:05 Cotton 60° 5.5 49 1.04 2:25 Cotton 40° 5.0 44 0.60 2:10

Daily 40° 3.0 50 0.60 1:00

Synthetics 40° 2.5 55 0.60 1:25

Delicate 40° 1.5 60 0.60 0:50

Wool 40° 1.0 60 0.45 0:45

Silk 30° 1.0 60 0.30 0:45

Prewash might increase programmme duration. Consumption values were measured in no rmalized conditions in compliance with Standard IEC 60 456. Consumption data in th e home may vary with respect to the values in the table in relatio n to the water supply pressure an d temperature, the load and the type of wash.

ADD DETERGENTS, CLOSE THE DOOR AND SELECT THE PROGRAMME

Add the detergent as described in the programme table or in the chapter “Detergents and Additives” in the booklet.

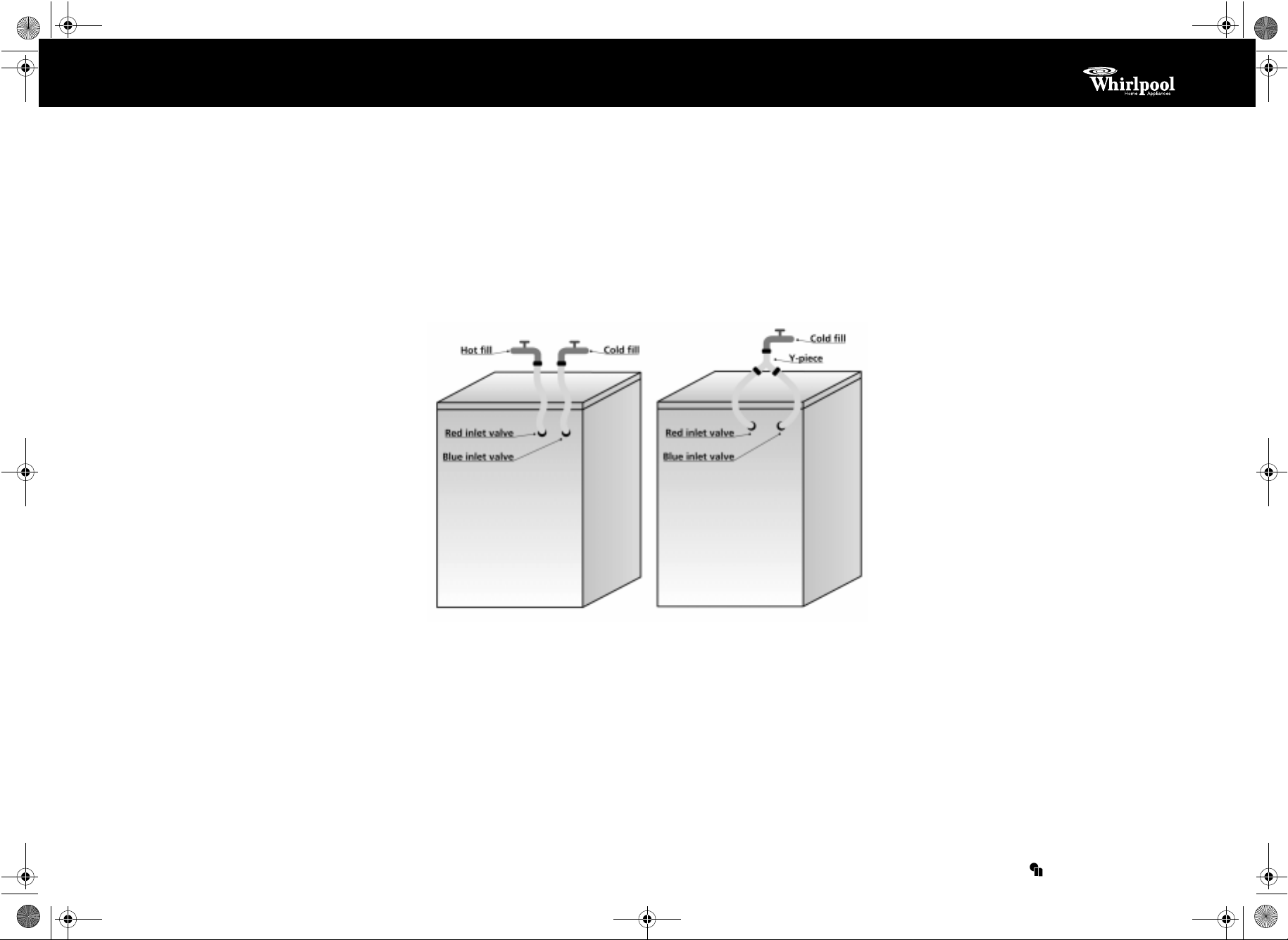

1. Open the tap.

2. Set the

programme selector

to the desired

programme.

Special options

can be selected.

4. Check that the door is well closed and turn on the washing machine by pressing the

“ON/OFF”

button. The indicator lights up, indicating that the washing machine is on.

SELECT ANY DESIDERED OP TION

“Quick Wash” button

• For quick, economical washes.

• Ideal for minimum loads of lightly-soiled articles.

Note:

reduce the detergents quantity.

“Rinse Hold” button

• The laundry remains in the last rinse water without progressing to the final spin cycle to avoid creasing and prevent colours from changing.

• This option is particularly recommended for the programme “Synthetics” or “Delicates”.

• This function is particularly useful if you want to postpone spinning to a later time, or if you want to drain only.

Terminate the “Rinse Hold” option:

• Press the “Rinse Hold” button again; the programme will terminate automatically with the final spin cycle for the present wash programme.

If you do not wish to spin the clothes, turn the programme selector knob to the “Drain” programme.

“Cold Wash” button

• With this option water is heated only up to 20°C.

“Spin Speed Reduction” button

• Reduces the predetermined automatic maximum spin speed. In some programmes the maximum final spin speed is limited to go easy on your laundry items. Selection of a higher spin speed is not possible.

PROGRAMME CHANGE

To reselect a programme when a cycle has already begun:

1. Switch off the appliance by pressing the

ON/OFF

“

” button.

2. Select the new programme.

3. Start the programme by pressing the “

ON/OFF

button.

PROGRAMME END

1. At the end of the programme the programme

selector moves to the stop position.

2. To unload the machine wait for the door to

unlock (about 1 minute).

3. Switch off the appliance, open the door and

take out the laundry.

4. Close the tap and leave the door ajar to allow

the drum to dry out.

NOTES AND INDICAT IONS FOR USE

WATER LEVEL

• It may not be visible as the cycle is optimised for a minimum water consumption without compromising washing results.

SPIN SPEED CONTROL

• Spin speed may be reduced automatically or may even be excluded in the case of small loads with highly absorbent garments (e.g. bathrobes, bathmat). This control avoids cloth and m achine damag e and excessive vibrations and consequent noise produced by the machine due to load unbalance: by selecting high spin speeds the

”

noise level increases.

MOTOR NOISE

• The running noises of the new, electronicallycontrolled motor are n ot the s ame as the on es you are used to from your old appliance . Don’t be surprised - modern technology has a modern sound.

CLEANING THE FILTER

• To ensure an impeccable function of the pump, check the filter regular and clean it if necessary.

Whirlpool is a registered trademark of Whirlpool USA.

5019 301 05443/A
