GB QUICK REFERENCE GUIDE
BEFORE USING THE APPLIANCE FOR THE FIRST TIME:
• IMPORTANT: MAKE SURE YOU HAVE READ THE “INSTALLATION
INSTRUCTIONS”
• REMOVE THE TRANSIT BOLTS BEFORE USING THE MACHINE FOR THE FIRST
TIME
• First wash cycle without laundry:
Open the tap(s).
1.
Close the door.
2.
Pour a little detergent (about 100 ml) into the detergent compartment .
3.
Select a short wash programme (see programme chart).
4.
Press the “ON/OFF” button.
5.
This will remove any water remaining in the machine from the manufacturer’s test run.
ROUTINE WASHES:
Open the tap(s).
1.
Sort the laundry according to fabric type and colour and load the machine.
2.
Close the door.
3.
Add detergent and any additives required.
4.
Select the programme, temperature, spin speed and special options (as available on
5.
your machine).
Press the “ON/OFF” button.
6.
20
CONTENTS GB
APPLIANCE AND ACCESSORIES
PROTECTING THE ENVIRONMENT
SAFETY INSTRUCTIONS
MOVING AND TRANSPORTING THE APPLIANCE
SORTING THE WASH
DETERGENT AND ADDITIVES
DYEING AND BLEACHING
SELECTING THE PROGRAMME AND
SPECIAL OPTIONS /PROGRAMME START
PROGRAMME SEQUENCE
PAGE
PAGE
PAGE
PAGE
PAGE
PAGE
PAGE
PAGE
PAGE
22
23
23
23
24
25
26
27
28
DOOR LOCK / PROGRAMME END /
PROGRAMME RESELECTION
REMOVING THE FILTER /
DRAINING RESIDUAL WATER
CARE AND MAINTENANCE
CHILD SAFETY DEVICE
TROUBLE-SHOOTING GUIDE
AFTER-SALES SERVICE
INSTALLATION INSTRUCTIONS
PAGE
PAGE
PAGE
PAGE
PAGE
PAGE
PAGE
29
30
31
31
32
32
33
21
APPLIANCE AND ACCESSORIES
Worktop
1.
Control panel
2.
Detergent drawer
3.
After-Sales Service sticker (inside door)
4.
Door
5.
Door handle
6.
To open: pull handle
-
To lock: press the door firmly (the lock will click into place)
-
Door lock child safety device (inside door)
7.
Filter
8.
Residual water drain (depending on model).
9.
22
PROTECTING THE ENVIRONMENT
• Packing
The packaging is marked with the recycling
symbol , signifying that it can be 100%
recycled.
• Appliance
The appliance is made of recyclable
materials. Dispose of the appliance in
conformity with environmental regulations.
Make it inoperable, pull out the plug and cut
off the power cable so that the appliance
cannot be connected to the mains.
• Eco-tips
A full load (depending on the programme
-
selected) gives the best energy and water
consumption.
Laundry which is lightly to moderately soiled
-
does not require a prewash.
SAFETY INSTRUCTIONS
Lightly soiled laundry should be washed at a
-
low temperature or with a short programme.
When washing small loads press the “Lightly
-
Soiled” / “Half Load” button (if present)
and use less detergent.
If you wish to dry the laundry in a domestic
-
tumble-dryer, use the highest spin speed
(depending on the programme). The dryer
will then consume less energy.
Do not exceed the recommended dosages
-
on the detergent packet.
Only use stain remover or bleach if
-
absolutely necessary.
The appliance must only be used in the
•
household for the prescribed uses.
All connections to the water and electrical
•
mains must be made in accordance with the
manufacturer’s instructions and following
local utility company safety regulations (see
“Installation Instructions”).
Before any cleaning and maintenance switch
•
off the machine or disconnect it from the
mains.
Switch off the washing machine and turn off
•
the tap(s) whenever the machine is not in
use.
MOVING AND TRANSPORTING THE APPLIANCE
Pull out the mains plug.
1.
Shut off the water tap(s).
2.
Disconnect the inlet and drain hoses.
3.
Never use excessive force to open the door.
•
Children must not be allowed to play with or
•
inside the machine. Do not rest any weight on
the door.
Packaging materials can be dangerous for
•
children. Keep the packaging material
(plastic bags, polystyrene, etc.) well out of
their reach.
The appliance conforms to European safety
•
regulations, EC directive 93/68 EWG and
EN 60555.
Drain residual water from the appliance and
4.
hoses (see “Draining Residual Water”).
Fit the transit bolts (see “Installation
5.
Instructions”).
23
SORTING THE WASH
1. Sort the load according to:
• Fabric type / care label symbol
Cotton, mixed fibres, synthetics, wool, silk,
viscose.
• Colours
Separate coloured and white articles. Wash
new coloured articles separately.
• Article size
Washing articles of different sizes together
improves wash efficiency and distributes the
load better in the drum.
• Fabric delicacy
Wash delicates separately. Select the
appropriate special programme for machinewashable wool , curtains or silk . Either
remove curtain hooks or tie into a cloth bag.
Only wash machine-washable fabrics. Wash
small articles (e.g. nylon stockings, belts
etc.) and articles with hooks (e.g. bras) in a
cloth bag or pillow case with zip.
2. Empty all pockets
Coins, safety pins etc. can damage the
laundry, drum and tub.
3. Closures
Close zips and hooks and eyes. Loose belts
or ribbons should be tied together.
1
2
WASHING AND CARING FOR SILK
ARTICLES
Washing:
1.
2.
Important Note:
colour fast and wash them separately the first
time.
3.
4.
5.
Drying and ironing
•
•
•
•
To ensure correct care of silk articles
Check the care instructions on the label and
make sure that the article is machinewashable (30°C).
Wash articles of the same colour preferably
together.
Check that new articles are
Use only special detergent for silk or wool.
This programme has no spin cycle.
If you select the “Rinse Hold” function, do not
leave the wash in the rinse water for too long.
Open the garment out on a towel and
squeeze the water out without wringing.
Never dry silk garments in the sun.
Iron from the reverse side when the fabric is
still slightly damp.
To avoid water marks, don’t spray on water
and don’t use a steam iron.
3
STAIN REMOVAL
Blood, milk, egg, and other organic
•
substances are generally removed by the
enzyme phase of the program.
To remove red wine, coffee, tea, grass and fruit
•
stains, etc. add a biological stain removing
agent to the main wash in chamber or a
chlorine bleach in chamber of the detergent
drawer (depending on the model).
Particularly stubborn stains can be treated
•
with stain remover before the wash.
LOADING THE WASH
Open the door.
1.
Load the articles one at a time, loosely into
2.
the drum, without overfilling.
Close the door.
3.
LOAD CAPACITY
See the programme overview.
Overloading the machine reduces the
Note:
wash efficiency and encourages creasing.
24
DETERGENT AND ADDITIVES
CHOOSING THE RIGHT DETERGENT
The type of detergent depends on:
•
the type of fabric (cottons, synthetics,
delicates, wool, silk);
Note:
Use only specific detergents for washing
wool and silk articles;
•
colour;
•
wash temperature;
•
degree and type of soiling.
Note:
•
Whitish residues on dark fabrics are due to
the insoluble water softeners in modern
phosphate-free detergents. If this occurs,
shake or brush out the fabric or use liquid
detergents.
•
Keep detergents and additives in a safe, dry
place out of the reach of children.
•
Use only detergent and fabric conditioner
specifically produced for automatic domestic
washing machines.
•
When using water softeners, descaling
agents, dyes or bleaches, make sure that
they are suitable for use in domestic washing
machines.
•
Do not use solvents in the machine (e.g.
turpentine, benzine, etc.). Do not wash
fabrics in the machine which have been
treated with solvents or flammable liquids.
DETERGENT DOSAGES
Do not exceed manufacturers’ recommended
dosages as shown on the detergent package.
The amounts depend on:
• degree and type of soiling;
• size of wash;
-
Full-load: according to manufacturers’
instructions;
-
Half-load: 3/4 of the normal amount;
-
Minimum load (about 1 kg): 1/2 the amount
used for full load;
• water hardness in your area
information from the water company): soft
water requires less detergent than hard
water.
Note:
•
Overdosing the detergent results in
excessive foaming and reduces the wash
efficiency. If the washing machine detects too
much foam, it may prevent spinning.
Using insufficient detergent results in grey
laundry. The heating elements and drum
also build up scale.
•
If using chlorine bleach, follow the bleach
instructions carefully.
Overdosing the bleach can damage the
wash.
(request
WATER HARDNESS CHART
WATER HARDNESS
CATEGORY
1
2
3
4
If the machine has a three chamber detergent drawer set the hardness pointer to the domestic water
hardness level. Move the hardness pointer sideways to the desired position.
CHARACTERISTICS GERMAN
°dH
soft
medium
hard
very hard
0-7
7-14
14-21
over 21
FRENCH
°fH
0-12
12-25
25-37
over 37
ENGLISH
°eH
0-9
9-17
17-26
over 26
25
DETERGENT AND ADDITIVES
FILLING THE DETERGENT AND
ADDITIVES
1.
Pull out the detergent drawer. The drawer will
have three or four chambers depending on
the model.
2.
Filling the detergent:
•
Programmes with preand main wash.
•
Main wash programme
without prewash.
When using liquid detergent, extract the
coloured insert from the drawer and
put it in the compartment .
The insert has a scale to make
dosing easier.
•
Add fabric softeners and conditioners
- no further than the “Max” mark
(three chamber models) or the
“100 ml” mark (four chamber models).
•
Fill chlorine bleach only to the “Max”
mark (if model is suited to its use).
•
Stain remover.
•
Water softener
(water hardness class 4).
•
Starch (diluted in wa ter) .
In this case select the programme
“Rinse and Spin”.
After pouring the starch fill about
1 litre of water into chamber.
3.
Slide the drawer in until it clicks shut.
Notes:
•
When using highly concentrated detergents,
use the detergent ball provided with the
detergent and place it directly in the drum to
avoid dispensing problems (for programmes
without pre-wash only).
•
For programmes with prewash: liquid
detergents can be used for the prewash.
For the main wash then a powder detergent
has to be used.
•
Dose the correct amount of concentrated
fabric softener and dilute with water up to the
maximum level marked in the softener
compartment.
Detergent drawer with 3 chambers
DYEING AND BLEACHING
Dyeing: Commercially available products usually
consist of a dye colour, fixing agent and salt.
Pour the dye colour, fixing agent and salt directly
into the empty drum, and only then load the
laundry.
26
Detergent drawer with 4 chambers
•
Only use products designed for use in
washing machines.
•
Follow the manufacturer’s instructions.
•
Plastic and rubber components of the
machine can be stained by dyes or bleaches.
SELECTING THE PROGRAMME AND SPECIAL OPTIONS /
PROGRAMME START
SELECTING THE PROGRAMME
(See also the separate programme chart and
consumption data).
For appliances WITH temperature selector
knob
•
Turn the programme selector knob
clockwise to the desired programme.
•
Set the temperature knob to the desired
temperature.
For appliances WITHOUT temperature
selector knob
•
Turn the programme selector knob
clockwise to the programme with the
desired temperature.
For appliances WITH spin speed selector
knob
•
Turn the spin speed selector to the desired
speed.
For appliances WITHOUT spin speed selector
knob
•
The spin speed can ben reduced by the
spin speed reduction button (if fitted).
(See also Important Note 2).
PROGRAMME MAX. SPIN SPEED in rpm (depending on model)
1200 1100 1000 900 800 600
Cotton 1200 1100 1000 900 800 600
Synthetic 900* 900* 900* 900 800 600
Delicates 900* 900* 900* 900 800 600
Wool 900* 900* 900* 900 800 600
Silk / viscose 0 0 0 0 0 0
Important Note
1.
When “No Spin” ( ) is selected:
•
The “Wool” and “Delicates” programmes do
not run a spin cycle.
•
The “Cotton” and “Synthetic” programmes
run a reduced speed spin cycle between
rinses to ensure effective rinsing. At the end
of the programme a short spin is run.
2.
Each programme has a predetermined
automatic maximum spin speed as follows:
Rinse + spin 1200 1100 1000 900 800 600
Intensive spin 1200 1100 1000 900 800 600
Gentle spin 900* 900* 900* 900 800 600
* To protect the wash, the real spin speed is here reduced to 900 rpm.
27
SELECTING THE PROGRAMME AND SPECIAL OPTIONS /
PROGRAMME START
PRESS THE DESIRED SPECIAL OPTION
BUTTON
(Depending on model, see also the separate
programme chart).
Spin speed reduction button
•
For models without spin speed selector,
press this button to reduce the
predetermined automatic maximum spin
speed. No spin cycle is run during the “Silk”
programme.
Prewash button
•
Do not select together with “Quick Wash”
(“Rapid”) or other short programmes.
•
Only select for washing heavily soiled
laundry.
•
The prewash cycle adds 15 minutes to the
programme time.
Rinse hold / Spin delay button
•
The laundry remains in the last rinse water
without being spun, to avoid heavy creasing.
•
Especially suitable for the “Synthetic” or
“Delicate” programmes, if the laundry is not
to be unloaded immediately after the end of
the programme. This function is particularly
useful if you want to postpone spinning to a
later time or when you do not wish to spin the
clothes.
Stopping Rinse hold:
Press the Rinse hold button again; the load will
be spun according to the selected programme.
If you do not wish to spin the clothes, turn the
programme knob to the corresponding drain
programme.
Energy save / Eco button
•
Increases the programme time and reduces
the temperature. This reduces energy
consumption by about 30% without
compromising the excellent results of the
wash.
Quick wash / Rapid button
•
Select for quick, economical washes.
•
Especially suitable for small, lightly soiled
loads.
Note:
If “Quick wash” is selected, only the “Rinse
Hold” and “Spin speed reduction” options can be
activated.
Lightly Soiled / Half load button
•
Reduces water consumption, above all
during the rinse.
•
Especially suitable for lightly soiled or small
loads (reduce the detergent quantity).
Intensive Rinse button
•
Increases the rinsing time and water quantity,
for an even more thorough rinse.
•
The intensive rinse function is especially
suitable for areas with particularly soft water,
for baby clothes and to help people with
allergies.
PROGRAMME START
1.
Plug in the appliance.
2.
Turn on the water supply tap.
3.
Press the “ON/OFF” button.
The indicator light will come on
.
PROGRAMME SEQUENCE
PROGRAMME SEQUENCE INDICATOR
Each colour indicates a washing cycle by fabric
type corresponding to the detergent drawer
information.
SYMBOLS
Main wash
llllllllllll Rinse
•••
Stop:
The symbols (if fitted) represent the various
washing phases (washing/rinsing/spinning).
28
Final spin
Programme end
DOOR LOCK / PROGRAMME END /
PROGRAMME RESELECTION
DOOR LOCK
The door locks automatically after the programme
start until the end of the programme. If the programme
is stopped or the electrical supply is terminated, the
door lock will open after approximately 2 minutes.
PROGRAMME END
The programme sequence indicator is at “Stop”.
1.
Press the “ON/OFF” button.
The indicator light turns off
2.
Cancel the special options by pressing the
appropriate buttons.
3.
Turn the water supply tap(s) off.
4.
Wait for the door to unlock (about 2 minutes).
5.
Open the door and unload the machine.
Note:
Do not fully close the door but leave it ajar to
allow the drum to dry out.
PROGRAMME RESELECTION
1.
Press the “ON/OFF” button.
The indicator light turns off
2.
Select the new programme/temperature.
3.
Press the “ON/OFF” button.
The indicator light will come on.
.
.
29
REMOVING THE FILTER / DRAINING RESIDUAL WATER
WHEN TO REMOVE THE FILTER
•
Check and clean the filter at least 2 or 3 times
a year.
•
When the pump is blocked by an object
(buttons, coins, safety pins).
•
When the appliance does not drain or spin
properly.
Important:
water has cooled.
REMOVING THE FILTER
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
Some models have no filter, since they are
fitted with a self-cleaning pump.
Note:
programme, reset the appliance by switching it
off and then on again. Then select a new
programme.
WHEN TO DRAIN RESIDUAL WATER
•
•
Before draining, make sure that the
Switch off the appliance (press the “ON/OFF”
button).
Open the filter cover with the coloured insert
from the detergent drawer.
Place a tub or container beneath it.
Slowly turn the filter anticlockwise until its
handle is vertical without unscrewing it
completely.
Wait until all the water has drained.
Now unscrew the filter completely and
remove it.
Remove any foreign material from the filter.
Check that the pump rotor moves freely.
Insert the filter and screw it in clockwise until
it locks (until the grip is horizontal).
Close the cover.
Pour 1/2 litre of water into the detergent
drawer to reactivate the Eco system.
If the filter needs to be cleaned during a
When transporting (moving) the machine.
If there is danger of freezing in the installation
room. In this case the machine should be
drained after every wash.
DRAINING RESIDUAL WATER
The residual water drain hose is located in the
machine plinth.
1.
Lift the cover upwards with light pressure.
2.
Pull out the hose by about 15 cm (6 inches).
Pull off its endcap.
3.
Let the water drain into a flat container until
the flow stops. Close the drain hose and
replace it.
4.
Before a new programme start: pour 1 litre of
water into the detergent drawer to reactivate
the Eco System. If your washing machine is
not provided with a drain hose in the plinth, to
drain the residual water please follow the
instructions given in the chapter “Removing
the Filter”.
30

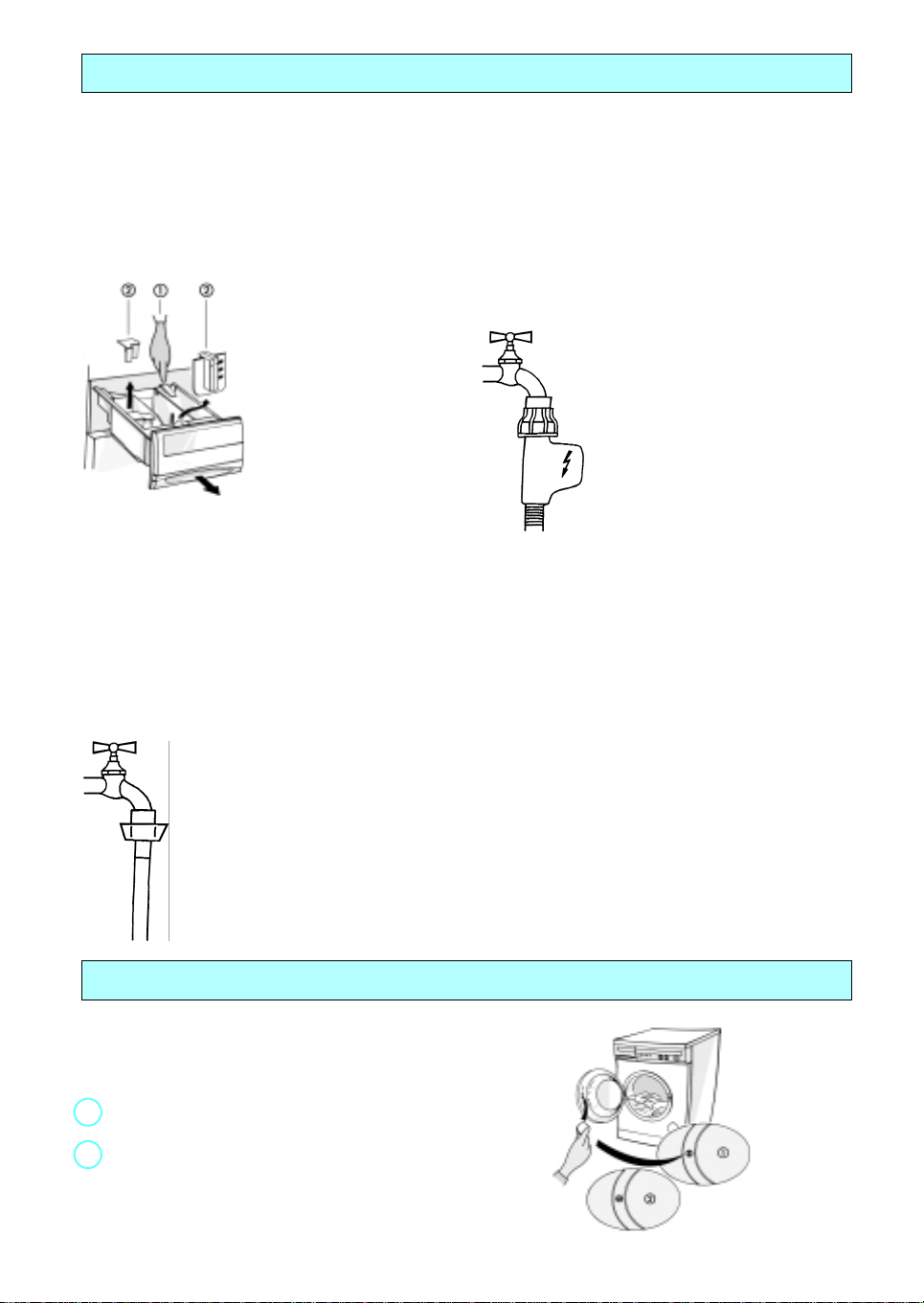

CARE AND MAINTENANCE
APPLIANCE EXTERIOR AND CONTROL
PANEL
•
Clean using normal household detergent (do
not use abrasive products).
•
Dry with a soft cloth.
DETERGENT DRAWER
•
Disengage the
drawer by pressing
down the release
lever and extract it.
•
Remove the inserts
(the siphon from the
softener
compartment, the
siphon from the
chlorine bleach
compartment and the
coloured insert for
liquid detergent).
•
Wash all the parts under running water.
•
Reposition the inserts, make sure to push the
siphons in until they lock and refit the drawer.
5.
Unscrew the hose(s) from the machine.
6.
Remove the filter from the washing machine
with pliers and clean it.
7.
Replace the filter and screw the hose
connection back on to the machine.
8.
Turn on the tap(s) and ensure that the
connections are completely water-tight.
For machines with “Water Stop” hose:
1.
Turn off the tap.
2.
Unscrew the “Water Stop”
hose from the tap.
3.
Remove only the loose filter
and clean it.
4.
Refit the filter and screw the
“Water Stop” hose to the tap.
5.
Turn on the tap and ensure
that the connection is
completely water-tight.
DOOR SEAL
•
Clean with a damp cloth when necessary.
•
Check the seal folds for foreign parts
periodically.
WATER HOSE MESH FILTER
Check and clean periodically.
For machines with a straight
water supply hose:
1.
Turn off the tap(s).
2.
Unscrew the hose(s) from the
tap(s).
3.
Remove the mesh filter and
clean it.
4.
Refit the filter and screw the hose
connection to the tap.
CHILD SAFETY DEVICE
To prevent improper use of the machine, turn the
plastic screw on the inside of the appliance door
with the thick, rounded edge of the coloured
insert or with a coin.
1.
Vertical slot - Safety position: door cannot
lock into place.
2.
Horizontal slot - Normal position: door can be
closed as before.
FILTER
•
Check and clean the filter at least 2 or 3 times
a year (see “Removing the Filter”).
31
TROUBLE-SHOOTING GUIDE
The appliance will not switch on or stops in
the middle of the programme.
Power plug properly inserted in mains
•
socket?
Mains fuse OK?
•
Power failure?
•
Tap turned on? Is water coming through?
•
Door closed?
•
Programme selected?
•
“On/Off” button pressed?
•
No water or insufficient water supply.
Tap turned on completely?
•
Kink in water hose?
•
Water hose filter clogged? (See “Care and
•
Maintenance”).
Water hose frozen up?
•
Waste water not pumped out.
Drain hose installed correctly? (See
•
“installation Instructions”).
Filter clogged? (See “Removing the Filter /
•
Draining Residual Water”).
Drain hose frozen up?
•
Is the rinse hold button pressed?
•
Detergent and additive product residues in
detergent drawer at end of wash.
Siphon installed correctly?
•
Siphon clogged?
•
Not enough water delivered? (See above).
•
Also see “Detergent and Additives” and
•
“Care and Maintenance”.
Machine vibrates during spin cycle.
Machine perfectly horizontal with all four feet
•
on ground? (See “Installation Instructions”).
Transit bolts removed? The transit bolts must
•
be removed before the machine is used (see
“Installation Instructions”).
Final spin results are poor.
Pump impeller obstructed? (See “Removing
•
the Filter / Draining Residual Water”).
Wash consists of a single heavy/large size
•
article (bathrobe, etc.)? If this is the case the
wash machine may detect load imbalance at
the start of the spin cycle and interrupt the
spin. The machine breaks up the load and
starts a new spin cycle.
If this happens several times in a row, the
•
spin is run at reduced speed or if the
imbalance is too great is not run at all.
If the load is too wet at the end of the
•
programme, add further garments and run a
new spin cycle.
Important:
system. The programme is interrupted after a
few minutes if one of the following happens:
No water supply.
•
Pump blocked.
•
To restart the machine, switch it off and on
•
again.
This machine is fitted with a safety
AFTER-SALES SERVICE
Before contacting After-Sales Service:
Try to remedy the problem (see “Trouble-
1.
Shooting Guide”).
Restart the programme to see if the fault is
2.
repeated.
If the malfunction persists, call After- Sales
3.
Service and specify:
The nature of the problem.
•
The exact model of the appliance.
•
The service code (number after the word
•
SERVICE).
32
The After-Sales Service sticker is on the
inside of the door.
Your full address.
•
Your telephone number and area code.
•
The After-Sales Service telephone number
•
and address can be found in the warranty or
on application to the retailer.
INSTALLATION INSTRUCTIONS
TRANSIT BOLTS
The appliance is fitted with transit bolts to prevent
internal damage while it is being moved.
Before using the appliance the transit bolts MUST
be removed (Fig. 1).
1.
Slacken the bolts with the spanner supplied
(Fig. 2).
2.
Unscrew the bolts by hand.
3.
Hold each bolt head and pull the bolts complete
with red plastic spacer through the wide part of the
holes.
4.
Close the holes with the provided plastic caps.
Fit the caps in the direction indicated by the arrow
in the large opening and slide them into the narrow
slot until they sit properly (Fig. 3).
5.
Keep the transit bolts for future use.
Note:
Fit the transit bolts before transporting the appliance
as follows:
1.
Pry up the plastic caps with a screwdriver, slide
them out against the direction indicated with the
arrow and remove them.
2.
Fit the transit bolts by following the above
procedure in reverse order.
Fig. 1
Fig. 2
Fig. 3
33
INSTALLATION INSTRUCTIONS
INSTALLATION
•
Install the appliance on a solid and level floor
surface, preferably in a corner of the room.
•
Make sure that all four feet are resting firmly on the
floor and check that the appliance is perfectly level
(use a spirit level).
•
If the floor is uneven, adjust the levelling feet as
required (do not insert pieces of wood, cardboard
etc. under the feet).
1.
Slacken the locknut using the spanner supplied.
2.
Adjust the height of the foot, turning it by hand.
3.
Tighten the locknut anticlockwise towards the
washing machine.
•
If the appliance is to be installed on a wooden floor,
distribute the weight by placing it on a 60 x 60 cm
sheet of plywood at least 3 cm in thickness. Secure
the plywood sheet to the floor.
BUILD-UNDER / WORKTOP
The appliance must be installed only under a
fitted, continuous kitchen worktop.
The appliance must only be built under using the
built under set UBS.
•
Unplug the appliance from the mains.
1.
Unscrew the worktop fixing screws from the rear of
the appliance.
2.
Slide the worktop fully backward and lift it upwards
to remove.
Install the cover panel (available through Service
or from your local dealer) following the relative
instructions.
3.
Refit the fixing screws and tighten them.
BUILD-UNDER OPENING DIMENSIONS
Width: 600 mm
Height: 825 mm
Depth: 600 mm
WARNING:
Only plug the machine into the mains power socket
after you have fitted the cover panel or the machine
worktop.
34
INSTALLATION INSTRUCTIONS
WATER SUPPLY
•
Water supply: only cold water.
•
Tap: 3/4¨ threaded hose connector.
•
Water pressure (mains pressure):
10-100 N/cm
For Great Britain & Ireland only:
•
Water inlet: hot and cold fill.
The warm water inlet temperature must not
exceed 60°C.
2
(1-10 bar).
INLET HOSE(S)
Note:
If the inlet hose is already fitted to the rear
panel on the appliance, ignore points 1 and 4.
1.
Remove the inlet hose from the drum.
2.
Fit the mesh filter supplied in the thread
between the straight end of the inlet hose(s)
and the tap(s).
3.
Carefully screw the straight end of the inlet
hose(s) to the tap(s) by hand.
4.
Screw the curved end of the hose to the
appliance taking care that the hose is not
kinked.
5.
Turn the tap(s) on fully and check that the
joints at the washing machine and the tap(s)
are watertight.
•
If the hose is not long enough, replace it with
a suitable length of pressure-resistant hose
(approved under EN 500 65 to withstand a
minimum of 10 bar).
•
Check the hose regularly for brittleness and
cracks and replace if necessary.
•
The washing machine may be connected
without a non-return valve.
•
Observe any special local regulations
regarding connection to the water supply.
WATER STOP (depending on model)
•
The inlet hose and the plastic enclosure at
the water connection contain electrical
components.
•
Do not cut the flexible hose and do not
immerse the plastic enclosure in water.
•
If the hose is damaged, unplug the appliance
from the mains immediately.
•
If the hose is not long enough, replace it with
a 3 m long “Water Stop” hose (available from
After-Sales Service or a specialist dealer).
This must be done only by a qualified
electrician.
35
INSTALLATION INSTRUCTIONS
DRAIN HOSE
•
Drain hose connection to water outlet.
1.
Unhook the drain hose from the left clip, see arrow
A in Fig. 1.
Do NOT loosen the right drain hose connection,
see arrow B in Fig. 1, otherwise there is the risk of
leakage (danger of scalding with hot water).
2.
Fit the drain hose either to the siphon or hook it
over the edge of a sink or bath tub with the “U”
bend (Fig. 2). Small hand basins are not suitable.
The edge of the tub must be no higher than 125 cm
above the floor.
3.
Minimum drain height: 70 cm.
Maximum drain height (“U” bend): 125 cm.
4.
If you need to add an extension, use a flexible
hose of the same type and secure the union with
screw-on hose clips.
Maximum overall drain hose length 2.5 m.
Important
Make sure that there are no kinks in the drain hose run
and take precautions against it falling while the
appliance is running (Fig. 2).
CONNECTION TO THE MAINS
•
Observe local utility company regulations.
•
The connection must be made with a correctly
installed, earthed and insulated socket.
•
The system must be earthed by law.
•
The manufacturer declines all responsibility for
injury to persons or pets and damage to property
caused by disregarding the above instructions.
•
The data concerning voltage, consumption and
electrical protection are supplied on the inside of
the appliance door.
•
The mains connection cable may only be replaced
by a qualified electrician.
•
The appliance conforms to European safety
regulations, EC directive 93/68 EWG and
EN 60555.
•
Do not use extension leads or multisockets.
Fig. 1
Fig. 2
36
INSTALLATION INSTRUCTIONS

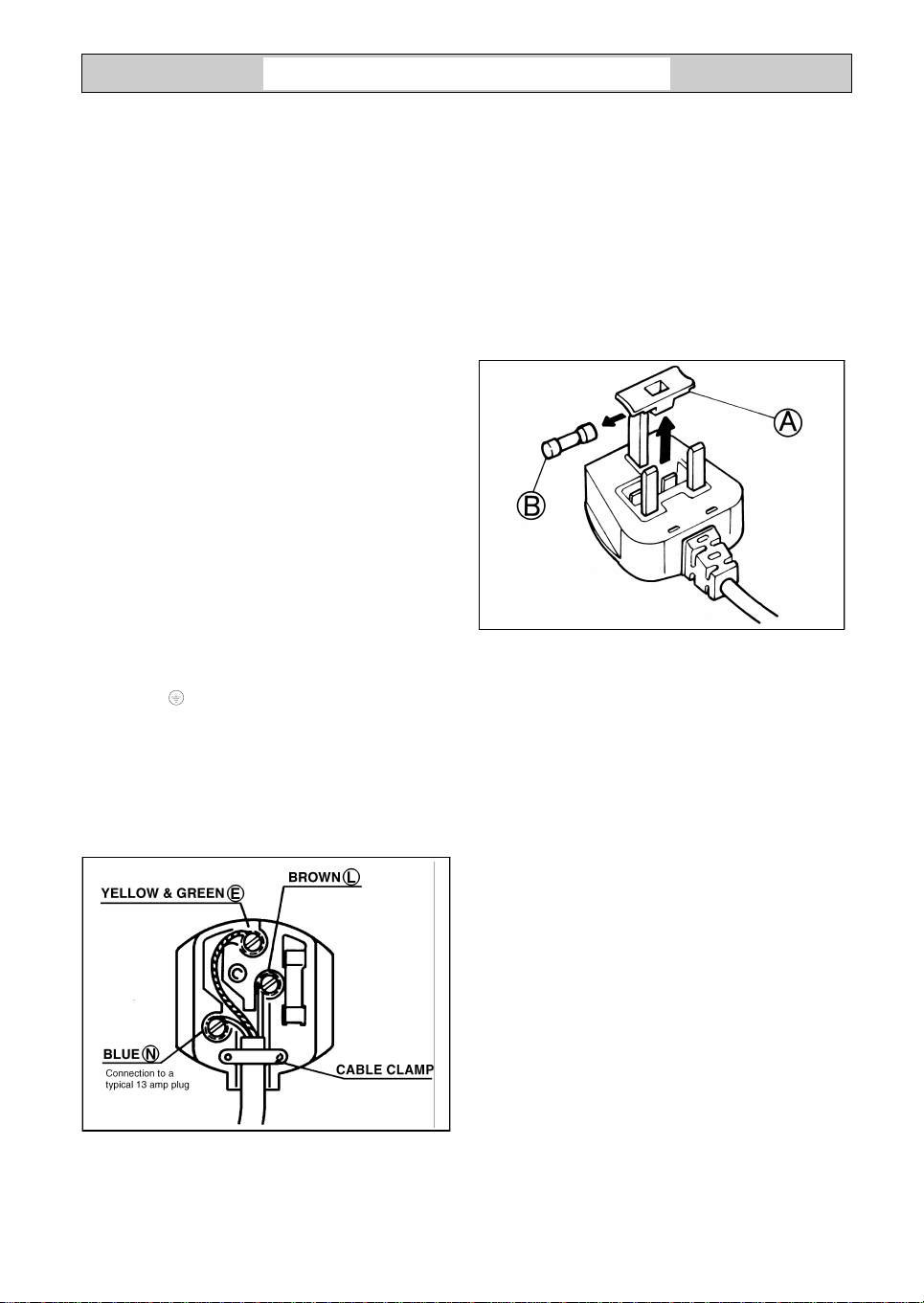

1) ELECTRICAL CONNECTIONS
“Warning - this appliance must be earthed”
This appliance is normally supplied with a mains
lead having a plug fitted in t he f act ory whi ch ha s
been checked for correct earth continuity.
If the fitted plug is not s uitab le f or y our so cke t
outlet, or if the machine’s mains lead is not f itt ed
with a plug, you should fit a s uit ab le n ew, g ood
quality plug by following the instructions in (2)
below.
Any unsuitable plug should be cut o ff a nd
disposed of in order to avoid a possible shock
hazard should it be inserted into a socket.
2) CONNECTION TO A REWIRABLE PLUG - to be
carried out only by a qualified electrician
The wires in the mains lead are coloured in
accordance with the following code:
BLUE - “NEUTRAL” (“N”)
BROWN - “LIVE” (“L”)
GREEN AND YELLOW - “EARTH” (“E”)
To fit a new plug, proceed as follows:
2.1 Polarized Plugs (e.g. 3 pin, 13 amp plug
conforming to BS 1363A)
The GREEN AND YELLOW wire must be
a.
connected to the terminal in the plug which is
marked with the letter “E” or by the Earth
symbol or coloured yellow or green and
yellow.
The BLUE wire must be connected to the
b.
terminal which is marked with the letter “N” or
coloured black.
The BROWN wire must be connected to the
c.
terminal which is marked with the letter “L” or
coloured red.
2.2 Non-polarized plugs (e.g. 2 pin with side
earth contact)
The wire which is coloured GREEN AND
YELLOW must be connected to the earth contact.
The other two wires should be connected to the
two pins, irrespective of colour.
3) FUSE REPLACEMENT
If the mains lead of this appli an ce is fitted with a
BS 1363A 13 amp fused plug, replace the fuse
only with an A.S.T.A. approved type conforming to
BS 1362 and proceed as follows:
Remove the fuse cover (A) and the fuse (B).
1.
Fit the replacement 13 A fuse into the fuse
2.
cover.
Refit both into the plug.
3.
For all other types of plug, the supply socket
should be protected by a 16 A fuse or circuit
breaker at the distribution boa rd .
37
INSTALLATION INSTRUCTIONS
MOBILITY WHEELS
(for UK only)
Depending on model, your washing machine is
provided with mobility wheels.
You will find these wheels in the accessory kit supplied
with the machine, or you can order them from our
After-Sales Service.
MOUNTING INSTRUCTIONS
1.
Tilt the machine forward.
2.
Loosen the two rear feet.
3.
Insert the wheels as close as possible to the
screw (1).
4.
Tighten the screw completely (2).
5.
Pull the machine in an upright position.
6.
Adjust the front feet making sure that the machine
is completely level with the floor.
Note
: Levelling is extremely important to avoid any
risk of instability and vibrations.
1
2
MOVING THE MACHINE
1.
Open the door of the machine.
2.
Lift the machine by 1 or 2 cm (3).
3.
Push or pull the machine according to your need.
38
3
Loading...
