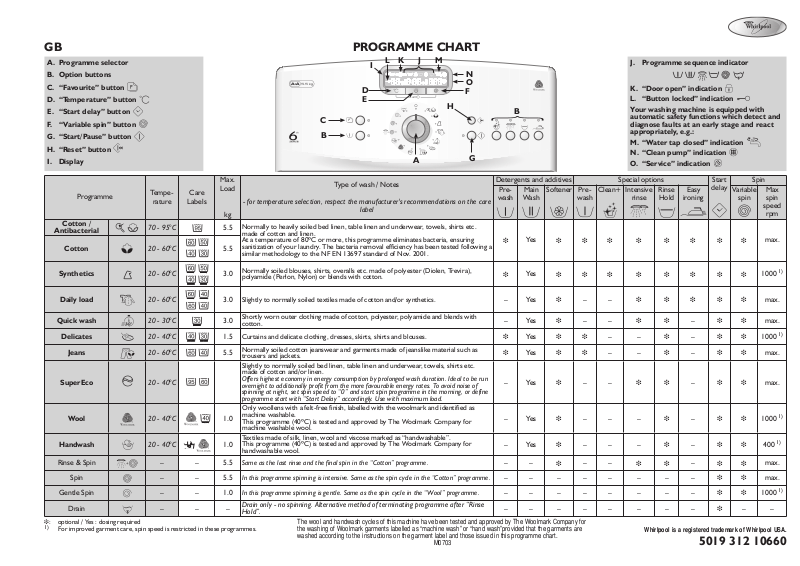

Whirlpool AWE 9727/1, AWE 9527/1 PROGRAM CHART

GB

A.Programme selector

B.Option buttons

C.“Favourite” button

D.“Temperature” button

E.“Start delay” button

F.“Variable spin” button

G.“Start/Pause” button

H.“Reset” button

I.Display

PROGRAMME CHART

I	L K	J	M		J. Programme sequence indicator
				N
D				O	K. “Door open” indication
				F
E			H		L. “Button locked” indication
				B	Your washing machine is equipped with
C					automatic safety functions which detect and
					diagnose faults at an early stage and react
B					appropriately, e.g.:
					M. “Water tap closed” indication
		A		G	N. “Clean pump” indication
					O. “Service” indication

Max.

Type of wash / Notes

Detergents and additives

Special options

Start

Spin

Load

delay

Programme

Tempe-

Care

Pre-

Main

Softener

Pre-

Clean+

Intensive

Rinse

Easy

Variable

Max

wash

Wash

wash

rinse

Hold

ironing

spin

spin

rature

Labels

- for temperature selection, respect the manufacturer's recommendations on the care

label

speed

kg

rpm

Cotton /

70 - 95°C

5.5

Normally to heavily soiled bed linen, table linen and underwear, towels, shirts etc.

Antibacterial

made of cotton and linen.

Cotton

20 - 60°C

5.5

At a temperature of 80ºC or more, this programme eliminates bacteria, ensuring

i

Yes

i

i

i

i

i

i

i

i

max.

sanitization of your laundry. The bacteria removal efficiency has been tested following a

similar methodology to the NF EN 13697 standard of Nov. 2001.

Synthetics

20 - 60°C

3.0

Normally soiled blouses, shirts, overalls etc. made of polyester (Diolen, Trevira),

i

Yes

i

i

i

i

i

i

i

i

1000 1)

polyamide (Perlon, Nylon) or blends with cotton.

Daily load

20 - 60°C

3.0

Slightly to normally soiled textiles made of cotton and/or synthetics.

–

Yes

i

–

–

i

i

i

i

i

max.

Quick wash

20 - 30°C

3.0

Shortly worn outer clothing made of cotton, polyester, polyamide and blends with

–

Yes

i

–

–

i

i

–

i

i

max.

cotton.

Delicates

20 - 40°C

1.5

Curtains and delicate clothing, dresses, skirts, shirts and blouses.

i

Yes

i

i

–

–

i

–

i

i

1000 1)

Jeans

20 - 60°C

5.5

Normally soiled cotton jeanswear and garments made of jeanslike material such as

i

Yes

i

i

–

–

i

–

i

i

max.

trousers and jackets.

Slightly to normally soiled bed linen, table linen and underwear, towels, shirts etc.

made of cotton and/or linen.

SuperEco

20 - 40°C

Offers highest economy in energy consumption by prolonged wash duration. Ideal to be run

–

Yes

i

–

–

i

i

–

i

i

max.

overnight to additionally profit from the more favourable energy rates. To avoid noise of

spinning at night, set spin speed to “0” and start spin programme in the morning, or define

programme start with “Start Delay” accordingly. Use with maximum load.

Only woollens with a felt-free finish, labelled with the woolmark and identified as

Wool

20 - 40°C

1.0

machine washable.

–

Yes

i

–

–

–

i

–

i

i

1000 1)

This programme (40ºC) is tested and approved by The Woolmark Company for

machine washable wool.

Handwash

20 - 40°C

1.0

Textiles made of silk, linen, wool and viscose marked as “handwashable”.

–

Yes

–

–

–

–

400 1)

This programme (40ºC) is tested and approved by The Woolmark Company for

i

i

i

i

handwashable wool.

Rinse & Spin

–

–

5.5

Same as the last rinse and the final spin in the “Cotton” programme.

–

–

i

–

–

i

i

–

i

i

max.

Spin

–

–

5.5

In this programme spinning is intensive. Same as the spin cycle in the “Cotton” programme.

–

–

–

–

–

–

–

–

i

i

max.

Gentle Spin

–

–

1.0

In this programme spinning is gentle. Same as the spin cycle in the “Wool” programme.

–

–

–

–

–

–

–

–

i

i

1000 1)

Drain

–

–

–

Drain only - no spinning. Alternative method of terminating programme after “Rinse

–

–

–

–

–

–

–

–

i

–

–

Hold”.

i: optional / Yes : dosing required		The wool and handwash cycles of this machine have been tested and approved by The Woolmark Company for
1)	For improved garment care, spin speed is restricted in these programmes.	the washing of Woolmark garments labelled as “machine wash” or “hand wash”provided that the garments are

washed according to the instructions on the garment label and those issued in this programme chart. M0703

Whirlpool is a registered trademark of Whirlpool USA.

5019 312 10660

CONSUMPTION DATA

Programme	Temperature	Load	Water	Energy	Approx. Programme
	(°C)	(kg)	(l)	(kWh)	Duration*
					(hours : minutes)
Cotton / Antibacterial	95	5.5	55**	1.70	1:55
Cotton***	60	5.5	49	0.93	2:35
Cotton	40	5.5	53	0.55	2:00
Synthetics	60	3.0	54**	0.90	1:40
Synthetics	40	3.0	48	0.55	1:25
Daily load	40	3.0	43	0.48	1:00
Quick wash	30	3.0	36	0.30	0:30
Delicates	40	1.5	51	0.50	0:45
Jeans	40	5.5	73	0.55	2:14
SuperEco	60	5.5	49	0.73	4:00
Wool	40	1.0	53	0.50	0:45
Handwash	40	1.0	43	0.50	0:35
Handwash	30	1.0	42	0.30	0:31

Consumption values were measured in normalized conditions in compliance with standard IEC/EN 60 456. Consumption data in the home may vary with respect to the values in the table in relation to the water supply pressure and temperature, the load and the type of wash.

*The remaining time indicator can deviate from the values in the table, because it takes into account the household conditions applicable at that time.

**To reduce the water temperature, some cold water is added at the end of the main wash cycle, before the pump drains the water out.

***Reference Programme for Energy Label.

ADD DETERGENTS, CLOSE THE LID AND SELECT THE PROGRAMME

Add detergent as indicated on the front page and as described in the chapter “Detergent and Additives” in your Instructions for Use.

1.Turn the programme selector to the desired programme.

2.The temperature and spin speed indicated on the display can be altered by pressing the “Temperature” button or the “Variable spin” button. The light next to the “Start/Pause” button flashes.

SELECT ANY DESIRED OPTION

When the combination of programme and additional option(s) is not possible, the indication lights switch off automatically. Unsuitable combinations of options are deselected automatically.

“Prewash” button

• Only for heavily soiled loads (for example sand, granular dirt) sensible. Increases the cycle time by approximately 15 min.

• Do not use liquid detergent for the main wash when activating the Prewash option.

“Clean+” button

• Choose this option if you use an in-wash additive for stain removal (powder, for example “Vanish”) - it will optimize the additive’s efficiency to get better wash performance and stain removal.

• Selectable for programmes “Cotton” and “Synthetics”; choose temperature of 30 or 40°C and use with maximum load.

• Add an appropriate amount of in-wash additive for stain removal (powder) to the main wash chamber, together with your detergent (only use powder detergent with this option). Respect the manufacturer’s dosing instructions.

• Prolongs the programme by approx. 10 to 15 minutes.

• Appropriate for use of stain removers and bleaches on oxygen basis. Chlorine or perborate bleaches must not be used!

“Intensive Rinse” button

•More water is added and rinse cycle is prolonged.

•This option is particularly suitable for areas with very

soft water, washing baby linen and helping people with allergies.

Rinse Hold” button

•The laundry remains in the last rinse water without progressing to the final spin cycle to avoid creasing and prevent colours from changing.

•This option is particularly recommended for the programmes “Synthetics”, “Daily load” and “Delicates”.

•It is particularly useful if you want to postpone spinning to a later time, or if you want to drain only.

•If you select “Rinse Hold”, do not leave items to soak for too long.

Note: The programme stops to “Rinse hold” at the time the “Rinse hold” symbol on the display lights

up. The light next to the “Start/Pause” button blinks.

Terminate the “Rinse Hold” option:

•Press the “Start/Pause” button; the programme will terminate automatically with the final spin cycle for the present wash programme.

•If you do not wish to spin the clothes, turn the programme selector to “Drain” and press the

“Start/Pause” button to start the Drain programme.

“Easy ironing” button

•Can be used together with “Cotton”, “Synthetics” and “Daily load” programmes to make ironing easier.

•Increases the water quantity and the clothes are spun

very gently.

“Variable spin” button

•Every programme has a predefined spin speed.

•Press the button to set another spin speed.

•If spin speed “0” is selected, the final spinning is cancelled but intermediate spin peaks remain during the rinse. The water is drained out only.

SAVE YOUR FAVOURITE PROGRAMMES

If there is a programme setting which you use frequently, the appliance offers the possibility to save one setting for each programme so that it can be used again by just pushing one button.

•Select the desired programme, temperature, spin speed and option(s), push and hold the “Favourites” button for at least 3 seconds.

The lamp next to “Favourites” shortly flashes and then lights up - the programme settings is saved.

Next time you want to use your individual programme settings, select the programme, push the “Favourites” button and start by pushing “Start/Pause”.

If you want to replace the saved programme setting by another one:

•Push the programme button, select temperature, spin speed and options as desired and then press and hold the “Favourites” button for at least 3 seconds. The previously saved programme setting will be replaced by the new one.

START DELAY

The “Start Delay” allows to run the machine at the consumer’s convenience, for example at night when electricity is cheaper. Do not use liquid detergent when activating the “Start Delay”.

•Select programme, temperature, spin speed and options.

•Press the “Start Delay” button to select the delay time up to 23 hours.

•Press the “Start/Pause” button.

The countdown of the delay time begins; the clock symbol next to the delay time and the dot between hours and minutes flash.

•The time delay indication disappears when the programme starts and it is replaced by the remaining programme time.

•Once having pressed the “Start/Pause” button, the number of hours preselected can be reduced by pressing and holding the “Start Delay” button. From 1 hour on, the delay time can also be reduced by minutes.

To cancel the “Start Delay”

..before you press the “Start/Pause” button:

•Select another programme or press the “Reset” button.

..after having pressed the “Start/Pause” button:

•Press the “Reset” button for at least 3 seconds - the start delay time disappears from the display.

PROGRAMME START

Open the tap and press the “Start/Pause” button. The indication lamp next to the “Start/Pause” button lights up. The programme sequence indicator shows the current programme phase, running from left to right through Wash, Rinse, Spin/Drain.

“DOOR OPEN” INDICATION

Before starting and after end of a programme, the lamp lights to show the the lid can be opened. As long as a

wash programme is running, the lid remains locked and must on no account be forced open. In case you have an urgent need to open it during a running programme, refer to “Cancel (Reset) a running programme before the end”.

LOCK BUTTON

You can lock the buttons of the control panel against improper use (e.g. by children).

•Press the temperature and spin speed button simultaneously and hold them for at least 3 seconds. The key symbol on the display lights up.

•To unlock the buttons again: proceed in the same way.

RED INDICATIONS ON THE DISPLAY

“Water tap closed”

The appliance has no or insufficient water supply. Open the water tap: if the indications still lights up, refer to the “Troubleshooting Guide” in the Instructions for Use.

“Clean pump”

Waste water is not pumped out. Check whether the drain hose is kinked or the filter must be cleaned; in the latter case refer to the Instructions for Use (“Removing the Filter”).

“Service”

Lighting up of the “Service” indication can be caused by a fault in an electrical component. Refer to the “Troubleshooting Guide” in your “Instructions for Use”; if the fault persists, contact our After Sales Service.

PROGRAMME END

•The symbols of the programme sequence indicator are dark, and the “Door open” indication lights up.

1.Turn the programme selector to the “Off/O” position.

2.Close the water tap.

3.Open lid and drum and unload the machine.

4.Leave the lid open for some time to allow the interior of the machine to dry.

CHANGE PROGRAMME AND/OR OPTIONS AFTER PROGRAMME START

1.Press the “Start/Pause” button to pause the programme. The light flashes.

2.Select the new programme, temperature, any options and another spin speed if you want.

3.Press the “Start/Pause” button again. The new programme continues at the same position where the previous programme was interrupted. Do not add detergent for this programme.

CANCEL (RESET) A RUNNING PROGRAMME BEFORE THE END

The “Reset” button cancels a programme before the end.

•Press the “Reset” button for at least 3 seconds. Any existing water is drained out before the lid can be opened.
