Whirlpool AWE 6621 INSTRUCTION FOR USE

Rinse + Gentle

AWE 6621

Programme

Cotton

with prewash

Synthetic

with prewash

Delicate

with prewash

Cotton

Daily Mixed Slightly to normally soiled textiles made of cotton and/or synthetics.

Synthetic

Delicate

Wool

Handwash

Spin

Rinse + Spin

Spin

Gentle spin

Drain

Coton 95°

Prélavage

Synthétique 40°

Prélévage

Délicat 40°

Prélavage

Coton

40°-60°-95°

Synthétique

40°

Délicat 40°

Laine 40°

Lavage main 30°

Rinçage &

Essorage doux

Rinçage &

Essorage Essorage

Essorage doux

Vidange

Care

Labels

—

— —

Heavily soiled bed linen, table linen and underwear, towels, shirts etc. made of cotton and linen.

Heavily soiled blouses, shirts, overalls etc. made of polyester (Diolen, Trevira), polyamide (Perlon, Nylon) or blends with cotton.

Heavily soiled curtains and delicate clothing, dresses, skirts, shirts and blouses.

Normally to heavily soiled bed linen, table linen and underwear, towels, shirts etc. made of cotton and linen.

Normally soiled blouses, shirts, overalls etc. made of polyester (Diolen, Trevira), polyamide (Perlon, Nylon).

Curtains and delicate clothing, dresses, skirts, shirts and blouses. Only woollens with a felt-free finish, labelled with the woolmark and identifie d as machine

washable.

If you select “Rinse Hold” do not leave items to soak for too long.

Textiles made of silk, linen, wool and viscose marked as “handwashable”.

If you select “Rinse Hold” do not leave items to soak for too long. A very gentle spin is used in this programme.

Programme for treating delicate laundry with starch or softener. Programme for treating cotton or linen laundry with starch or softener.

Programme to spin cotton or linen laundry intensively with maximum spin speed. Programme to spin delicate laundry gently with a restricted spin speed. Drain only - no spinning. Alternative method of terminating programme after “Rinse Hold”.

Type of wash / Notes

N.B. This machine is controlled by sensors. Please avoid excessive detergent dosing.

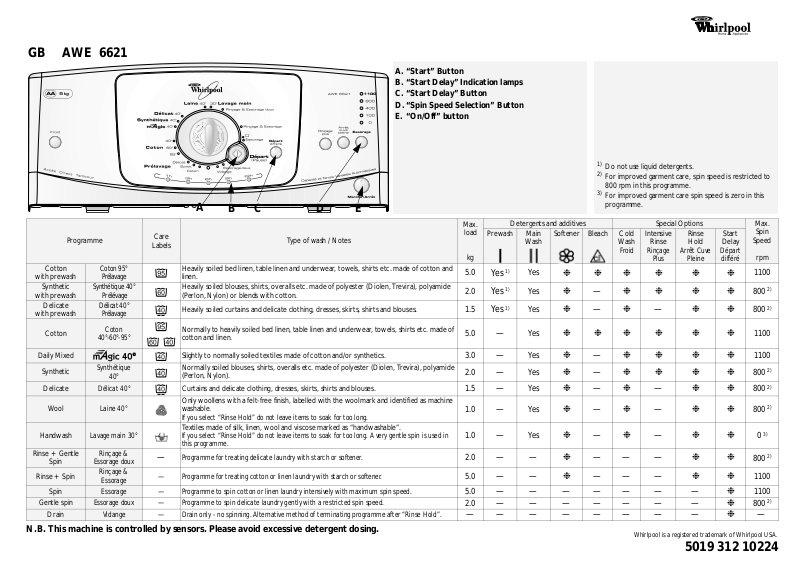

A. “Start” Button B. “Start Delay” Indication lamps C. “Start Delay” Button D. “Spin Speed Selection” Button E. “On/Off” button

Max.

load

5.0

2.0

1.5

5.0

3.0

2.0

1.5

1.0

2.0

5.0

2.0

Detergents and additives Special Options Max.

Prewash Main

Yes

— —

—

— ——

—— —————— —

—————— —

—— — ——— — —

Softener Bleach Cold

Wash

Yes Yes Yes

Yes

Yes Yes Yes

Yes

❉❉❉❉ ❉ ❉ ❉ ❉

❉❉❉❉ ❉ ❉ ❉

❉ ❉

❉

❉ ❉

❉

Do not use liquid detergents.

For improved garment care, spin speed is restricted to 800 rpm in this programme.

For improved garment care spin speed is zero in this programme.

Intensive

Wash

Froid

— —

— — —

—

Rinse

Rinçage

Plus

❉❉ ❉ ❉ ❉

—

❉❉ ❉ ❉ ❉❉ ❉ ❉ ❉

❉

— —

—

—— — —— —

Rinse Hold

Arrêt Cuve

Pleine

Start

Delay

Départ

différé

❉❉

❉❉ ❉❉

❉❉

❉ ❉ ❉

Whirlpool is a registered trademark of Whirlpool USA .

5019 312 10224

Spin

Speed

rpm

1100 800 800

1100

1100 800 800

800

1100

1100 800

—

CONSUMPTION DATA

Programme

Temperature Selector

(°C)

Load

(kg)

Water

(l)

Energy

(kWh)

Approx. Programme

Duration

(hours : minutes) Cotton 90 5.0 *63 1.80 2:05 Cotton 60 5.0 55 0.95 2:05 Cotton 40 5.0 55 0.55 2:05

Daily Mixed 40 3.0 49 0.48 1:00

Synthetic 40 2.0 50 0.40 1:30

Delicate 40 1.5 60 0.55 0:50

Wool 40 1.0 60 0.40 0:40

Handwash 30 1.0 60 0.50 0:50

Prewash cycle increases programme duration approximately 15 min. Consumption values were measured in normalized conditions in compliance with standard IEC 60 456. Consumption data in the home may vary with respect to the values in the table in relation to the water supply pressure and temperature, the load and the type of wash.

The data on the “Energy Label” refer to the programme “Cotton 60°C”.

* To reduce the water temperature, some cold water is added at the end of the main wash cycle, before the pump drains the

water out.

PREPARATION OF WASH CYCLE

1. Load the machine, close the drum doors and check that they are properly locked.

2. Add detergents and additives into the dispenser to no more then the

“MAX”

level mark, as follows:

• Programme with pre and main wash

• Main wash programme without prewash

• Fabric softeners and conditioners

• Chlorine bleach

•Stain remover agents

• Anti-scale agents (if necessary)

3. Press the

“On/Off”

button. The pilot lamp of the

button, a spin speed indicator lamp and, in case of availability, a temperature indicator lamp light up. Turn the programme selector knob to the

desired programme and temperature.

The knob will move half a step for correct positioning. The temperature indication (if available) switches to the selected temperature.

SELECT THE DESIRED OPTION

Selecting or deselecting an option can be done at any time during the programme. The option will be applied as long as the corresponding programme phase has not been executed yet.

“Cold Wash” button

• This option suppresses the heating of the water.

• You can use this option with all washing cycles, in particular for delicate laundry.

“Intensive Rinse” button

• One rinse cycle is added to ensure a more intensive rinse.

• This option is particularly suitable for areas with very soft water, washing baby linen and people with detergents allergies.

“Spin Speed Selection” button

• The appliance selects the spin speed proposed for the programme chosen.

• Press the button to set another spin speed.

• If the spin speed “0” is selected, the final spin is cancelled, but not the intermediate spins. The programme ends with a drain cycle.

“Rinse Hold” button

• The laundry remains in the last rinse water without progressing to the final spin cycle to avoid creasing and prevent colours from fading.

• This option is particularly recommended for the “Synthetic”, “Delicate” and “Daily Mixed” programmes.

• This function is particularly useful if you want to postpone spinning to a later time, or if you want to drain only.

Note:

the programme selector knob stops on .

Appliance in “Rinse Hold”:

• Press the “Rinse Hold” button again: the programme will terminate automatically with the selected spin cycle. If you do not wish to spin the clothes, turn the

•

programme selector knob to the “Drain” programme and press the

“Start”

button

again.

START DELAY

The “Start Delay” button allows the user to run the machine at his convenience, for example at night when electricity is cheaper.

• Select programme and temperature, spin speed and options.

• Press the “Start Delay” button several times to select a delay time of 1, 3, 6, 9 or 12 hours. The corresponding indicator lamp lights up.

• Start the programme (see below). With decreasing delay time the corresponding indicator lamp lights up.

• The time delay indicator lamp disappears when the programme starts.

To decrease the delay time or cancel “Start Delay” option

• (Repeatedly) press the “Start Delay” button.

To increase the delay time

• Turn the programme selector to the “Stop” position.

• Reselect the desired programme and options. Select the desired delay time by (repeatedly) pressing the “Start Delay” button. Press the

“Start”

button.

PROGRAMME START

“Start”

button. The

button lights up.

Turn on the tap and press the indicator lamp of the

Note

: If there is a power interruption or if the appliance is disconnected during the cycle, the programme will run again from the point where it was interrupted.

END OF WASH CYCLE

• The programme selector knob is in the Stop

position “ ”.

1. Press the

“On/Off”

button to switch off the

machine.

2. Turn the tap off.

3. Wait for the lid to unlock (about 1 minute).

Open the lid and the drum doors and unload

the machine.

CHANGE THE PROGRAMME DURING THE WASH CYCLE

1. Turn the programme selector knob to the new

programme.

The programme selector knob moves half a step and the pilot lamp of the “Start” button flashes.

If necessary, select

the additional options and the spin speed. Start programme by pressing the

“Start”

button.

PAUSE/INTERRUPT A PROGRAMME

If, for any reason, you wish to interrupt the programme for a certain time and c ont in ue it la t er :

1. Press the

“On/Off”

button.

2. After the desired pause, press again on the

“On/Off”

button.

CANCEL PROGRAMME

1. Set the programme selector to “Drain”.

2. Press the

“Start”

button to start the “Drain”

programme.
