WHIRLPOOL ART 20163 NF 0 Daily Reference Guide

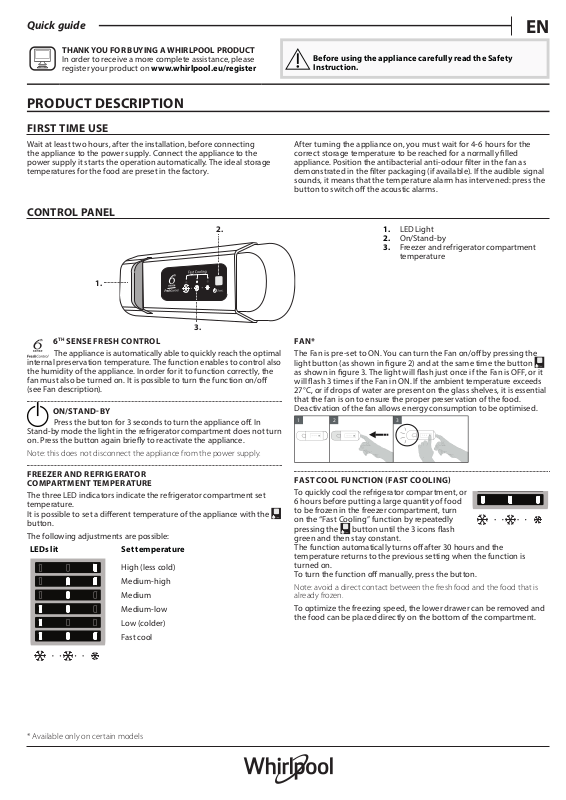

Quick guide
EN
THANK YOU FOR BUYING A WHIRLPOOL PRODUCT
In order to receive a more complete assistance, please
register your product on www . whirlpool . eu/ register
PRODUCT DESCRIPTION
FIRST TIME USE
Wait at least two hours, after the installation, before connecting
the appliance to the power supply. Connect the appliance to the
power supply it starts the operation automatically. The ideal storage
temperatures for the food are preset in the factory.
CONTROL PANEL
2.
1.
Before using the appliance carefully read the Safety
Instruction.
After turning the appliance on, you must wait for 4-6 hours for the
correct storage temperature to be reached for a normally lled
appliance. Position the antibacterial anti-odour lter in the fan as
demonstrated in the lter packaging (if available). If the audible signal
sounds, it means that the temperature alarm has intervened: press the
button to switch o the acoustic alarms.
1. LED Light
2. On/Stand-by
3. Freezer and refrigerator compartment
temperature
3.
6TH SENSE FRESH CONTROL
The appliance is automatically able to quickly reach the optimal
internal preservation temperature. The function enables to control also
the humidity of the appliance. In order for it to function correctly, the
fan must also be turned on. It is possible to turn the function on/o
(see Fan description).
ON/STANDBY
Press the button for 3 seconds to turn the appliance o. In
Stand-by mode the light in the refrigerator compartment does not turn
on. Press the button again briey to reactivate the appliance.
Note: this does not disconnect the appliance from the power supply.
FREEZER AND REFRIGERATOR
COMPARTMENT TEMPERATURE
The three LED indicators indicate the refrigerator compartment set
temperature.
It is possible to set a dierent temperature of the appliance with the
button.
The following adjustments are possible:
LEDs lit Set temperature
High (less cold)
Medium-high
Medium
Medium-low
Low (colder)
Fast cool
FAN*
The Fan is pre-set to ON. You can turn the Fan on/o by pressing the
light button (as shown in gure 2) and at the same time the button
as shown in gure 3. The light will ash just once if the Fan is OFF, or it
will ash 3 times if the Fan in ON. If the ambient temperature exceeds
27°C, or if drops of water are present on the glass shelves, it is essential
that the fan is on to ensure the proper preservation of the food.
Deactivation of the fan allows energy consumption to be optimised.
1 2 3
FAST COOL FUNCTION FAST COOLING
To quickly cool the refrigerator compartment, or
6 hours before putting a large quantity of food
to be frozen in the freezer compartment, turn
on the “Fast Cooling” function by repeatedly
pressing the
green and then stay constant.
The function automatically turns o after 30 hours and the
temperature returns to the previous setting when the function is
turned on.
To turn the function o manually, press the button.
Note: avoid a direct contact between the fresh food and the food that is
already frozen.
To optimize the freezing speed, the lower drawer can be removed and
the food can be placed directly on the bottom of the compartment.
button until the 3 icons ash
* Available only on certain models
STOP FROST SYSTEM*
The STOP FROST SYSTEM facilitates the defrost procedure for the
freezer compartment.
The STOP FROST accessory is designed to collect some of the frost
that forms in the freezer compartment and it is easy to remove and
clean, therefore reducing the time needed to defrost the freezer
compartment.
PROCEDURE TO CLEAN THE STOP FROST ACCESSORY
1. Open the freezer compartment door and remove the upper
drawer.
Unfasten the STOP FROST accessory and remove it, taking care not
2.
to drop it on the glass shelf below.
Note: if the accessory is jammed or dicult to remove, do not keep
trying to remove it, but proceed with the complete defrost of the freezer
compartment.
Close the door of the freezer compartment.
3.
4. Remove the frost on the accessory by rinsing it under running (not
hot) water.
To remove the frost on the STOP FROST accessory follow the cleaning
procedure demonstrated below.
5. Let the accessory drip dry and dry the plastic parts with a soft
cloth.
Reinsert the accessory by placing the back part on the projections
6.
shown in gure, then refasten the handle of the accessory to the
clasps above.
Reinsert the upper drawer and close the door of the freezer
7.
compartment.
It is possible to clean the STOP FROST accessory on its own without
completely defrosting the freezer compartment.
Cleaning the STOP FROST accessory regularly helps to reduce the need
to completely defrost the freezer compartment.
Note: the product specications, including volume and energy, are
calculated without the STOP FROST accessory.
HOW TO STORE FOOD AND BEVERAGE
Legend
TEMPERATE ZONE
Suggested for storage of tropical fruit, cans, drink, eggs,
sauces, pickles, butter, jam
COOL ZONE
Suggested for storage of cheese, milk, daily food,
delicatessen, yoghurt
COOLEST AREA
Suggested for storage of cold cuts, desserts, meat and
sh
FRUIT & VEGETABLE DRAWER
FREEZER DRAWERS
FREEZING ZONE DRAWER
(Max cool zone)
Suggested to freeze fresh/cooked food
* Available only on certain models
