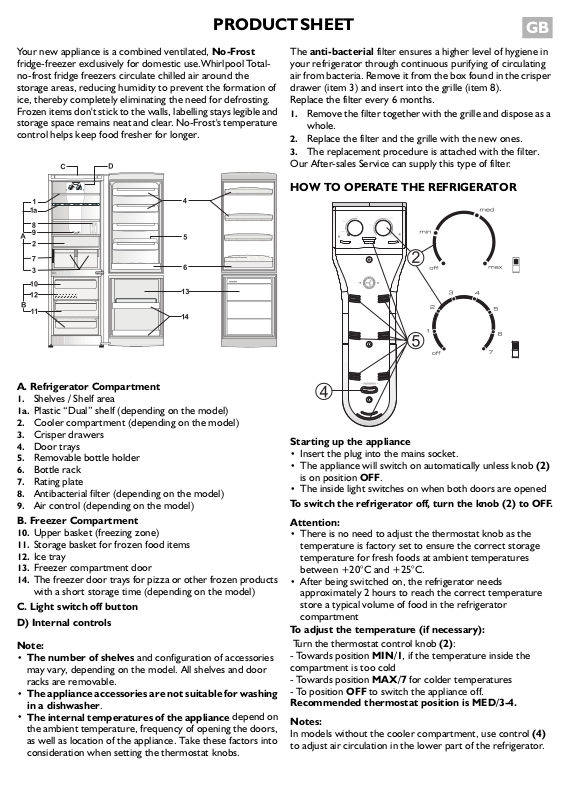

PRODUCT SHEET
GB
Your new appliance is a combined ventilated,
No-Frost
fridge-freezer exclusively for domestic use.Whirlpool Totalno-frost fridge freezers circulate chilled air around the
storage areas, reducing humidity to prevent the formation of
ice, thereby completely eliminating the need for defrosting.
Frozen items don't stick to the walls, labelling stays legible and
storage space remains neat and clear. No-Frost's temperature
control helps keep food fresher for longer.
****
****
A. Refrigerator Compartment
Shelves / Shelf area
1.
Plastic “Dual” shelf (depending on the model)
1a.
Cooler compartment (depending on the model)
2.
Crisper drawers
3.
Door trays
4.
Removable bottle holder
5.
Bottle rack
6.
Rating plate
7.
Antibacterial filter (depending on the model)
8.
Air control (depending on the model)
9.
B. Freezer Compartment
Upper basket (freezing zone)
10.
Storage basket for frozen food items
11.
Ice tray
12.
Freezer compartment door
13.
The freezer door trays for pizza or other frozen products
14.
with a short storage time (depending on the model)
C. Light switch off button
D) Internal controls
Note:
•
The number of shelves
and configuration of accessories
may vary, depending on the model. All shelves and door
racks are removable.
•
The appliance accessories are not suitable for washing
in a dishwasher
•
The internal temperatures of the appliance
.
depend on
the ambient temperature, frequency of opening the doors,
as well as location of the appliance. Take these factors into
consideration when setting the thermostat knobs.
The
anti-bacterial
filter ensures a higher level of hygiene in
your refrigerator through continuous purifying of circulating
air from bacteria. Remove it from the box found in the crisper
drawer (item 3) and insert into the grille (item 8).
Replace the filter every 6 months.
Remove the filter together with the grille and dispose as a
1.
whole.
Replace the filter and the grille with the new ones.
2.
The replacement procedure is attached with the filter.
3.
Our After-sales Service can supply this type of filter.
HOW TO OPERATE THE REFRIGERATOR
Starting up the appliance
Insert the plug into the mains socket.
•
The appliance will switch on automatically unless knob
•
is on position
The inside light switches on when both doors are opened
•
OFF
.
To switch the refrigerator off, turn the knob (2) to OFF.
Attention:
There is no need to adjust the thermostat knob as the
•
temperature is factory set to ensure the correct storage
temperature for fresh foods at ambient temperatures
between +20°C and +25°C.
After being switched on, the refrigerator needs
•
approximately 2 hours to reach the correct temperature
store a typical volume of food in the refrigerator
compartment
To adjust the temperature (if necessary):
Turn the thermostat control knob
- Towards position
, if the temperature inside the
MIN/1
(2)
:
compartment is too cold
- Towards position
- To position
OFF
to switch the appliance off.
for colder temperatures
MAX/7
Recommended thermostat position is MED/3-4.
Notes:
In models without the cooler compartment, use control
to adjust air circulation in the lower part of the refrigerator.
(2)
(4)
HOW TO OPERATE THE COOLER COMPARTMENT
(depending on the model)
The appliance is equipped with a cooler compartment.
To adjust temperature (if necessary), rotate the air regulator
(4):
Towards position (+) for cooler temperatures
•
Towards position (-) for less cool temperatures.
•
It is possible to remove the basket of the Cooler
compartment.
HOW TO OPERATE THE FREEZER COMPARTMENT
When the appliance is plugged in, the freezer compartment
•
switches on automatically.
Attention:
There is no need to adjust the thermostat knob as it is
•
factory set to ensure the correct storage temperature for
frozen foods in the freezer compartment at ambient
temperatures between +20°C and +25°C.
After switching on, the freezer compartment takes
•
approximately 3 hours to reach a suitable temperature for
frozen food storage
To adjust the internal temperature (if necessary):
Turn the thermostat control knob
- Towards position
- Towards position
for less cold internal temperatures.
Min/1
Max/3
(1):
for colder temperatures.
- To position to use the fast freeze function.
Recommended thermostat position: MED/2.
How to freeze fresh food
24 hours before freezing fresh food, turn the knob (1) to
1.
position ; when turning from
knob is slightly stiff and the
yellow indicator (3)
to pos. , the
Max/3
near the
symbol lights up.
Place food in the drawer, leaving enough space for air to
2.
circulate around packs.
For more efficient freezing, turn the knob
3.
, and leave the fast freeze function activated for the
Max/3
to position
(2)
next 24 hours
When freezing is complete, turn the knob
4.
back to its
(1)
original position
REPLACING THE LIGHT BULB
Before replacing any light bulbs, be absolutely sure to
disconnect the appliance from power supply by
removing its plug from the socket.
Following this:
Remove the light cover or holder.
•
Remove the bulb pulling it out of the holder (do not rotate).
•
Check the bulb and replace (if necessary) by pushing its
•
terminals into the holder sockets until it stops.
Replace the light cover or holder.
•
The appliance is equipped with a special push-in light bulb.This
bulb is available only from our After-sales Service. The bulb
should not exceed
15W.
Do not leave uncovered light bulbs.
Care and Maintenance
When cleaning, especially with the light cover removed,
take special safety precautions and do not touch the
light bulb.
5019 637 01016
