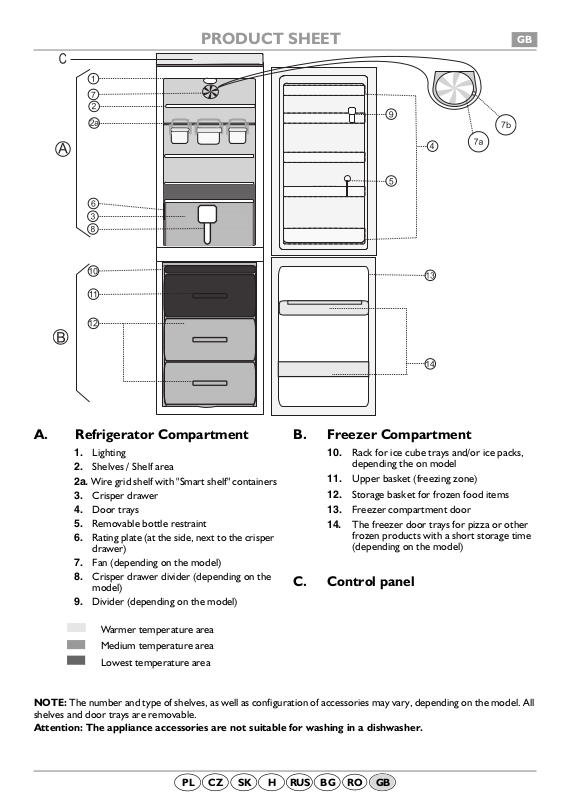

PRODUCT SHEET

A. Refrigerator Compartment

Lighting

Shelves / Shelf area

Wire grid shelf with "Smart shelf" containers

2a.

Crisper drawer

Door trays

Removable bottle restraint

Rating plate (at the side, next to the crisper

drawer) Fan (depending on the model)

Crisper drawer divider (depending on the

model) Divider (depending on the model)

Warmer temperature area Medium temperature area

Lowest temperature area

NOTE:

shelves and door trays are removable.

Attention: The appliance accessories are not suitable for washing in a dishwasher.

The number and type of shelves, as well as configuration of accessories may vary, depending on the model. All

B. Freezer Compartment

Rack for ice cube trays and/or ice packs,

10.

depending the on model Upper basket (freezing zone)

11.

Storage basket for frozen food items

12.

Freezer compartment door

13.

The freezer door trays for pizza or other

14.

frozen products with a short storage time (depending on the model)

C. Control panel

SK H RUS BG

The fridge-freezer is turned on by means of the thermostat located in the upper section of the housing or on the front panel. The thermostat adjusts temperature in both compartments.

The control panel functions

The thermostat knob (depending on the model)

Adjusting temperature inside the appliance:

Knob in position Knob in position Knob in position

Recommended thermostat position is Med.

Fan (depending on the model)

The

gives more even temperature distribution inside the refrigerator compartment, allowing better preservation

fan

of stored food

Important: Do not obstruct the air intake area (7a) with food items.

Fan with a button

To fit the fan press the button (7b). It is advisable to activate the fan when the ambient air temperature is over 27 ÷ 28°C or if you perceive drops of water on the glass shelves or in the severe humidity conditions.

Important: The fan will run ONLY when the compressor is in operation. Remember to turn off the fan when there is a lower ambient air temperature.

Fan without a button

An electronic system automatically turn on and turn off the fan.

Important: The fan will run ONLY when the compressor is in operation.

The internal temperatures are affected by the room temperature, frequency of opening the doors, as well as

Note:

location of the appliance. Adjust the thermostat knob depending on these factors.

0/Off:

1-min

7-max

the appliance is

minimum maximum

cooling intensity.

turned off
