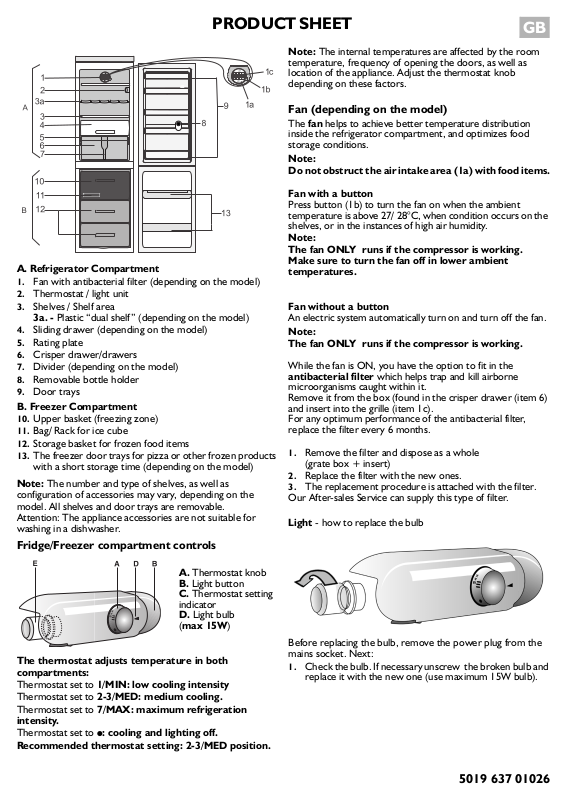

PRODUCT SHEET
GB
A. Refrigerator Compartment
1. Fan with antibacterial filter (depending on the model)
2. Thermostat / light unit
3. Shelves / Shelf area
3a. - Plastic “dual shelf” (depending on the model)
4. Sliding drawer (depending on the model)
5. Rating plate
6. Crisper drawer/drawers
7. Divider (depending on the model)
8. Removable bottle holder
9. Door trays
B. Freezer Compartment
10. Upper basket (freezing zone)
11. Bag/ Rack for ice cube
12. Storage basket for frozen food items
13. The freezer door trays for pizza or other frozen products
with a short storage time (depending on the model)
Note: The number and type of shelves, as well as
configuration of accessories may vary, depending on the
model. All shelves and door trays are removable.
Attention: The appliance accessories are not suitable for
washing in a dishwasher.
Fridge/Freezer compartment controls
A. Thermostat knob
B. Light button
C. Thermostat setting
indicator
D. Light bulb
(max 15W)
The thermostat adjusts temperature in both
compartments:
Thermostat set to 1/MIN: low cooling intensity
Thermostat set to 2-3/MED: medium cooling.
Thermostat set to 7/MAX: maximum refrigeration
intensity.
Thermostat set to
Recommended thermostat setting: 2-3/MED position.
●: cooling and lighting off.
Note: The internal temperatures are affected by the room
temperature, frequency of opening the doors, as well as
location of the appliance. Adjust the thermostat knob
depending on these factors.
Fan (depending on the model)
The fan helps to achieve better temperature distribution
inside the refrigerator compartment, and optimizes food
storage conditions.
Note:
Do no t o bs tr uc t t he ai r i ntake area (1a) with food items.
Fan with a button
Press button (1b) to turn the fan on when the ambient
temperature is above 27/ 28°C, when condition occurs on the
shelves, or in the instances of high air humidity.
Note:
The fan ONLY runs if the compressor is working.
Make sure to turn the fan off in lower ambient
temperatures.
Fan without a button
An electric system automatically turn on and turn off the fan.
Note:
The fan ONLY runs if the compressor is working.
While the fan is ON, you have the option to fit in the
antibacterial filter which helps trap and kill airborne
microorganisms caught within it.
Remove it from the box (found in the crisper drawer (item 6)
and insert into the grille (item 1c).
For any optimum performance of the antibacterial filter,
replace the filter every 6 months.
1. Remove the filter and dispose as a whole
(grate box + insert)
2. Replace the filter with the new ones.
3. The replacement procedure is attached with the filter.
Our After-sales Service can supply this type of filter.
Light - how to replace the bulb
Before replacing the bulb, remove the power plug from the
mains socket. Next:
1. Check the bulb. If necessary unscrew the broken bulb and
replace it with the new one (use maximum 15W bulb).
5019 637 01026
