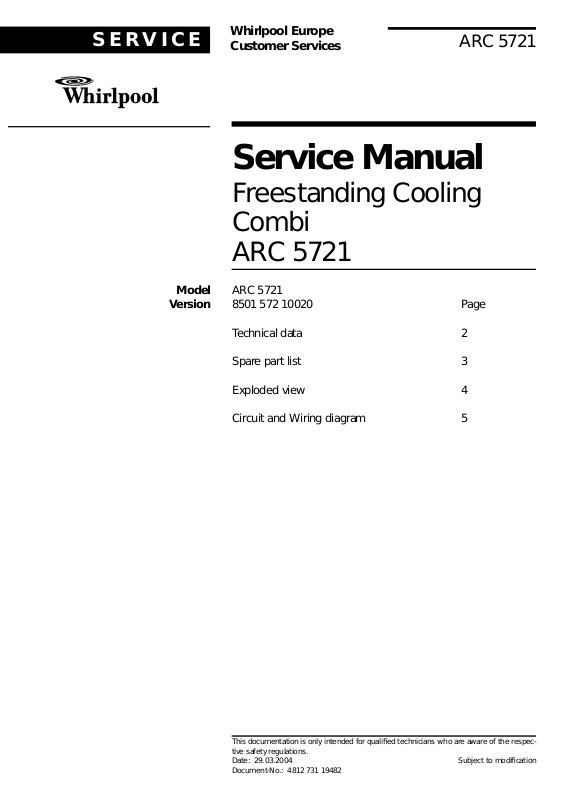

Page 1
SERVICE
Model ARC 5721
Version 8501 572 10020 Page
Whirlpool Europe
Customer Services
ARC 5721
Service Manual
Freestanding Cooling
Combi
ARC 5721
Technical data 2
Spare part list 3
Exploded view 4
Circuit and Wiring diagram 5
This documentation is only intended for qualified technicians who are aware of the respective safety regulations.
Date: 29.03.2004 Subject to modification
Document-No.: 4812 731 19482
Page 2
29.03.2004 / Page 2 ARC 5721 Whirlpool Europe
Doc. No: 4812 731 19482 8501 572 10020 Customer Service
Technical data
Factory Code CB 272 W
Dimensions
Height 167.5 cm
Width 60.0 cm
Depth 62.1 cm
Capacity
Total
gross 284 l
net 265 l
Cooling
gross 212 l
net 210 l
Freezing
gross 72 l
net 55 l
SERVICE
Electrical connection
Voltage 220 - 240 V
Frequency 50 Hz
Power consumption
in 24 hours 0.64 kWh
Freezing capacity
in 24 hours 2.5 kg
Compressor
Type HTK 95 AA
Capacity (CECOMAF) 125 W
Refrigerant
Type R 600 a
Quantity 39 g
Thermostat switching value
Switch on temperature min. + 4.5 ˚C
Switch on temperature max. + 4.5 ˚C
Switch off temperature min. - 19.0 ˚C
Switch off temperature max. - 33.0 ˚C
Page 3
Whirlpool Europe ARC 5721 29.03.2004 / Page 3
SERVICE
Customer Service 8501 572 10020 Doc. No: 4812 731 19482
Spare part list
Model ARC 5721
Service No. 850157210020
Version 850157210020
Pos. No. 12NC Code Description
001 1 4812 464 18121 Traverse
001 2 4812 525 18014 Guide
002 0 4812 464 18141 Cover
002 1 4812 157 48001 Spacer
011 0 4812 462 18263 Adjust. foot
011 1 4812 462 18254 Foot
040 0 4812 417 19231 Hinge, upper, left
040 1 4812 417 19232 Hinge, upper, right
040 2 4812 417 19273 Hinge, middle
040 3 4812 526 48142 Washer
040 4 4812 417 19115 Hinge, lower
101 0 4812 416 19556 Door, freezer
104 0 4812 416 19575 Door, refriger.
105 0 4812 532 88064 Bushing
105 1 4812 532 88062 Sleeve
105 2 4812 532 88063 Sleeve, left
110 0 4812 498 18347 Door handle
152 0 4812 418 28438 Door, dairy
152 1 4812 418 28439 Flap f. door dairy
152 2 4812 418 28624 Shelf
152 3 4812 418 28606 Bottle shelf
152 4 4812 418 28426 Separator
156 0 4812 418 28471 Icecube, tray
156 1 4812 418 28427 Holder, eggs
176 0 4812 459 18218 Nameplate
Pos. No. 12NC Code Description
740 0 4812 511 48314 Condenser
740 1 4812 462 28448 Holder
746 1 4812 466 28139 Holder, evap. left
746 2 4812 462 28447 Holder, evap. right
746 3 4812 460 98081 Panel
746 4 4812 460 98055 Panel
764 0 4819 526 48527 Dryer
781 0 4812 171 58001 Hose
781 1 4812 171 58002 Overfload cond.
783 0 4819 526 43046 Tube service
904 0 4812 462 28558 Cover, screw
904 1 4812 532 88029 Stopper
904 2 4812 226 08003 Plug
904 3 4812 226 08019 Cover I
904 4 4812 226 08018 Cover II
904 5 4812 226 08017 Plug
191 0 4812 466 68805 Magnetic seal
191 1 4812 466 68808 Magnetic seal
241 0 4812 418 79962 Crisper
242 0 4812 418 68301 Drawer
242 1 4812 418 68299 Drawer
242 2 4812 418 48733 Cover, basket with serig.
242 3 4812 418 48689 Cover, basket
244 0 4812 458 19187 Holder, bottles
246 0 4812 462 28616 Tray
246 1 4812 462 28453 Tray
255 0 4812 450 88214 Shelf glass
255 1 4812 450 88222 Glass shelf
301 0 4812 452 28631 Panel, control
301 1 4812 440 98137 Cover, regulator
301 2 4812 462 28615 Cover
301 3 4812 462 28614 Cover
331 0 4812 412 18038 Knob thermostat
402 0 4812 360 58114 Compressor EMT 56 CLP (service)
402 1 4812 418 78971 Tray, compressor
420 0 4812 120 28022 Capacitor
480 0 4812 321 78176 Cable harness
491 0 4812 462 28261 Cover
491 1 4812 290 88084 Connect. block
554 0 4812 282 38147 Thermostat, K59-L2139
614 0 4812 280 38051 Monoblock
651 0 4819 134 88135 Lamp, 220V 15W
651 1 4812 440 98245 Housing, lamp
652 0 4812 255 28015 Holder, lamp
655 0 4812 271 58178 Switch, WP20K
656 0 4812 460 98066 Cover f. lamp
Page 4
29.03.2004 / Page 4 ARC 5721 Whirlpool Europe
Doc. No: 4812 731 19482 8501 572 10020 Customer Service

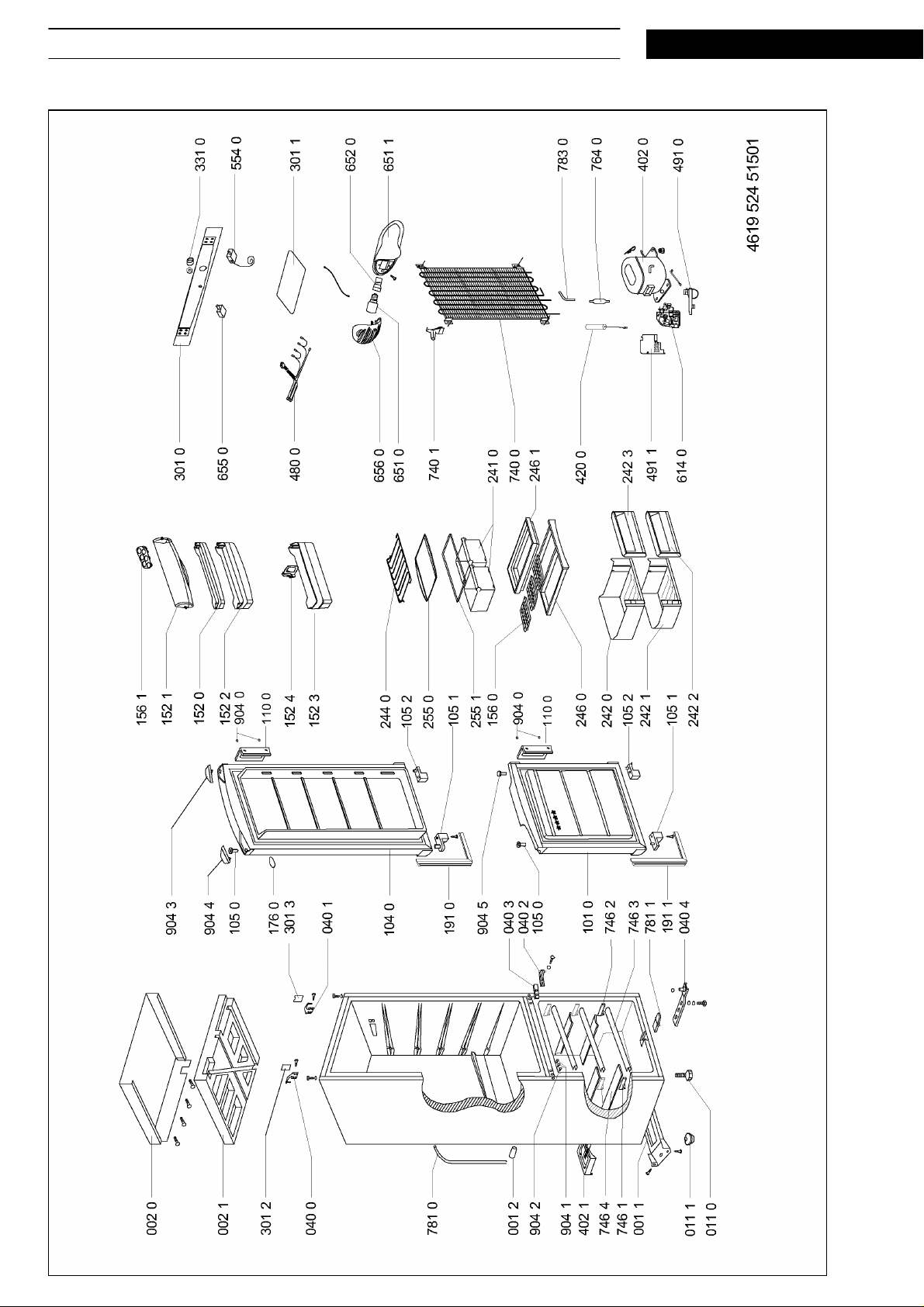

Exploded view
SERVICE
Page 5
SERVICE
Whirlpool Europe ARC 5721 29.03.2004 / Page 5
Customer Service 8501 572 10020 Doc. No: 4812 731 19482

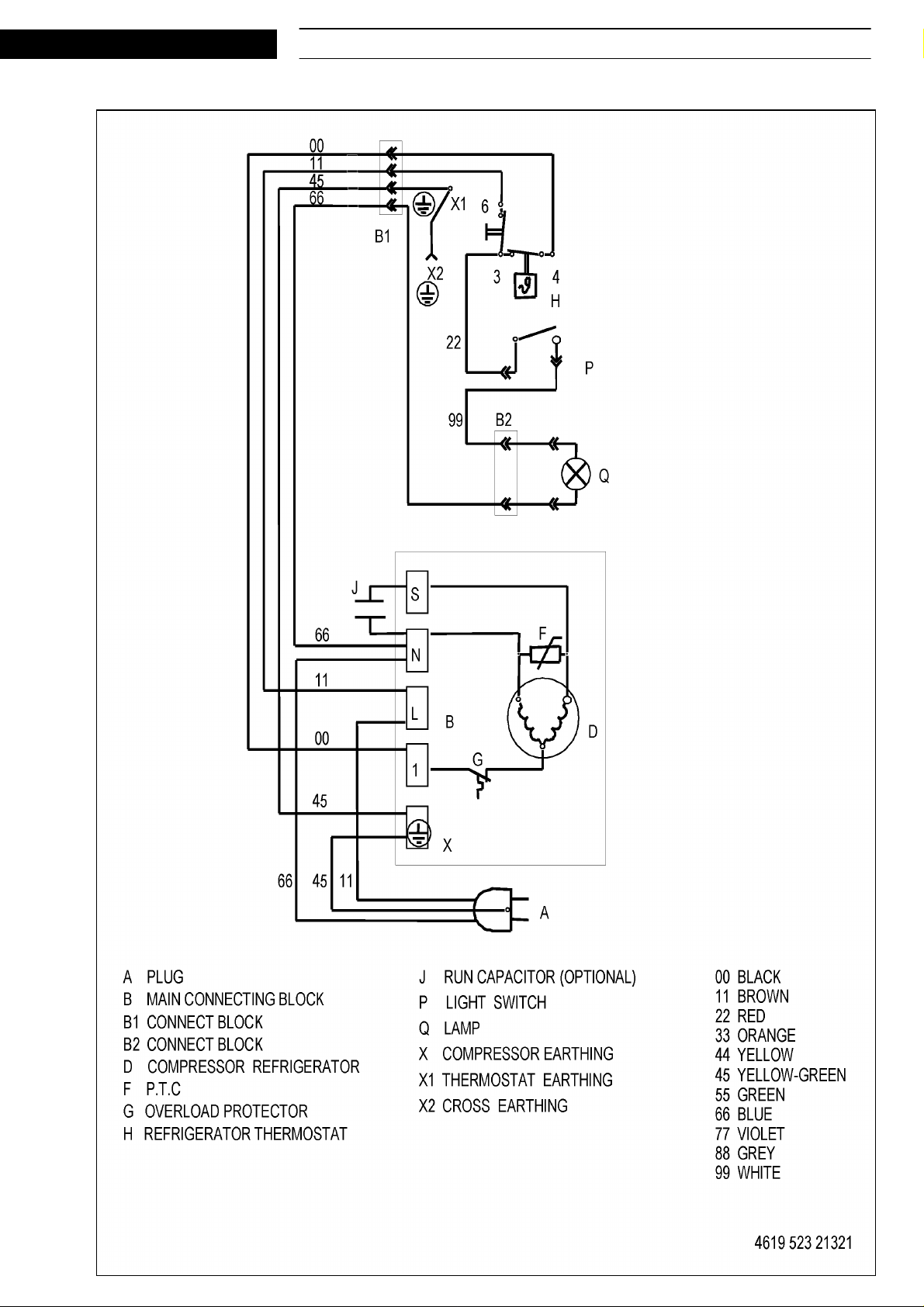

Circuit and Wiring diagram
