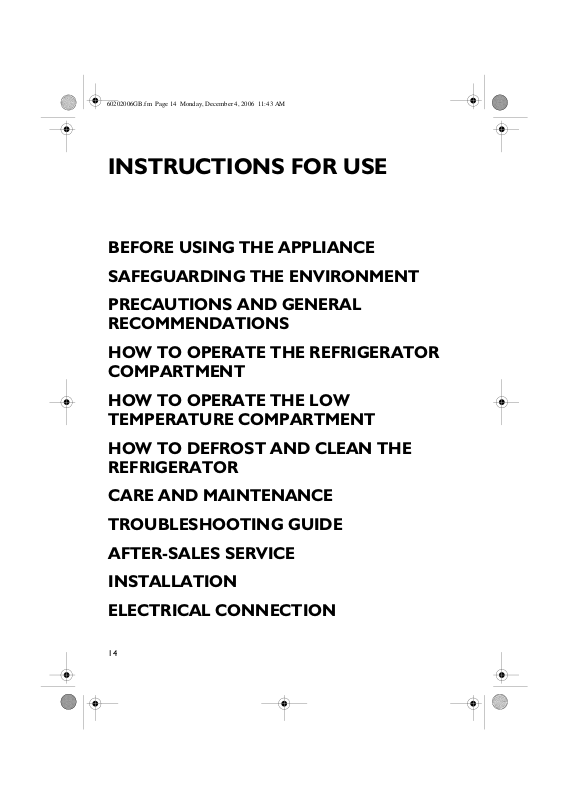

INSTRUCTIONS FOR USE
BEFORE USING THE APPLIANCE
SAFEGUARDING THE ENVIRONMENT
PRECAUTIONS AND GENERAL
RECOMMENDATIONS
HOW TO OPERATE THE REFRIGERATOR
COMPARTMENT
HOW TO OPERATE THE LOW
TEMPERATURE COMPARTMENT

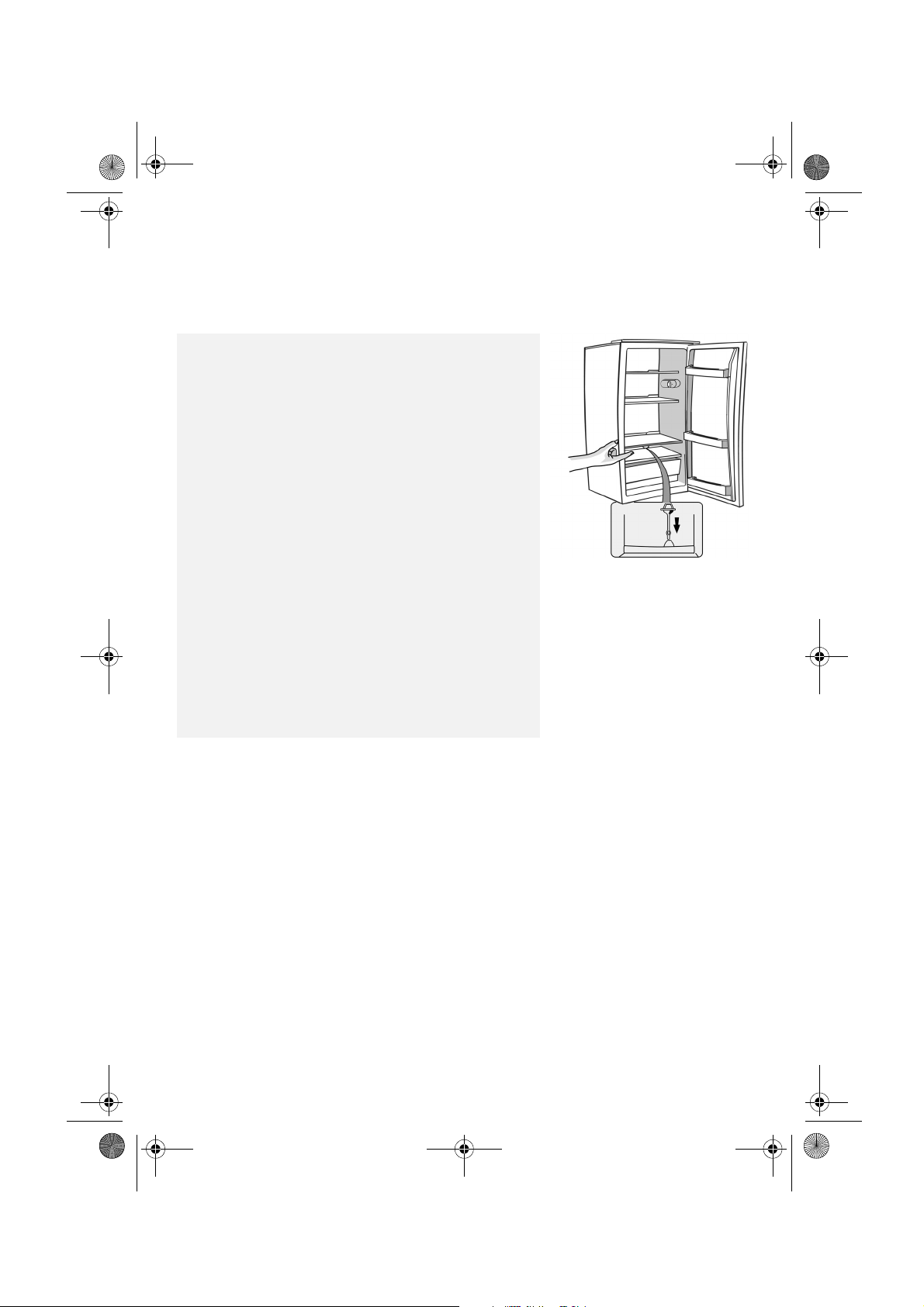

HOW TO DEFROST AND CLEAN THE
REFRIGERATOR
CARE AND MAINTENANCE
TROUBLESHOOTING GUIDE
AFTER-SALES SERVICE
INSTALLATION
ELECTRICAL CONNECTION
14
Page 2
60202006GB.fm Page 15 Monday, December 4, 2006 11:43 AM
BEFORE USING THE APPLIANCE
•
Your new appliance is designed exclusively for
domestic use.
To ensure best use of your appliance, carefully
read the operating instructions which contain a
description of the appliance and advice on
storing and preserving food.
Keep this handbook for future reference.
1.
After unpacking the appliance, make sure it is not
damaged and that the door closes properly. Any
damage must be reported to the dealer within 24
hours of delivery of the appliance.
2.
Wait at least two hours before switching the
appliance on, in order to ensure that the
refrigerant circuit is fully efficient.
3.
Make sure installation and the electrical
connection are carried out by a qualified
technician according to the manufacturer's
instructions and in compliance with the local safety
regulations.
4.
Clean the inside of the appliance before using it.
SAFEGUARDING THE ENVIRONMENT
1. Packing
The packing material is 100% recyclable and bears
the recycling symbol. Comply with the local
regulations for disposal. Keep the packing materials
(plastic bags, polystyrene parts, etc.) out of the
reach of children, as they are a potential source of
danger.
2. Scrapping/Disposal
The appliance is manufactured using recyclable
material.
This appliance is marked in compliance with European
Directive 2002/96/EC on Waste Electrical and
Electronic Equipment (WEEE).
By ensuring the correct scrapping of this appliance,
you can help prevent potentially negative
consequences for the environment and the health
of persons.
The symbol on the appliance, or on the
accompanying documents, indicates that this
appliance should not be treated as domestic waste but
must be taken to a suitable collection centre for the
recycling of electrical and electronic equipment.
When scrapping the appliance, make it unusable by
cutting off the power cable and removing the doors
and shelves so that children cannot easily climb
inside.
Scrap the appliance in compliance with local
regulations on waste disposal, taking it to a special
collection centre; do not leave the appliance
unattended even for a few days, since it is a
potential source of danger for children. For further
information on the treatment, recovery and
recycling of this appliance, contact your competent
local office, the household waste collection service
or the shop where you purchased the appliance.
Information:
This appliance does not contain CFC (the
refrigerant circuit contains R134a) or HFC (the
refrigerant circuit contains R600a) (refer to the
rating plate inside the appliance).
Appliances with isobutane (R600a): Isobutane is a
natural gas without environmental impact but is
flammable. Therefore, make sure the refrigerant
circuit pipes are not damaged
Declaration of conformity
•
This appliance is intended for storing food and is
manufactured in conformity with European
regulation (EC) No. 1935/2004.
•
This product has been designed, manufactured
and marketed in compliance with:
- the safety objectives of Low Voltage Directive
73/23/EEC;
- the protection requirements of “EMC” Directive
89/336/EEC,
amended by Directive 93/68/EEC.
•
Electrical safety of the appliance is guaranteed
only if it is connected to an efficient and approved
earthing system.
15
Page 3
60202006GB.fm Page 16 Monday, December 4, 2006 11:43 AM
PRECAUTIONS AND GENERAL
RECOMMENDATIONS
•
During installation, make sure the appliance does
not damage the power cable.
•
Make sure the appliance is not near a heat
source.
•
To guarantee adequate ventilation, leave a space
on both sides and above the appliance and follow
the installation instructions.
•
Keep the appliance ventilation openings free.
•
Power cable modification or replacement must
only be carried out by qualified personnel.
•
It must be possible to disconnect the appliance
from the power supply by unplugging it or by
means of a mains two-pole switch installed
upstream of the socket.
•
Make sure the voltage indicated on the appliance
rating plate corresponds to that of your home.
•
Install and level the appliance on a floor strong
enough to take its weight and in a place suitable
for its size and use.
•
The appliance must be handled and installed by
two or more persons.
•
Be ca reful no t t o da ma ge the fl oo rs w he n mov in g
the appliance (e.g. parquet).
•
Do not use single/multi-adapters or extension
cords.
•
Install the appliance in a dry and well-ventilated
place. The appliance is arranged for operation in
places where the temperature comes within the
following ranges, according to the climatic class
given on the rating plate. The appliance may not
work properly if it is left for a long period at a
temperature outside the specified range
Climatic Class Amb. T. (°C) Amb. T. (°F)
SN From 10 to 32 From 50 to 90
N From 16 to 32 From 61 to 90
ST From 16 to 38 From 61 to 100
T From 16 to 43 From 61 to 110
.
•
Do not store or use petrol, gas or flammable
liquids in the vicinity of this or other electrical
appliances. The fumes can cause fires or
explosions.
•
Do not use mechanical, electric or chemical
means other than those recommended by the
Manufacturer to speed up the defrost process.
•
Do not damage the appliance refrigerant circuit
pipes.
•
Do not use or place electrical appliances inside
the product if they are not of the type expressly
authorised by the Manufacturer.
•
This appliance is not designed for use by young
children or the infirm without supervision.
•
To avoid the risk of children becoming trapped
and suffocating, do not allow them to play or hide
inside the appliance.
•
Do not swallow the contents (non-toxic) of the
ice packs (if provided).
•
Use the refrigerator compartment only for
storing fresh food and the freezer compartment
only for storing frozen food, freezing fresh food
and making ice cubes.
•
Do not store liquids in glass containers in the
freezer compartment since they may burst.
•
Do not eat ice cubes or ice lollies immediately
after taking them out of the freezer since they
may cause cold burns.
•
Before carrying out any maintenance or cleaning
operation, unplug the appliance or disconnect
the power supply.
• The Manufacturer declines any liability if
the above advice and precautions are not
respected.
16
Page 4
60202006GB.fm Page 17 Monday, December 4, 2006 11:43 AM
HOW TO OPERATE THE REFRIGERATOR
COMPARTMENT
Switching on the appliance
Starting up the appliance
The appliance features internal controls.
Plug in the appliance.
When the appliance is connected to the mains, the inside light
switches on each time the door is opened. The thermostat, located
inside the refrigerator compartment, is used to adjust the
temperature of both the refrigerator compartment and low
temperature compartment (if fitted).
Appliance temperature adjustment:
The thermostat automatically adjusts the temperature inside the
refrigerator compartment and the compartment.
The thermostat knob can be turned from position1 to 7 (coldest
setting) to make the internal temperature colder.
When set to O the appliance is switched off.
To store food for a short period of time, set the thermostat between
1 (Min)
- To store food for long periods of time in the compartment,
set the thermostat to 3 or 4.
Note:
The ambient air temperature, frequency of door opening and the
position of the appliance can affect internal temperatures. These
factors must be taken into account when setting the thermostat.
and
3 (Med)
.
How to use the refrigerator compartment
Position the food as shown in the figure.
A Cooked food
BFish, meat
CFruit and vegetables
DBottles
E Cheese
Notes:
•
The space between the shelves and the rear wall of the refrigerator
compartment must be unobstructed to allow circulation of air.
•
Do not place food in direct contact with the rear wall of the
refrigerator compartment.
•
Do not place hot food in the refrigerator.
•
Store liquids in closed containers.
Important
Storing vegetables with high water content can cause
condensation to form on the glass shelf of the crisper drawer:
this will not affect the correct operation of the appliance.
17
Page 5
60202006GB.fm Page 18 Monday, December 4, 2006 11:43 AM
HOW TO OPERATE THE LOW
TEMPERATURE COMPARTMENT
The low temperature compartment is .
Frozen food can be stored in the compartment for the period
of time indicated on the pack, and also fresh food can be
frozen.
The quantity of fresh food that can be frozen in 24 hours is
shown on the rating plate.
Note:
In the event of a power cut, the low temperature compartment will
maintain a sufficiently low temperature for food storage. However, it
is advisable to avoid opening the compartment door during such
periods.
Freezing fresh food (only in compartments marked )
Important
•
Before freezing, wrap and seal fresh food in:
aluminium foil, cling film, air and water-tight plastic bags, polythene
containers with lids or freezer containers suitable for freezing fresh
food.
•
Arrange the fresh food in the top compartment, leaving sufficient
space around each pack for the air to circulate.
•
For optimum freezing, turn the thermostat down by half a point
when placing fresh foods in the freezer compartment.
•
The food will be completely frozen in 24 hours.
For appliances with compartments marked
The table alongside shows the recommended maximum
storage time for frozen fresh foods.
When purchasing frozen food products:
•
ensure that the packaging is not damaged (frozen food in damaged
packaging may have deteriorated). If the package is swollen or has
damp patches, it may not have been stored under optimal
conditions and defrosting may have already begun.
•
When shopping, leave frozen food purchases until last and
transport the products in a thermally insulated cool bag.
•
Place the items in the low temperature compartment as soon as
you get home.
•
If food has defrosted even partially, do not re-freeze it. Consume
within 24 hours.
•
Avoid, or reduce temperature variations to the minimum. Respect
the best-before date on the package.
•
Always observe the storage information on the package.

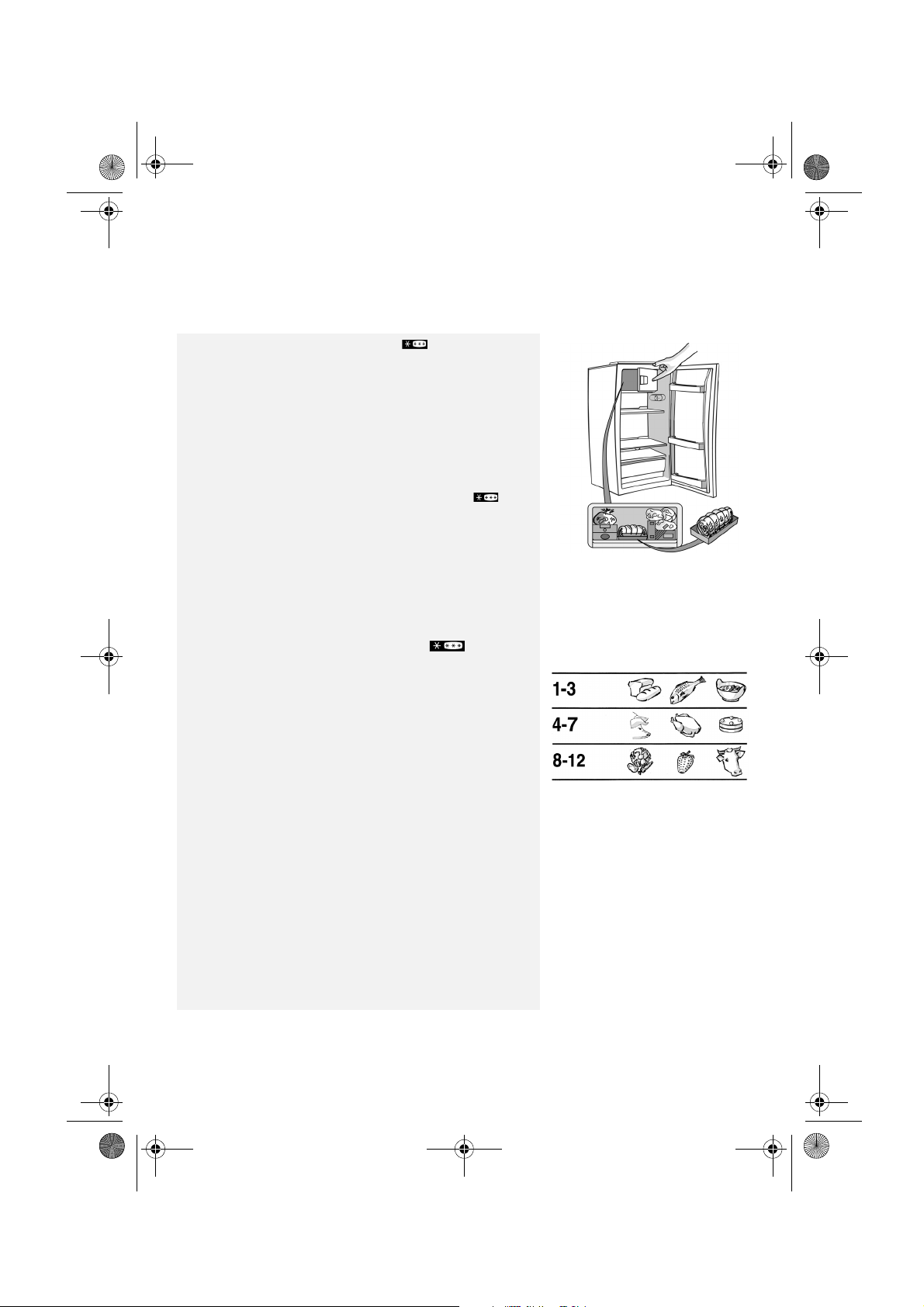

Making ice cubes
•
Fill the ice cube tray 2/3 full and place it in the low temperature
compartment
•
Do not use sharp or pointed instruments to detach the tray if it is
stuck to the low temperature compartment bottom.
•
Bend the ice tray slightly to remove the cubes.
MONTHS FOOD
18
Page 6
60202006GB.fm Page 19 Monday, December 4, 2006 11:43 AM
HOW TO DEFROST AND CLEAN THE
REFRIGERATOR
Before any cleaning or maintenance operation, unplug the
appliance from the mains or disconnect the electrical power
supply.
Defrosting of the refrigerator compartment is completely
automatic.
Droplets of water on the rear wall of the refrigerator compartment
indicate that the periodic automatic defrost cycle is in progress.
The defrost water is automatically routed to a drain outlet and into a
container from which it evaporates.
Regularly clean the inside of the defrost water drain hole in order to
guarantee the constant and correct flow of defrost water.
Defrosting the low temperature compartment
Defrost the low temperature compartment once or twice a
year or when the ice formation is excessive.
It is perfectly normal for ice to form. The amount of ice which
forms and the rate at which it accumulates will depends on
room temperature and humidity, and on the frequency with
which the door is opened. Ice formation is concentrated at the
top of the compartment and does not affect the efficiency of
the appliance.
If possible, defrost the freezer when it is nearly empty.
•
Remove the food from the freezer, wrap in newspaper and group
together in a cool place or in a portable cooler.
•
Leave the door open to allow the frost to melt.
• Clean the interior with a sponge soaked in warm water and/
or neutral detergent. Do not use abrasive substances.
•
Rinse the interior and dry thoroughly.
•
Put the food back into the freezer.
•
Close the door.
•
Plug in the appliance once again.
•
Switch the appliance on.
19
Page 7
60202006GB.fm Page 20 Monday, December 4, 2006 11:43 AM
CARE AND MAINTENANCE
•
Periodically clean air vents and the condenser at the rear of the
appliance with a vacuum cleaner or a brush.
•
Clean the outside using a soft cloth.
Prolonged disuse
1.
Empty the refrigerator.
2.
Disconnect the appliance from the power supply.
3.
Defrost and clean the interior.
4.
In the event of prolonged disuse, leave the door open to prevent
the formation of mould, odours and oxidation.
5.
Clean the appliance.
•
Clean the inside of the low temperature compartment (where
fitted) when defrosting.
•
Periodically clean the inside of the refrigerator compartment with
a sponge dampened in warm water and/or neutral detergent. Rinse
and dry with a soft cloth. Do not use abrasive products.
•
Clean the outside with a soft damp cloth.
Do not use abrasive products, scourers, stain-removers
(e.g. acetone, trichloroethylene) or vinegar.

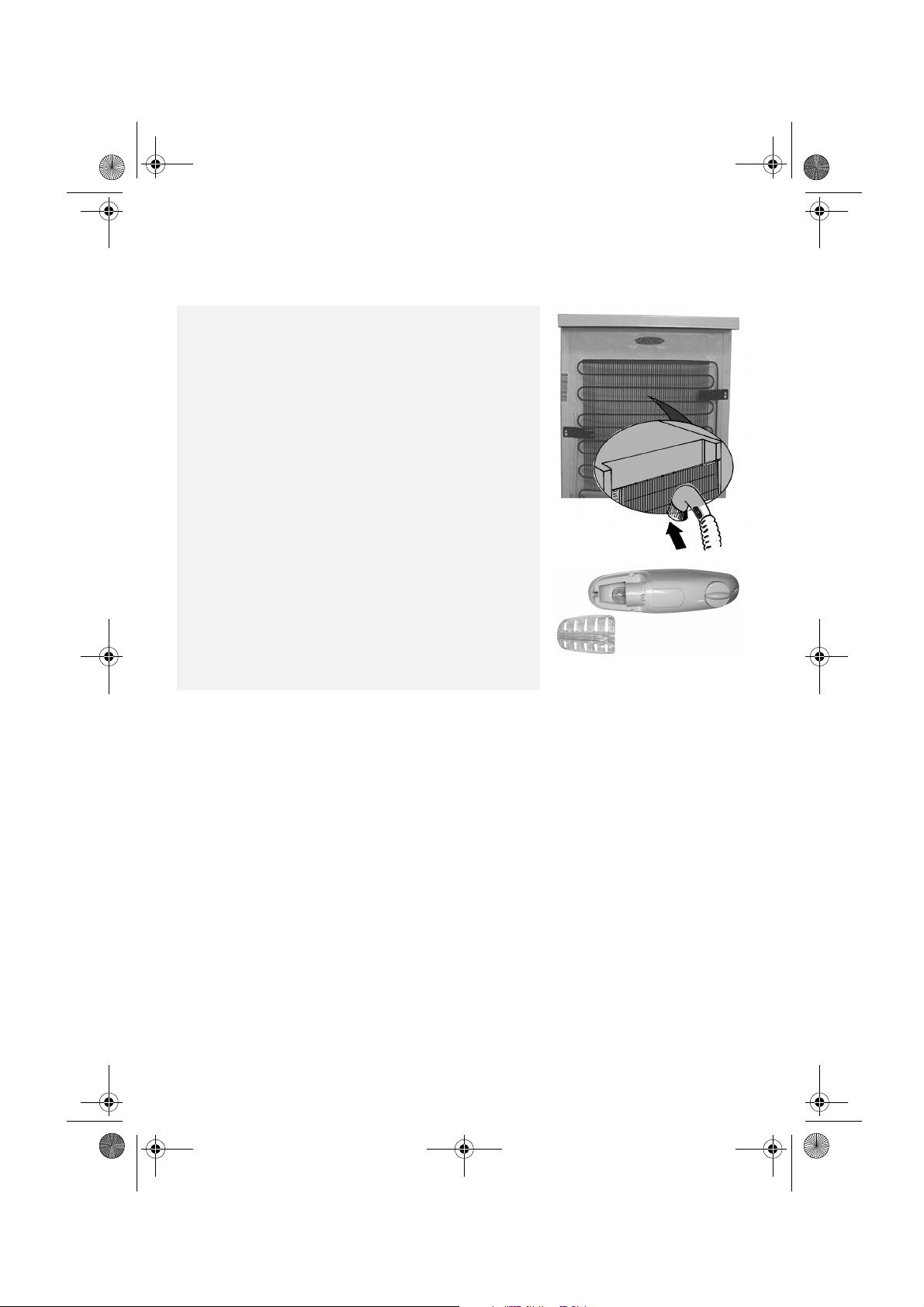

Replacing bulbs:
When replacing the bulb, proceed as follows:
•
Unplug the appliance from the mains
•
Squeeze the tabs on the sides of the lamp cover and remove it.
•
Replace the bulb with a new one, maximum 10 W.
•
Put the lamp cover back on and wait 5 minutes before plugging the
appliance back into the mains.
20
Page 8
60202006GB.fm Page 21 Monday, December 4, 2006 11:43 AM
TROUBLESHOOTING GUIDE

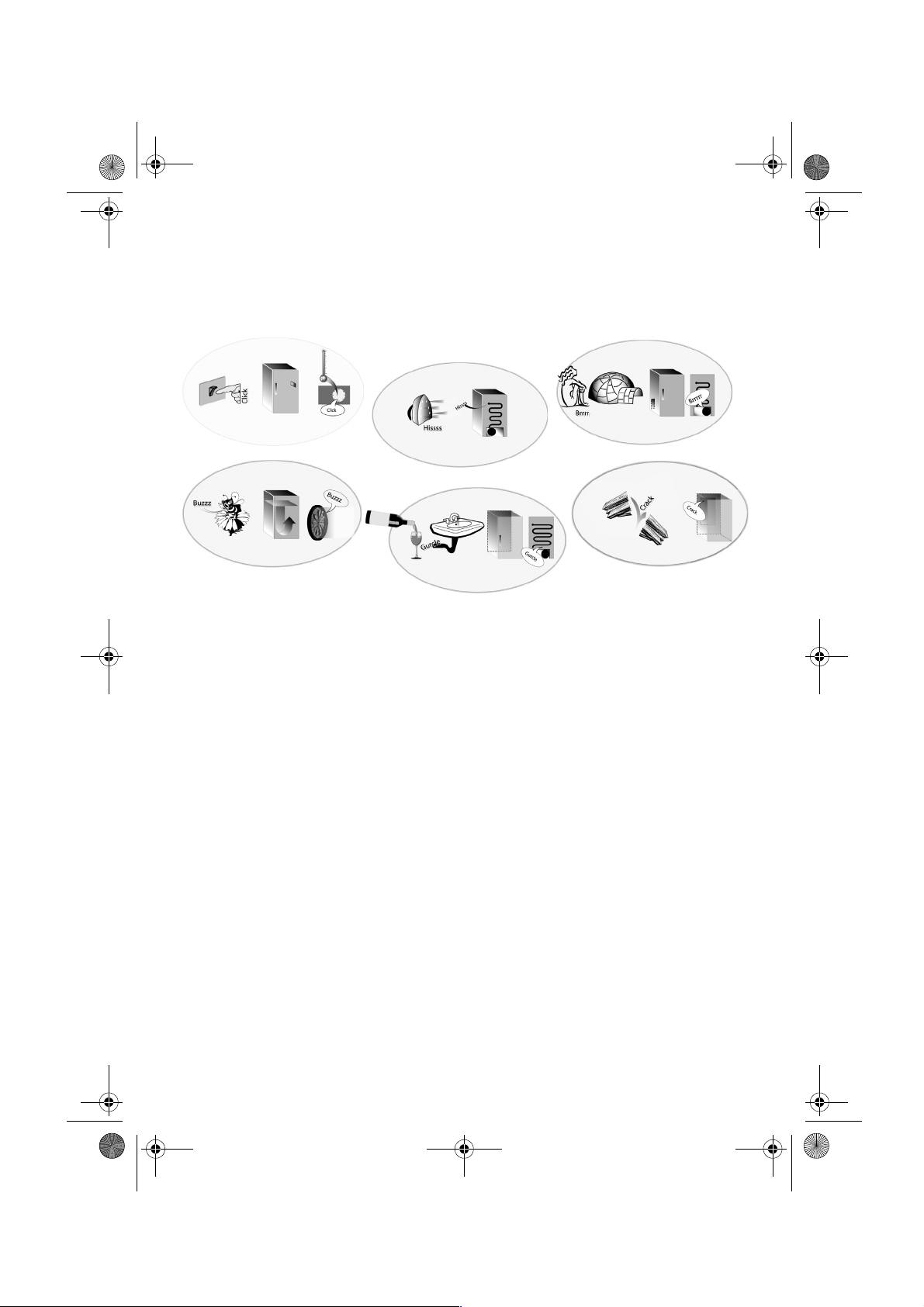

When you hear these noises
..your appliance is alive!!
1. The appliance is not working.
•
Is there a power failure?
•
Is the plug properly inserted in the socket?
•
Is the double-pole switch on?
•
Has the fuse blown?
•
Is the power cord damaged?
•
Is the thermostat set to
(Stop)?
z
2. Temperature inside the compartments
is not low enough.
•
Is the door shut properly?
•
Is food obstructing proper door closure?
•
Is the appliance installed near a heat source?
•
Is the thermostat setting correct?
•
Are the air circulation vents blocked?
3. Temperature inside the refrigerator
compartment is too low.
•
Is the thermostat setting correct?
4. The appliance is excessively noisy.
•
Has the appliance been installed correctly?
•
Are the pipes at the back touching or vibrating?
5. Water collects at the bottom of the
refrigerator compartment.
•
Is the defrost water drain blocked?
6. Excessive frost build-up in the low
temperature compartment.
•
Is the door shut properly?
•
Is food obstructing proper door closure?
Notes:
• Gurgling and hissing noises due to expansion in
the refrigerant circuit are normal.
21
Page 9
60202006GB.fm Page 22 Monday, December 4, 2006 11:43 AM
AFTER-SALES SERVICE
Before contacting After-Sales Service:
1.
See if you can solve the problem yourself with the
help of the “Troubleshooting guide”).
2.
Switch the appliance on again to see if the problem
has been solved. If it has not, disconnect the
appliance from the power supply and wait for
about an hour before switching on again.
3.
If the problem persists after this course of action,
contact After-sales Service.
INSTALLATION
•
Install the appliance away from heat sources. Installation in a hot
environment, direct exposure to the sun or installation near heat
sources (heaters, radiators, cookers) will increase power
consumption and should therefore be avoided.
•
If this is not possible, the following minimum distances must be
respected:
•
30 cm from coal or paraffin stoves;
•
3 cm from electric and/or gas stoves.
•

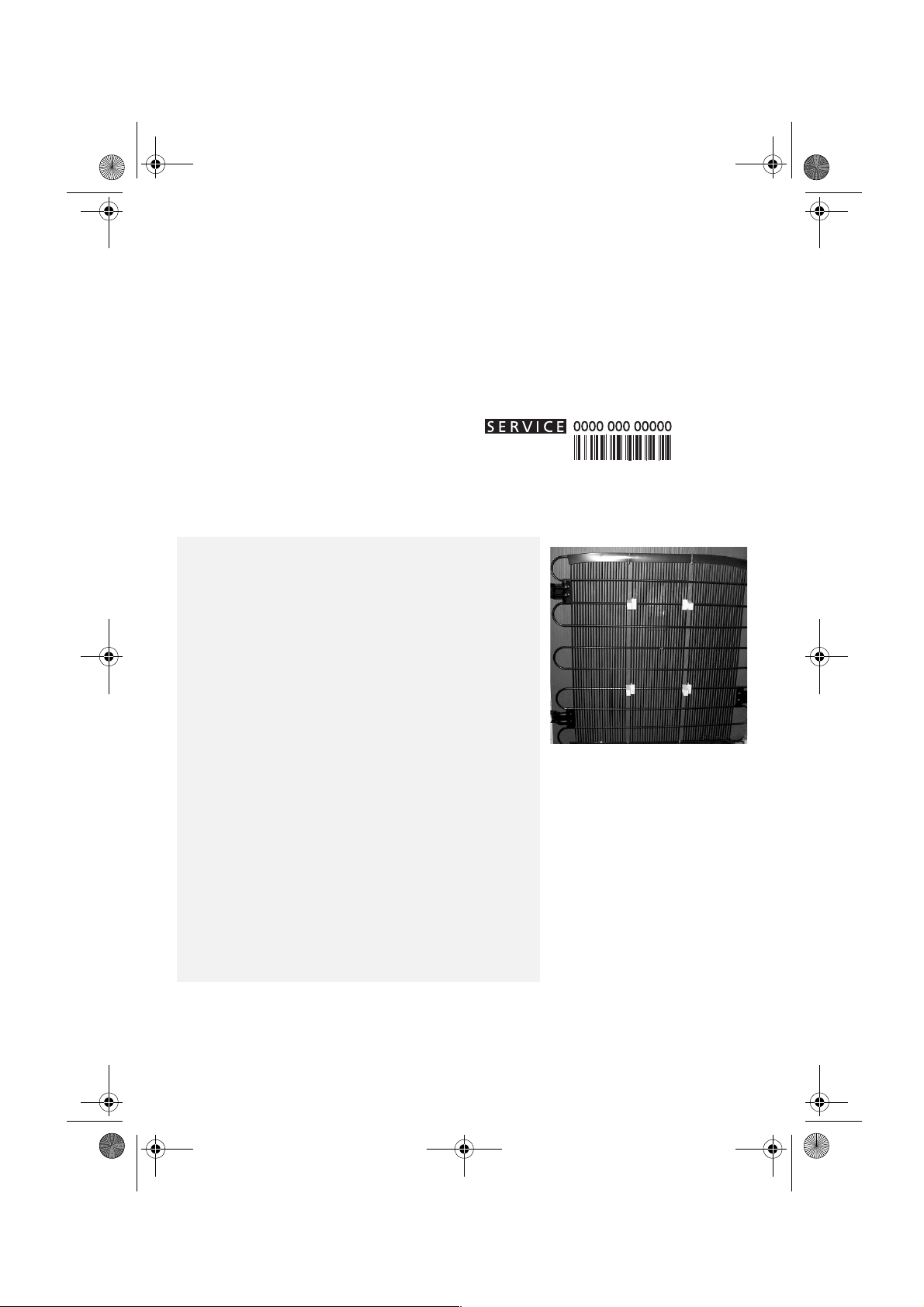

Fit the spacers (if supplied) on the rear of the condenser positioned
at the back of the appliance (see figure).
•
To optimize appliance efficiency, leave a 5 cm gap above the
appliance and make sure that adjacent kitchen units are sufficiently
distanced to allow air circulation.
•
Install the appliance in a dry, well-ventilated place, and ensure it is
level, using the front adjustment feet if necessary.
•
Clean the interior.
•
Fit the accessories.
Specify:
•
the nature of the problem
•
the model
•
the Service number (the number after the word
SERVICE on the rating plate on the inside of the
appliance)
•
your full address
•
your telephone number and area code.
Electrical connection
•
Electrical connections must be made in accordance with local
regulations.
•
Voltage and power consumption are indicated on the rating plate
inside the appliance.
•
Regulations require that the appliance is earthed.
The Manufacturer declines all liabilities for injury to persons or
animals or damage to property resulting from failure to observe
these regulations.
•
If the plug and socket are not of the same type, have the socket
replaced by a qualified electrician.
•
Do not use extension leads or adapters.
Disconnecting the appliance
It must be possible to disconnect the appliance by unplugging it or by
means of a two-pole switch fitted upline of the socket.
22
Page 10
60202006GB.fm Page 23 Monday, December 4, 2006 11:43 AM

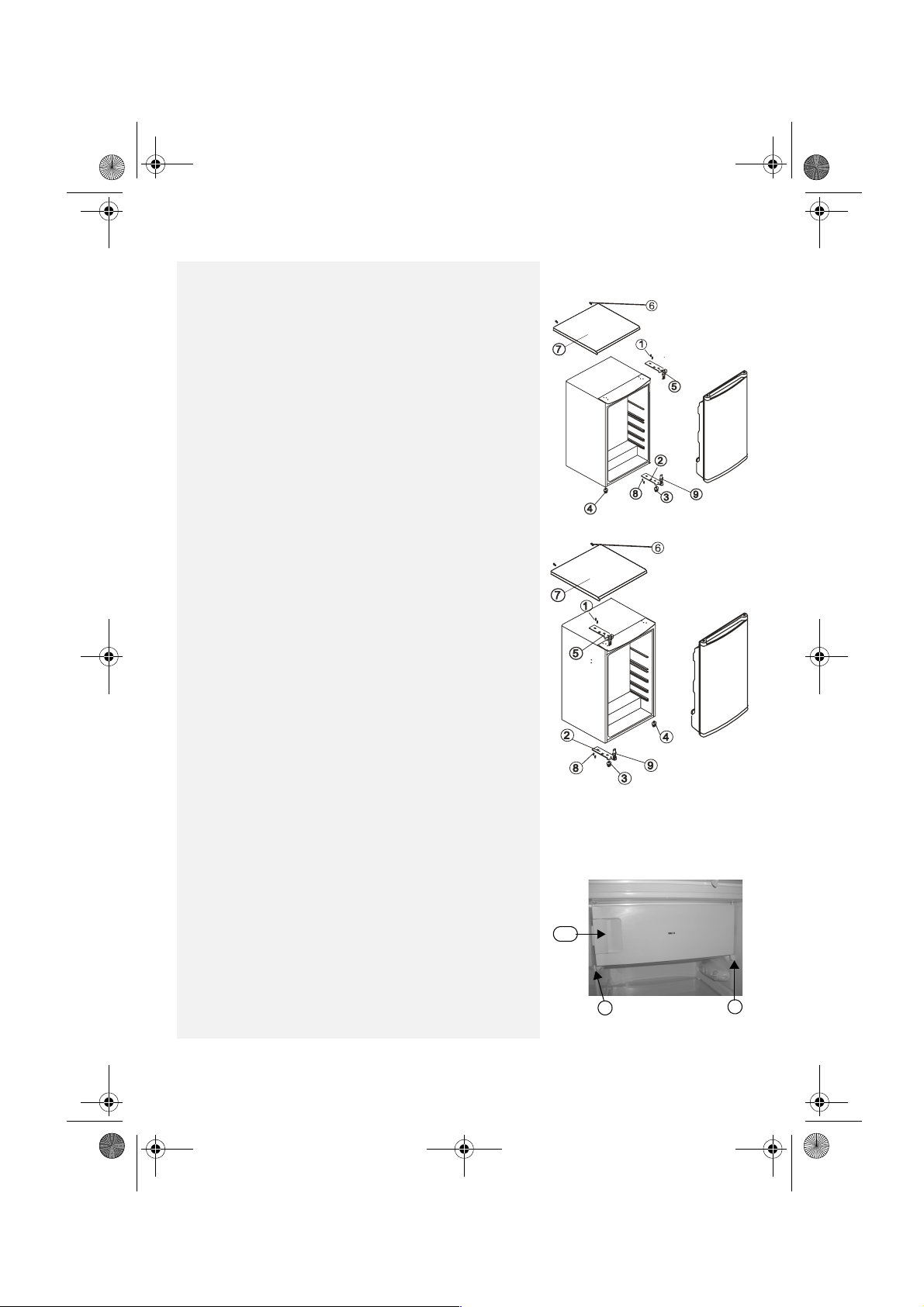

Door Swing Reversal
Reversing the door swing
The refrigerator has the capability of opening the door from either
the left or the right side.
The unit is delivered to you with the door opening from the left side.
To change the opening direction, please follow these instructions.
Note:
Before reversing the door swing, unplug the appliance from
the mains or disconnect the electrical power supply.
1.
Remove the screws (6) holding the top panel (7) to the unit.
Remove the top panel
2.
Remove the two screws (1) holding the top hinge (5) (right side)
to the frame. Remove the top hinge (5).
3.
Lift the door off the bottom hinge pin and place it on a nonscratching surface.
4.
Remove the two screws (8) holding the bottom hinge (2).
Remove the bottom hinge (2).
5.
Remove the left front leg (4) and transfer it to the right side.
6.
Before replacing the bottom hinge (2), remove the hinge pin (9)
and reverse the direction of the hinge (2). Reassemble the
bottom hinge (2) on the left hand side using the two screws (8).
7.
Refit the hinge pin (9) into the bottom hinge (2).
8.
Lower the door onto the bottom hinge pin (9).
9.
While holding the door in the closed position, reassemble the
top hinge (5) on the left hand side using the two screws (1). Do
not tighten the screws (1) until the top of the door is level with
the counter top.
10.
Refit the top panel using the screws (6).
Door opening from left side
fig. 1
Note:
The direction of door opening can be changed.
If this operation is performed by After-sales Service it is not
covered by the warranty.
Reversing the Inside Compartment Door Swing
1.
Remove the door support pin screw at the bottom right;
2.
remove the cap on the left part;
3.
remove the two screw caps on the left part;
4.
undo the two screws;
5.
refit everything on the opposite side.
Door opening from right side
3-4
2
fig. 2
1
23
Page 11
60202006GB.fm Page 24 Monday, December 4, 2006 11:43 AM
ELECTRICAL CONNECTION
1) For Great Britain only
Warning - this appliance must be earthed

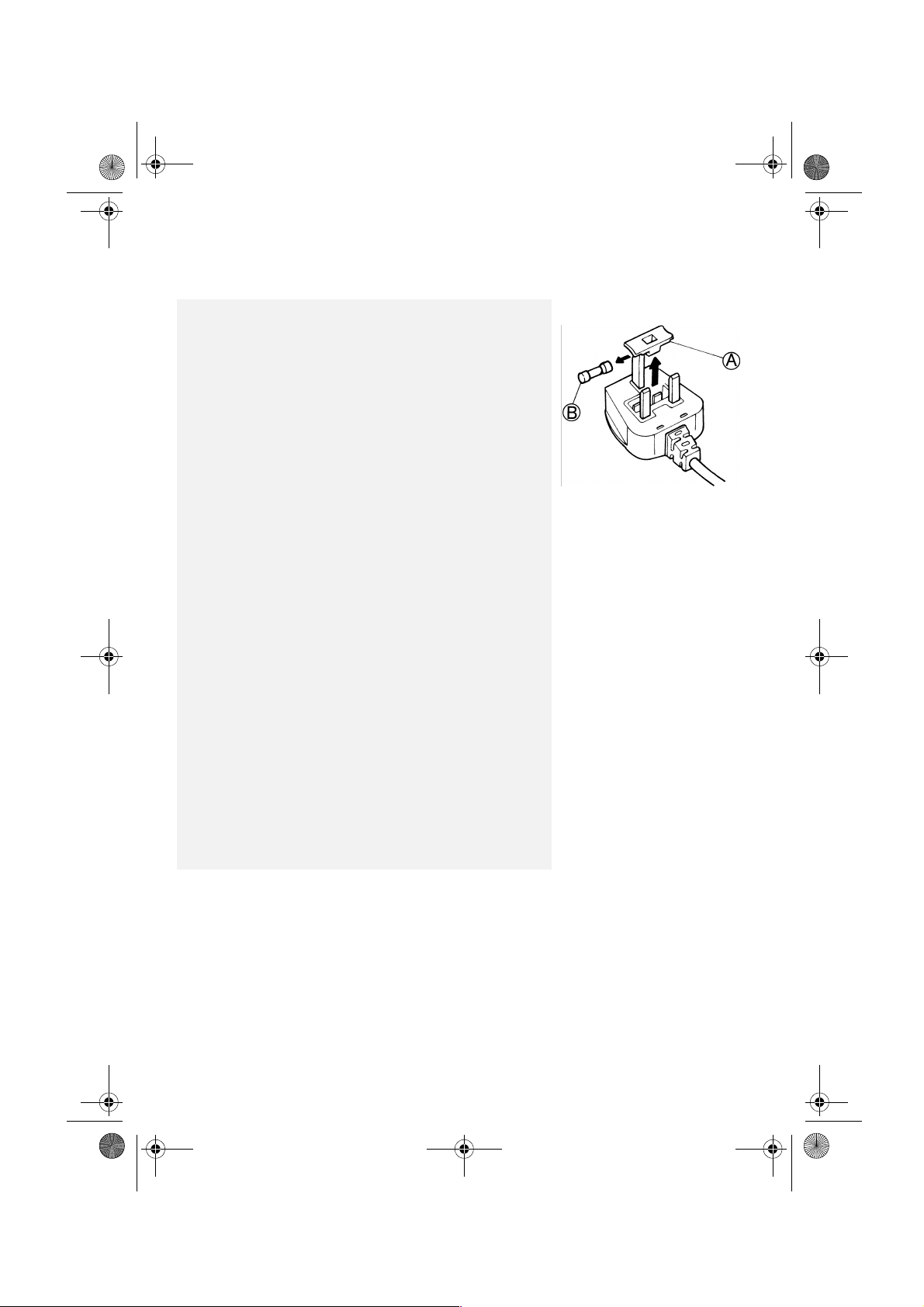

Fuse replacement
If the mains lead of this appliance is fitted with a BS 1363A
13amp fused plug, to change a fuse in this type of plug use an
A.S.T.A. approved fuse to BS 1362 type and proceed as follows:
1.
Remove the fuse cover (A) and fuse (B).
2.
Fit replacement 13A fuse into fuse cover.
3.
Refit both into plug.
Important:
The fuse cover must be refitted when changing a fuse and if the
fuse cover is lost the plug must not be used until a correct
replacement is fitted.
Correct replacement are identified by the colour insert or the
colour embossed in words on the base of the plug.
Replacement fuse covers are available from your local electrical
store.
2) For the Republic of Ireland only
The information given in respect of Great Britain will frequently
apply, but a third type of plug and socket is also used, the
2-pin, side earth type.
3) Socket outlet / plug (valid for both countries)
If the fitted plug is not suitable for your socket outlet, please
contact Whirlpool Service for further instruction. Please do not
attempt to change plug yourself. This procedure needs to be
carried out by a qualified Whirlpool technician in compliance
with the manufactures instructions and current standard safety
regulations.
24
Loading...
