Whirlpool AR1000 User Manual

AIR

BOOM

CONDITIONERS

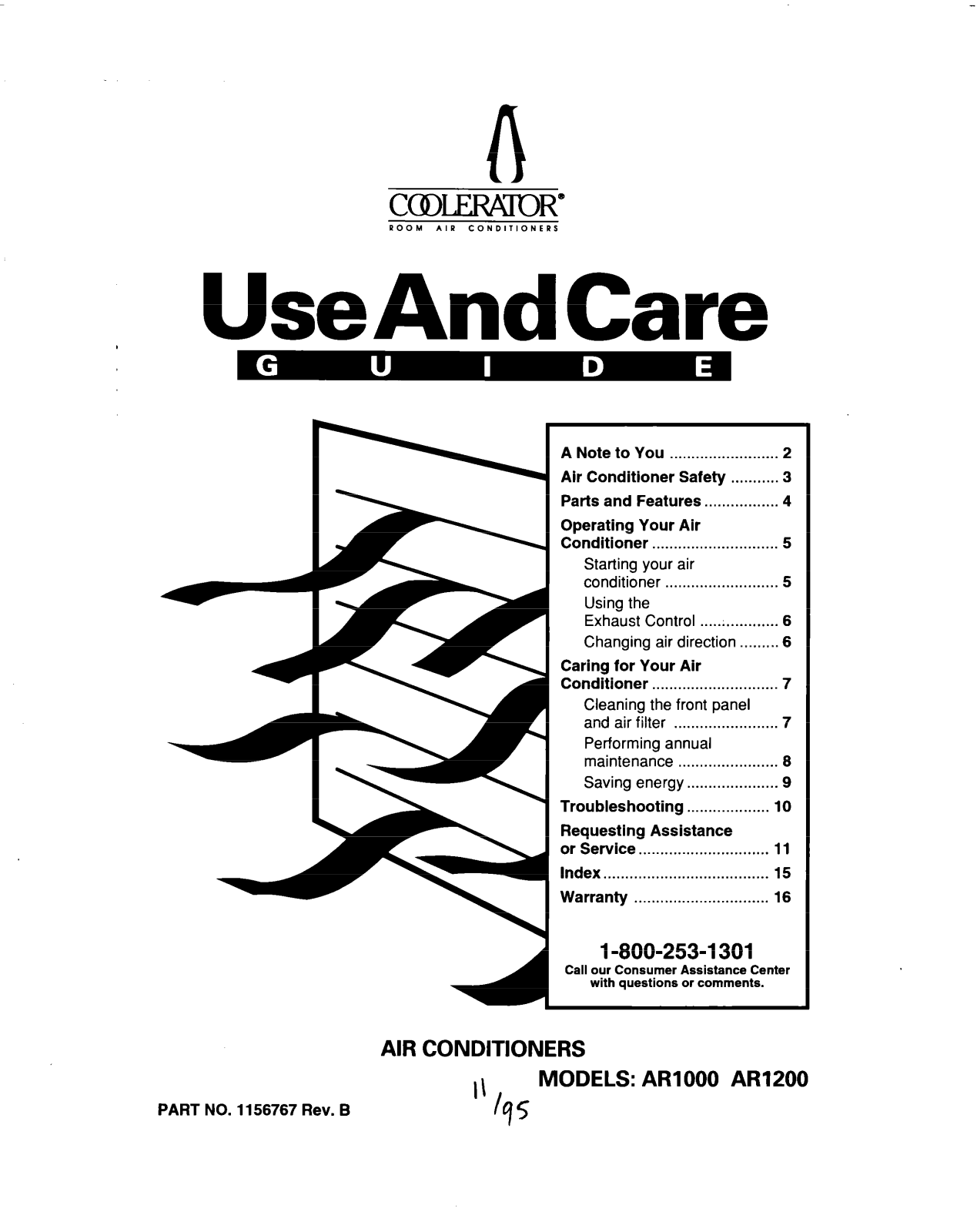

UseAndCare

A Note to You Air Conditioner Safety Parts and Features Operating Your Air

Conditioner

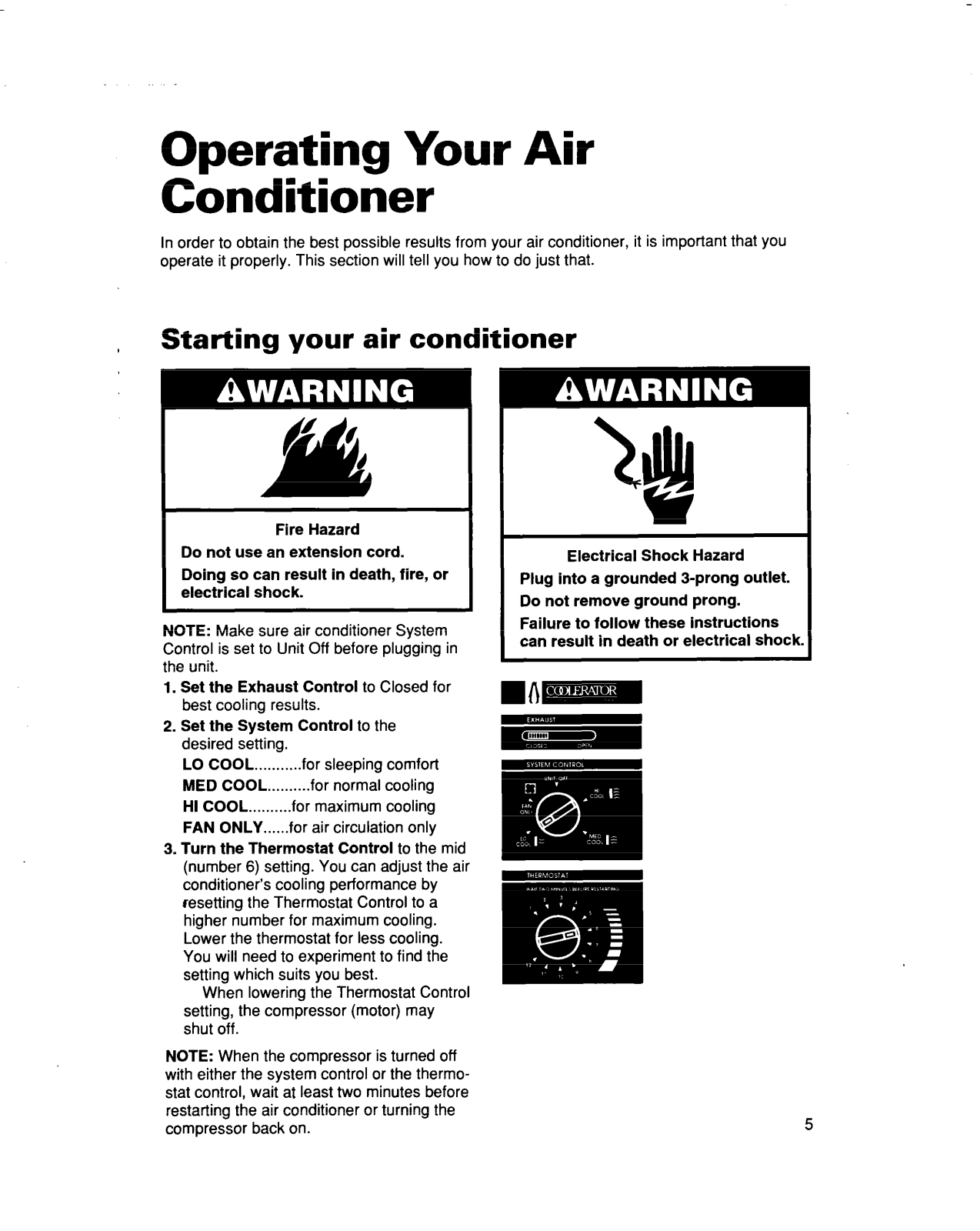

Starting your air conditioner

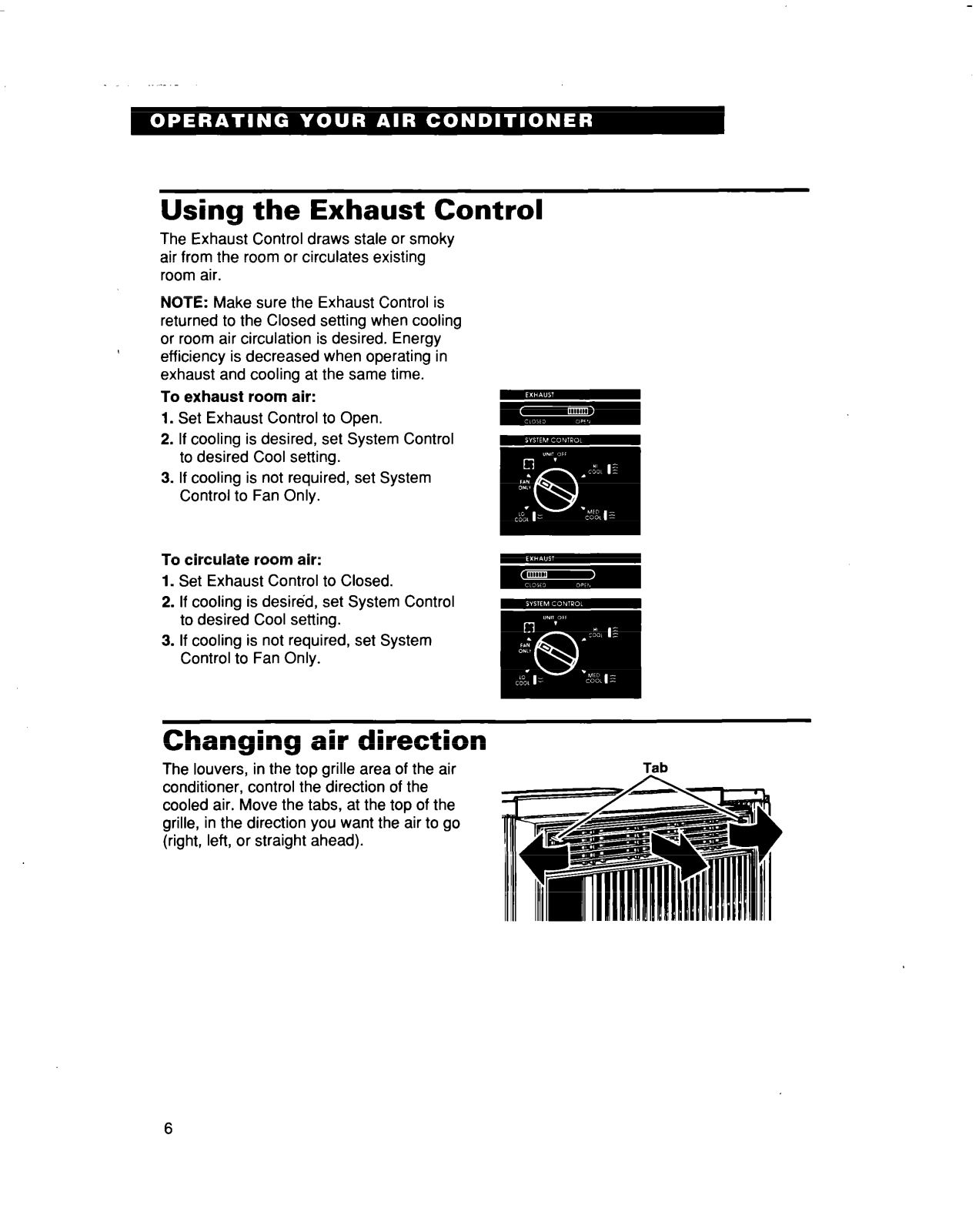

Using the Exhaust

Changing air direction

Caring for Your Air Conditioner

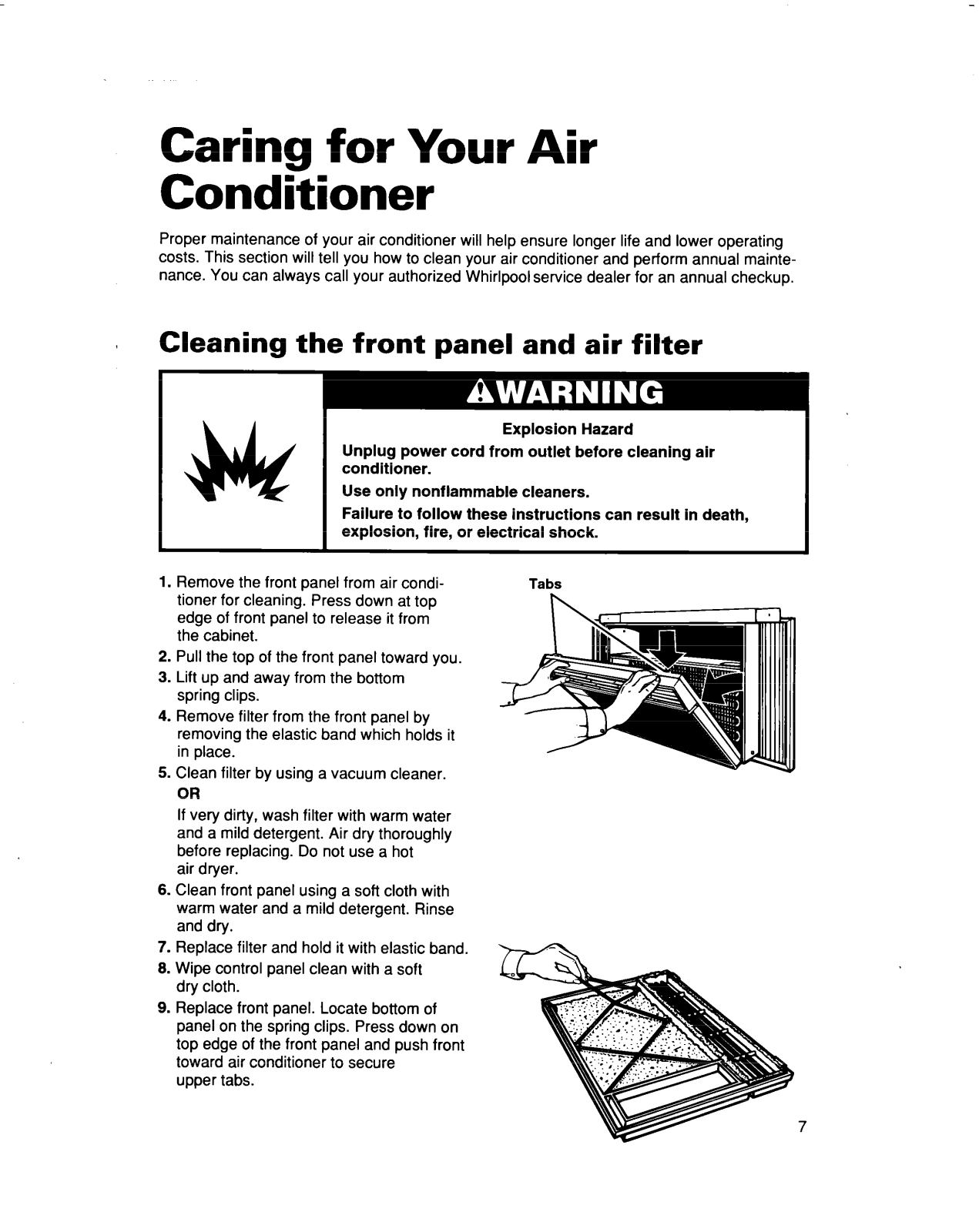

Cleaning the front panel and air filter

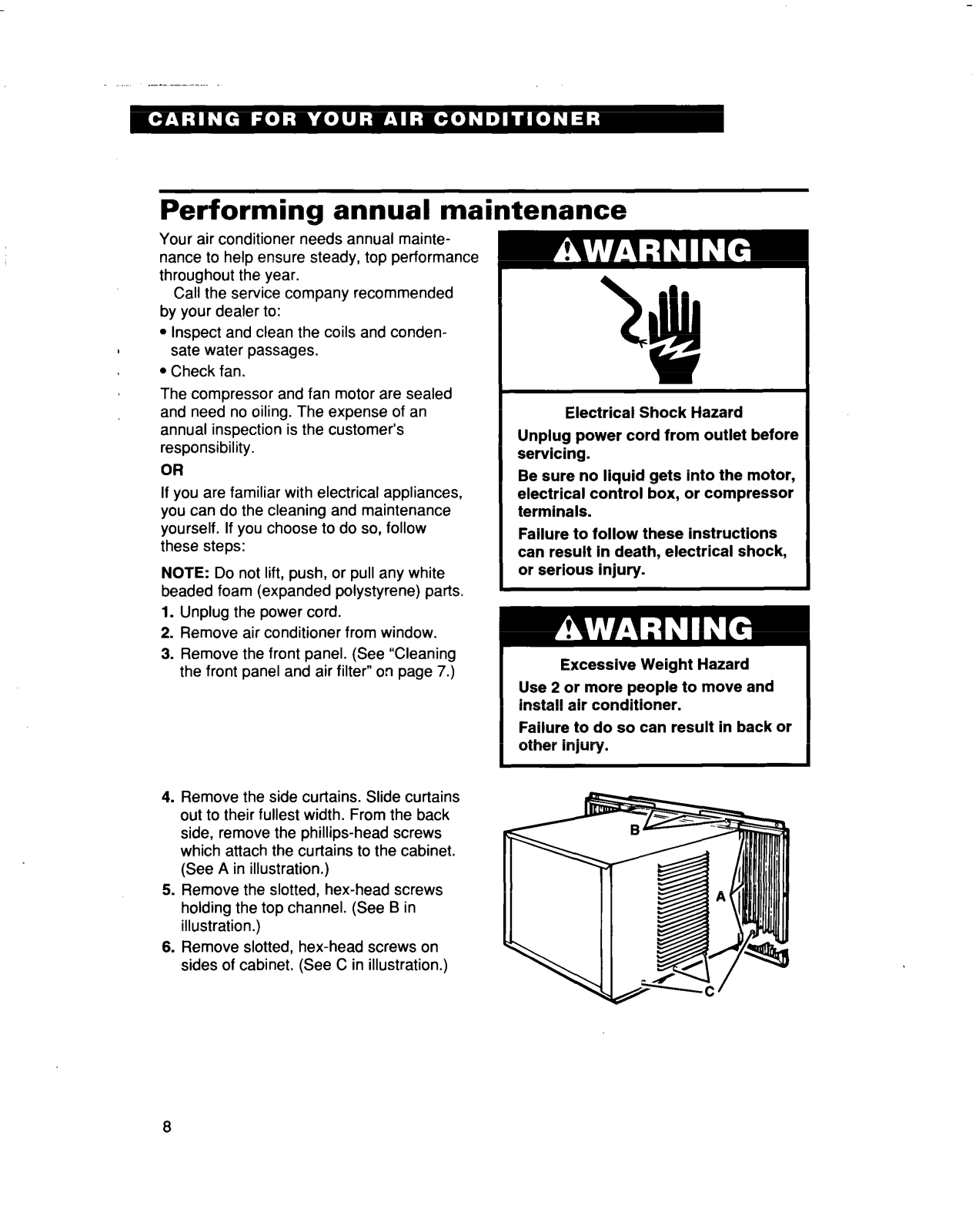

Performing annual maintenance

Saving Troubleshooting Requesting Assistance

or Service.. Index.. Warranty

.................................... 15

......................... 2

................. 4

............................. 5

.......................... 5

Control .................. 6

............................. 7

........................ 7

....................... 6

energy.. ................... 9

................... 10

............................ 11

............................... 16

........... 3

......... 6

PART NO. 1156767 Rev. B

Call our Consumer Assistance Center

AIR CONDITIONERS

MODELS: AR1000 AR1200

l-800-253-1 301

with questions or comments.

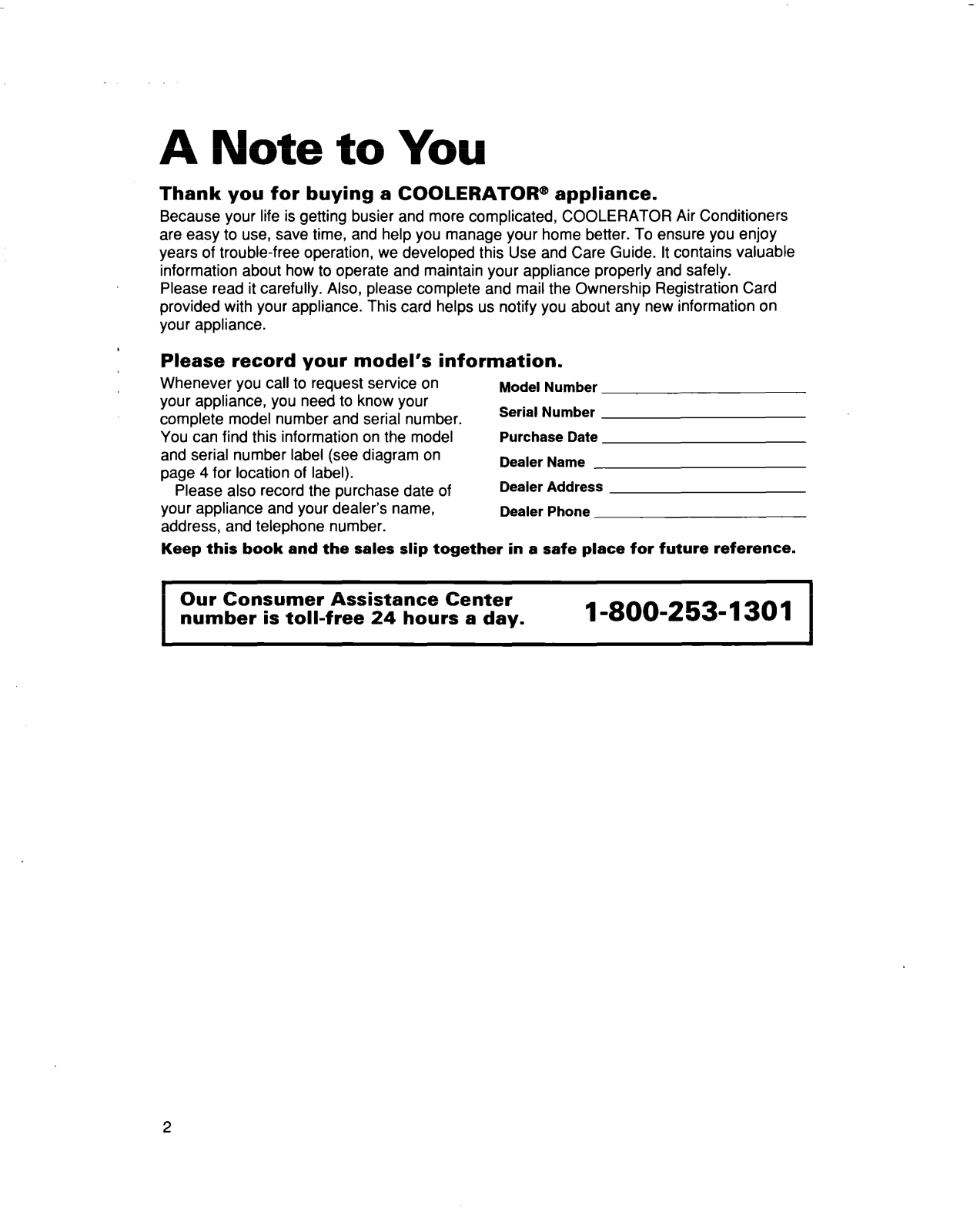

A Note to You

Thank you for buying a COOLERATOR@ appliance.

Because your life is getting busier and more complicated, COOLERATOR Air Conditioners are easy to use, save time, and help you manage your home better. To ensure you enjoy years of trouble-free operation, we developed this Use and Care Guide. It contains valuable

information about how to operate and maintain your appliance properly and safely.

Please read it carefully. Also, please complete and mail the Ownership Registration Card provided with your appliance. This card helps us notify you about any new information on your appliance.

Please record your model’s information.

Whenever you call to request service on your appliance, you need to know your complete model number and serial number.

You can find this information on the model

and serial number label (see diagram on

page 4 for location of label).

Please also record the purchase date of your appliance and your dealer’s name, address, and telephone number.

Keep this book and the sales slip together in a safe place for future reference.

Model Number Serial Number Purchase Date Dealer Name Dealer Address Dealer Phone

Our Consumer Assistance Center number is toll-free 24 hours a day.

1-800-253-1301 1

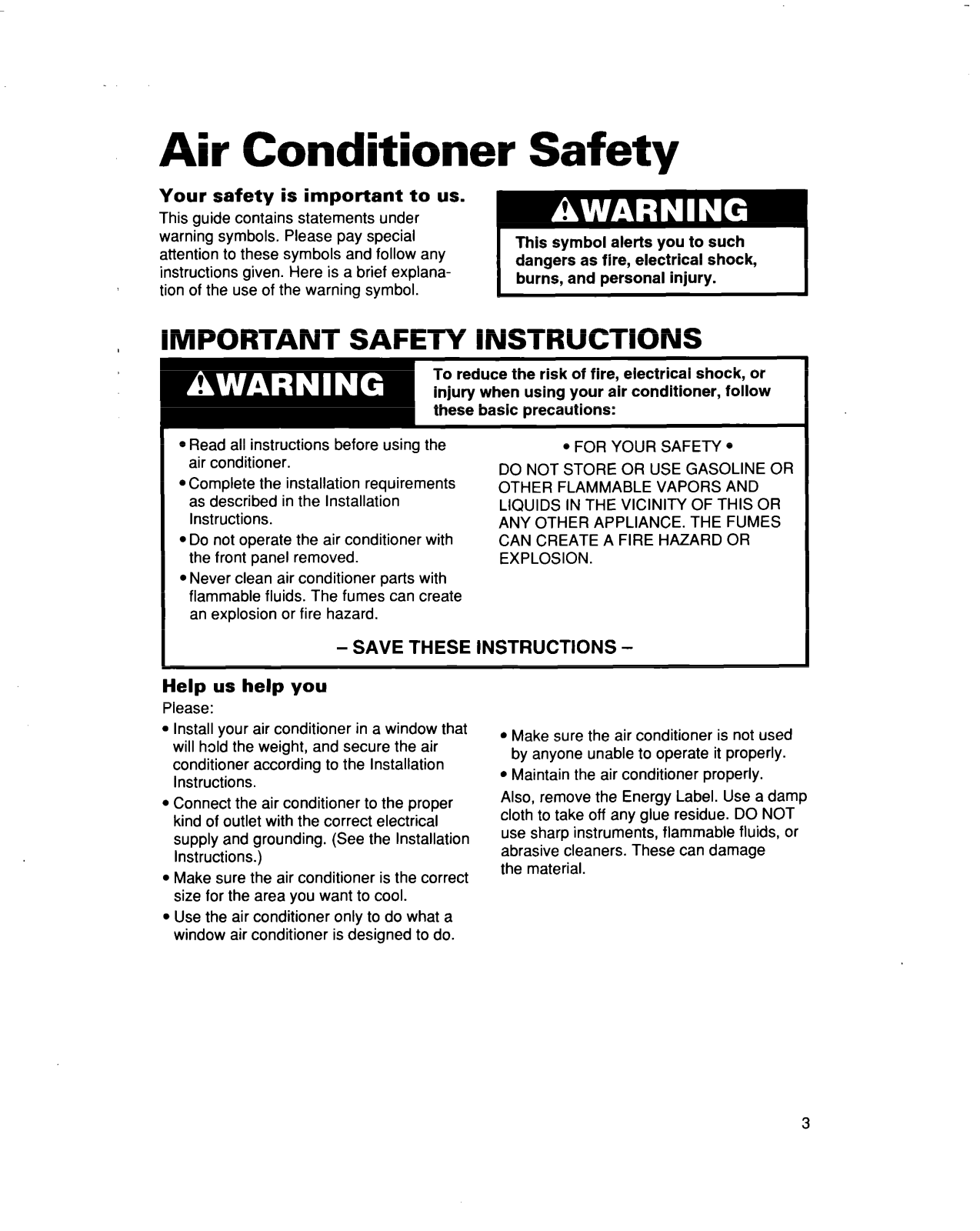

Air Conditioner Safety

Your safety is important to us.

This guide contains statements under warning symbols. Please pay special

attention to these symbols and follow any instructions given. Here is a brief explanation of the use of the warning symbol.

This symbol alerts you to such dangers as flre, electrical shock,

burns, and personal injury.

IMPORTANT SAFETY

l Read all instructions before using the

air conditioner.

@Complete the installation requirements

as described in the Installation

Instructions.

l Do not operate the air conditioner with

the front panel removed.

l Never clean air conditioner parts with

flammable fluids. The fumes can create

an explosion or fire hazard.

- SAVE THESE INSTRUCTIONS -

Help us help you

Please:

l Install your air conditioner in a window that

will hold the weight, and secure the air conditioner according to the Installation

Instructions.

l Connect the air conditioner to the proper

kind of outlet with the correct electrical

supply and grounding. (See the Installation

Instructions.)

l Make sure the air conditioner is the correct

size for the area you want to cool.

l Use the air conditioner only to do what a

window air conditioner is designed to do.

INSTRUCTIONS

. FOR YOUR SAFETY l

DO NOT STORE OR USE GASOLINE OR

OTHER FLAMMABLE VAPORS AND

LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE. THE FUMES CAN CREATE A FIRE HAZARD OR

EXPLOSION.

l Make sure the air conditioner is not used

by anyone unable to operate it properly.

l Maintain the air conditioner properly.

Also, remove the Energy Label. Use a damp cloth to take off any glue residue. DO NOT use sharp instruments, flammable fluids, or abrasive cleaners. These can damage the material.

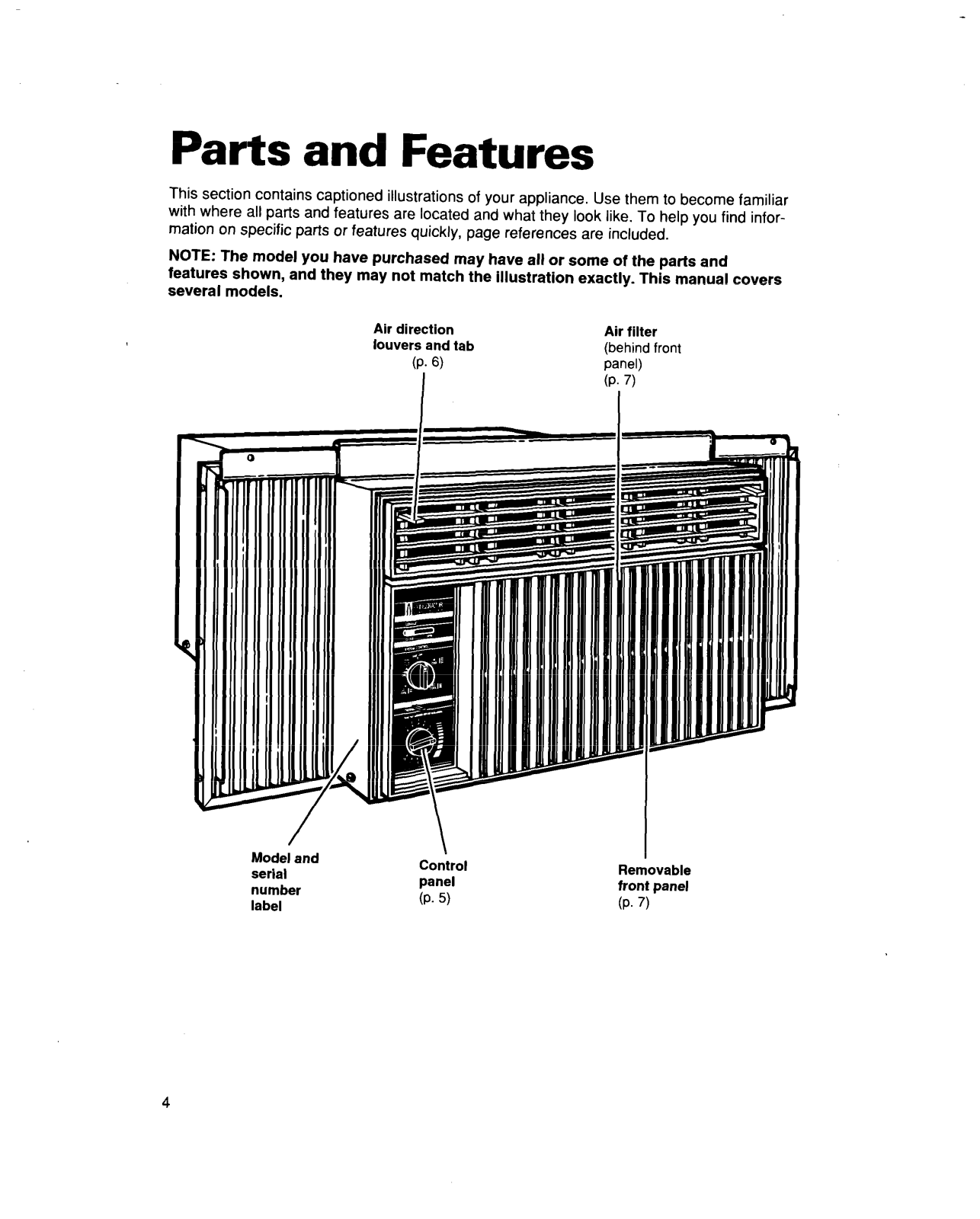

Parts and Features

This section contains captioned illustrations of your appliance. Use them to become familiar with where all parts and features are located and what they look like. To help you find information on specific parts or features quickly, page references are included.

NOTE: The model you have purchased may have all or some of the parts and features shown, and they may not match the illustration exactly. This manual covers several models.

Air direction louvers and tab

(P. 6)

Air filter (behind front

panel)

(P. 7)

Model and serial number label

Control panel

(P. 5)

Removable front panel

(P. 7)
