Whirlpool AMD 060, AMD 096, AMD 061 INSTRUCTION FOR USE

INSTRUCTIONS FOR USE

PORTABLE AIR CONDITIONER WITH

GAS

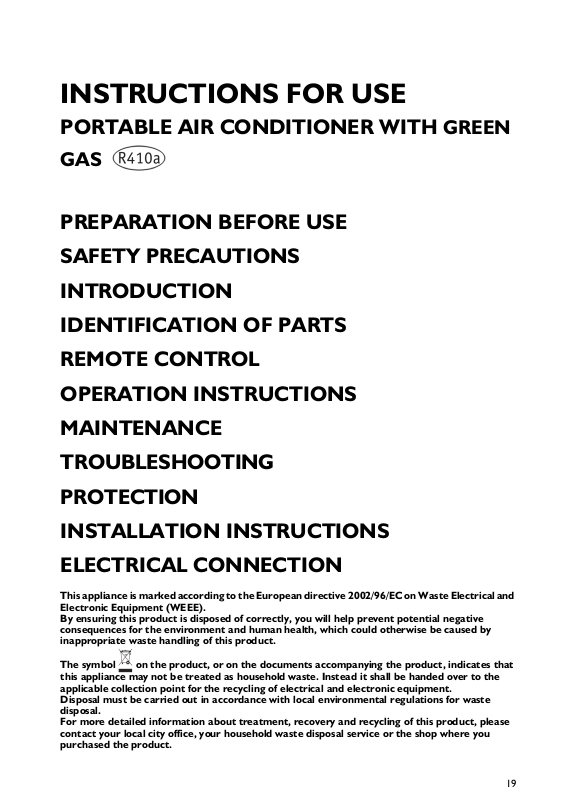

PREPARATION BEFORE USE SAFETY PRECAUTIONS INTRODUCTION IDENTIFICATION OF PARTS REMOTE CONTROL OPERATION INSTRUCTIONS MAINTENANCE TROUBLESHOOTING

GREEN

PROTECTION INSTALLATION INSTRUCTIONS ELECTRICAL CONNECTION

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

PREPARATION BEFORE USE

Before using the air conditioner, be sure to check and preset the following.

• Remote Control presetting

The remote control is NOT preset as Cooling Only Air Conditioner or Cooling Air Conditoner with Electric Heater by manufacturer. Each time the remote control batteries are replaced, the Cooling indicator and Heating indicator will flash alternately on the remote control LCD. The user can preset the remote control depending on the type of air conditioner purchased: when flashes, press any button to set Cooling Air Conditioner with Electric Heater; when flashes, press any button to set Cooling Only. If you don’t press any button within 12 seconds, the remote control will be automatically preset as Cooling Air Conditoner with Electric Heater (6th Sense mode).

SAFETY PRECAUTIONS

Be sure not to do the following.

•

Do not direct the cool air at yourself for long period of time, this may harm your health. Deflect the air flow around the entire room.

•

Do not direct the air flow towards gas burners and stoves.

•

Do not touch the operation buttons when your hands are wet.

Pay attention to such a situation.

•

Do not repair the appliance by yourself. Mistakes may result in electric shock etc..

Be sure to follow this instruction.

•

Do not put any objects on the outdoor unit.

Earthing is essential.

•

It is the user’s responsibility to have the appliance earthed according to local laws by a qualified technician.

Warning: Incorrect handling could cause a serious hazard, such as death, serious injury, etc.

•

Connect to the correct power supply as specified on the rating plate and do not use extension cables which could generate a serious fault or hazard, or cause a fire to break out.

•

Keep the power supply circuit breaker or plug clean. Make sure the power cable is plugged in securely and correctly as insufficient contact could cause electric shock or fire.

•

Do not try to disconnect the circuit breaker or pull the plug out to turn the appliance off. This may cause a fire due to sparks, etc.

•

Do not twist, pull or press the power cable as this may damage the cable and result in electric shock or fire.

•

Do not insert sticks or similar objects into the appliance as this could cause injury when the fan rotates at high speed.

•

In the event of a fault, switch the appliance off using the remote control before disconnecting it from the power supply.

INTRODUCTION

Thank you for choosing this portable air conditioner. It will provide you and your family with all the Home Comfort requirements you may need for your home, cottage or office. The appliance can easily be moved from room to room and set up in just a few minutes.

It is a multi-functional room air exchanging, air-processing appliance, designed to offer you the functions of: Air Conditioning, Dehumidifying, Heating and Independent Fan.

This manual will provide you with valuable information necessary for the proper care and maintenance of your new appliance. Please take a few moments and read the instructions thoroughly. If properly maintained, your appliance will give you many years of trouble free operation.

Electrical Specifications

All wiring must comply with local and national electrical standards and be installed by a qualified electrician. If you have any questions regarding the following instructions, contact a qualified electrician.

Check the available power supply and rectify any wiring problems before installation and operation of this unit.

For your safety and protection, this appliance is earthed through the plug on the power cable when plugged into a matching socket. If you are not sure if the sockets in your home are properly earthed, consult an electrician. Do not use the appliance with adapters or extension cables. If an extension cable is required, use only heavy appliance extension cables (available in most local hardware shops).

IDENTIFICATION OF PARTS

Back

Front

- Control panel

- Air outlet

- Signal receiver

- Remote control

- Transport handle

NOTE: The above drawing is a simplified representation of the air conditioner, which may differ slightly from the actual appliance you have purchased.

Back

- Air outlet hose

- Evaporator air intake

- Rubber plug

- Drain Hose

- Power supply cord

Control Panel

A-

ON/OFF button: to start or stop the appliance

B-

MODE button: to select the operation mode

C-

FAN button: to select the fan speed

D-

TIMER ON button: to set or cancel the Timer On function

E-

TIMER OFF button: to set or cancel the Timer Off function

F-

TEMP./TIMER setting buttons: to select temperature, adjust real time or set time

G-

RUN indicator (green): lit up when the appliance is running

H-

WATER FULL indicator (red): lights up when water needs to be drained

I-

HEATER button: to heat the room

J-

LCD display: identical to the LCD display on the remote control with the exception of the temperature display.

Room temperature display Flashes when temperature is being set

Used to regulate temperature in 6th sense mode or DRY mode
