Whirlpool AKZ 496 IX INSTALLATION

AKZ 496

GB IE

Highest

level

First

level

2 Grids:

ACCESSORIES

Grill pan set:

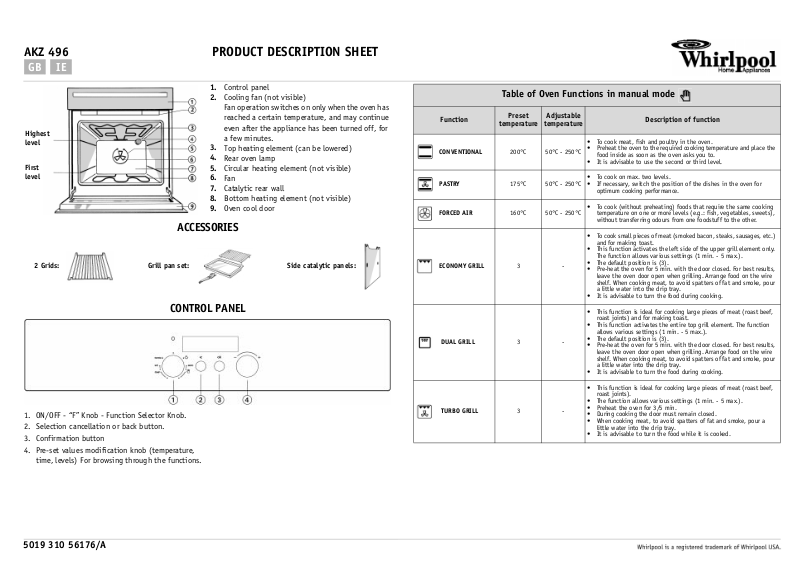

PRODUCT DESCRIPTION SHEET

Control panel

Cooling fan (not visible)

Fan operation switches on only when the oven has

reached a certain temperature, and may continue

even after the appliance has been turned off, for

a few minutes.

Top heating element (can be lowered)

Rear oven lamp

Circular heating element (not visible)

Fan

Catalytic rear wall

Bottom heating element (not visible)

Oven cool door

Side catalytic panels:

Function

CONVENTIONAL

PASTRY

FORCED AIR

ECONOMY GRILL

Table of Oven Functions in manual mode

Preset

temperature

200°C 50°C - 250°C

175°C 50°C - 250°C

160°C 50°C - 250°C

3 -

Adjustable

temperature

Description of function

 To cook meat, fish and poultry in the oven.

 Preheat the oven to the required cooking temperature and place the

food inside as soon as the oven asks you to.

 It is advisable to use the second or third level.

 To cook on max. two levels.

 If necessary, switch the position of the dishes in the oven for

optimum cooking performance.

 To cook (without preheating) foods that require the same cooking

temperature on one or more levels (e.g.: fish, vegetables, sweets),

without transferring odours from one foodstuff to the other.

 To cook small pieces of meat (smoked bacon, steaks, sausages, etc.)

and for making toast.

 This function activates the left side of the upper grill element only.

The function allows various settings (1 min. - 5 max.).

 The default position is (3).

 Pre-heat the oven for 5 min. with the door closed. For best results,

leave the oven door open when grilling. Arrange food on the wire

shelf. When cooking meat, to avoid spatters of fat and smoke, pour

a little water into the drip tray.

 It is advisable to turn the food during cooking.

CONTROL PANEL

1. ON/OFF - F Knob - Function Selector Knob.

2. Selection cancellation or back button.

3. Confirmation button

4. Pre-set values modification knob (temperature,

time, levels) For browsing through the functions.

5019 310 56176/A

DUAL GRILL

TURBO GRILL

3 -

 This function is ideal for cooking large pieces of meat (roast beef,

roast joints) and for making toast.

 This function activates the entire top grill element. The function

allows various settings (1 min. - 5 max.).

 The default position is (3).

 Pre-heat the oven for 5 min. with the door closed. For best results,

leave the oven door open when grilling. Arrange food on the wire

shelf. When cooking meat, to avoid spatters of fat and smoke, pour

a little water into the drip tray.

 It is advisable to turn the food during cooking.

 This function is ideal for cooking large pieces of meat (roast beef,

roast joints).

 The function allows various settings (1 min. - 5 max.).

 Preheat the oven for 3/5 min.

 During cooking the door must remain closed.

 When cooking meat, to avoid spatters of fat and smoke, pour a

little water into the drip tray.

 It is advisable to turn the food while it is cooked.

COOKING TABLES

FOOD Function Preheating

MEAT

Lamb, Kid, Mutton

Roast (Veal, Pork, Beef)

(1 kg)

Chicken, Rabbit,

Duck

Turkey

(4-6 kg) + level 3

browning

Goose (2kg)

FISH

(WHOLE)

(1-2 kg)

Gilt-head, Bass, Tuna,

Salmon, Cod

FISH

(CUTLETS)

(1 kg.)

Sword Fish, Tuna

VEGETABLES

Stuffed peppers and tomatoes

Baked potatoes

SWEETS, PASTRIES, ETC.

Raising cakes

Filled pies

(with cheese)

Tarts

Applestrudel

Biscuits

Choux buns

Level

(from the bottom)

X 2 200 95 - 110

X 3 200 100 - 110

X 2 200 100 - 110

X 2 200 95 - 110

X 3 200 100 - 110

X 2 200 90 - 100

X 2 200 80 - 90

X 2 190 80 - 90

X 2 200 85 - 95

X 1 200 160 - 180

X 1 210 180 - 190

X 2 210 100 - 130

X 1 200 100 - 130

X 2 200 100 - 130

X 2 200 45 - 55

X 3 190 45 - 55

X 2 200 50 - 60

X 2 200 40 - 50

X 3 190 40 - 50

X 3 200 40 - 50

X 2 220 50 - 60

X 2 200 50 - 60

X 2 220 50 - 60

X 2 200 50 - 60

X 2 190 40 - 50

X 1 180 40 - 50

X 2 180 40 - 50

X 2 190 80 - 90

X 2 180 70 - 80

X 2 180 80 - 90

X 2 190 40 - 50

X 2 180 40 - 50

X 2 200 50 - 55

X 1 - 3 200 50 - 55

X 2 200 50 - 55

X 2 170 20 - 30

X 1 - 3 200 20 - 30

X 2 200 20 - 30

X 2 180 35 - 45

X 1 - 3 180 35 - 45

X 2 180 40 - 50

Tem perat ure

(°C)

Cooking time

(minutes)

FOOD Function Preheating

Savoury pies

Lasagna

Filled fruit pies

e.g. Pineapple, Peach

Meringues

Vol-au-vents

Soufflés

Level

(from the bottom)

X 2 200 40 - 50

X 2 190 40 - 50

X 2 200 45 - 60

X 2 190 50 - 60

X 2 190 40 - 50

X 2 120 120 - 150

- 1 - 3 120 120 - 150

- 2 120 120 - 150

X 2 200 35 - 45

X 1 - 3 190 35 - 45

X 2 190 35 - 45

X 2 200 40 - 50

X 2 190 45 - 55

Tem pe ratu re

(°C)

Cooking time

COOKING TABLE FOR GRILL FUNCTION

FOOD Function Preheating

Sirloin steak X 4 5 35 - 45

Cutlets X 4 5 30 - 40

Sausages X 3 - 4 5 30 - 40

Pork c hops X 4 5 35 - 45

Fish (cutlets) X 3 - 4 5 35 - 45

Chicken legs X 3 - 4 5 40 - 50

Kebabs X 3 - 4 5 40 - 50

Spare ribs X 3 - 4 5 35 - 45

Chicken halves X 3 5 45 - 55

Whole chicken X 3 5 60 - 70

Roast

(pork, beef)

Duck X 2 5 70 - 80

Leg of lamb X 3 5 70 - 80

Roast beef X 3 5 50 - 60

Baked potatoes X 3 5 50 - 60

Fish (Gilt-head, Trout) X 3 5 50 - 60

X 2 5 60 - 70

Level

(from the bottom)

N.B.: Cooking times and temperatures are approximate only.

Power

level

Cooking time

(minutes)
