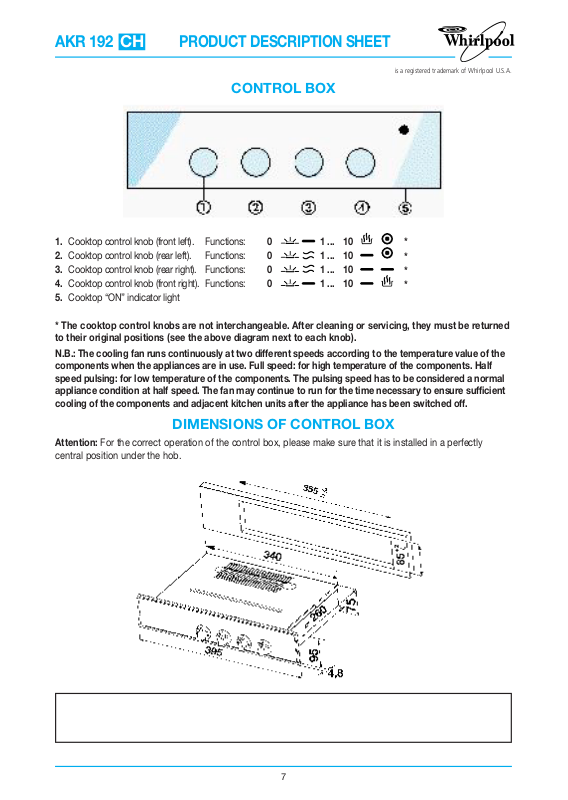

CONTROL BOX

* The cooktop control knobs are not interchangeable. After cleaning or servicing, they must be returned
to their original positions (see the above diagram next to each knob).

N.B.: The cooling fan runs continuously at two different speeds according to the temperature value of the
components when the appliances are in use. Full speed: for high temperature of the components. Half
speed pulsing: for low temperature of the components. The pulsing speed has to be considered a normal
appliance condition at half speed. The fan may continue to run for the time necessary to ensure sufficient
cooling of the components and adjacent kitchen units after the appliance has been switched off.

DIMENSIONS OF CONTROL BOX

AKR 192

PRODUCT DESCRIPTION SHEET

CH

1. Cooktop control knob (front left). Functions: 0 1 ... 10

*

2. Cooktop control knob (rear left). Functions: 0 1 ... 10

*

3. Cooktop control knob (rear right). Functions: 0 1 ... 10

*

4. Cooktop control knob (front right). Functions: 0 1 ... 10

*

5. Cooktop “ON” indicator light

Attention: For the correct operation of the control box, please make sure that it is installed in a perfectly

central position under the hob.

is a registered trademark of Whirlpool U.S.A.

The cooktop control knobs are marked with a
numerical scale corresponding to different power
settings, and a series of function symbols.

KEEP WARM FUNCTION

This function uses a low power setting so that food
can be kept warm when cooking is terminated.

How to operate:

1. Turn the knob to .

2. To deactivate the keep warm function, change

the knob position.

DUAL ZONE FUNCTION

(Dependent on cooktop model)

This function is available on the front left and rear
left cooking zones. The dual zone function extends
the heated area of the cooktop so that you can use
large, oval or rectangular pans.

How to operate:

1. Turn the knob to and wait for the residual heat

indicator for the chosen hotplate to start flashing.

2. Select the required power by turning the knob

anti-clockwise. The residual heat indicator remains
lit to show that the cooktop is switched on.

3. To deactivate the function return the knob to "0".

FAST BOILING FUNCTION

This function makes it possible to bring water to the
boil fast; the fast boiling function remains active for
a preset time. At time elapsed the cooktop returns
automatically to power level 10. The fast boiling
function can be activated also once you have
already started cooking.

How to operate:

1. Place the pan on the chosen cooking zone.

2. Set the knob to .

GENTLE HEAT FUNCTION

Can be used to prove dough, soften hard butter
from the fridge, keep a baby's bottle or baby food
warm, for yoghurt making, softening chocolate, etc..
This function is only available when the relative
cooking zone residual heat indicator light is
switched off.

How to operate:

1. Make sure the residual heat indicator light for the

cooking zone you intend to use is switched off.

2. Turn the knob to .

3. To deactivate the function change the knob

position.

This symbol is not linked to an appliance function:
the heating element is switched off.

COOKTOP FUNCTIONS
