Whirlpool AKR 191/IX, AKR 191/WH, AKR 191/NB, AKR 191/AV PROGRAM CHART

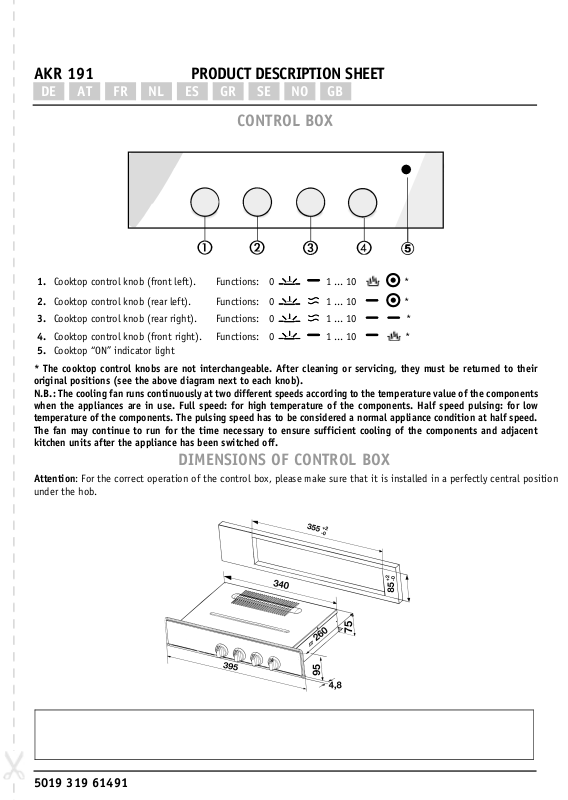

AKR 191 PRODUCT DESCRIPTION SHEET
DE AT FR NL ES GR SE NO GB
CONTROL BOX
1.
Cooktop control knob (front left). Functions: 0 1 ... 10 *
2.
Cooktop control knob (rear left). Functions: 0 1 ... 10 *
3.
Cooktop control knob (rear right). Functions: 0 1 ... 10 *
4.
Cooktop control knob (front right). Functions: 0 1 ... 10 *
5.
Cooktop ON indicator light
* The cooktop control knobs are not interchangeable. After cleaning or servicing, they must be returned to their
original positions (see the above diagram next to each knob).
N. B.: The co oling fa n runs con tinuou sly at two differ e nt spee d s accord ing to the tempera ture value of the co mponen ts
when the appliances are in use. Full speed: for high temperature of the components. Half speed pulsing: for low
temperature of the components. The pulsing speed has to be considered a normal appliance condition at half speed.
The fan may continue to run for the time necessary to ensure sufficient cooling of the components and adjacent
kitchen units after the appliance has been switched off.
DIMENSIONS OF CONTROL BOX
Attention
under the hob.
: For the correct operation of the control box, please make sure that it is installed in a perfectly central position
5019 319 61491
COOKTOP FUNCTIONS
The cooktop control knobs are marked with a numerical
scale corresponding to different power settings, and a
series of function symbols.
KEEP WARM FUNCTION
This function uses a low power setting so that food can
be kept warm when cooking is terminated.
How to operate:
Turn the knob to .
1.
To deactivate the keep warm function, change
2.
the knob position.
DUAL ZONE FUNCTION
(Dependent on cooktop model)
This function is available on the front left and rear left
cooking zones. The dual zone function extends the
heated area of the cooktop so that you can use large,
oval or rectangular pans.
How to operate:
Turn the knob to and wait for the residual heat
1.
indicator for the chosen hotplate to start flashing.
Select the required power by turning the knob anti-
2.
clockwise. The residual heat indicator remains lit to
show that the cooktop is switched on.
To deactivate the function return the knob to
3.
0
.
FAST BOILING FUNCTION
This function makes it possible to bring water to the
boil fast; the fast boiling function remains active for a
preset time. At time elapsed the cooktop returns
automatically to power level 10. The fast boiling
function can be activated also once you have already
started cooking.
How to operate:
Place the pan on the chosen cooking zone.
1.
the knob to .
2.
Set
GENTLE HEAT FUNCTION
Can be used to raise dough, soften hard butter from the
fridge, keep a baby's bottle or baby food warm, for
yoghurt making etc.
This function is only available when the relative cooking
zone residual heat indicator light is switched off.
How to operate:
Make sure the residual heat indicator light for the
1.
cooking zone you intend to use is switched off.
Turn the knob to .
2.
To deactivate the function change the knob position.
3.
This symbol is not linked to an appliance
function: the heating element is switched off.
