Whirlpool AKP 640 WH, AKP 640 NB PROGRAM CHART

AKP 640

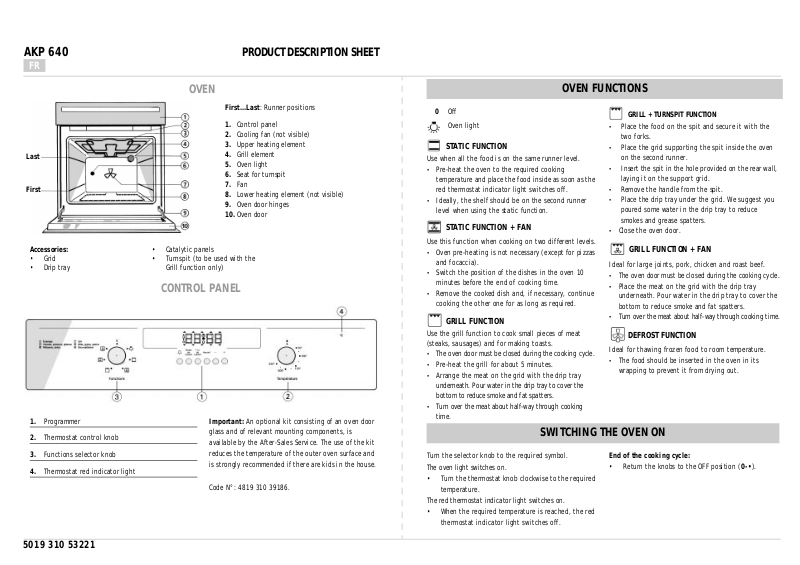

PRODUCT DESCRIPTION SHEET

Last

First

Accessories:

• Grid

• Drip tray

1. Programmer

2. Thermostat control knob

3. Functions selector knob

4. Thermostat red indicator light

OVEN

First...Last: Runner positions

1. Control panel

2. Cooling fan (not visible)

3. Upper heating element

4. Grill element

5. Oven light

6. Seat for turnspit

7. Fan

8. Lower heating element (not visible)

9. Oven door hinges

10.Oven door

• Catalytic panels

• Turnspit (to be used with the Grill function only)

CONTROL PANEL

Important: An optional kit consisting of an oven door

glass and of relevant mounting components, is available by the After-Sales Service. The use of the kit reduces the temperature of the outer oven surface and is strongly recommended if there are kids in the house.

Code N°: 4819 310 39186.

OVEN FUNCTIONS

0 Off

Oven light

STATIC FUNCTION

Use when all the food is on the same runner level.

- Pre-heat the oven to the required cooking temperature and place the food inside as soon as the red thermostat indicator light switches off.

- Ideally, the shelf should be on the second runner level when using the static function.

STATIC FUNCTION + FAN

Use this function when cooking on two different levels.

- Oven pre-heating is not necessary (except for pizzas and focaccia).

- Switch the position of the dishes in the oven 10 minutes before the end of cooking time.

- Remove the cooked dish and, if necessary, continue cooking the other one for as long as required.

GRILL FUNCTION

Use the grill function to cook small pieces of meat (steaks, sausages) and for making toasts.

- The oven door must be closed during the cooking cycle.

- Pre-heat the grill for about 5 minutes.

- Arrange the meat on the grid with the drip tray

underneath. Pour water in the drip tray to cover the bottom to reduce smoke and fat spatters.

- Turn over the meat about half-way through cooking time.

SWITCHING THE OVEN ON

Turn the selector knob to the required symbol.

The oven light switches on.

• Turn the thermostat knob clockwise to the required

temperature.

The red thermostat indicator light switches on.

• When the required temperature is reached, the red

thermostat indicator light switches off.

GRILL + TURNSPIT FUNCTION

- Place the food on the spit and secure it with the

two forks.

- Place the grid supporting the spit inside the oven on the second runner.

- Insert the spit in the hole provided on the rear wall, laying it on the support grid.

- Remove the handle from the spit.

- Place the drip tray under the grid. We suggest you

poured some water in the drip tray to reduce smokes and grease spatters.

- Close the oven door.

GRILL FUNCTION + FAN

Ideal for large joints, pork, chicken and roast beef.

- The oven door must be closed during the cooking cycle.

- Place the meat on the grid with the drip tray

underneath. Pour water in the drip tray to cover the bottom to reduce smoke and fat spatters.

- Turn over the meat about half-way through cooking time.

DEFROST FUNCTION

Ideal for thawing frozen food to room temperature.

- The food should be inserted in the oven in its

wrapping to prevent it from drying out.

End of the cooking cycle:

• Return the knobs to the OFF position (0-•).

5019 310 53221

USING THE PROGRAMMER

mportant: the programmer symbols are given as an indication only; for correct operation of the programmer, follow the instructions and illustrations given on these pages.

CONTROL BUTTONS AND SYMBOLS

USING THE MINUTE MINDER WITH ACOUSTIC SIGNAL

USING THE PROGRAMMER

PROGRAMMING DURATION AND END OF COOKING TIME

1. Button used to select minute minder with acoustic signal

2. Button used to set the cooking duration

3. Button used to set the end-of-co oking time

4. Button used to select manual opera tion

5. Button used to set or change data

6. Button used to set or change data

AUTO:

when permanently alight, indicates operation of the

oven in automatic mode.

AUTO:

will also blink to confirm end-of-cooking, promp t

further programming or indicate a wrong selection.

indicates that the oven is in operation and enabled in

manual mode.

indicates operation of the minute minder.

SETTING THE CLOCK, AND SELECTING MANUAL OPERATION

When the appliance is installed new, or following a power failure, digits display. All other functions remain inhibited. Press and hold buttons 2 and 3 simultaneously, and set the clock using buttons 5 and

0:00

and the

AUTO

symbol will blink in the

This function is independent of oven operation

• Press button 1: digits

• Press button 5 or 6 to display the desired cooking time. Having released the buttons, or a few seconds afterwards, the actual time and the symbol are displayed.

The acoustic signal warns that the set time has elapsed. Press button 1 to silence the acoustic signal.

0:00

are displayed

PROGRAMMING THE COOKING TIME

Press button 2: digits cooking time with buttons 5 and 6. After a few seconds, the actual time is displayed with permanently alight.

• Set the oven control knob to the temperature required: the oven will come into operation immediately.

• Once the cooking time has elapsed, an acoustic signal indicates that the oven has switched off.

0:00

are displayed; set the desired

AUTO

and the symbol both

• Press button 2: digits cooking time with buttons 5 and 6. After a few seconds, the actual time is displayed with symbol both permanently alight.

• Press button 3 to set the end of cooking time, which is selected using buttons 5 and 6. The symbol will now go out, and reappear again when the oven comes into operation automatically at the start of the programmed duration.

• Set the oven control knobs to the temperature and functions required.

Once the cooking time has elapsed, an acoustic signal indicates that the oven has switched off.

0:00

are displayed; set the desired

AUTO

and the

To operate the oven manually, press button 4: the symbol will be displayed.

Return the oven control knob to position button 4 to silence the acoustic signal. Note: the time remaining until end-of-cooking can be checked or altered at any moment by pressing button 2. The end-of-cooking time can also be displayed by pressing button

“0”

, then press

Return the oven control knob to position

button 4 to silence the acoustic signal.

“0”

, then press
