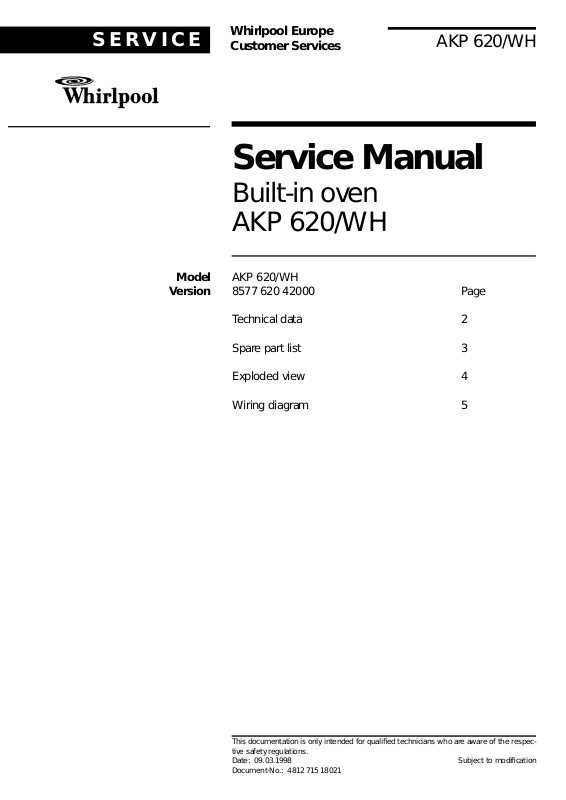

SERVICE
Model AKP 620/WH
Version 8577 620 42000 Page
Whirlpool Europe
Customer Services
AKP 620/WH
Service Manual
Built-in oven
AKP 620/WH
Technical data 2
Spare part list 3
Exploded view 4
Wiring diagram 5
This documentation is only intended for qualified technicians who are aware of the respective safety regulations.
Date: 09.03.1998 Subject to modification
Document-No.: 4812 715 18021
Page 2
09.03.1998 / Page 2 AKP620/WH Whirlpool Europe
Doc. No: 4812 715 18021 8577 620 42000 Customer Service
Technical data
Electrical connection
Rated voltage 230V ~
Main connection 400V 3N~ 50 Hz
400V 2N~ 50 Hz
230V 1N~ 50 Hz
Power usable contemporaneously 2550 W
Upper heating element 900 W
Lower heating element 1000 W
Forced air 2000 W
Grill heating element 2450 W
Electrical components
Hob control POLINO
Accessories
SERVICE
Fat pan enameled 375 x 445.5 mm
Grid chrome 446.5 x 340 mm
Service sticker
Page 3
Whirlpool Europe AKP620/WH 09.03.1998 / Page 3
SERVICE
Customer Service 8577 620 42000 Doc. No: 4812 715 18021
Spare part list
Model AKP620/WH
Service No. 857762042000
Version 857762042000
Pos. No. 12NC Code Description from to
025 1 4819 460 78468 Trim, side right
025 2 4819 460 78469 Trim, side left
040 0 4819 417 19458 Hinge
047 0 4819 466 89197 Hinge run.mech.
110 0 4819 498 78042 Handle,door
121 0 4819 442 38333 Innerdoor,oven
141 0 4819 450 69863 Oven glass
143 0 4819 459 28301 Frame
191 0 4819 468 18109 Gasket
201 0 4819 442 38093 Plate
232 0 4819 460 89445 Trim
245 0 4819 458 19991 Oven shelf
247 0 4819 418 38367 Tray,leak
256 0 4819 466 89268 Protector sheet
256 3 4819 458 68011 Grid
261 0 4819 458 19999 Inset grid left
261 1 4819 458 19998 Inset grid right
301 3 4819 460 78628 Trim, lower
320 0 4819 453 58506 Control panel
332 0 4819 410 28709 Button,push
334 0 4819 411 29199 Knob
341 1 4819 413 79197 Indication disc thermostat
341 2 4819 413 79155 Indication disc oven selector switch
344 9 4819 532 28269 Ring
351 0 4812 134 48021 Pilot lamp
354 0 4819 381 18076 Lens red
440 0 4819 361 78242 Motor
441 0 4819 361 18427 Motor cooling fan
441 1 4819 468 18099 Gasket
443 0 4819 515 48065 Fan wheel
451 0 4819 259 28822 Heating element circulation
452 0 4819 259 28838 Heating element
456 0 4819 259 28791 Heating element lower
491 0 4819 290 68363 Terminal block
500 0 4819 282 18726 Autotimer
554 0 4819 271 29039 Thermostat
562 0 4819 282 28697 Thermostat
620 0 4819 273 28404 Hex.code switch
651 0 4819 134 88153 Lamp,oven
652 0 4819 255 18237 Holder,lamp
652 1 4819 450 69844 Lamp screen
653 0 4819 134 88189 Lamp
914 0 4819 505 18323 Nut
915 0 4819 505 18145 Nut
932 0 4819 492 68714 Spring
993 0 4819 310 39087 Mounting kit
Page 4
09.03.1998 / Page 4 AKP620/WH Whirlpool Europe
Doc. No: 4812 715 18021 8577 620 42000 Customer Service

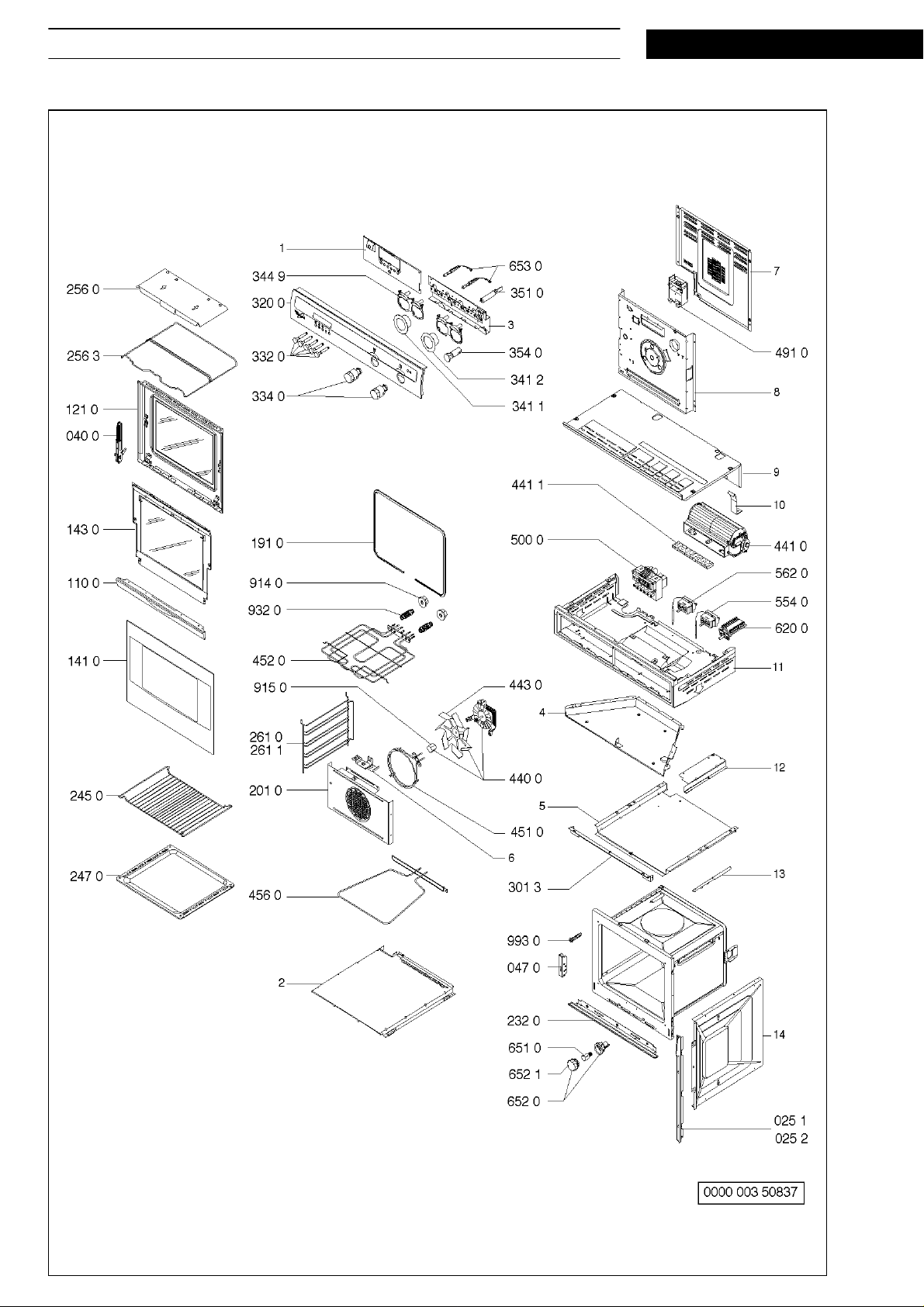

Exploded view
SERVICE
Page 5
SERVICE

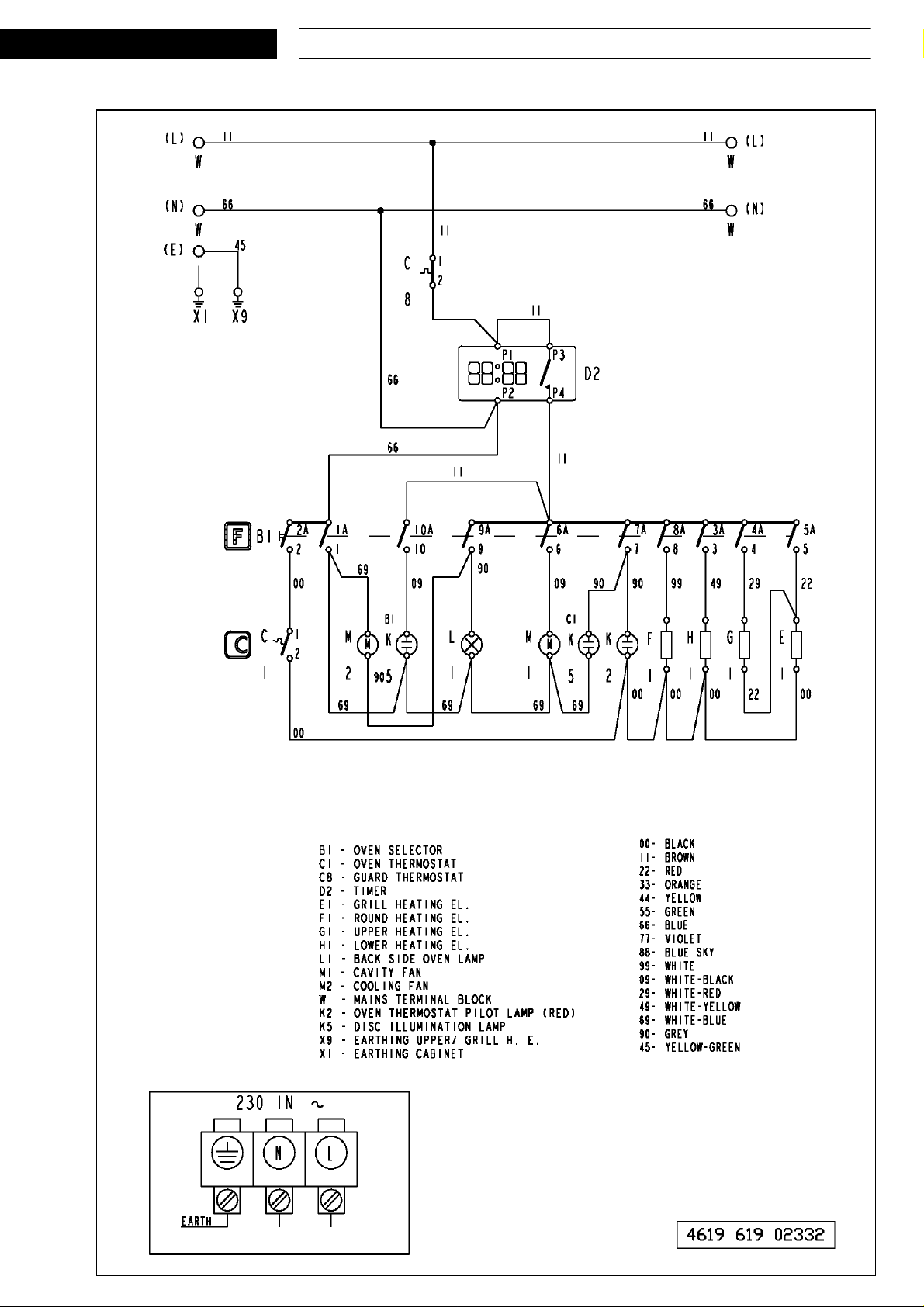

Wiring diagram
Whirlpool Europe AKP620/WH 09.03.1998 / Page 5
Customer Service 8577 620 42000 Doc. No: 4812 715 18021
