WHIRLPOOL AKP 603 IX Daily Reference Guide

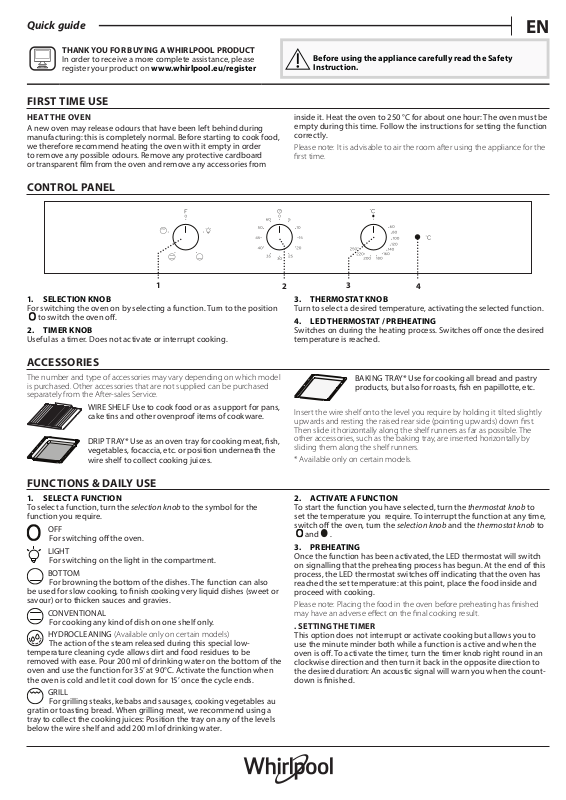

Quick guide
EN
THANK YOU FOR BUYING A WHIRLPOOL PRODUCT
In order to receive a more complete assistance, please
register your product on www . whirlpool . eu/ register
FIRST TIME USE
HEAT THE OVEN
A new oven may release odours that have been left behind during
manufacturing: this is completely normal. Before starting to cook food,
we therefore recommend heating the oven with it empty in order
to remove any possible odours. Remove any protective cardboard
or transparent lm from the oven and remove any accessories from
CONTROL PANEL
1
1. SELECTION KNOB
For switching the oven on by selecting a function. Turn to the position
to switch the oven o.
2. TIMER KNOB
Useful as a timer. Does not activate or interrupt cooking.
Before using the appliance carefully read the Safety
Instruction.
inside it. Heat the oven to 250 °C for about one hour: The oven must be
empty during this time. Follow the instructions for setting the function
correctly.
Please note: It is advisable to air the room after using the appliance for the
rst time.
2
3. THERMOSTAT KNOB
Turn to select a desired temperature, activating the selected function.
4. LED THERMOSTAT / PREHEATING
Switches on during the heating process. Switches o once the desired
temperature is reached.
3
4
ACCESSORIES
The number and type of accessories may vary depending on which model
is purchased. Other accessories that are not supplied can be purchased
separately from the After-sales Service.
WIRE SHELF Use to cook food or as a support for pans,
cake tins and other ovenproof items of cookware.
DRIP TRAY* Use as an oven tray for cooking meat, sh,
vegetables, focaccia, etc. or position underneath the
wire shelf to collect cooking juices.
FUNCTIONS & DAILY USE
1. SELECT A FUNCTION
To select a function, turn the selection knob to the symbol for the
function you require.
OFF
For switching o the oven.
LIGHT
For switching on the light in the compartment.
BOTTOM
For browning the bottom of the dishes. The function can also
be used for slow cooking, to nish cooking very liquid dishes (sweet or
savour) or to thicken sauces and gravies.
CONVENTIONAL
For cooking any kind of dish on one shelf only.
HYDROCLEANING (Available only on certain models)
The action of the steam released during this special lowtemperature cleaning cycle allows dirt and food residues to be
removed with ease. Pour 200 ml of drinking water on the bottom of the
oven and use the function for 35’ at 90°C. Activate the function when
the oven is cold and let it cool down for 15’ once the cycle ends.
GRILL
For grilling steaks, kebabs and sausages, cooking vegetables au
gratin or toasting bread. When grilling meat, we recommend using a
tray to collect the cooking juices: Position the tray on any of the levels
below the wire shelf and add 200 ml of drinking water.
BAKING TRAY* Use for cooking all bread and pastry
products, but also for roasts, sh en papillotte, etc.
Insert the wire shelf onto the level you require by holding it tilted slightly
upwards and resting the raised rear side (pointing upwards) down rst.
Then slide it horizontally along the shelf runners as far as possible. The
other accessories, such as the baking tray, are inserted horizontally by
sliding them along the shelf runners.
* Available only on certain models.
2. ACTIVATE A FUNCTION
To start the function you have selected, turn the thermostat knob to
set the temperature you require. To interrupt the function at any time,
switch o the oven, turn the selection knob and the thermostat knob to
and .
3. PRE HEATING
Once the function has been activated, the LED thermostat will switch
on signalling that the preheating process has begun. At the end of this
process, the LED thermostat switches o indicating that the oven has
reached the set temperature: at this point, place the food inside and
proceed with cooking.
Please note: Placing the food in the oven before preheating has nished
may have an adverse eect on the nal cooking result.
. SETTING THE TIMER
This option does not interrupt or activate cooking but allows you to
use the minute minder both while a function is active and when the
oven is o. To activate the timer, turn the timer knob right round in an
clockwise direction and then turn it back in the opposite direction to
the desired duration: An acoustic signal will warn you when the countdown is nished.
CLEANING AND MAINTENANCE
~60°
a
b
~15°
Make sure that the oven has cooled down before carrying out any maintenance or cleaning. Do not use steam cleaners. Do not
use wire wool, abrasive scourers or abrasive/corrosive cleaning agents, as these could damage the surfaces of the appliance. Wear
protective gloves. The oven must be disconnected from the mains before carrying out any kind of maintenance work.
EXTERIOR SURFACES
Clean surfaces with a damp microbre cloth. If they are very dirty,
add a few drops of pH-neutral detergent. Finish o with a dry cloth.
Do not use corrosive or abrasive detergents. If any of these products
inadvertently comes into contact with the surfaces of the appliance,
clean immediately with a damp microbre cloth.
INTERIOR SURFACES
After every use, leave the oven to cool and then clean it, preferably
while it is still warm, to remove any deposits or stains caused by
food residues. To dry any condensation that has formed as a result
of cooking foods with a high water content, leave the oven to cool
completely and then wipe it with a cloth or sponge. Clean the glass in
the door with a suitable liquid detergent.
ACCESSORIES
Soak the accessories in a washing-up liquid solution after use, handling
them with oven gloves if they are still hot. Food residues can be
removed using a washing-up brush or a sponge.
LOWER THE TOP HEATING ELEMENT (Only in some models)
The top heating element of the grill can be lowered to clean the upper
panel of the oven: Extract the heating element from its seating, then
lower it. To return the heating element to its position, lift it up, pull it
slightly towards you and make sure that the tab support is in its proper
seating.
REMOVING AND REFITTING THE DOOR
To remove the door, open it fully and lower the catches until they are
in the unlock position (1). Close the door as much as you can (2). Take
a rm hold of the door with both hands - do not hold it by the handle.
Simply remove the door (3) by continuing to close it while pulling it
upwards (a) at the same time until it is released from its seating (b).
CLICK & CLEAN - CLEANING THE GLASS
After removing the door and resting it on a soft surface with the
handle downwards, simultaneously press the two retaining clips (1) and
remove the upper edge of the door by pulling it towards you (2).
1
2
Lift and rmly hold the inner glass with both hands, remove it and
place it on a soft surface before cleaning it (3).
3
To correctly reposition the inner glass, make sure that the “R” is visible
in the left-hand corner and the clear surface (not printed) is facing up.
First insert the long side of the glass indicated by “R” into the support
seats, then lower it into position (4). Ret the upper edge (5): a click
will indicate correct positioning. Make sure the seal is secure before
retting the door.
4
REPLACING THE LAMP
Disconnect the oven from the power supply, unscrew the cover from
the light, replace the bulb and screw the cover back on the light.
1
2
Put the door to one side, resting it on a soft surface. Ret the door by
moving it towards the oven, aligning the hooks of the hinges with their
seating and securing the upper part onto its seating. Lower the door
and then open it fully. Lower the catches into their original position:
make sure that you lower them down completely. Try closing the door
3
Reconnect the oven to the power supply. Do not use the oven until the
light cover has been retted.
Please note: Only use 25W/230 ~ V, G9 type, T300°C halogen bulbs. The
bulb used in the product is specically designed for domestic appliances
and is not suitable for general room lighting within the home. Light bulbs
are available from our After-sales Service.
and check to make sure that it lines up with the control panel. If it does
not, repeat the steps above.
TROUBLESHOOTING
What to do if... Possible reasons Solutions
The oven is not working. Power cut.
Disconnection from the mains.
Check for the presence of mains electrical power and whether the
oven is connected to the electricity supply.
Turn o the oven and restart it to see if the fault persists.
5
You can download the Safety Instructions, User Manual, Product Fiche and Energy data by:
• Visiting our website docs . whirlpool . eu
• Using QR Code
• Alternatively, contact our After-sales Service (See phone number in the warranty booklet). When
contacting our After-sales Service, please state the codes provided on your product's identication
plate.
XXXXXXXXXXXXXX
Model: xxxXXXXxx
400011214698
