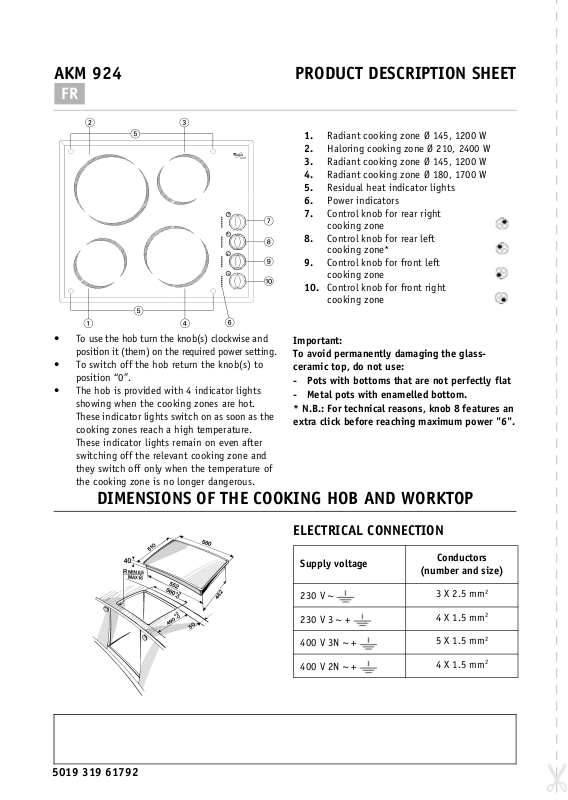

AKM 924 PRODUCT DESCRIPTION SHEET

FR

Radiant cooking zone Ø 145, 1200 W

1.

Haloring cooking zone Ø 210, 2400 W

2.

Radiant cooking zone Ø 145, 1200 W

3.

Radiant cooking zone Ø 180, 1700 W

4.

Residual heat indicator lights

5.

Power indicators

6.

Control knob for rear right

7.

cooking zone
Control knob for rear left

8.

cooking zone*
Control knob for front left

9.

cooking zone
Control knob for front right

10.

cooking zone

• To use the hob turn the knob(s) clockwise and
position it (them) on the required power setting.

• To switch off the hob return the knob(s) to
position “0”.

• The hob is provided with 4 indicator lights
showing when the cooking zones are hot.
These indicator lights switch on as soon as the
cooking zones reach a high temperature.
These indicator lights remain on even after
switching off the relevant cooking zone and
they switch off only when the temperature of
the cooking zone is no longer dangerous.

DIMENSIONS OF THE COOKING HOB AND WORKTOP

Important:
To avoid permanently damaging the glass­ceramic top, do not use:

- Pots with bottoms that are not perfectly flat

- Metal pots with enamelled bottom.
* N.B.: For technical reasons, knob 8 features an

extra click before reaching maximum power "6".

ELECTRICAL CONNECTION

Supply voltage

230 V ~

230 V 3 ~ +

400 V 3N ~ +

400 V 2N ~ +

Conductors

(number and size)

3 X 2.5 mm

4 X 1.5 mm

5 X 1.5 mm

4 X 1.5 mm

2

2

2

2
