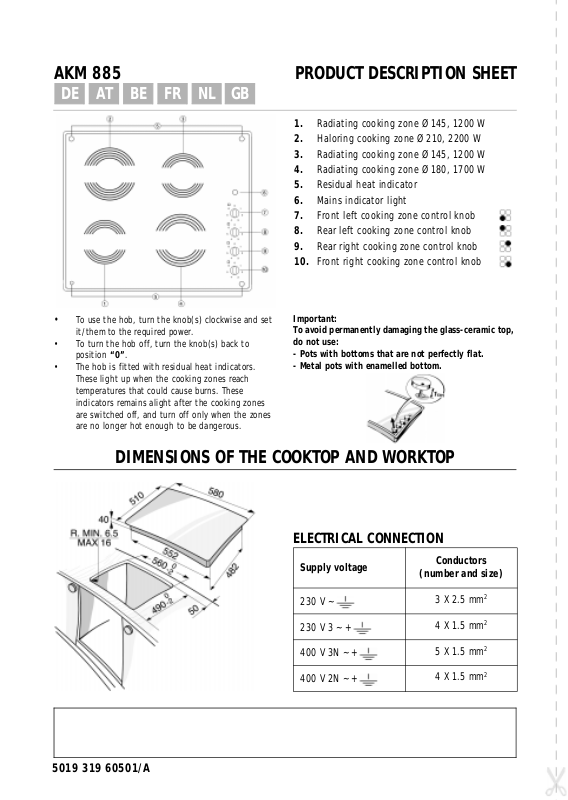

Whirlpool AKM 885/NB PROGRAM CHART
AKM 885 |
PRODUCT DESCRIPTION SHEET |
|
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
DE |
AT |
BE |
FR |
NL |
GB |
1. Radiating cooking zone Ø 145, 1200 W
2. Haloring cooking zone Ø 210, 2200 W
3. Radiating cooking zone Ø 145, 1200 W
4. Radiating cooking zone Ø 180, 1700 W
5. Residual heat indicator
6. Mains indicator light
7. Front left cooking zone control knob
8. Rear left cooking zone control knob
9. Rear right cooking zone control knob
10. Front right cooking zone control knob
•To use the hob, turn the knob(s) clockwise and set it/them to the required power.
•To turn the hob off, turn the knob(s) back to position “0”.
•The hob is fitted with residual heat indicators. These light up when the cooking zones reach temperatures that could cause burns. These indicators remains alight after the cooking zones are switched off, and turn off only when the zones are no longer hot enough to be dangerous.
Important:
To avoid permanently damaging the glass-ceramic top, do not use:
-Pots with bottoms that are not perfectly flat.
-Metal pots with enamelled bottom.
DIMENSIONS OF THE COOKTOP AND WORKTOP
ELECTRICAL CONNECTION
|
Supply voltage |
Conductors |
|
|
(number and size) |
||
|
|
|
|
|
|
|
|
|
230 |
V ~ |
3 X 2.5 mm2 |
|
|
|
|
|
230 |
V 3 ~ + |
4 X 1.5 mm2 |
|
|
|
|
|
400 |
V 3N ~ + |
5 X 1.5 mm2 |
|
|
|
|
|
400 |
V 2N ~ + |
4 X 1.5 mm2 |
|
|
|
|
|
|
|
|
|
|
|
|
5019 319 60501/A
