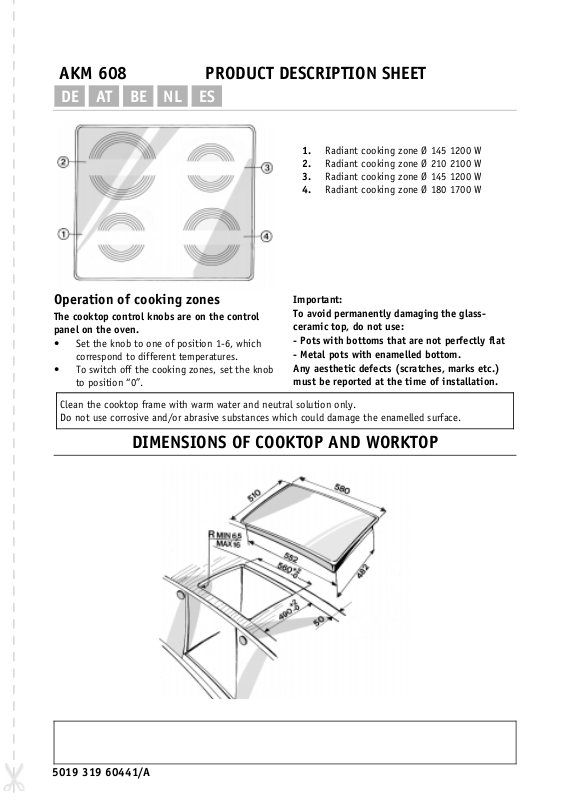

AKM 608 |
PRODUCT DESCRIPTION SHEET |
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
DE |
AT |
BE |
NL |
ES |
1. Radiant cooking zone Ø 145 1200 W
2. Radiant cooking zone Ø 210 2100 W
3. Radiant cooking zone Ø 145 1200 W
4. Radiant cooking zone Ø 180 1700 W
Operation of cooking zones
The cooktop control knobs are on the control panel on the oven.
•Set the knob to one of position 1-6, which correspond to different temperatures.
•To switch off the cooking zones, set the knob to position “0”.
Important:
To avoid permanently damaging the glassceramic top, do not use:
-Pots with bottoms that are not perfectly flat
-Metal pots with enamelled bottom.
Any aesthetic defects (scratches, marks etc.) must be reported at the time of installation.
Clean the cooktop frame with warm water and neutral solution only.
Do not use corrosive and/or abrasive substances which could damage the enamelled surface.
DIMENSIONS OF COOKTOP AND WORKTOP
5019 319 60441/A
