Whirlpool AKM 535/WH, AKM 535/TF/01, AKM 535/NB PROGRAM CHART

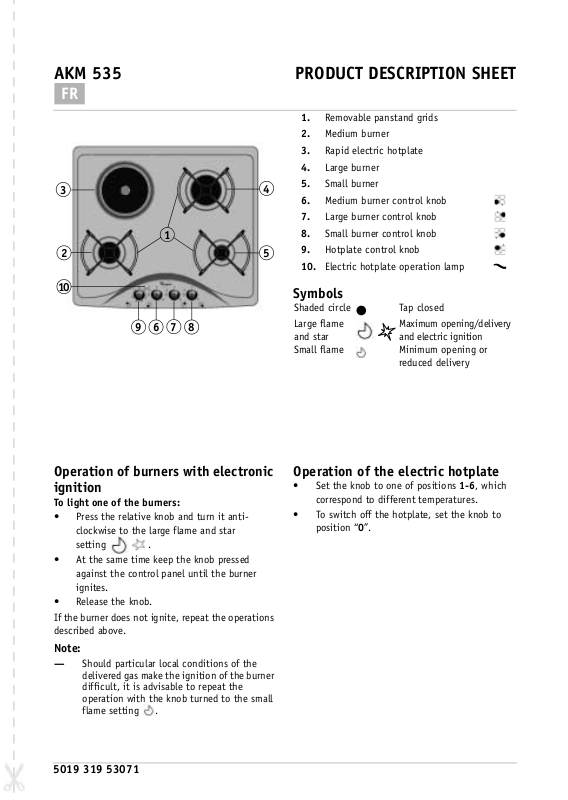

AKM 535 PRODUCT DESCRIPTION SHEET

FR

1.

Removable panstand grids

2.

Medium burner

3.

Rapid electric hotplate

4.

Large burner

5.

3

2

4

10

10

9 6

4

1

5

7

8

Small burner

6.

Medium burner control knob

7.

Large burner control knob

8.

Small burner control knob

9.

Hotplate control knob

10.

Electric hotplate operation lamp

Symbols

Shaded circle Tap closed

Large flame
and star
Small flame Minimum opening or

Maximum opening/delivery
and electric ignition

reduced delivery

Operation of burners with electronic
ignition

To light one of the burners:

 Press the relative knob and turn it anti-

clockwise to the large flame and star
setting .

 At the same time keep the knob pressed

against the control panel until the burner

ignites.
 Release the knob.
If the burner does not ignite, repeat the operations

described above.

Note:



Should particular local conditions of the
delivered gas make the ignition of the burner
difficult, it is advisable to repeat the
operation with the knob turned to the small
flame setting .

5019 319 53071

Operation of the electric hotplate

 Set the knob to one of positions

correspond to different temperatures.

 To switch off the hotplate, set the knob to

position 0.

1-6

, which

DIMENSIONS OF COOKING HOB AND WORKTOP

NOTE: In case of installation of a hood above the cooktop, please refer to the hood instructions for
the correct distance.
Important

:

If the cooktop is installed over a built-in oven
without forced ventilation cooling, make sure there
are air inlets and outlets to allow adequate
aeration inside the cabinet. Figure A illustrates an
assembly example.



FIG. A

INJECTORS TABLE CATEGORY II2E+3+

Type of gas used Type of

NATURAL GAS
(Methane) G 20

NATURAL GAS
(Groningue) G 25

LIQUID PETROLEUM
GAS

(Cylinder) G 30

LIQUID PETROLEUM
GAS

(Cylinder) G 31

Type of gas used Appliance model Total rated heat

G 20 20 mbar 3 gas + 1 E 5.65 538 l/h 11.3
G 25 25 mbar 3 gas + 1 E 5.24 581 l/h 10.5
G 30 28-30 mbar 3 gas + 1 E 5.65 411 g/h 11.3
G 31 37 mbar 3 gas + 1 E 5.65 403 g/h 11.3

burner

large
medium
small

large
medium
small

large
medium
small

large
medium
small

ELECTRIC HOT PLATE POWER: 1500 W.

Injector
marking

128

94
76

128

94
76

85
65
50

85
65
50

Rated heat
capacity
Pcs-kW

3.00

1.65

1.00

2.78

1.53

0.93

3.00

1.65

1.00

3.00

1.65

1.00

capacity Pcs-kW

Rated
consumption

286 l/h
157 l/h

95 l/h

308 l/h
170 l/h
103 l/h

218 g/h
120 g/h

73 g/h

214 g/h
118 g/h

71 g/h

Reduced
heat
capacity
Pcs-kW

0.60

0.35

0.30

0.60

0.35

0.30

0.60

0.35

0.30

0.60

0.35

0.30

Total rated
consumption

Gas pressure

min. rat. max.

17 20 25

20 25 30

20 28-30 35

25 37 45

Air required for
burning m3/h
