AKM 521 |

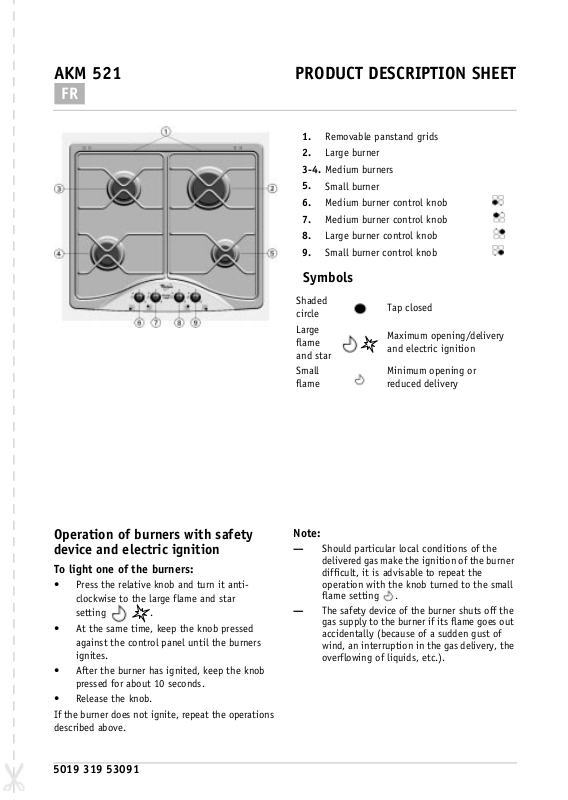

PRODUCT DESCRIPTION SHEET |
|
||
|
||
|
||
|
||
|
||
|
||
|
||
|
FR |
Operation of burners with safety device and electric ignition
To light one of the burners:
•Press the relative knob and turn it anti-
clockwise to the large flame and star setting
.
•At the same time, keep the knob pressed against the control panel until the burners ignites.
•After the burner has ignited, keep the knob pressed for about 10 seconds.
•Release the knob.
If the burner does not ignite, repeat the operations described above.
1.Removable panstand grids
2.Large burner
3-4. Medium burners
5.Small burner
6. Medium burner control knob
7. Medium burner control knob
8. Large burner control knob
9. Small burner control knob
Symbols
Shaded |
Tap closed |
|
circle |
||
|
||
Large |
Maximum opening/delivery |
|
flame |
||
and electric ignition |
||
and star |
||
|
||
Small |
Minimum opening or |
|
flame |
reduced delivery |
Note:
—Should particular local conditions of the delivered gas make the ignition of the burner difficult, it is advisable to repeat the
operation with the knob turned to the small flame setting
.
—The safety device of the burner shuts off the gas supply to the burner if its flame goes out accidentally (because of a sudden gust of wind, an interruption in the gas delivery, the overflowing of liquids, etc.).
5019 319 53091
DIMENSIONS OF COOKING HOB AND WORKTOP (mm)
Note: In case of installation of a hood above the cooktop, please refer to the hood
instructions for the correct distance. |
|
|
|
|
|
|
|
|
|
||||||
INJECTORS TABLE |
|
|
|
|
|
|
|
|
|
CATEGORY II2E+3+ |
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Injector |
|
Rated heat |
|
|
|
Reduced |
|
Gas pressure mbar |
|||
Type of gas |
|
Type of |
|
Rated |
heat |
|
|
|
|
|
|||||
used |
|
burner |
marking |
|
capacity |
consumption |
capacity |
min. |
|
rat. |
max. |
||||
|
100/mm |
|
kW |
|
|||||||||||
|
|
|
|
|
|
|
|
kW |
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
NATURAL GAS |
|
large |
128 |
|
3.00 |
|
286 l/h |
0.60 |
|
|
|
|
|
||
|
medium |
94 |
|
1.65 |
|
157 l/h |
0.35 |
17 |
|
20 |
25 |
||||
(Methane) |
G20 |
|
|
|
|||||||||||
small |
76 |
|
1.00 |
|
95 l/h |
0.30 |
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
NATURAL GAS |
|
large |
128 |
|
2.78 |
|
308 l/h |
0.60 |
|
|
|
|
|
||
|
medium |
94 |
|
1.53 |
|
170 l/h |
0.35 |
20 |
|
25 |
30 |
||||
(Groningue) |
G25 |
|
|
|
|||||||||||
small |
76 |
|
0.93 |
|
103 l/h |
0.30 |
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
LIQUID PETROLEUM |
large |
85 |
|
3.00 |
|
218 g/h |
0.60 |
|
|
|
|
|
|||
GAS |
|
medium |
65 |
|
1.65 |
|
120 g/h |
0.35 |
20 |
|
28-30 |
35 |
|||
(Cylinder) |
G30 |
small |
50 |
|
1.00 |
|
73 g/h |
0.30 |
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
LIQUID PETROLEUM |
large |
85 |
|
3.00 |
|
214 g/h |
0.60 |
|
|
|
|
|
|||
GAS |
|
medium |
65 |
|
1.65 |
|
118 g/h |
0.35 |
25 |
|
37 |
45 |
|||
(Cylinder) |
G31 |
small |
50 |
|
1.00 |
|
71 g/h |
0.30 |
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
Appliance |
|
Total rated heat |
|
Total rated |
|
Air required |
|
|||||
Type of gas used |
|
|
capacity |
|
|
|
for burning |
|
|||||||
|
model |
|
|
|
consumption |
|
|
||||||||
|
|
|
|
kW |
|
|
|
m3/h |
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
||||
G20 20 mbar |
|
|
4 gas |
|
7.30 |
|
|
695 l/h |
|
|
14.6 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
G25 25 mbar |
|
|
4 gas |
|
6.77 |
|
|
751 l/h |
|
|
13.5 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
G30 28-30 mbar |
|
4 gas |
|
7.30 |
|
|
531 g/h |
|
14.6 |
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
G31 37 mbar |
|
|
4 gas |
|
7.30 |
|
|
521 g/h |
|
14.6 |
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
ELECTRIC SUPPLY: 230 V - 50 Hz
