Whirlpool AKM 300/NB PROGRAM CHART

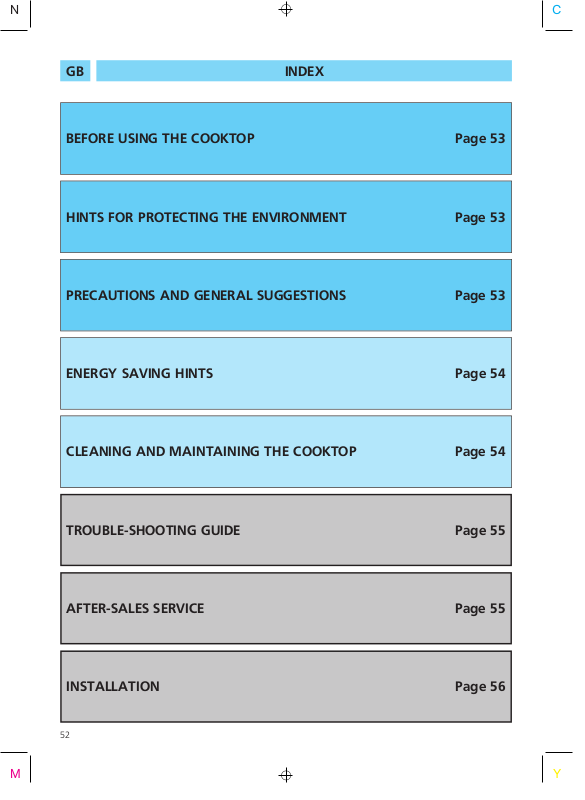

INDEXGB

BEFORE USING THE COOKTOP Page 53

HINTS FOR PROTECTING THE ENVIRONMENT Page 53

PRECAUTIONS AND GENERAL SUGGESTIONS Page 53

ENERGY SAVING HINTS Page 54

CLEANING AND MAINTAINING THE COOKTOP Page 54

TROUBLE-SHOOTING GUIDE Page 55

AFTER-SALES SERVICE Page 55

INSTALLATION Page 56

52

BEFORE USING THE COOKTOP

x For best use of your cooktop please

read the instructions for use carefully
and keep them in a safe place.

x Packaging material (plastic bags, polystyrene

parts, etc.) must be stored out of the reach
of children as it is potentially dangerous.

HINTS FOR PROTECTING THE ENVIRONMENT

1. Packaging

The packaging material is 100% recyclable
andismarkedwiththerecyclingsymbol

Ù

to identify the type of material which must
be delivered to the local collection centres.

2. Electrical appliances

The cooktop has been manufactured with
recyclable material. Dispose of it following
the local regulations for the disposal of
waste. Before disposing of it make it
unusable by cutting off the supply cable.

PRECAUTIONS AND GENERAL SUGGESTIONS

x

Before any cleaning or maintenance,
switch off the electricity supply to the
cooktop.

x

Use of a gas appliance produces heat
and humidity in the room where it is
installed. Make sure that the room is
well ventilated or install a cooker hood
with air duct.

x

If the cooktop is used for a long time
extra ventilation may be required (open
a window or increase the hood
ventilation).

x

Keep children away when the
appliances are ON.

x

After using the cooktop turn the knob
to the OFF position “0” and press the
ON/OFF button (see separate Product
Card) to switch the cooktop off. Turn
off the main gas supply tap or the
cylinder tap.

x

If the cooktop is used for too long the
display indicates “H” and the cooktop
switches off until the electronic
components have cooled down.
The indication “H” then flashes. Turn the
knob to “0” and if necessary switch on
again.

x Check that the cooktop was not damaged

during transport.

x Please ensure that the installation and

the gas/electrical connection have been
carried out by a qualified technician,
following the manufacturer’s
instructions and in compliance with
local safety regulations.

x

Attention: the cover (where provided)
could break if overheated. Before closing
it turn all the burners off.

EU declaration of conformity

x This cooktop is intended to come into

n

contact with food products and conforms
with European Directive 89/109/EEC.

x This cooktop (Class 3) has been designed for

use only as a cooking appliance. Any other
use (room heating) is to be considered
incorrect and consequently dangerous.

x This cooktop has been designed,

manufactured and put on the market in
conformity with:

- Safety requirements of the “Gas” Directive
90/ 396/EEC.

- Safety requirements of the “Low Voltage”
Directive 73/23/EEC.

- Protection requirements of the Directive on
Electromagnetic Compatibility 89/336/EEC.

- Requirements of Directive 93/68/EEC.

These instructions are only valid for
those countries of destination whose
identification symbols appear on the
cover of the instruction booklet and on
the appliance.

53

ENERGY SAVING HINTS

x

The cooktop has burners and/or hot plate with
different diameters. Use pans with base of the
same diameter or slightly larger than that of the
burners or hot plate.

x

Only use flat-bottomed pans. Using pans with
concave or convex bases is not recommended.

x

The pans must be kept away from the control
area.

Burner Ø container

Highspeed(Large) from24to26cm
Mediumspeed(Medium) from16to22cm
Auxiliary (Small) from 8 to 14 cm

x

If possible, leave covers on pans during cooking.

x

Boil vegetables, potatoes, etc. with little water to
save energy.

CLEANING AND MAINTAINING THE COOKTOP

Cleaning the cooktop and grids

x

Before cleaning the cooktop switch it off
and wait f or it to cool down.

x

Clean with a cloth moistened in hot water
andsoaporinwaterandliquiddetergent.

x

Do not use abrasive, corrosive or chlorine
based products or steel-wool pads.

x

Do not l eave acid or alkaline substances
(vinegar, salt, lemon juice, etc.) on the
cooktop.

x

Pressure cookers help to save energy and are
quicker than traditional pans.

Cleaning the burners

1.

Remove the grid.

2.

Lift and remove the cap.

3.

Remove the burner pulling it upwards.

4.

Put to soak in hot water and liquid detergent.

5.

Rinse and dry carefully.

6.

Make sure that none of the burner openings
are blocked.

7.

Replace the burner, cap and grid.

N.B.: To avoid damage to the electric
ignition, do not use it when the burners are
not in place.

54
