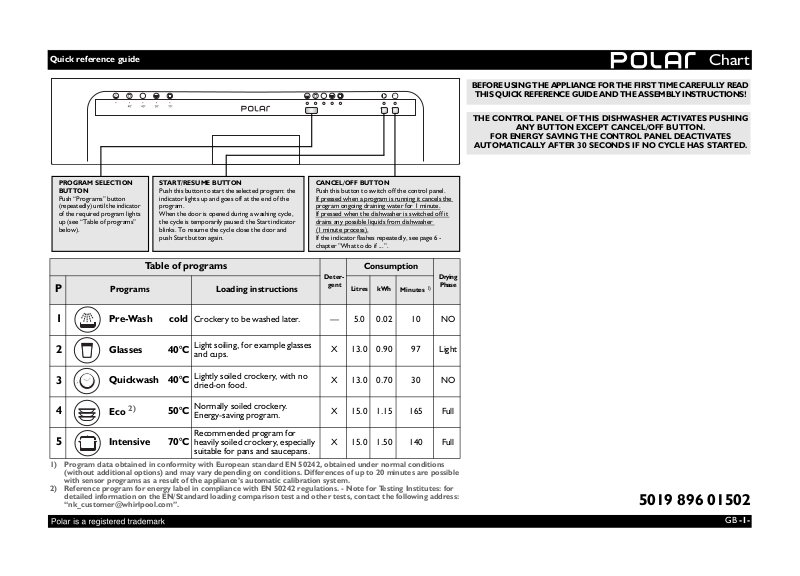

Whirlpool ADS 6601 IX INSTALLATION
START/RESUME BUTTON
Push this button to start the selected program: the
indicator lights up and goes off at the end of the
program.
When the door is opened during a washing cycle,
the cycle is temporarily paused: the Start indicator
blinks. To resume the cycle close the door and
push Start button again.
PROGRAM SELECTION
BUTTON
Push “Programs” button
(repeatedly) until the indicator
of the required program lights
up (see “Table of programs”
below).
CANCEL/OFF BUTTON
Push this button to switch off the control panel.
If pressed when a program is running it cancels the
program ongoing draining water for 1 minute.
If pressed when the dishwasher is switched off it
drains any possible liquids from dishwasher
(1 minute process).
If the indicator flashes repeatedly, see page 6 chapter ”What to do if ...”.
1) Program data obtained in conformity with European standard EN 50242, obtained under normal conditions
(without additional options) and may vary depending on conditions. Differences of up to 20 minutes are possible
with sensor programs as a result of the appliance’s automatic calibration system.
2) Reference program for energy label in compliance with EN 50242 regulations. - Note for Testing Institutes: for
detailed information on the EN/Standard loading comparison test and other tests, contact the following address:
“nk_customer@whirlpool.com”.
Table of programs
Deter-
gent
Consumption
Drying
Phase
P
Programs Loading instructions
Litres kWh
Minutes
1)
1
Pre-Wash cold
Crockery to be washed later. — 5.0 0.02 10 NO
2
Glasses 40°C
Light soiling, for example glasses
and cups.
X 13.0 0.90 97 Light
3
Quickwash 40°C
Lightly soiled crockery, with no
dried-on food.
X 13.0 0.70 30 NO
4
Eco
2)
50°C
Normally soiled crockery.
Energy-saving program.
X 15.0 1.15 165 Full
5
Intensive 70°C
Recommended program for
heavily soiled crockery, especially
suitable for pans and saucepans.
X 15.0 1.50 140 Full
5019 896 01502
BEFORE USING THE APPLIANCE FOR THE FIRST TIME CAREFULLY READ
THIS QUICK REFERENCE GUIDE AND THE ASSEMBLY INSTRUCTIONS!
THE CONTROL PANEL OF THIS DISHWASHER ACTIVATES PUSHING
ANY BUTTON EXCEPT CANCEL/OFF BUTTON.
FOR ENERGY SAVING THE CONTROL PANEL DEACTIVATES
AUTOMATICALLY AFTER 30 SECONDS IF NO CYCLE HAS STARTED.
Quick reference guide
Chart
GB -1-
1- salt reservoir
2- rinse aid dispenser
3- detergent dispenser
4- racks system
5,6,7,8- available functions on the panel
9- filters
10- spray arms
1. Ask your water supply company what the water hardness is... 2. ...enter this value on
your dishwasher
Suggestions for detergent use
German
degrees °dH
French
degrees °fH
English
degrees °eH
Water hardness
level
3 first PROGRAM LEDs
lit on the panel
(see table of programs)
P1 P2 P3
Gel or Powder
(rinse aid and
salt)
Tab l e ts
0 - 5 0 - 9 0 - 6.3 Soft 1
go to step 1
(see “Daily
check”)
6 - 10 10 - 18 7 - 12.6 Medium 2
11 - 15 19 - 27 13.3 - 18.9 Average 3
16 - 21 28 - 37 19.6 - 25.9 Medium-hard 4
if water is
HARD extra salt
needs to be
added
(go to step 1,
“Daily check”)
22 - 28 38 - 50 26.6 - 35 Hard 5
29 - 35 51 - 63 35.7 - 44.1 Very hard 6
36 - 50 64 - 90 44.8 - 62.4 Extremely hard 7
Water hardness should be set only
before the first wash or if water
hardness has been changed
1
Visual indicator
(depending
on the model).
Unscrew cap.
Fill the salt reservoir with water
before the first wash only.
(depending on the model)
The salt level indicator lamp may remain lit
at the end of several wash cycles. If the
water hardness level falls within category
(soft), no salt is required.
Salt indicator on the control panel Salt indicator on the salt reservoir cap
The indicator lamp lights up when SALT
NEEDS TO BE ADDED.
green: OK.
clear: NEEDS TO
BE ADDED
Daily check
Filling the salt reservoir - Dissolve limescale (not necessary if water hardness level is set to “soft”!)
- Press and hold together Programs and CANCEL/Off buttons for minimum 3 seconds.
- Programs LEDs will indicate the water hardness setting.
-Press the Programs button to increase setting (when the level reaches 7, the next key press will set the level back to 1.
- Wait 30 seconds (control panel switches off) or press START/Resume button to save setting.
Add salt (never add detergent!)
min. 0.8 kg / max. 1 kg
Water hardness level is factory
set for medium-hard water
(level 4).
Even if you use tablets which
include salt functionality, you
must still add regeneration salt
since such detergents are not
effective enough at softening
hard water.
Screw on the cap.
Salt residual
around the cap
need to be
removed. Some
salt reservoir have
a level indicator
integrated in the
cap (see below
how to check).
At first time use, the salt reservoir has to be filled independently from water hardness level (see description below in step 1 “Daily check”).
How to set water hardness in order to always assure the best cleaning results
First time use
GB -2-
3
Check the rinse aid indicator to check the level
into the dispenser.
(depending on the model)
Rinse aid indicator on the control panel Rinse aid indicator on the dispenser
The indicator lamp lights up when RINSE AID NEEDS
TO BE ADDED.
dark: OK. clear: NEEDS TO BE ADDED
Only use rinse aids recommended for use in domestic dishwashers. Immediately wipe away any rinse aid spilt accidentally. This prevents the formation of excess suds which can cause a fault function of the
appliance.
If there are streaks: reduce the dosage by turning the dial to a lower setting (1-3). If crockery is not perfectly dry: increase the dosage by turning the dial to a higher setting (5-6). Plastic dishes have more difficulty
drying and a higher rinse aid setting will not improve the situation.
Detergents with rinse aid incorporated may be effective only with longer programs. In the case of shorter programs, detergent residue may be a problem (if necessary, use powder detergent). Detergents with
rinse aid incorporated tend to form excess suds.
Daily use
Adding detergent - Use only detergent specifically for dishwashers in accordance with the supplier’s recommendations
Open the cover A
(press the dedicated button).
Only fill the
detergent dispenser
prior to starting a
wash program.
Shut the cover
by pressing dedicated ribs.
Insert detergent: Tablet / powder / liquid into the big chamber
Use only one tablet per one cycle, only
placed in detergent dispenser.
All types of tablets can be used, but for
2 in 1 type adding of salt is mandatory.
If required,
open the
cover B
(press the
dedicated
button).
Add rinse aid
to the max.
line ~150 ml
The rinse aid dosage can be
adjusted to the detergent used.
The lower the setting, the less
rinse aid is dispensed (factory
setting: position 4).
Press the button to open the
cover B. Using a coin or similar
object, turn the arrow to the
desired setting. After adjusting
the rinse aid setting, shut the
cover again.
Visual
indicator
2
Adding rinse aid (not necessary when you use tablets). How to adjust the rinse aid dosage regulator
Daily check
GB -3-
