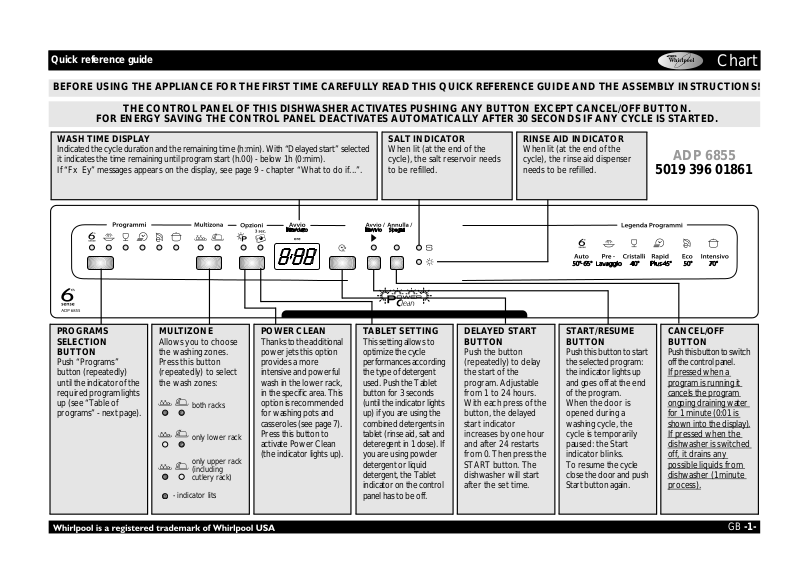

Whirlpool ADP 6855 IX, ADP 6855 WH PROGRAM CHART

Quick reference guide

Chart

BEFORE USING THE APPLIANCE FOR THE FIRST TIME CAREFULLY READ THIS QUICK REFERENCE GUIDE AND THE ASSEMBLY INSTRUCTIONS!

THE CONTROL PANEL OF THIS DISHWASHER ACTIVATES PUSHING ANY BUTTON EXCEPT CANCEL/OFF BUTTON.

FOR ENERGY SAVING THE CONTROL PANEL DEACTIVATES AUTOMATICALLY AFTER 30 SECONDS IF ANY CYCLE IS STARTED.

WASH TIME DISPLAY

Indicated the cycle duration and the remaining time (h:min). With “Delayed start” selected it indicates the time remaining until program start (h.00) - below 1h (0:mim). If “Fx Ey” messages appears on the display, see page 9 - chapter “What to do if...”.

PROGRAMS SELECTION BUTTON

Push “Programs” button (repeatedly) until the indicator of the required program lights up (see “Table of programs” - next page).

MULTIZONE

Allows you to choose the washing zones. Press this button (repeatedly) to select the wash zones:

both racks

only lower rack

only upper rack (including cutlery rack)

- indicator lits

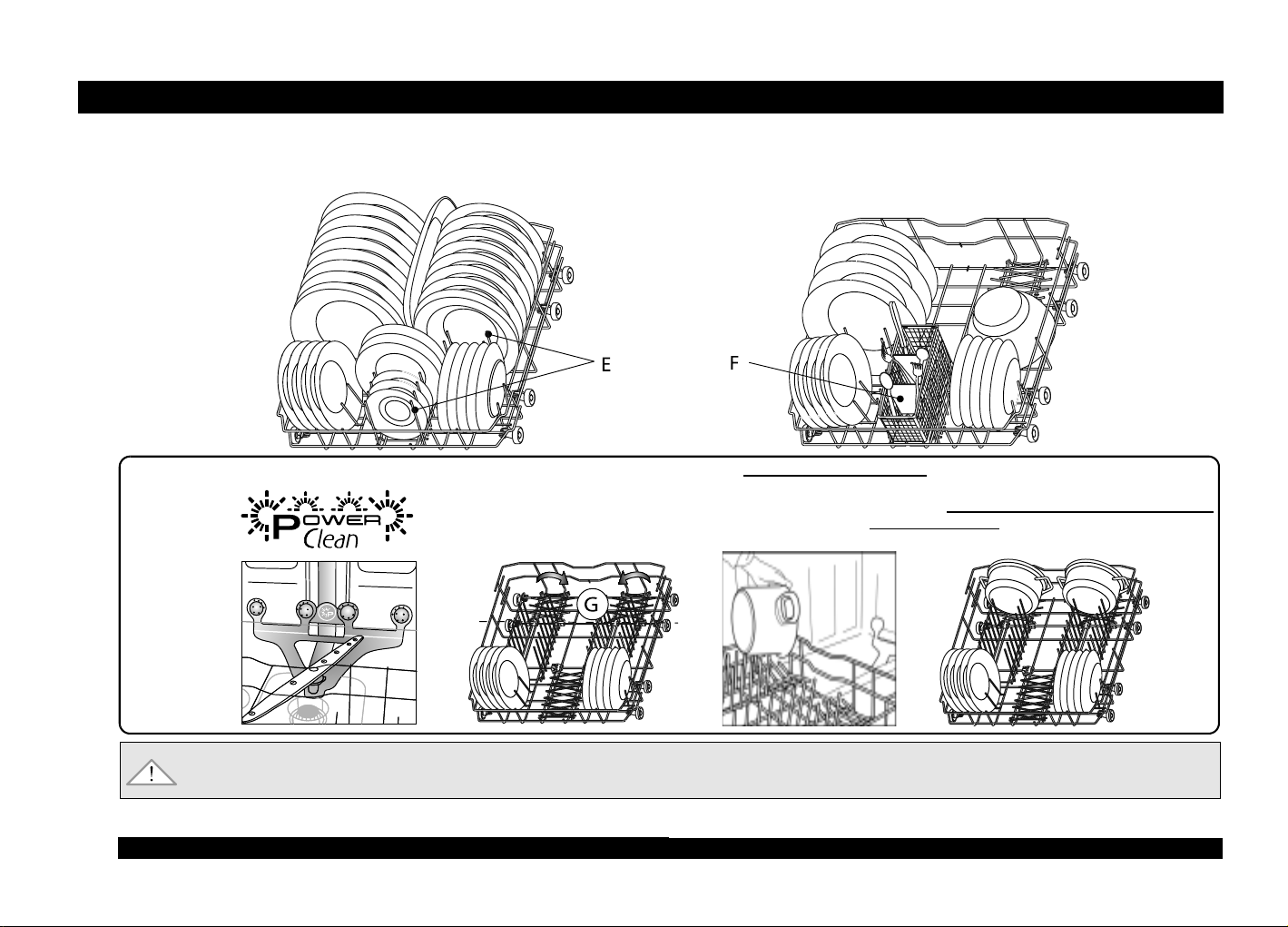

POWER CLEAN

Thanks to the additional power jets this option provides a more intensive and powerful wash in the lower rack, in the specific area. This option is recommended for washing pots and casseroles (see page 7). Press this button to activate Power Clean (the indicator lights up).

SALT INDICATOR

When lit (at the end of the cycle), the salt reservoir needs to be refilled.

TABLET SETTING

This setting allows to optimize the cycle performances according the type of detergent used. Push the Tablet button for 3 seconds (until the indicator lights up) if you are using the combined detergents in tablet (rinse aid, salt and deteregent in 1 dose). If you are using powder detergent or liquid detergent, the Tablet indicator on the control panel has to be off.

RINSE AID INDICATOR

When lit (at the end of the cycle), the rinse aid dispenser needs to be refilled.

DELAYED START BUTTON

Push the button (repeatedly) to delay the start of the program. Adjustable from 1 to 24 hours. With each press of the button, the delayed start indicator increases by one hour and after 24 restarts from 0. Then press the START button. The dishwasher will start after the set time.

START/RESUME BUTTON

Push this button to start the selected program: the indicator lights up and goes off at the end of the program. When the door is opened during a washing cycle, the cycle is temporarily paused: the Start indicator blinks. To resume the cycle close the door and push Start button again.

ADP 6855

5019 396 01861

CANCEL/OFF BUTTON

Push this button to switch off the control panel. If pressed when a program is running it cancels the program ongoing draining water for 1 minute (0:01 is shown into the display). If pressed when the dishwasher is switched off, it drains any possible liquids from dishwasher (1minute process).

-1-

Quick reference guide

Chart

Table of programs

1 AutoSensor 50-65°C

2 Pre-Wash cold

3 Glasses 40°C

4 Quickwash 45°C

6 Intensive 70°C

Programs

Eco

50°C

Available

options

Delay

Multizone

Power Clean

Delay

Multizone

Delay

Multizone

Delay

Multizone

Delay

Multizone

Power Clean

Delay

Multizone

Power Clean

Consumption

Deter-

Loading instructions Litres kWh

Recommended program for routine washes, with dried-on food (e.g. EN 50242).

Crockery to be washed later. — 4.0 0.03 14

Light soiling, for example glasses and cups. X 10.0 0.85 100

Lightly soiled crockery, with no dried-on food.

Normally soiled crockery. X 12.0 1.05 150

Recommended program for heavily soiled crockery, especially suitable for pans and saucepans.

gent

Minutes

X 7-14 0.99-1.80 70-185

X 11.0 0.80 30

X 14.0 1.55 155

1) Program data obtained in conformity with European standard EN 50242, obtained under normal conditions (without additional options) and may vary depending on conditions. Differences of up to 20 minutes are possible with sensor programs as a result of the appliance’s automatic calibration system.

2) Reference program for energy label in compliance with EN 50242 regulations. - Note for Testing Institutes: for detailed information on the EN/Standard loading comparison test and other tests, contact the following address: “nk_customer@whirlpool.com”.

-2-

How to set water hardness in order to always assure the best cleaning results

First time use

1- salt reservoir 2- rinse aid dispenser 3- detergent dispenser 4- racks system 5,6,7,8- available functions on the panel 9- filters 10- spray arms

Water hardness should be set

only before the first wash or if

water hardness has been

changed

Water hardness level is factory set for mediumhard water (level 4).

Even if you use tablets which include salt functionality, you must still add regeneration salt since such detergents are not effective enough at softening hard water.

At first time use, the salt reservoir has to be filled independently from water hardness level

Filling the salt reservoir -

The salt level indicator lamp may remain lit at the end of several wash cycles. If the water hardness level falls within category (soft), no salt is required.

Dissolve limescale (not necessary if water hardness level is set to “soft”!)

Visual indicator (depending on the model). Unscrew cap.

- Press and hold together

- The current water hardness setting will be visible on the display.

-Press the

- Wait 30 seconds (control panel switches off) or press

degrees °dH

Programs

the start button will set the level back to 1).

Ask your water supply company what the

German

0 - 5 0 - 9 0 - 6.3 Soft 1

6 - 10 10 - 18 7 - 12.6 Medium 2 11 - 15 19 - 27 13.3 - 18.9 Average 3 16 - 21 28 - 37 19.6 - 25.9 Medium-hard 4 if water is 22 - 28 38 - 50 26.6 - 35 Hard 5 29 - 35 51 - 63 35.7 - 44.1 Very hard 6

36 - 60 64 - 107 44.8 - 74.9 Extremely hard 7

degrees °fH

Programs

button to increase setting. Value range goes from 1 to 7 (when the level reaches 7, the next press of

French

English

degrees °eH

CANCEL/Off

and

water hardness

Water hardness

buttons for minimum 3 seconds.

Start/Resume

is...2....enter this value

level

button to save setting.

on your dishwasher

Insert value is shown

in the display

Suggestions for detergent use

Gel or Powder

(rinse aid and salt)

go to step 1

(see “Daily

check”)

(see description below in step 1 “Daily check”).

HARD extra salt

needs to be

(go to step 1,

“Daily check”)

Daily check

Screw on the cap. Salt residual around the cap need to be removed. Some salt reservoir have a level indicator integrated in the cap (see below how to check).

Add salt

Fill the salt reservoir with water

before the first wash only.

(depending on the model)

Salt indicator on the control panel Salt indicator on the salt reservoir cap

The indicator lamp lights up when SALT NEEDS TO BE ADDED.

(never add detergent!)

min. 1.5 kg/max. 2 kg

orange: OK.

clear: NEEDS TO BE ADDED

Tablets

added

-3-

Adding rinse aid

(not necessary when you use tablets). How to adjust the rinse aid dosage regulator

Daily check

Visual

Check the rinse aid indicator to check the level into the dispenser.

Only use rinse aids recommended for use in domestic dishwashers. a fault function of the appliance.

If there are streaks: reduce the dosage by turning the dial to a lower setting (1-3). If crockery is not perfectly dry: increase the dosage by turning the dial to a higher setting (5-6). Plastic dishes have more difficulty drying and a higher rinse aid setting will not improve the situation.

Detergents with rinse aid incorporated may be effective only with longer programs. In the case of shorter programs, detergent residue may be a problem (if necessary, use powder detergent). Detergents with rinse aid incorporated tend to form excess suds.

Adding detergent -

(press the dedicated button).

Use only detergent specifically for dishwashers in accordance with the supplier’s recommendations

Open the cover A

indicator

If required, open the cover B (press the dedicated button).

rinse

Add

aid

to the max. line ~150 ml

(depending on the model)

Rinse aid indicator on the control panel Rinse aid indicator on the dispenser

The indicator lamp lights up when RINSE AID NEEDS TO BE ADDED.

Immediately

Insert detergent:

Only fill the detergent dispenser prior to starting a wash program.

wipe away any rinse aid spilt accidentally. This prevents the formation of excess suds which can cause

Tablet / powder / liquid

into the big chamber.

The rinse aid dosage can be adjusted to the detergent used. The lower the setting, the less rinse aid is dispensed (factory setting: position 4). Press the button to open the cover B. Using a coin or similar object, turn the arrow to the desired setting. After adjusting the rinse aid setting, shut the cover again.

dark: OK. clear: NEEDS TO BE ADDED

Shut the cover

by pressing dedicated ribs.

Use only one tablet per one cycle, only placed in detergent dispenser.

All types of tablets can be used, but for 2 in 1 type adding of salt is mandatory.
