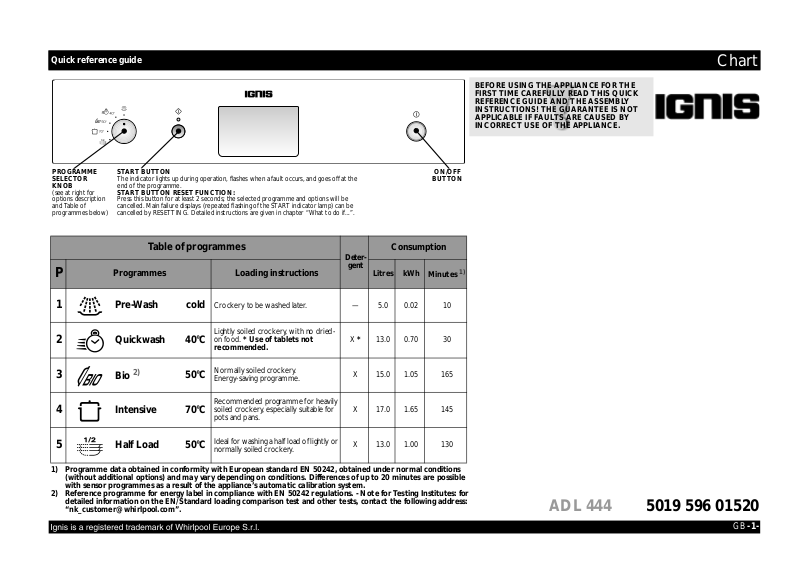

Whirlpool ADL 444 NB PROGRAM CHART

Quick reference guide

Chart

BEFORE USING THE APPLIANCE FOR THE

FIRST TIME CAREFULLY READ THIS QUICK

REFERENCE GUIDE AND THE ASSEMBLY

INSTRUCTIONS! THE GUARANTEE IS NOT

APPLICABLE IF FAULTS ARE CAUSED BY

INCORRECT USE OF THE APPLIANCE.

PROGRAMME	START BUTTON	ON/OFF
SELECTOR	The indicator lights up during operation, flashes when a fault occurs, and goes off at the	BUTTON
KNOB	end of the programme.
(see at right for	START BUTTON RESET FUNCTION:
options description	Press this button for at least 2 seconds; the selected programme and options will be
and Table of	cancelled. Main failure displays (repeated flashing of the START indicator lamp) can be
programmes below)	cancelled by RESETTING. Detailed instructions are given in chapter “What to do if...”.

	Table of programmes				Consumption
				Deter-
P	Programmes		Loading instructions	gent	Litres	kWh	Minutes 1)
1	Pre-Wash	cold	Crockery to be washed later.	—	5.0	0.02	10
2	Quickwash	40°C	Lightly soiled crockery, with no dried-	X *	13.0	0.70	30
			on food. * Use of tablets not
			recommended.
3	Bio 2)	50°C	Normally soiled crockery.	X	15.0	1.05	165
			Energy-saving programme.
4	Intensive	70°C	Recommended programme for heavily	X	17.0	1.65	145
			soiled crockery, especially suitable for
			pots and pans.
5	Half Load	50°C	Ideal for washing a half load of lightly or	X	13.0	1.00	130
			normally soiled crockery.

1)Programme data obtained in conformity with European standard EN 50242, obtained under normal conditions (without additional options) and may vary depending on conditions. Differences of up to 20 minutes are possible with sensor programmes as a result of the appliance’s automatic calibration system.

2)Reference programme for energy label in compliance with EN 50242 regulations. - Note for Testing Institutes: for detailed information on the EN/Standard loading comparison test and other tests, contact the following address: “[e-mail]”.

ADL 444 5019 596 01520

GB -1-

How to set detergent type: powder/gel/tablet (if option is available)

First time use

In order to always ensure the best cleaning results, you NEED to set:

DETERGENT type and WATER HARDNESS.

1. Select 3rd programme	2. Press START button	3a. Check your	3b....and set it on your dishwasher	4. Remember to use salt and rinse	5. Switch off and switch on
(see Table of programmes	for 7 seconds	detergent type...	using the START button	aid when needed (as indicated	again to save setting
- page 1)			(as per table below)	below)

Dishwasher models

	Detergent	model without
	types		model with display
		display
	Powder or gel	3h 6h 9h	no symbol	add salt	add rinse aid
	(factory setting)
	Tablet 2 in 1			add salt	rinse aid
	Tablet 3 in 1
				salt	rinse aid
	Tablet All in 1

For models without “detergent type” option, the salt and rinse aid indicators will be lit when tablets are used.

How to set water hardness

Switch on the appliance

-Select the 2nd programme “P2” - consult the table of programmes.

* only before the first wash or if	- Press the START button for at least 5 seconds until the START indicator lamp flashes.
the water hardness has been	-	The water hardness setting is shown on the display (if present) or the START button flashes.
changed	-	With each successive touch of the START button the setting increases and when it reaches 7 it returns to 1 again.

-The appliance must be switched off to memorise the new setting.

1.

Ask your water supply company what the water hardness is...

2. ...enter this value on your

Suggestions for detergent use

dishwasher

Dishwasher

Dishwasher

without

Gel or Powder

German

French

English

Water

with display:

degrees °dH

degrees °fH

degrees °eH

hardness

insert value in

display: count

(rinse aid and

Tablets

Water hardness level is factory set for

START button

salt)

medium hard water (a number “4” is

1- salt reservoir

the display

led flashes

shown on the display or the START

2- rinse aid dispenser

0

- 5

0

- 9

0 - 6.3

Soft

1

1x

indicator lamp flashes 4 times).

3- detergent dispenser

6 - 10

10

- 18

7 - 12.6

Medium

2

2x

4- racks system

11

- 15

19

- 27

13.3 - 18.9

Average

3

3x

if extra salt is

5,6,7,8- available functions on the panel

go to step 1

needed go to

Even if you use tablets which include salt,

16

- 21

28

- 37

19.6 - 25.9

Medium-hard

4

4x

(see “Daily

step 1

you must still add salt since such

9- filters

22

- 28

38

- 50

26.6 - 35

Hard

5

5x

check”)

(see “Daily

detergents are not effective enough at

10spray arms

check”)

softening hard water.

29

- 35

51

- 63

35.7 - 44.1

Very hard

6

6x

36

- 60

64 - 107

44.8 - 74.9

Extremely

7

7x

hard

GB -2-

Filling the salt reservoir - Dissolve limescale (not necessary if water hardness level is set to “soft”!)

Daily check

1	S	Visual indicator
	L
	E
		(depending
		on model).
		Unscrew cap.

Fill the salt reservoir with water before the first wash only.

S

E

L

S

E

L

Add salt	E
	S
(never add	L
detergent!).
min. 1.5 kg
max. 2 kg

Visual indicator (depending on model). Screw on the cap. Salt residues around cap need to be removed.

The salt level indicator lamp may remain lit for the duration of several wash cycles. If the

Salt indicator

water hardness level falls within category (soft), no salt is required.

(depending on the model)

	The indicator lamp on the control panel lights	orange: OK.	clear: NEEDS TO BE ADDED
	up when SALT NEEDS TO BE ADDED.

Adding rinse aid (not necessary when you use tablets). How to adjust the rinse aid dosage regulator

2	Visual
	indicator

If required, open the cover B (press right button).

Add rinse aid to the max. line ~150 ml

The rinse aid dosage can be adjusted to the detergent used. The lower the setting,

the less rinse aid is dispensed (factory setting: position 4).

Press the button to open the cover B. Using a coin or similar object, turn the arrow to the desired setting. After adjusting the rinse aid setting, shut the cover again.

Rinse aid indicator (depending on model)

	The indicator lamp on the control panel lights up when RINSE AID NEEDS TO BE	dark: OK.	clear: NEEDS TO BE ADDED
	ADDED.

Only use rinse aids recommended for use in domestic dishwashers. Immediately wipe away any rinse aid spilt accidentally. This prevents the formation of excess suds which can cause a fault function of the appliance.

If there are streaks: reduce the dosage by turning the dial to a lower setting (1-3). If crockery is not perfectly dry: increase the dosage by turning the dial to a higher setting (5-6). Plastic dishes have more difficulty drying and a higher rinse aid setting will not improve the situation.

Detergents with rinse aid incorporated may be effective only with longer programmes. In the case of shorter programmes, detergent residue may be a problem (if necessary, use powder detergent). Detergents with rinse aid incorporated tend to form excess suds.

Adding detergent - Use only detergent specifically for dishwashers in accordance with the supplier’s recommendations

	3	Tablet / gel / powder
		Only fill the
	Open the cover A
	(press left button).	detergent dispenser
		prior to starting a
		wash programme.

Use only one tablet per one cycle, only placed in detergent dispenser.

All types of tablets can be used, but for 2 in 1 type adding of salt is mandatory.

Daily use

By pressing dedicated ribs shut the cover.
