Before using the dishwasher, read the installation and maintenance instructions carefully!
GB ADG 6448

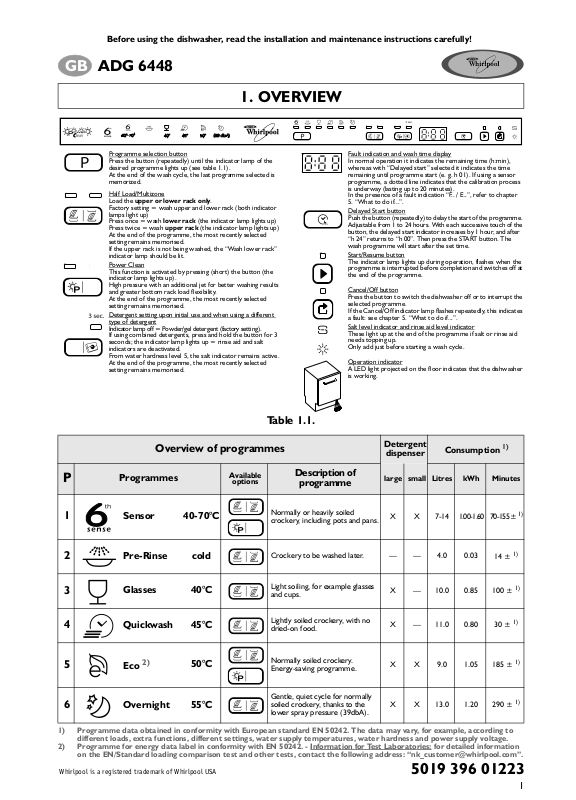

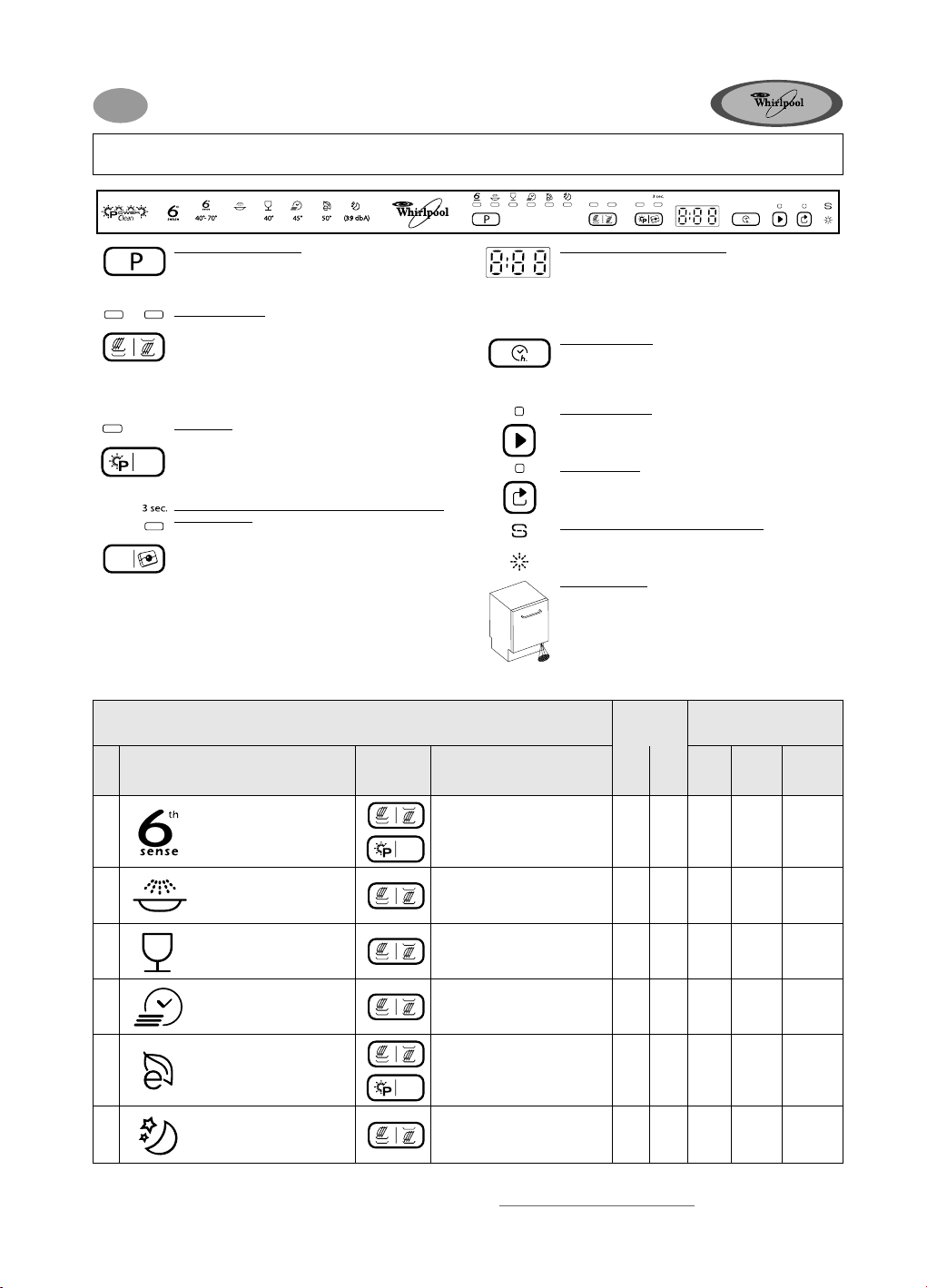

1. OVERVIEW
Programme selection button
Press the button (repeatedly) until the indicator lamp of the desired programme lights up (see table 1.1).
At the end of the wash cycle, the last programme selected is memorized.
Half Load/Multizone
Load the upper or lower rack only.
Factory setting = wash upper and lower rack (both indicator lamps light up)
Press once = wash lower rack (the indicator lamp lights up) Press twice = wash upper rack (the indicator lamp lights up) At the end of the programme, the most recently selected setting remains memorised.
If the upper rack is not being washed, the “Wash lower rack” indicator lamp should be lit.
Power Clean
This function is activated by pressing (short) the button (the indicator lamp lights up).
High pressure with an additional jet for better washing results and greater bottom rack load flexibility.
At the end of the programme, the most recently selected setting remains memorised.
Detergent setting upon initial use and when using a different type of detergent
Indicator lamp off = Powder/gel detergent (factory setting).
If using combined detergents, press and hold the button for 3 seconds; the indicator lamp lights up = rinse aid and salt indicators are deactivated.
From water hardness level 5, the salt indicator remains active. At the end of the programme, the most recently selected setting remains memorised.
Fault indication and wash time display
In normal operation it indicates the remaining time (h:min), whereas with “Delayed start” selected it indicates the time remaining until programme start (e. g. h 01). If using a sensor programme, a dotted line indicates that the calibration process is underway (lasting up to 20 minutes).
In the presence of a fault indication “F.. / E..”, refer to chapter 5. “What to do if...”.
Delayed Start button
Push the button (repeatedly) to delay the start of the programme. Adjustable from 1 to 24 hours. With each successive touch of the button, the delayed start indicator increases by 1 hour, and after “h 24” returns to “h 00”. Then press the START button. The wash programme will start after the set time.
Start/Resume button
The indicator lamp lights up during operation, flashes when the programme is interrupted before completion and switches off at the end of the programme.
Cancel/Off button
Press the button to switch the dishwasher off or to interrupt the selected programme.
If the Cancel/Off indicator lamp flashes repeatedly, this indicates a fault: see chapter 5. “What to do if...”.
Salt level indicator and rinse aid level indicator
These light up at the end of the programme if salt or rinse aid needs topping up.
Only add just before starting a wash cycle.
Operation indicator
A LED light projected on the floor indicates that the dishwasher is working.
Table 1.1.
|
|
|
|
Overview of programmes |
Detergent |
Consumption 1) |
|
||||||||
|
|
|
|
dispenser |
|
||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
P |
|
|
|
Programmes |
|
Available |
Description of |
large |
small |
Litres |
kWh |
Minutes |
|||
|
|
|
|
|
|
options |
programme |
|
|
|
|
|
|
||
1 |
|
|
|
Sensor |
40-70°C |
|
|
|
Normally or heavily soiled |
X |
X |
7-14 |
1.00-1.60 |
70-155±1) |
|
|
|
|
|
|
|
|
|
|
crockery, including pots and pans. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
2 |
|
|
|
Pre-Rinse |
cold |
|
|
|
Crockery to be washed later. |
— |
— |
4.0 |
0.03 |
14 ± 1) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
3 |
|
|
|
Glasses |
40°C |
|
|
|
Light soiling, for example glasses |
X |
— |
10.0 |
0.85 |
100 ± 1) |
|
|
|
|
|
|
|
|
|
|
and cups. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
4 |
|
|
|
Quickwash |
45°C |
|
|
|
Lightly soiled crockery, with no |
X |
— |
11.0 |
0.80 |
30 ± 1) |
|
|
|
|
|
|
|
|
|
|
dried-on food. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
5 |
|
|
|
Eco 2) |
50°C |
|
|
|
Normally soiled crockery. |
X |
X |
9.0 |
1.05 |
185 ± |
1) |
|
|
|
|
|
|
Energy-saving programme. |
|
||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
6 |
|
|
|
Overnight |
55°C |
|
|
|
Gentle, quiet cycle for normally |
|
|
|
|
290 ± 1) |
|
|
|
|
|
|
|
soiled crockery, thanks to the |
X |
X |
13.0 |
1.20 |
|||||
|
|
|
|
|
|
|
|
|
lower spray pressure (39dbA). |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1)Programme data obtained in conformity with European standard EN 50242. The data may vary, for example, according to different loads, extra functions, different settings, water supply temperatures, water hardness and power supply voltage.
2)Programme for energy data label in conformity with EN 50242. - Information for Test Laboratories: for detailed information on the EN/Standard loading comparison test and other tests, contact the following address: “nk_customer@whirlpool.com”.
Whirlpool is a registered trademark of Whirlpool USA |
5019 396 01223 |
1
