Before using the dishwasher, read the user instructions!
ADG 637

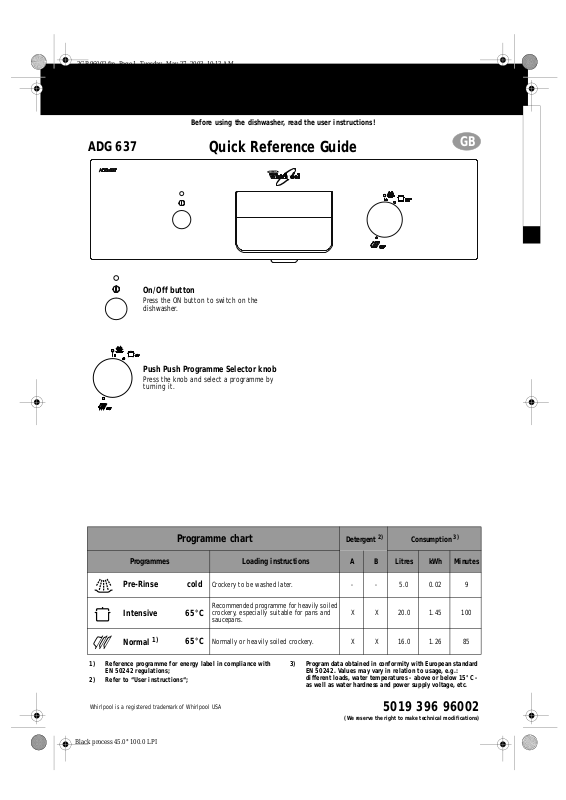

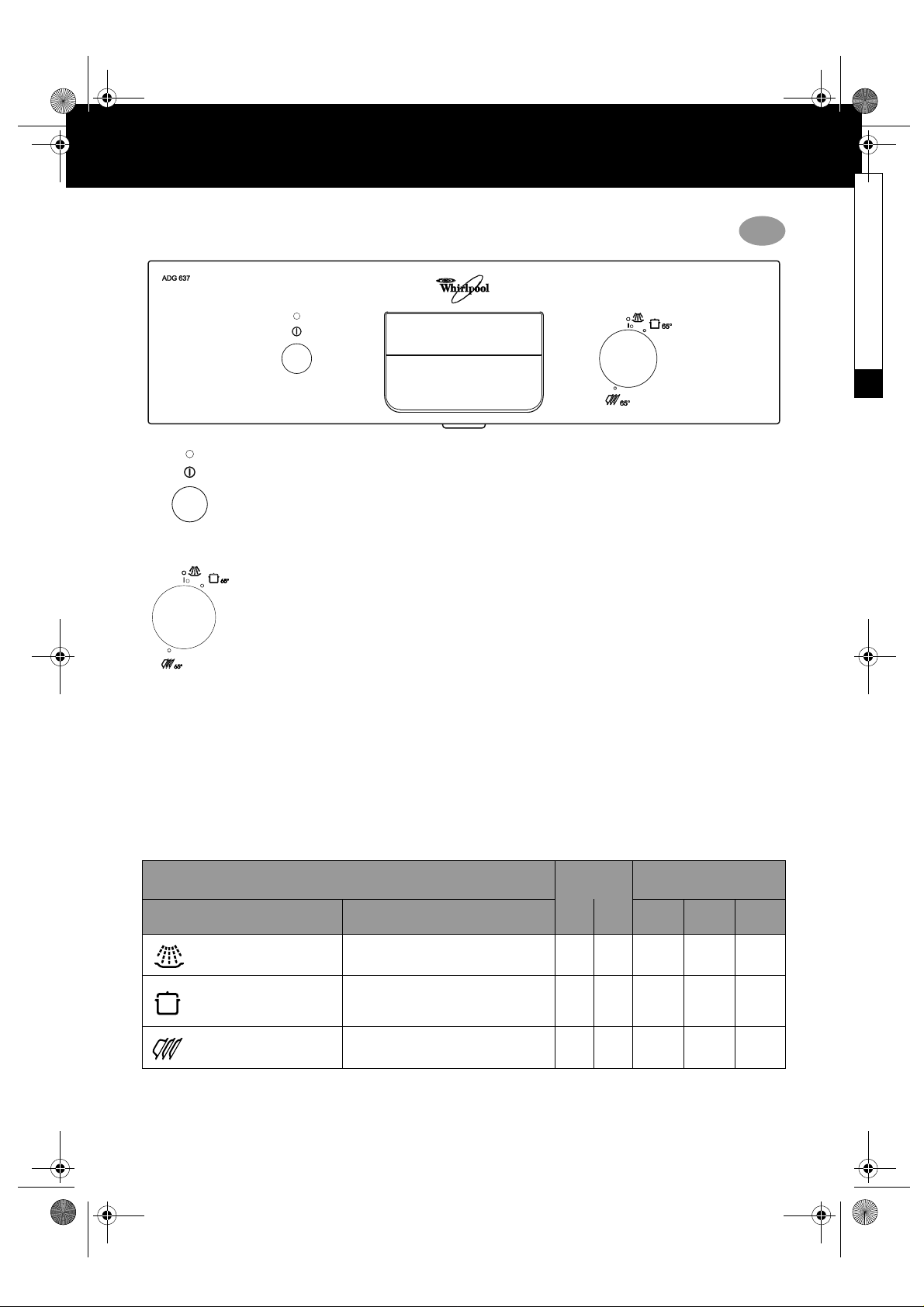

Quick Reference Guide
On/Off button
Press the ON button to switch on the
dishwasher.
Push Push Programme Selector knob
Press the knob and select a programme by
turning it.
GB
Programme chart
Programmes Loading instructions
Pre-Rinse cold
Intensive 65°C
Normal
1) Reference programme for energy label in compliance with
EN 50242 regulations;
2) Refer to “User instructions“;
Whirlpool is a registered trademark of Whirlpool USA
Black process 45.0° 100.0 LPI
1)
Crockery to be washed later. - - 5.0 0.02 9
Recommended programme f or heavily soiled
crockery, especially suitable for pans and
saucepans.
Normally or heavily soiled crockery. X X 16.0 1.26 85
65°C
Detergent
3) Program data obtained in conformity with European standard
EN 50242. Values may vary in relation to usage, e.g.:
different loads, wa ter temperatures - above or below 15°C as well as water hardness and power supply voltage, etc.
2)
A B Litres kWh Minutes
X X 20.0 1.45 100
Consumption
3)
5019 396 96002
(We reserve the right to make technical modifications)
Page 2
D
3GB96002.fm Page 2 Tuesday, May 27, 2003 10:13 AM

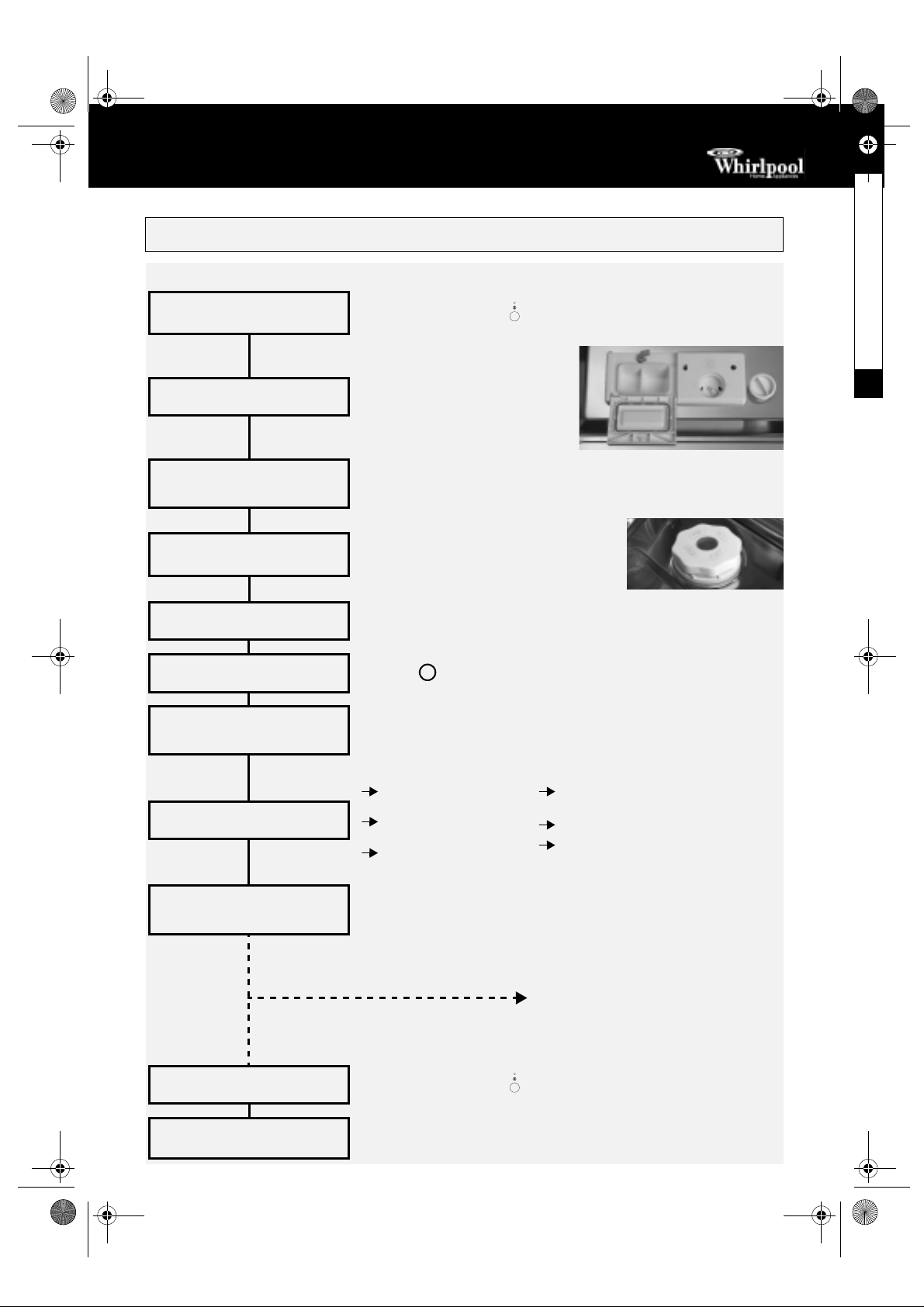

How to use the appliance
Further indications are given in the single chapters and in the user instructions.
Close the door
How to fill the
detergent dispenser
Check the rinse aid level
Check the regeneration
salt level
Load the racks
Select a programme
Select additional options
Press the
Large compartment
With each wash cycle.
Small compartment
For programmes with pre-wash only.
Mechanical indicator C.
Electric indicator on control panel (if provided).
On models with water softener system
only.
Mechanical indicator D.
Electric indicator on control panel
(if provided).
Refer to the dishwasher loading instructions.
Press the knob and select a programme by turning it.
If necessary (and if provided).
The corresponding indicator lamp lights up.
On/Off
button .
A:
B:
A
B
C
Press the On/Off button to
start the programme
Turn on the water tap,
close the dishwasher door
Wa sh cycle
Switch off the appliance
Turn off the water
tap, unload the racks
Black process 45.0° 100.0 LPI
“Cancel”
Press the
switch off the appl iance.
Select Pre-rinse programme
(approx. 10 min.).
Press the
start the selected programme.
Press the
Warning: When the door is opened steam comes out!
Unload the appliance, starting from the lower rack.
On/Off
button to
On/Off
button to
button to switch off the appliance.
On/Off
“Change programme in progress”
On/Off
Press
appliance.
Select another programme.
Press
selected programme.
- Only open the dishwasher if necessary
(Warning: beware of hot steam).
- If the appliance is switch ed o ff d urin g a
wash cycle, when switched on again it
will resume the cycle from where it was
interrupted.
button to switch off the
On/Off
button to start the
Page 3
3GB96002.fm Page 3 Tuesday, May 27, 2003 10:13 AM

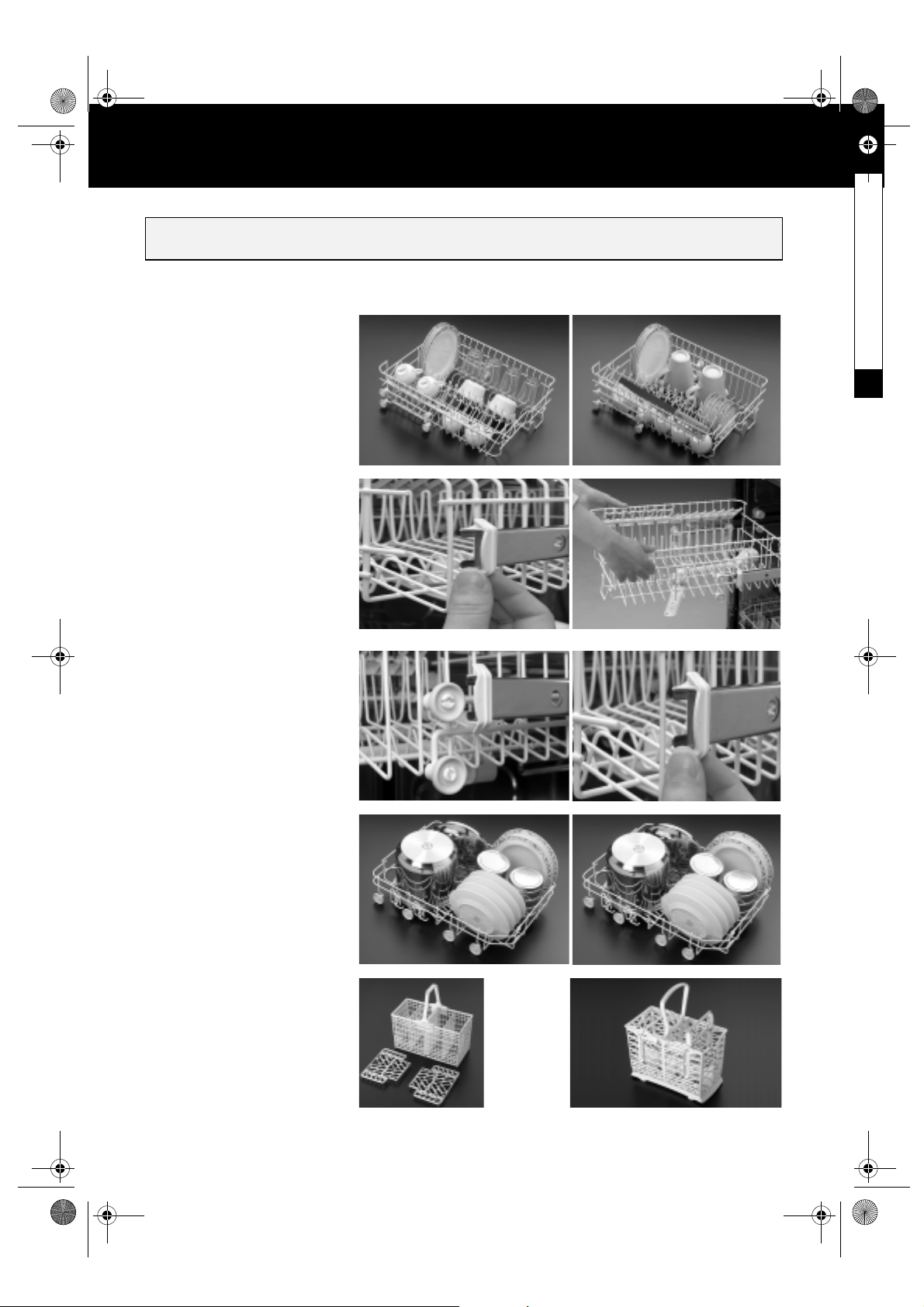

Dishwasher loading instructions and racks provided
Upper rack:
Crockery holder (A):
Depending on the position: up or
down:
Long-handled utensils, cups and
glasses. Place the glasses to the
side of the rack or holders.
Place long and narrow utensils in
the centre of the rack or holders.
Rack height adjustment:
Release the caps (B) of both rack
rails.
Take the rack out.
Reposition the rack at the desired
height.
Close the caps (B).
The rack must be level on both
sides.
A
depending on the model
A
A
B
A
B
Lower rack:
Depending on the model with fixed
or tilting plate holders.
Cutlery basket:
Some models are provided with a
grid (C) that can be fitted onto the
cutlery basket to keep items
separated. Place sharp knives and
forks that might cause injury in the
basket with handles positioned
upwards.
Only use dishwasher-proof crockery and dishes. Do not use the appliance for items not suitable for washing in a
dishwasher, for example wooden items, aluminium, plastic utensils, tin, hand-decorated crockery (unglazed), silver
cutlery.
Black process 45.0° 100.0 LPI
C
C
C
C
Page 4
3GB96002.fm Page 4 Tuesday, May 27, 2003 10:13 AM
What to do if...
If a fault occurs, before contacting our After-Sales Service, make the following checks to try and remedy the problem (* see
also the corresponding chapter in the user instructions).
Problem Cause Remedy
The appliance is not
working
If crockery is not
perfectly dry
If crockery is not
perfectly clean
Sandy or grainy residues
Colour of plastic parts
faded
• No water supply. • Open the tap.
• The appliance does not load sufficient
water.
• There is a power failure. • Insert the plug into the mains socket.
• Insufficient rinse aid. • Increase dosage *.
• Residual water in cavities. • Load crockery at an angle.
• Th e water jet does not reach the
crockery.
• Insufficient detergent. • Follow recommended detergent dosage.
• Unsuitable programme. • Select a more intense wash cycle.
• Spray arms blocked. • The spray arms must be able to turn freely.
• Spray arm nozzles clogged. • Remove any impurities obstructing the water flow *.
• Incorrect detergent/detergent too old. • Use a good quality detergent.
• Clogged filters. • Check filters regularly/if necessary clean *.
• Filters incorrectly assembled. • Insert the filter correctly *.
• Tomato/carrot juice,... • Depending on the material, if necessary use a
• Clean the water supply tap filter.
• Ensure there are no kinks in the water hose.
• Open the door.
• Close the door.
• Check the domestic circuit fuse.
• Arr ang e cr ocke ry so that items d o no t touch each oth er.
Load crockery upside down.
detergent with a greater whitening power.
Deposits on crockery
• removable • Streaks on the crockery/glasses. • Increase the rinse aid dosage *.
• Streaks on glasses. • Reduce the rinse aid dosage *.
• Layer of salt on crockery/glasses. • Close the salt container lid properly *.
• not removable • Insufficient water softening, calcium
Opaque glasses/
deposits.
• Cannot be washed in the dishwasher. • Use suitable glasses.
• Change water hardness setting, if n ece ssary add salt *.
glasses not sparkling
Rust on cutlery
If after carrying out the above checks the malfunction persists or appears again, turn the appliance off and turn off the
water supply tap, then call our After-Sales Service (see guarantee).
Before contacting our After-Sales Service, take note of the following:
• The nature of the fault.
• The appliance type and model.
• The service code (the number indicated on the adhesive rating plate)
inside the d oor on th e ri gh t-hand side .
Black process 45.0° 100.0 LPI
• Not made of stainless steel. • Use suitable cutlery.
