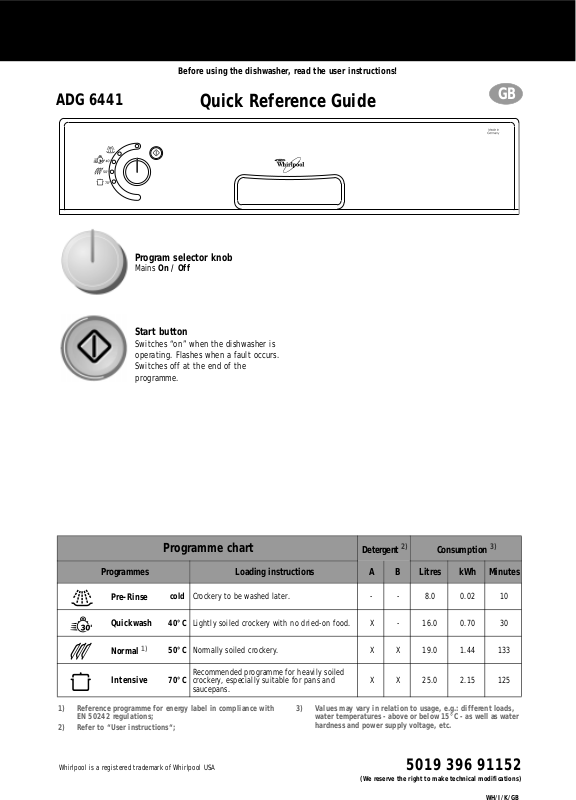

Before using the dishwasher, read the user instructions!
ADG 6441 |
Quick Reference Guide |
GB |
|
Program selector knob
Mains On / Off
Start button
Switches “on” when the dishwasher is operating. Flashes when a fault occurs. Switches off at the end of the programme.
|
Programme chart |
Detergent 2) |
Consumption 3) |
||||
Programmes |
|
Loading instructions |
A |
B |
Litres |
kWh |
Minutes |
|
|
|
|
|
|
|
|
Pre-Rinse |
cold |
Crockery to be washed later. |
- |
- |
8.0 |
0.02 |
10 |
|
|
|
|
|
|
|
|
Quickwash |
40°C |
Lightly soiled crockery with no dried-on food. |
X |
- |
16.0 |
0.70 |
30 |
|
|
|
|
|
|
|
|
Normal 1) |
50°C |
Normally soiled crockery. |
X |
X |
19.0 |
1.44 |
133 |
|
|
|
|
|
|
|
|
Intensive |
70°C |
Recommended programme for heavily soiled |
|
|
|
|
|
crockery, especially suitable for pans and |
X |
X |
25.0 |
2.15 |
125 |
||
|
|
saucepans. |
|
|
|
|
|
|
|
|
|
|
|
|
|
1)Reference programme for energy label in compliance with EN 50242 regulations;
2)Refer to “User instructions“;
Whirlpool is a registered trademark of Whirlpool USA
3)Values may vary in relation to usage, e.g.: different loads, water temperatures - above or below 15°C - as well as water hardness and power supply voltage, etc.
5019 396 91152
(We reserve the right to make technical modifications)
WH/I/K/GB
How to use the appliance
Further indications are given in the single chapters and in the user instructions.
Switch on the appliance
How to fill the detergent
Check the rinse aid level
Check the regeneration salt level
Load the racks
Close the dishwasher door, turn on the water tap
Select a programme
Select options
Press the Start button
Wash cycle
Switch off the appliance
Turn off the water tap, unload the racks
Automatic start by turning the programme selector knob (in case of retractable knob, first press the knob to access it).
Large compartment A: |
|
|
C |
With each wash cycle. |
A |
B |
|
Small compartment B: |
|
|
|
For programmes with pre-wash only. |
|
|
|
Mechanical indicator lamp C.
Electric indicator on control panel (if provided).
On models with water softener system only.
Mechanical indicator lamp D. Electric indicator on control panel (if provided).
Refer to the dishwasher loading instructions.
Select the desired programme.
The corresponding indicator lamp comes on.
If necessary (and if provided) the corresponding indicator lamp lights up.
The selected programme is then memorised (even in the event of power failure).
“Change programme”
Press the START button for 2 sec. until the Start indicator lamp switches off;
Select another programme and press the START button again.
-Only open the dishwasher if necessary (Warning: beware of hot steam).
-If the appliance is switched off during a wash cycle, when switched on again it will resume the cycle from where it was interrupted.
Only after the START button has switched off: Access the knob (in case of retractable knob, press and then release the knob).
Warning: when the door is opened steam comes out!
Unload the appliance, starting from the lower rack.
WH/II/K/GB
