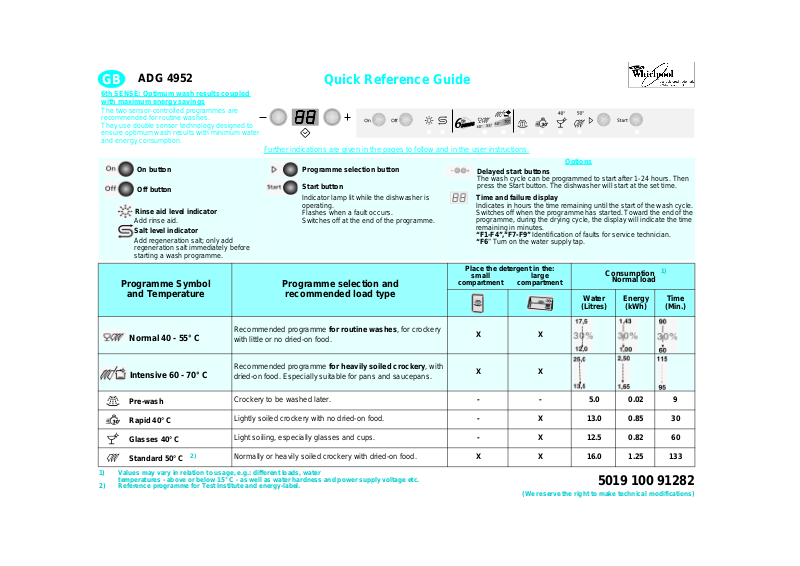

Whirlpool ADG 4952 Quick Reference Guide

6th SENSE: Optimum wash results coupled with maximum energy savings

The two sensor-controlled programmes are recommended for routine washes. They use double sensor technology designed to ensure optimum wash results with minimum water and energy consumption.

ADG 4952

On button

Off button

Rinse aid level indicator

Add rinse aid.

Salt level indicator

Add regeneration salt; only add regeneration salt immediately before starting a wash programme.

Programme Symbol

and Temperature

Quick Reference Guide

Further indications are given in the pages to follow and in the user instructions.

Programme selection button

Start button

Indicator lamp lit while the dishwasher is operating. Flashes when a fault occurs. Switches off at the end of the programme.

Programme selection and

recommended load type

Delayed start buttons

The wash cycle can be programmed to start after 1-24 hours. Then press the Start button. The dishwasher will start at the set time.

Time and failure display

Indicates in hours the time remaining until the start of the wash cycle. Switches off when the programme has started. Toward the end of the programme, during the drying cycle, the display will indicate the time remaining in minutes.

“F1-F4”,“F7-F9”

” Turn on the water supply tap.

“F6

Place the detergent in the:

small large

compartment compartment

Options

Identification of faults for service technician.

Water

(Litres)

Consumption

Normal load

Energy

(kWh)

Time

(Min.)

Normal 40 - 55° C

Intensive 60 - 70° C

Pre-wash

Rapid 40° C

Glasses 40° C

Standard 50° C

1) Values may vary in relation to usage, e.g.: different loads, water temperatures - above or below 15° C - as well as water hardness and power supply voltage etc.

2) Reference programme for Test Institute and energy-label.

Recommended programme with little or no dried-on food.

Recommended programme dried-on food. Especially suitable for pans and saucepans.

Crockery to be washed later.

Lightly soiled crockery with no dried-on food.

Light soiling, especially glasses and cups.

Normally or heavily soiled crockery with dried-on food.

for routine washes

for heavily soiled crockery

, for crockery

, with

X X

- - 5.0 0.02 9

- X 13.0 0.85 30

- X 12.5 0.82 60

X X 16.0 1.25 133

5019 100 91282

(We reserve the right to make technical modifications)

How to use the dishwasher

1. After loading the dishwasher, turn on the water supply tap and open the dishwasher door.

2. Press the On button to switch the dishwasher on.

indicator lamps will light up.

3. Press the programme selecto r button until the corresponding indicator lamp switches on. If required, select options (if supplied).

4. Press the Start button to start the selected wash programme.

indicator lamp will light up.

the programmed data cannot be altered by pressing the programme selector buttons.

once the Start button has been

Note:

pressed, the dishwasher memorises the last programme selected. This information remains in the memory even during interruption of the power supply.

To change the selected programme, open the door

(caution: danger of scalding from steam!)

button for about 5 seconds. The Start indicator lamp will switch off. Select a new programme and press the Start button again.

if the dishwasher is switched off

Note:

during a wash programme, when switched on again it will resume the wash cycle from where it was interrupted.

Only open the dishwasher door if strictly necessary during a wash cycle and exercise maximum caution. Danger of scalding from

5. To indicate the end of a programme,

steam.

an acoustic signal is activated 4 times, the Start indicator lamp switches off and

the End indicator lamp

(if fitted)

One of the programme

and press the Start

lights up

(for about 30 min.)

The Start

Once set,

6. Only open the door once the wash cycle has terminated (caution: danger of scalding from steam) and press the OFF button to switch the dishwasher off.

All the indicator lamps switch

off.

7. Unload the lower rack before the uppe r one. Close the water tap.

Upper rack

Rack height adjustment:

(The dishwasher is delivered with the upper rack in the top position). The rack height can also be changed when loaded.

Upper and lower rack

• To lower: pull out the handles and gently lower the rack.

• To raise: pull up the until the rack clicks into place.

• The rack must be level on both sides.

Crockery holders:

• Down: cups and long-stemmed glasses.

•

Up: plates.

“Flex 3”: multi-purpose support

• To be used, for example, for long-handled utensils

knives with the blade facing downwards),

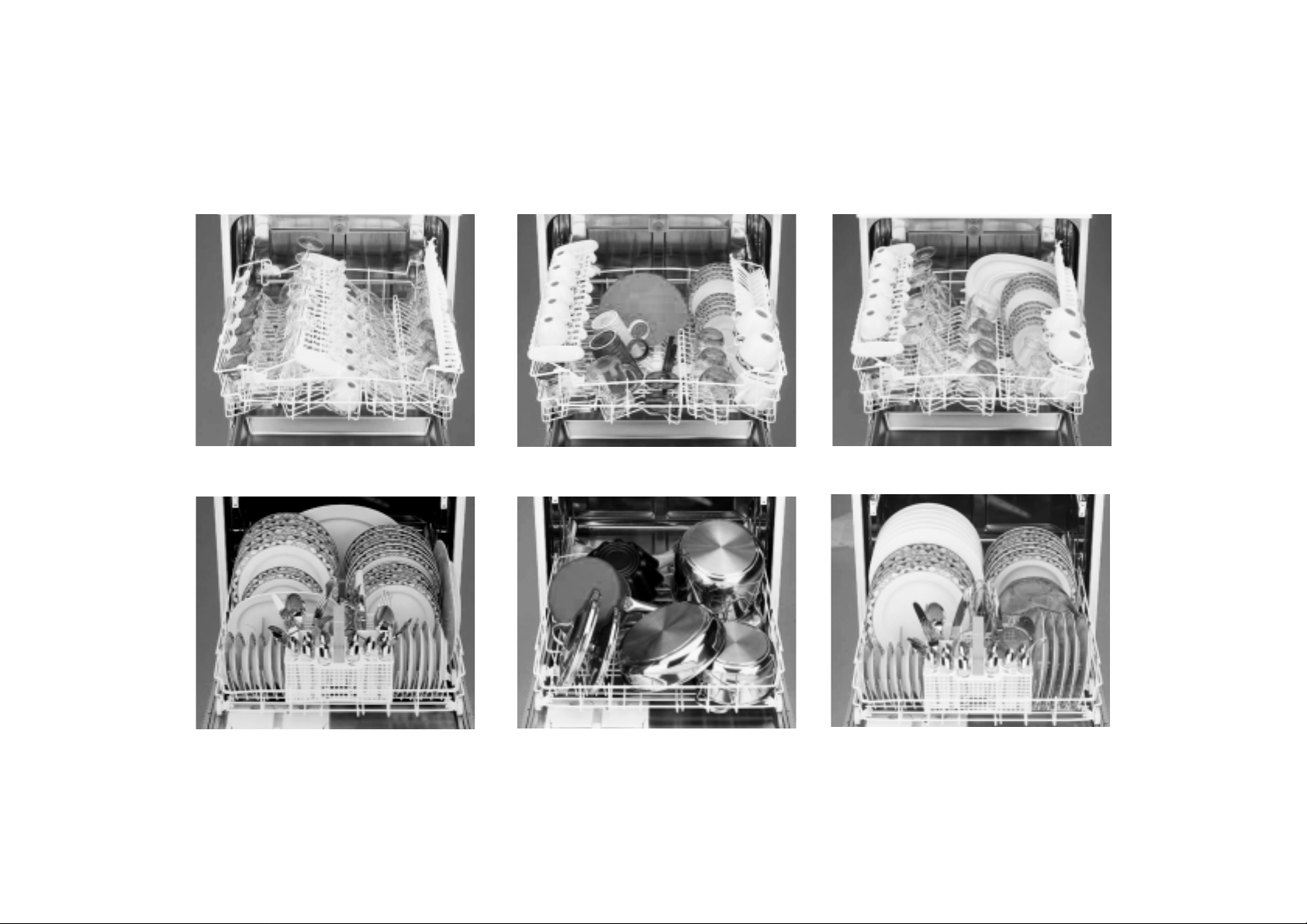

• May be used in three different positions (see also “Dishwasher loading instructions” on Page 4).

1. Upon the left-hand side of the rack.

2. Upside-down, towards the centre of the rack.

3. Upside-down, towards the left side.

cups and glasses.

Glass holder:

two

side handles

two

(arrange

side

Lower rack

Plate holders:

• (A) may be lowered to increase available space.

Cutlery basket:

• The cutlery basket can be removed to increase (C) available space.

• Some models are provided with a grid (D) that can be fitted onto the cutlery basket.

Please read the user instructions carefully.
