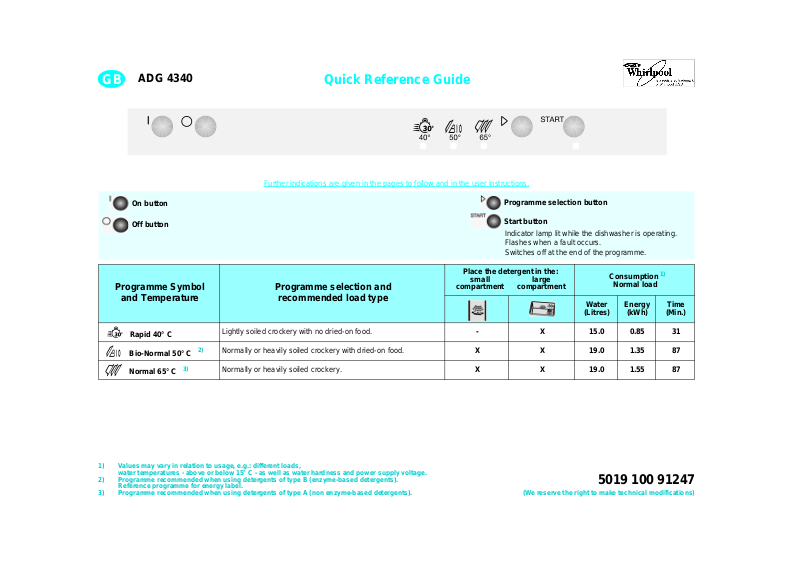

Whirlpool ADG 4340 Quick reference guide
GB
ADG 4340
Quick Reference Guide
Further indications are given in the pages to follow and in the user instructions.
On button
Off button
Programme Symbol
and Temperature
Rapid 40° C
Bio-Normal 50° C
Normal 65° C
1) Values may vary in relation to usage, e.g.: different loads,
water temperatures - above or below 15° C - as well as water hardness and power supply voltage.
2) Programme recommended when using detergents of type B (enzyme-based detergents).
Reference programme for energy label.
3) Programme recommended when using detergents of type A (non enzyme-based detergents).
3)
Lightly soiled crockery with no dried-on food.
2)
Normally or heavily soiled crockery with dried-on food.
Normally or heavily soiled crockery.
Programme selection and
recommended load type
Programme selection button
Start button
Indicator lamp lit while the dishwasher is operating.
Flashes when a fault occurs.
Switches off at the end of the programme.
Place the detergent in the:
small large
compartment compartment
- X 15.0 0.85 31
X X 19.0 1.35 87
X X 19.0 1.55 87
Water
(Litres)
Consumption
Normal load
Energy
(kWh)
5019 100 91247
(We reserve the right to make technical modifications)
1)
Time
(Min.)
C
C
How to use the dishwasher
1. After loading the dishwasher, turn on
the water supply tap and open the
dishwasher door.
2. Press the ON button to switch the
dishwasher on.
indicator lamps will switch on.
3. Press the programme selector button
until the corresponding indicator lamp
switches on. If required, select options
(if supplied).
4. Press the Start button to start the
selected wash programme.
corresponding indicator lamp
switches on.
programmed data cannot be altered by
pressing the programme selector button.
Once the Start button has been
Note:
pressed, the dishwasher memorises the
last programme selected. This
information remains in the memory even
during interruption of the power supply.
To change the selected
programme, press the Start button
for about 5 seconds,
indicator lamp switches off.
Select a new programme using the
programme selector knob and
press the Start button.
If the dishwasher is switched off
Note:
during a wash programme, when
switched on again it will resume the
wash cycle from where it was
interrupted.
Only open the dishwasher door if
strictly necessary during a wash
cycle and exercise maximum
caution. Danger of scalding from
steam.
5. To indicate the end of a programme, an
acoustic signal is activated 4 times, the
Start indicator lamp switches off and
End indicator lamp (if fitted)
(for approx. 30 min.)
One of the programme
The
Once set, the
until the Start
the
lights up
.
6. Only open the door once the wash
cycle has terminated (caution: danger
of scalding from steam) and press the
OFF button to switch the dishwasher
off.
All the indicator lamps switch
off.
7. Unload the lower rack before t he upper
one. Close the water tap.

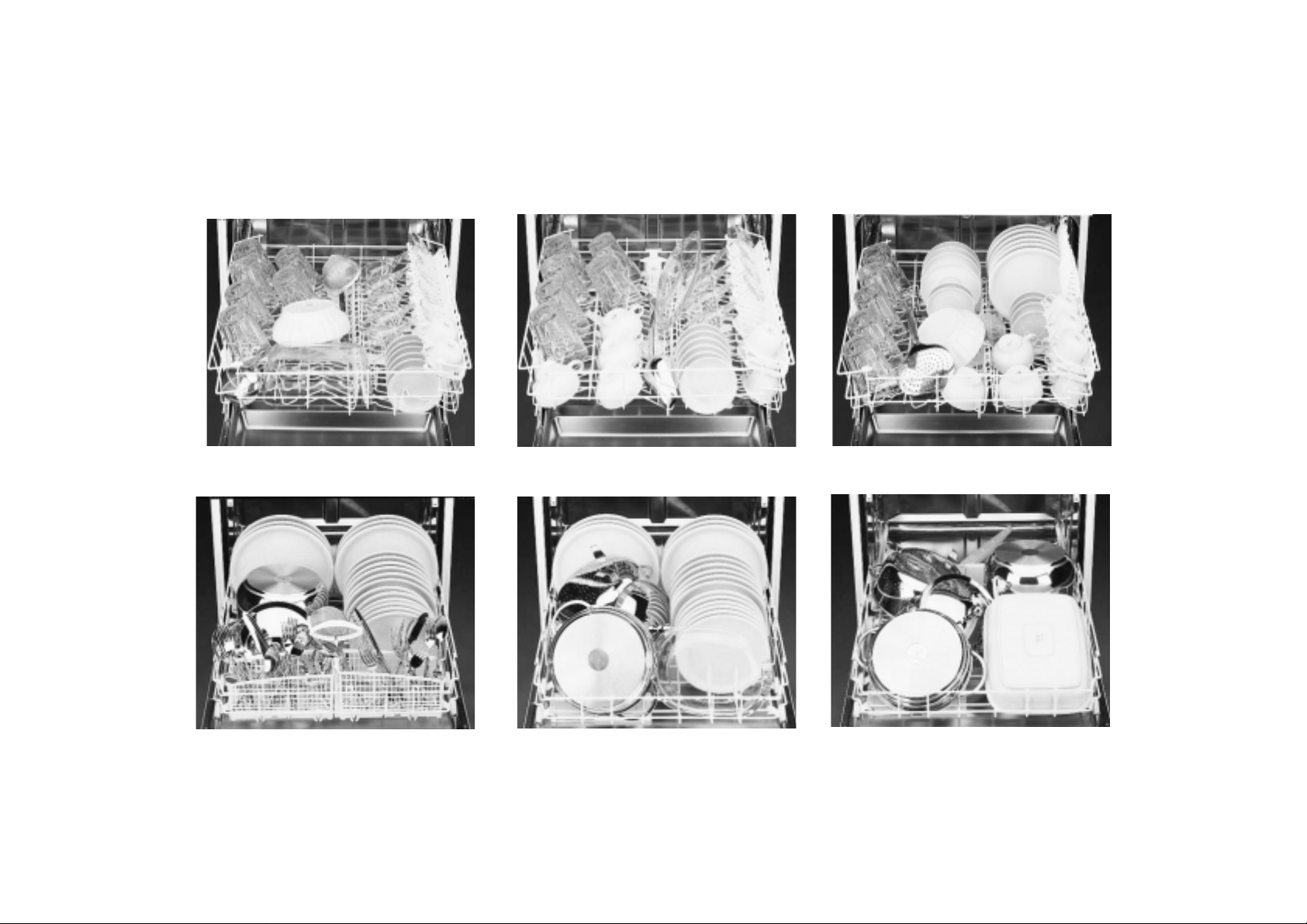

Upper rack
Upper and lower rack
Crockery Holders:
• Down: cups and long-stemmed
glasses.
• Up: plates.
Lower rack
Cutlery basket (C):
• With or without handle (depending
on model).
• The cutlery basket can be removed
to increase available space.
Please read the user instructions carefully.
