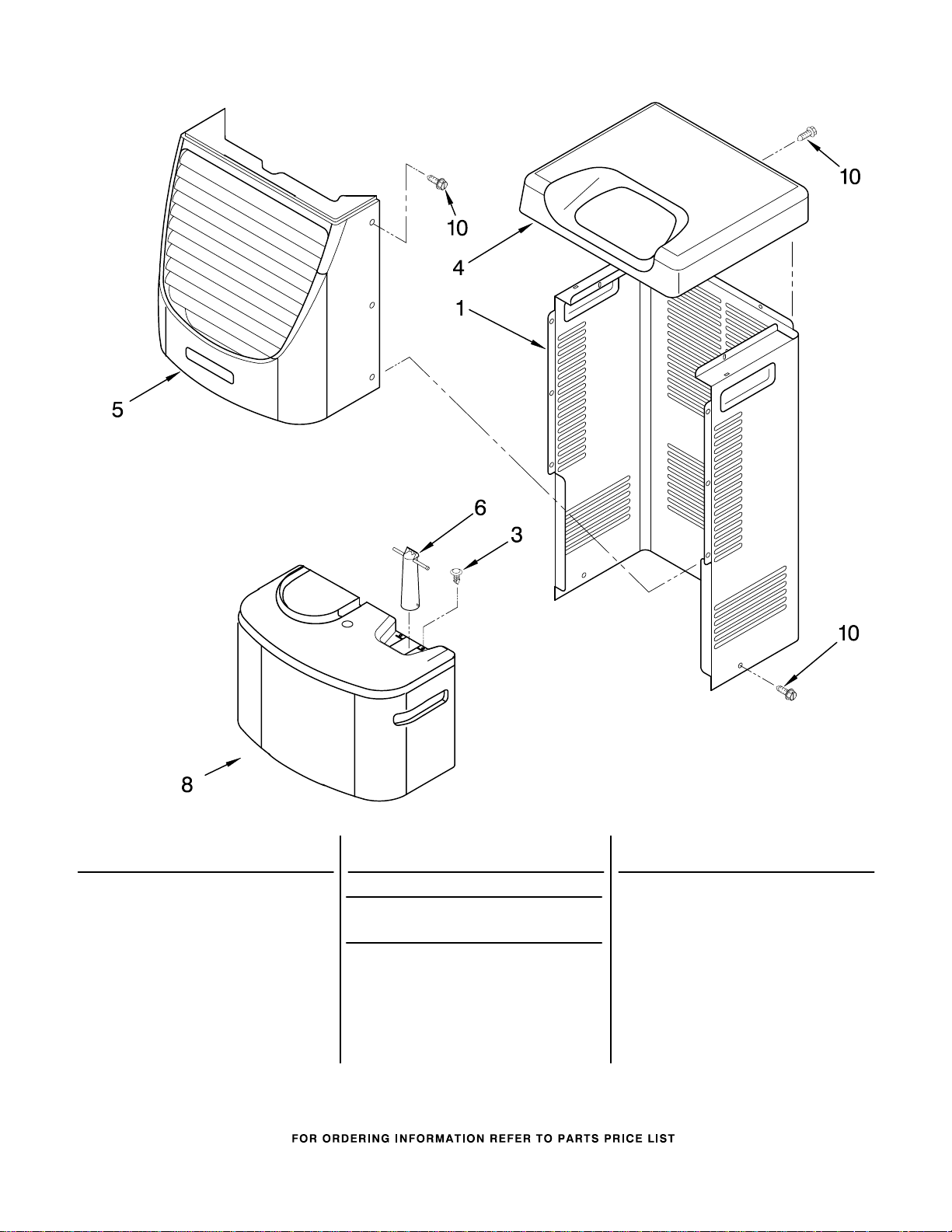

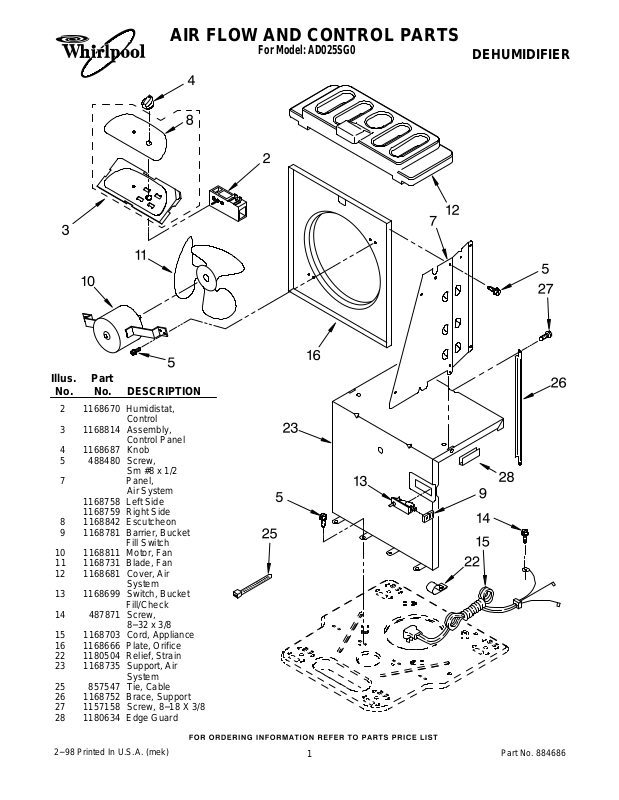

AIR FLOW AND CONTROL PARTS

For Model: AD025SG0

DEHUMIDIFIER

Illus. Part

No. No. DESCRIPTION

2 1168670 Humidistat,

Control

3 1168814 Assembly,

Control Panel
4 1168687 Knob
5 488480 Screw,

Sm #8 x 1/2
7 Panel,

Air System

1168758 Left Side

1168759 Right Side
8 1168842 Escutcheon
9 1168781 Barrier, Bucket

Fill Switch

10 1168811 Motor, Fan

11 1168731 Blade, Fan

12 1168681 Cover, Air

System

13 1168699 Switch, Bucket

Fill/Check

14 487871 Screw,

8−32 x 3/8
15 1168703 Cord, Appliance
16 1168666 Plate, Orifice
22 1180504 Relief, Strain
23 1168735 Support, Air

System
25 857547 Tie, Cable
26 1168752 Brace, Support
27 1157158 Screw, 8−18 X 3/8
28 1180634 Edge Guard

2−98 Printed In U.S.A. (mek)

1

Part No. 884686

UNIT PARTS

For Model: AD025SG0

Illus. Part

No. No. DESCRIPTION

2 1172076 Tube, Restrictor

(Length 36.00")
3 1162526 Strainer
4 1169762 Bend, Return (2)
6 950061 Spring, Overload
7 1181854 Condenser
8 708531 Bend, Return (12)

10 1172077 Overload,

Protector

11 950058 Relay, Start

Production Compressor Requires Production Electrical Components.

Service Compressor Requires Service Electrical Components.

For Further Information, Refer to Filmcard 19.1.

Illus. Part

No. No. DESCRIPTION

12 950055 Cover, Terminal
13 950056 Retainer, Cover
14 1168726 Evaporator
15 488480 Screw, 8 x 1/2 (4)
16 680975 Washer
17 24364001 Clip, Compressor
19 1168810 Harness, Wire
20 1168722 Grommet (4)
21 1168654 Base
22 1164241 Caster (4)

2

Illus. Part

No. No. DESCRIPTION

25 1164773 Compressor,

(Complete

Assembly)
26 1168761 Pan, Drain
27 854624 Bend, Return (9)
29 1162650 Insulation

(Restrictor Tube)

REFRIGERANT CHARGE

6.75 oz.

884686
