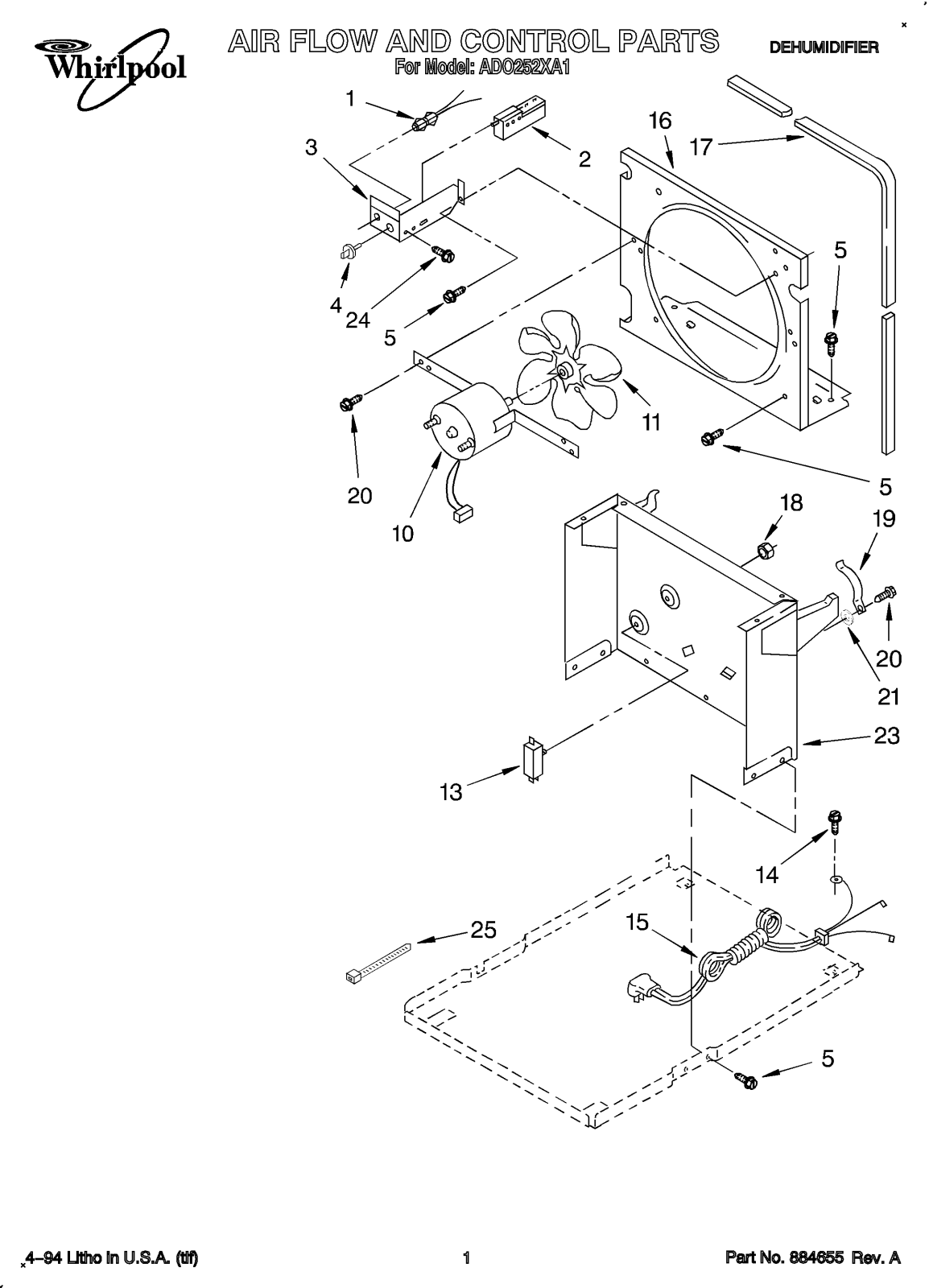

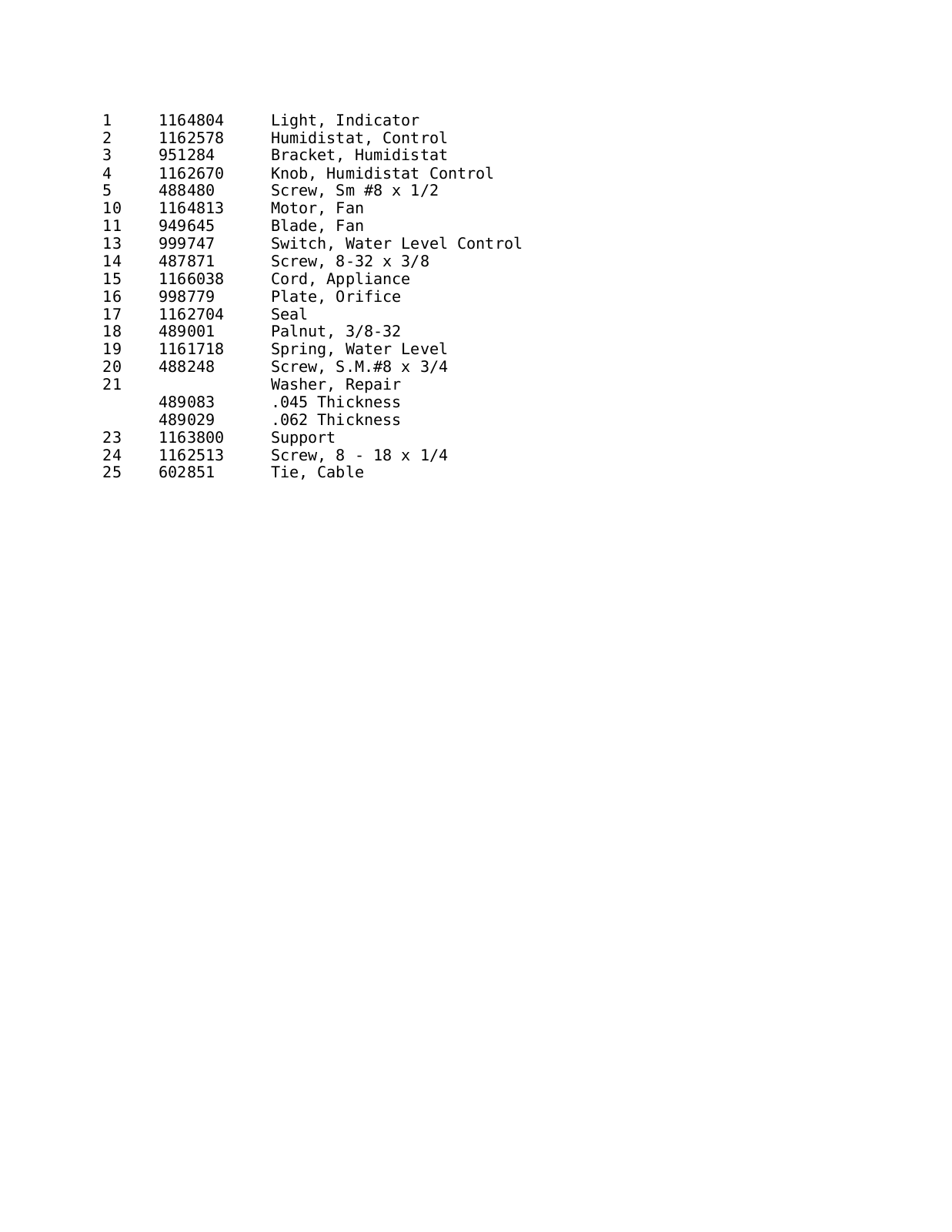

1 1164804 Light, Indicator
2 1162578 Humidistat, Control
3 951284 Bracket, Humidistat
4 1162670 Knob, Humidistat Control
5 488480 Screw, Sm #8 x 1/2
10 1164813 Motor, Fan
11 949645 Blade, Fan
13 999747 Switch, Water Level Control
14 487871 Screw, 8-32 x 3/8
15 1166038 Cord, Appliance
16 998779 Plate, Orifice
17 1162704 Seal
18 489001 Palnut, 3/8-32
19 1161718 Spring, Water Level
20 488248 Screw, S.M.#8 x 3/4
21 Washer, Repair
489083 .045 Thickness
489029 .062 Thickness
23 1163800 Support
24 1162513 Screw,8-18x1/4
25 602851 Tie, Cable
