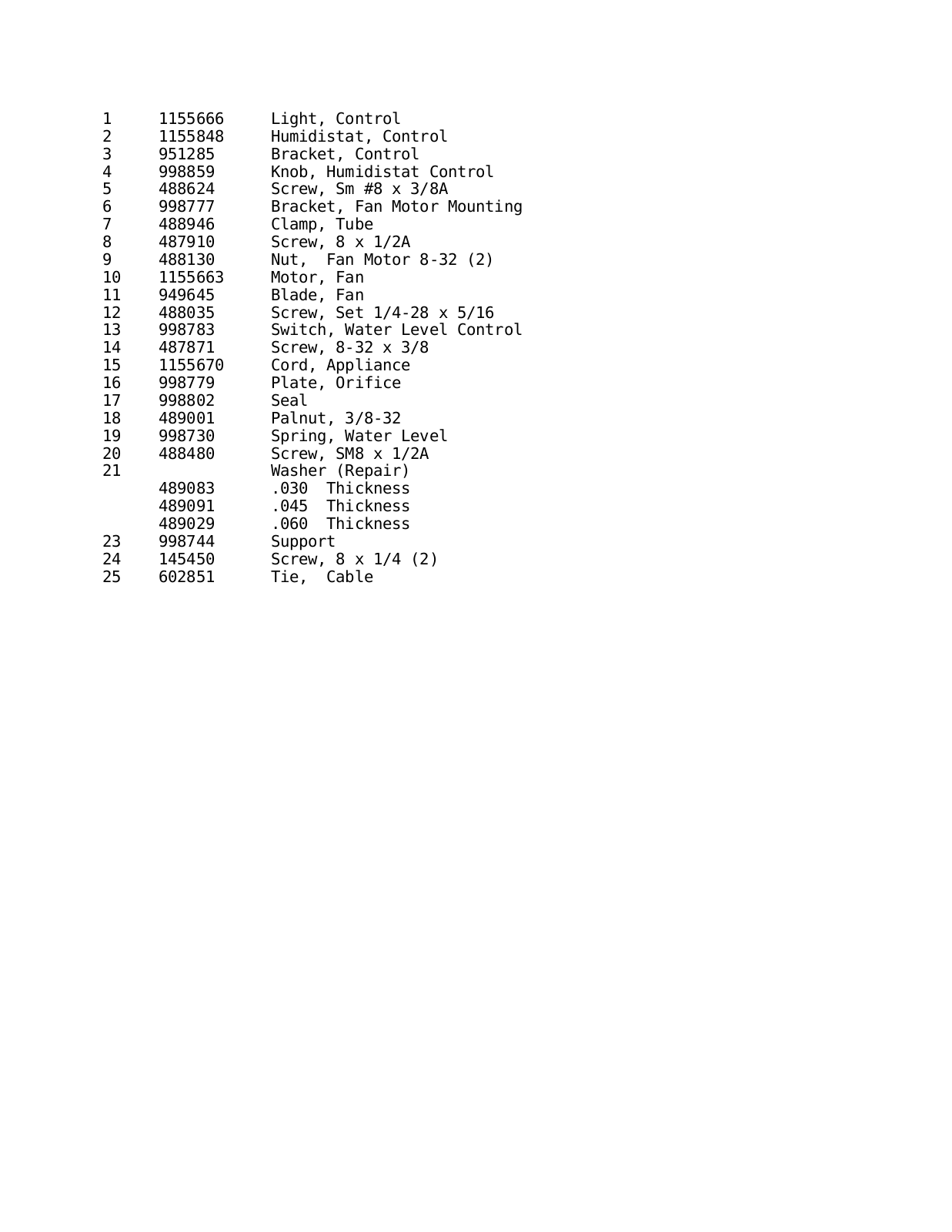

Whirlpool Ad0202xm1 Installation Template

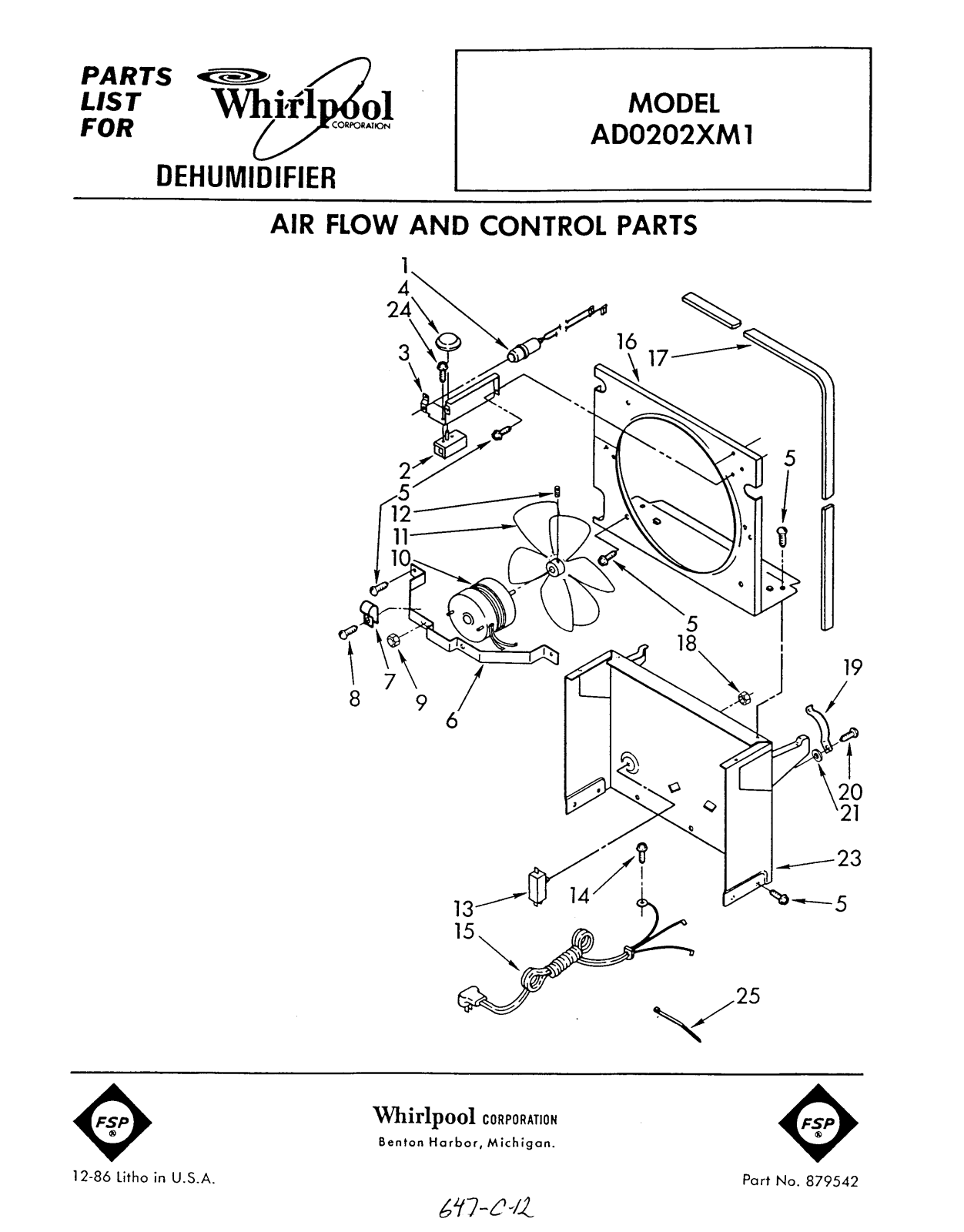

1 1155666 Light, Control
2 1155848 Humidistat, Control
3 951285 Bracket, Control
4 998859 Knob, Humidistat Control
5 488624 Screw, Sm #8 x 3/8A
6 998777 Bracket, Fan Motor Mounting
7 488946 Clamp, Tube
8 487910 Screw, 8 x 1/2A
9 488130 Nut, Fan Motor 8-32 (2)
10 1155663 Motor, Fan
11 949645 Blade, Fan
12 488035 Screw, Set 1/4-28 x 5/16
13 998783 Switch, Water Level Control
14 487871 Screw, 8-32 x 3/8
15 1155670 Cord, Appliance
16 998779 Plate, Orifice
17 998802 Seal
18 489001 Palnut, 3/8-32
19 998730 Spring, Water Level
20 488480 Screw, SM8 x 1/2A
21 Washer (Repair)

489083 .030 Thickness
489091 .045 Thickness

489029 .060 Thickness
