Whirlpool Ad0122xm3 Installation Template

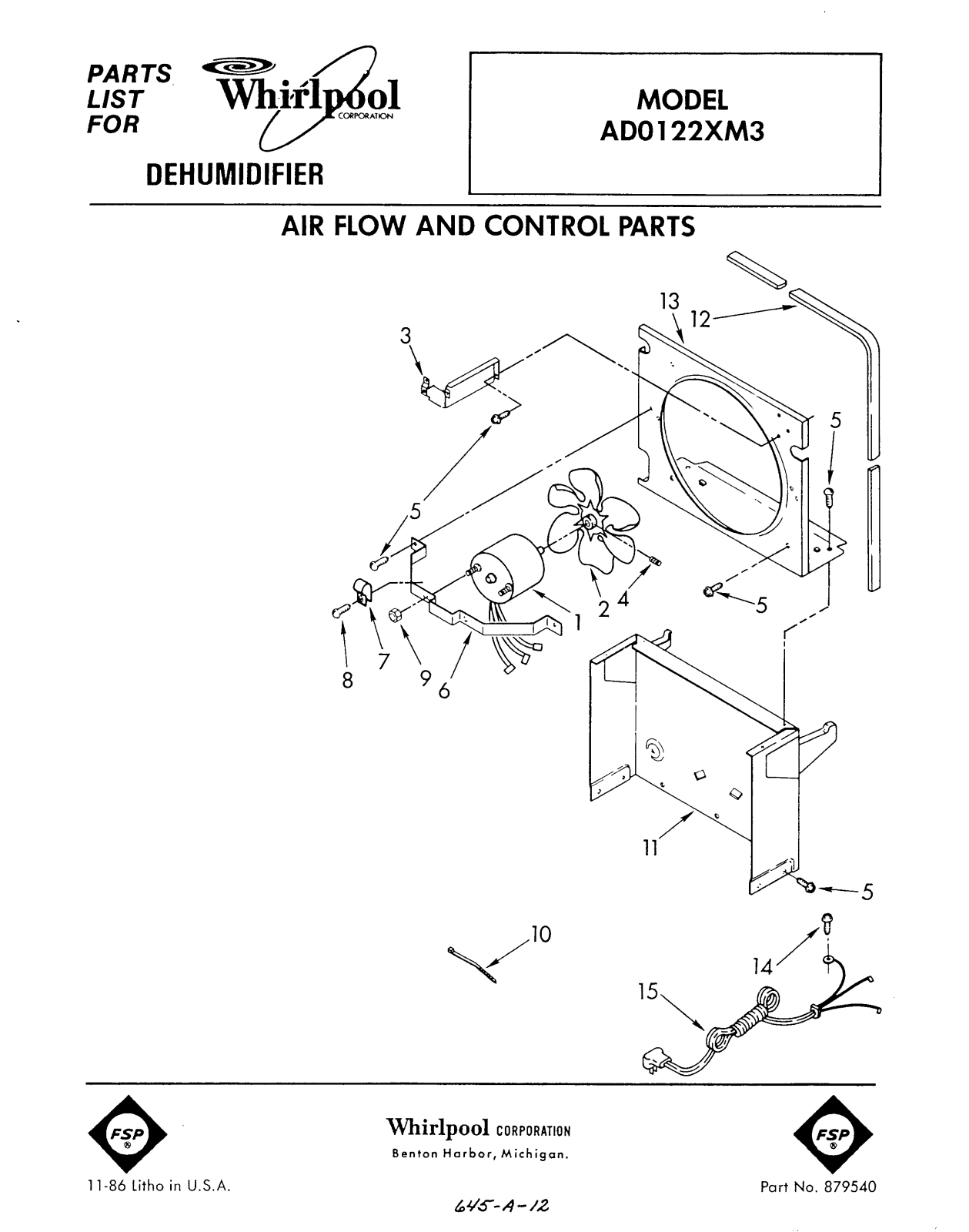

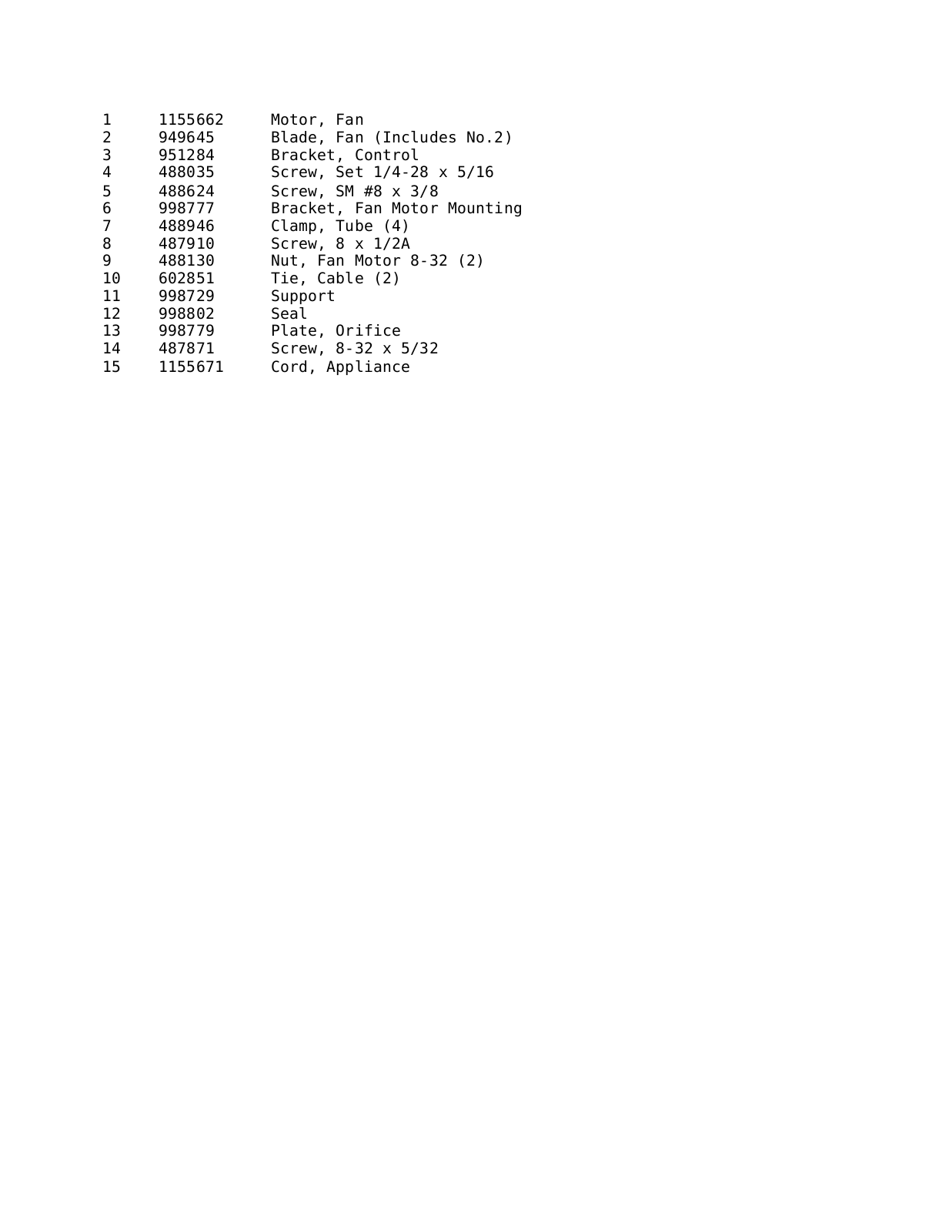

1 1155662 Motor, Fan
2 949645 Blade, Fan (Includes No.2)
3 951284 Bracket, Control
4 488035 Screw, Set 1/4-28 x 5/16
5 488624 Screw, SM #8 x 3/8
6 998777 Bracket, Fan Motor Mounting
7 488946 Clamp, Tube (4)
8 487910 Screw, 8 x 1/2A
9 488130 Nut, Fan Motor 8-32 (2)
10 602851 Tie, Cable (2)
11 998729 Support
12 998802 Seal
13 998779 Plate, Orifice
14 487871 Screw, 8-32 x 5/32
15 1155671 Cord, Appliance
