Ad0122xm2
3 |
951284 |

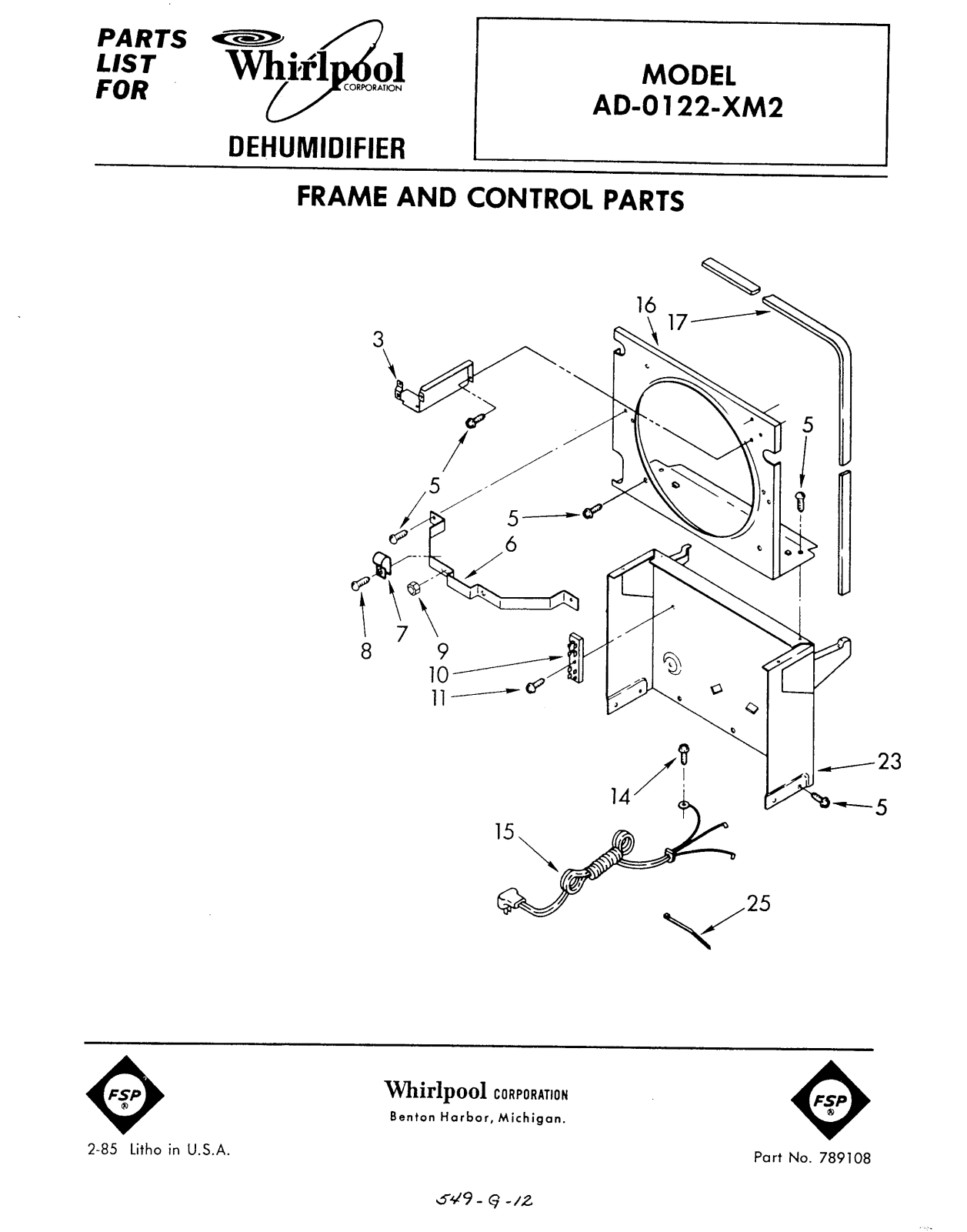

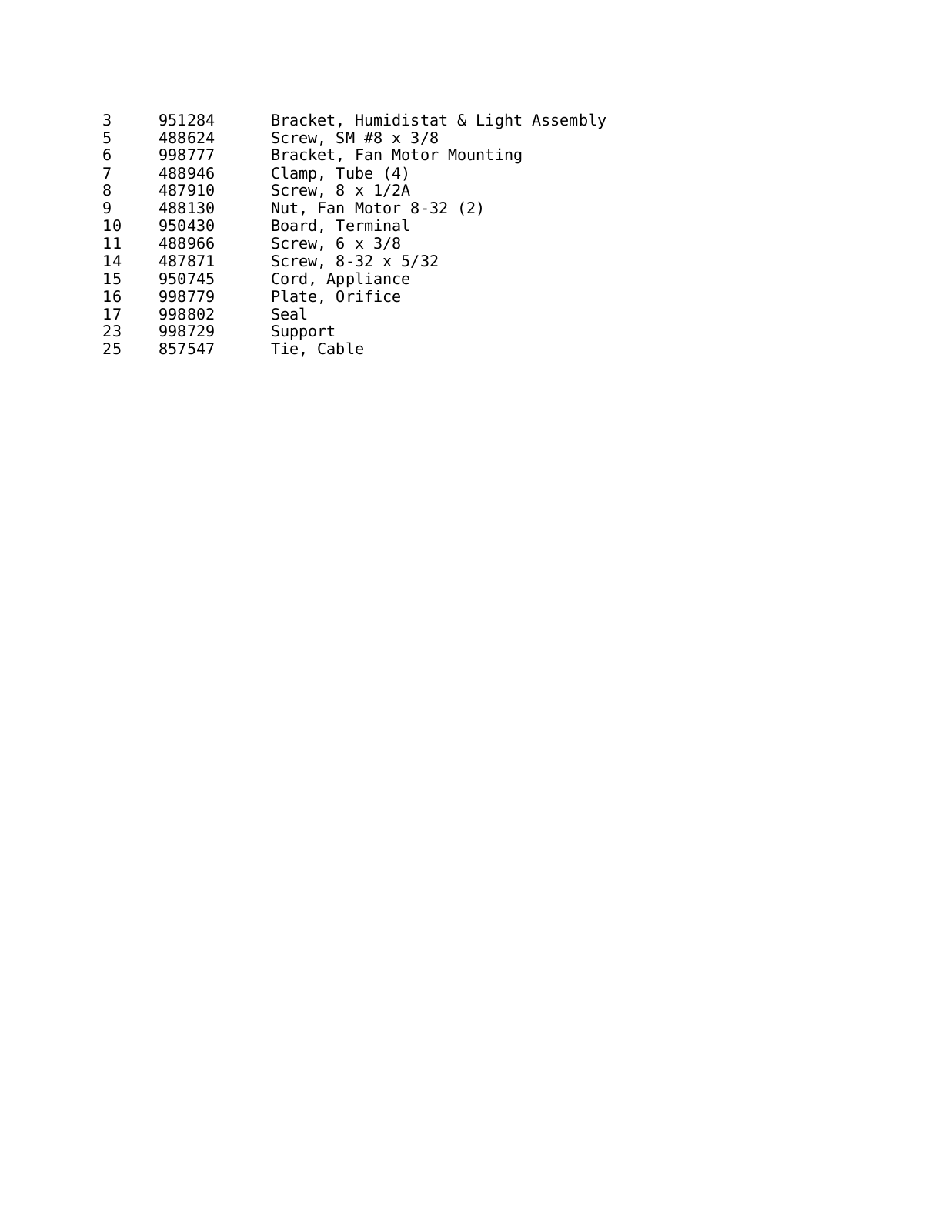

Bracket, Humidistat & Light Assembly |
5488624 Screw, SM #8 x 3/8
6998777 Bracket, Fan Motor Mounting
7488946 Clamp, Tube (4)
8487910 Screw, 8 x 1/2A
9488130 Nut, Fan Motor 8-32 (2)
10950430 Board, Terminal
11488966 Screw, 6 x 3/8
14487871 Screw, 8-32 x 5/32
15950745 Cord, Appliance
16998779 Plate, Orifice
17 |
998802 |
Seal |
|
23 |
998729 |
Support |
|
25 |
857547 |
Tie, |
Cable |
