Page 1
UNIT PARTS
For Model: ACPE102PS2
PORTABLE
AIR CONDITIONER
HEAT/COOL
2−07 Litho In U.S.A. (dmm)
1
Part No. W10115135
Page 2
UNIT PARTS
For Model: ACPE102PS2
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
8215247 Guide, Use & Care
8215248 Diagram, Wiring
2 8215210 Condenser
3 8215225 Tube Restrictor
Assembly
10 8215197 Compressor,
Assembly
11 8215198 Overload
14 8215206 Motor, Fan
15 8215207 Base, Motor
16 8215208 Fan
17 8215209 Spring
21 8215217 Heater Assembly
22 8215204 Switch, Level
24 8215200 Roller
25 8215203 Base
27 Support, Back
8215205 Right
8215202 Left
28 Support, Front
8215201 Right
8215196 Left
29 8215218 Evaporator
30 8215195 Support (Right)
31 8215193 Support (Left)
32 8215194 Support (Front)
33 8215219 Thermistor
34 8215199 Grommet
REFRIGERANT CHARGE
21.6 oz.
2
W10115135
Page 3
AIRFLOW AND CONTROL PARTS
For Model: ACPE102PS2
W10115135
3
Page 4

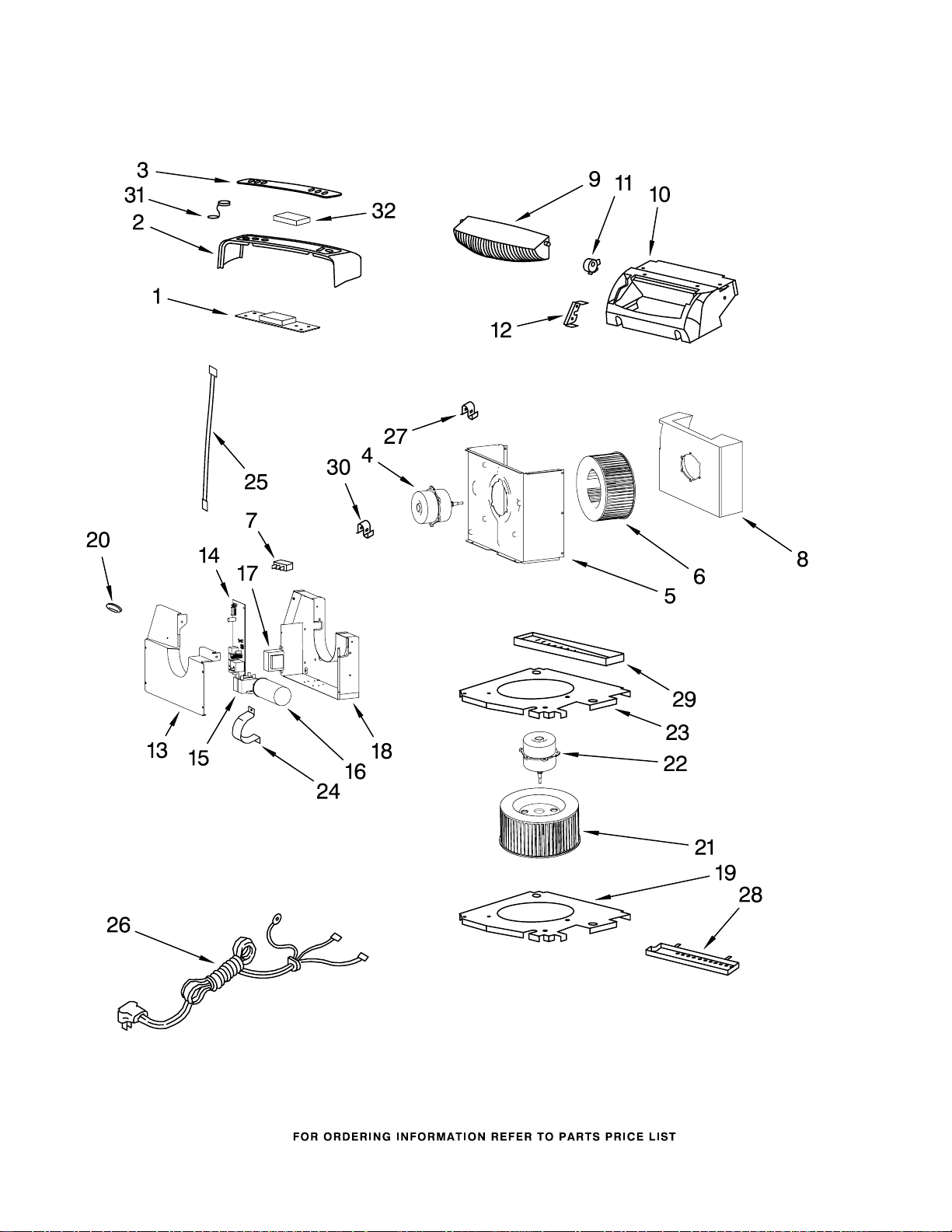

AIR FLOW AND CONTROL PARTS
For Model: ACPE102PS2
Illus. Part
No. No. DESCRIPTION
1 8215169 PC−Board, Control
2 8215087 LCD Cover
3 8215168 Overlay
4 8215177 Motor, Upper
5 8215176 Plate, Motor
6 8215173 Wheel Blower,
Upper
7 8215089 Board, Terminal
8 8215174 Housing, Air
9 8215179 Louver Assembly
10 8215170 Base, Louver
11 8215171 Motor, Louver
12 8215172 Bracket, Motor
13 8215188 Cover, Control Box
14 8215181 PC−Board, Power
15 Capacitor, Fan
8215183 Motor (Upper)
8215184 Motor (Lower)
16 8215182 Capacitor,
Compressor
17 8209806 Transformer
18 8215180 Box, Control
19 8215191 Insulation Plate
Lower
20 8215189 Receiver Board
21 8215215 Wheel Blower,
Lower
22 8215214 Motor, Lower
23 8215213 Insulation Plate
Middle
24 8215186 Bracket, Capacitor
25 8215220 Thermistor
26 8215270 Cord−Power
27 8215175 Clip
28 8215192 Pan, Drain
29 8215216 Pan, Drain
30 8215221 Clip
31 8215088 Cover, Screw
32 8215156 Display Window
4
W10115135
Page 5
CABINET PARTS
For Model: ACPE102PS2
W10115135
5
Page 6
CABINET PARTS
For Model: ACPE102PS2
Illus. Part
No. No. DESCRIPTION
1 8215231 Control, Remote
3 8215190 Panel, Front
4 8215212 Panel, Rear
5 8215229 Connector
6 8215223 Clip
7 8215224 Grille, Air
8 8215185 Connector, Square
9 8215228 Connector
10 8215227 Exhaust Tube
11 8215230 Connector Square
13 8215222 Filter
14 8215178 Left Panel
15 8215211 Right Panel
16 8215187 Window, Remote
Control
FOLLOWING PARTS
NOT ILLUSTRATED
8215258 Plug, Drain Hose
8215259 Clamp, Drain Hose
8215261 Drain Hose
8215251 Window Slider Kit
8215260 Clip, Drain Hose
8209726 Screw
8215231 Remote
6
W10115135
